Icom

IC-M410BB

ICOM IC-M410BB black box fixed VHF

La VHF fixe boîte noire ICOM IC-M410BB offre une communication marine essentielle avec une puissance de 25 W et une intégration système avancée. Dotée du Class D DSC, d'un GPS interne et des connectivités NMEA 2000/0183, elle garantit sécurité et fiabilité. Ce modèle, positionné sous l'IC-M510BB sans AIS intégré ni enregistrement vocal, inclut une unité RF étanche IPX7, un CommandMic™ et un câble OPC-1540 de 6.1 m.

Prix publicBénéficier du tarif pro

898,80€

Incl. tax Shipping calculated at checkout.

In stock

Livraison offerte dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Maximum power consumption	66
Typical power consumption	66 W
Operating voltage	12.0 V DC nominal (10.8 – 15.6)
Operating temperature	-20 à 60
Recommended fuse rating	7.5
Wired network	NMEA 2000,NMEA 0183,NMEA 0183-HS
Wireless connectivity	N/A
Audio output power	Plus de 2 W (CommandMic™) et plus de 13 W (haut-parleur externe)
Product height	79
Product width	216
Product depth	113
Detachable handset	Oui
NMEA 2000 load equivalence (LEN)	Non spécifié
IP rating	IPX7
Bus compatibility	NMEA 2000,NMEA 0183
Compass safe distance	Non spécifié
Mounting type	Déporté
Certifications	Class D DSC,EN301 025,EN 300 338-8
AIS class	N/A
AIS reception	Non
AIS transmission	Non
ATIS	Oui
Antenna connector	SO-239
DSC	Class D
GPS	Oui (interne)
Intercom function	Oui
VHF frequency range	156.025 à 162.000
VHF transmit power	25 / 1
Max wired handsets	2.0
Max AIS targets	N/A
Screen resolution	N/A
Display type	Écran sur CommandMic™ déporté
Audio rewind feature	Non
GPS antenna connector	N/A
Detachable fist mic	N/A
Package contents	Unité RF, CommandMic™ HM-195, câble OPC-1540 (6.1 m)
Available alarms	Détresse DSC, Urgence, Sécurité

Accessoires

RG58 PUR coaxial cable for VHF

5,48€

5,48€ m

Shop

10mm² HI FLEX Red Cable

5,74€

5,74€ m

Shop

10mm² HI FLEX cable Black

5,74€

5,74€ m

Shop

Description détaillée

The ICOM IC-M410BB black box fixed VHF is a robust, integrated marine communication solution designed for vessels requiring a high-performance VHF with a discreet installation. This "black box" unit consists of a compact RF module (216 × 79 × 113 mm) to be installed separately, and a remote CommandMic™ HM-195, allowing full control of all functions from the helm station. With selectable output power of 25 W or 1 W, it ensures reliable communication range on TX frequencies from 156.025 to 161.425 MHz and RX frequencies from 156.050 to 162.000 MHz.

Connectivity and Essential Functions

The ICOM IC-M410BB integrates critical safety features, including Class D DSC (Digital Selective Calling), compliant with EN301 025 and EN 300 338-8 standards. It features an internal GPS (GNSS) receiver, including a GPS antenna for the EUR version, ensuring accurate position transmission during distress calls without requiring an external GPS source. Connectivity is optimized with NMEA 2000, NMEA 0183, and NMEA 0183-HS interfaces, enabling seamless integration with chartplotters, AIS (external receivers), and other onboard navigation systems. The CommandMic™ delivers audio power exceeding 2 W, complemented by a hailer output of over 13 W, ensuring clear sound even in noisy environments. Additionally, the active noise cancellation function significantly improves communication quality.

Positioning and Durability

Compared to the ICOM IC-M510BB, the ICOM IC-M410BB black box fixed VHF stands out by lacking an integrated AIS receiver and voice recording function. This positioning makes it ideal for users who already have a separate AIS receiver or whose needs do not require these additional features. It retains essential communication and safety capabilities, including internal GPS and noise cancellation. The RF unit is designed for the marine environment, with an IPX7 rating, ensuring water resistance at 1 meter depth for 30 minutes. Its compact weight (870 g for the RF unit) and extended operating temperature range (-20°C to 60°C) attest to its robustness and reliability at sea. The unit is supplied with a 6.1-meter OPC-1540 cable for flexible CommandMic™ installation.

Documentations

Type	Nom
	EN - Brochure technique - VHF fixe boîte noire

Avis de l'expert

« VHF ICOM IC-M410BB: essential and integrated marine communication »

The ICOM IC-M410BB fixed black-box VHF radio is a strategic communication solution for vessels where optimizing helm space is critical. Its "black box" architecture allows the RF unit to be remotely mounted, leaving only the CommandMic™ HM-195 as the visible interface. This approach simplifies both aesthetic and functional integration on compact navigation consoles. The built-in Class D DSC integration is a major safety asset, and the internal GPS receiver ensures immediate transmission of precise coordinates in emergencies, even if the MFD fails or is disconnected. The NMEA 2000 and NMEA 0183/HS interfaces provide extended compatibility with existing electronic systems, enabling the VHF to fully integrate into the navigation ecosystem for exchanging position, heading, and AIS data (via an external receiver). While it lacks built-in AIS like the IC-M510BB, the IC-M410BB is a sound choice for reliable and secure VHF communication, featuring robust construction (IPX7) and active noise cancellation for superior audio clarity in all conditions. The included 6.1-meter OPC-1540 cable offers flexible installation options.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

ICOM IC-M410BB black box fixed VHF

898,80€

Complétez votre installation avec des

Équipements complémentaires

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde - photo 2

B&G

Chartplotter Zeus³S 12" with world base map

Ref : 000-15412-002

4.044,00€

4.044,00€ ~~5.726,40€~~

B&G Traceur de cartes Zeus 3S 9" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 9" avec carte de base du monde - photo 2

B&G

Chartplotter Zeus 3S 9" with world base map

Ref : 000-15411-001

2.400,00€

2.400,00€ ~~3.669,60€~~

B&G Traceur de cartes Zeus 3S 7"avec carte de base du monde - photo 2

B&G

Zeus 3 7" chartplotter with world base map

Ref : 000-13245-001

1.982,40€

Zeus³S Glass Helm 19" Display Only | B&G Sailing USA

B&G

Zeus³S Glass Helm MFD 19" Display

Ref : 000-15050-001

8.787,60€

B&G

B&G ZG100 GPS Antenna

Ref : 000-11048-002

325,20€

325,20€ ~~334,80€~~

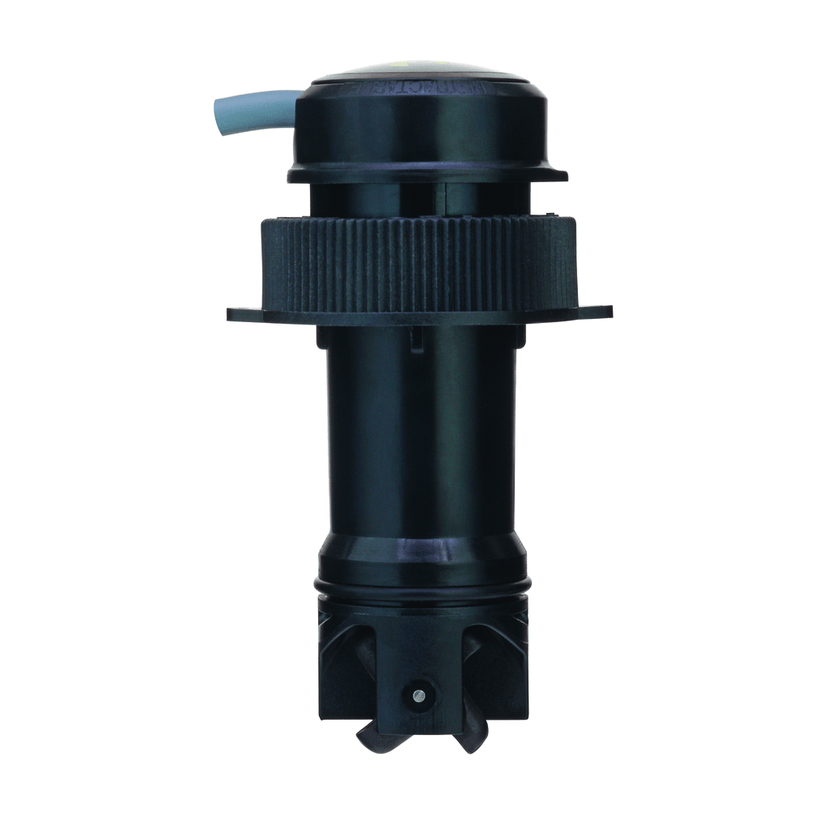

IDST-810 depth, speed, temperature sensor - NMEA 2000

Airmar

IDST-810 depth, speed, temperature sensor - NMEA 2000

Ref : 000-15735-001

664,80€

B&G Afficheur numérique Triton² 4,1" - photo 2

B&G

Triton² 4.1" digital display

Ref : 000-13294-001

556,20€

556,20€ ~~618,00€~~

Vulcan 9 combiné GPS sondeur B&G - Wi-Fi, NMEA 2000

B&G

Vulcan 9" chartplotter

Ref : 000-13214-001

950,40€

950,40€ ~~1.080,00€~~

B&G

Vulcan 7R chartplotter (non-XD)

Ref : 000-14082-001

695,52€

695,52€ ~~756,00€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is a fixed VHF "black box" like the IC-M410BB?

A fixed VHF "black box" is a marine communication system where the main unit (RF module) is installed separately, often out of sight, and all functions are controlled via a remote microphone called CommandMic™. This allows for a discreet installation and space-saving at the helm, while providing full communication capabilities.

What is the maximum transmission power of the IC-M410BB VHF?

The IC-M410BB fixed VHF provides selectable output power of 25 W or 1 W, allowing you to adjust communication range to your needs.

What are the dimensions of the RF (radio frequency) unit of the IC-M410BB VHF?

The RF unit of the IC-M410BB VHF has compact dimensions of 216 × 79 × 113 mm (width × height × depth), excluding projections.

What are the dimensions of the CommandMic™ HM-195 supplied with the IC-M410BB?

The CommandMic™ HM-195, which serves as a control interface, measures 67.5 × 144.5 × 37 mm (width × height × depth).

Are the RF unit and CommandMic™ of the IC-M410BB waterproof?

Yes, the RF unit and HM-195 CommandMic™ of the IC-M410BB have an IPX7 waterproof rating. This means they are water-resistant and can withstand immersion in water up to 1 meter deep for 30 minutes.

What are the advantages of the CommandMic™ HM-195 for VHF use?

The CommandMic™ HM-195 offers several key advantages:

Full control of all VHF functions from the helm station.Over 2 W of audio power for clear listening.Over 13 W hailer output for the public address function.Active noise cancellation to improve communication clarity.

What is the operating temperature range of the IC-M410BB?

The IC-M410BB VHF is designed to operate across a wide temperature range, from -20°C to 60°C (-4°F to 140°F).

Can the IC-M410BB be used as a hailer (bullhorn)?

Yes, the IC-M410BB includes a hailer (bullhorn) function with an audio output power of over 13 W (at 4 Ω), ensuring good intelligibility even in noisy environments.

Does the IC-M410BB integrate an AIS receiver?

No, the IC-M410BB does not have an integrated AIS receiver. If you require AIS functionality, you will need to use an external AIS receiver compatible via NMEA interfaces.

Is the voice recording and playback function available on the IC-M410BB VHF?

No, the IC-M410BB fixed VHF does not include voice recording and playback. This feature is typically found on higher-end models such as the IC-M510BB.

What accessories are included with the IC-M410BB fixed VHF?

The IC-M410BB comes with the OPC-1540 cable, which is 6.1 meters (20 feet) long.

What is the length of the cable supplied with the CommandMic™ for installation?

The OPC-1540 cable supplied to connect the CommandMic™ to the RF unit measures 6.1 meters (20 feet), providing flexibility for positioning the RF unit.

What are the power supply requirements for the IC-M410BB?

The IC-M410BB requires a nominal 12.0 V DC power supply. The operating voltage range is 10.8 to 15.6 V DC, with negative ground.

Does the IC-M410BB's RF unit need to be installed in a specific location?

The IC-M410BB's RF unit is designed for a "black box" installation, meaning it can be mounted out of sight in a discreet location while the remote CommandMic™ handles all control functions from the helm.

Is the IC-M410BB compatible with NMEA 2000 navigation networks?

Yes, the IC-M410BB is equipped with a NMEA 2000 interface, as well as NMEA 0183 and NMEA 0183-HS, enabling seamless integration with chartplotters, AIS (external receivers) and other onboard navigation systems.

Does the IC-M410BB have an internal GPS receiver?

Yes, the IC-M410BB integrates an internal GPS (GNSS) receiver. For the EUR version, a GPS antenna is also included, ensuring precise position transmission during distress calls without requiring an external GPS source.

Is the IC-M410BB compatible with DSC (Digital Selective Calling)?

Yes, the IC-M410BB includes critical safety features, including Class D DSC (Digital Selective Calling), and complies with EN301 025 and EN 300 338-8 standards.

What is the IP rating of the RF unit and CommandMic for the IC-M410BB?

The RF unit and HM-195 CommandMic of the IC-M410BB are both rated IPX7. This rating confirms their waterproofing, allowing them to withstand immersion in water up to 1 meter deep for 30 minutes.
