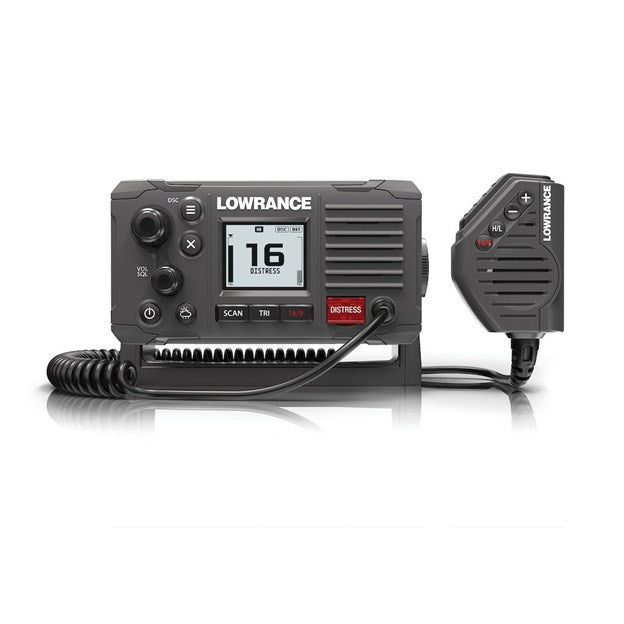

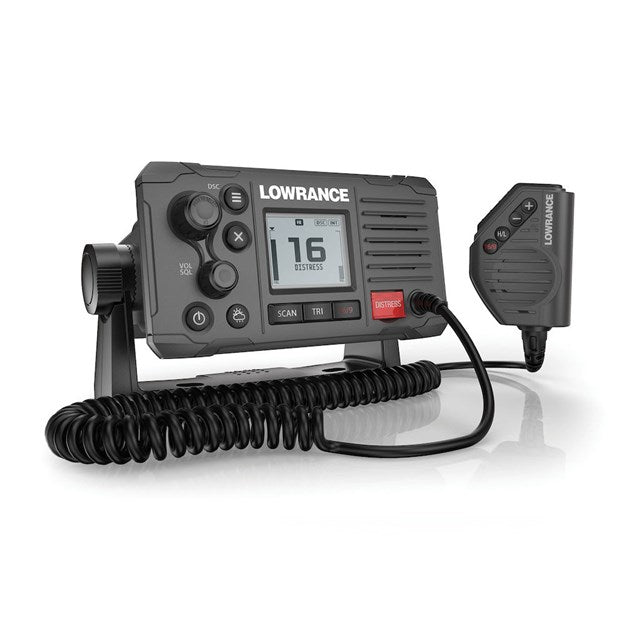

LINK-6S Marine VHF Radio with DSC
LINK-6S Marine VHF Radio with DSC
In stock
Caractéristiques techniques
Caractéristiques techniques
| Maximum power consumption | 81.6 W |
| Typical power consumption | 6.12 W |
| Operating voltage | 13.6 V DC |
| Operating temperature | -20 °C à +55 °C |
| Recommended fuse rating | 8 A |
| Wired network | NMEA 0183 |
| Wireless connectivity | Non |
| Audio output power | 2 W (interne) / 4 W (externe) |
| Product height | 89.2 mm |
| Product width | 166.7 mm |
| Product depth | 161.4 mm |
| Detachable handset | Non |
| NMEA 2000 load equivalence (LEN) | 0 |
| IP rating | IPX7 |
| Bus compatibility | NMEA 0183 |
| Compass safe distance | 50 cm |
| Mounting type | Sur étrier, Encastré |
| Certifications | CE,FCC Part 15,ISED Canada,UKCA |
| AIS class | Aucune |
| AIS reception | Non |
| AIS transmission | Non |
| ATIS | Oui (pour régions UE) |
| Antenna connector | SO-239 |
| DSC | Classe D |
| GPS | Oui (intégré) |
| Intercom function | Non |
| VHF frequency range | 156.025 - 163.275 MHz |
| VHF transmit power | 25 W / 1 W |
| Max wired handsets | 0.0 |
| Max AIS targets | 0 |
| Screen resolution | 128 x 64 pixels |
| Display type | LCD FSTN |
| Audio rewind feature | Non |
| GPS antenna connector | SMA (femelle) |
| Detachable fist mic | Non |
| Package contents | Radio VHF Link-6S avec microphone à main, étrier de montage et molettes, clip microphone, câble d'alimentation, joint pour montage encastré, fusible de rechange (8 A), caches de vis, kit de vis de montage, documentation (guide d'utilisation, carte de garantie, gabarit) |
| Available alarms | Alerte batterie faible, Appels de détresse ASN |
| Backlight Feature | Oui |
| Call Logs Capacity | 20 individuels, 10 détresse |
| Channel Spacing Khz | 25 |
| Current Drain Receive Standby | 450 |
| Current Drain Transmit High Power | ≤ 6 A @ 25 W (12 V DC) |
| Current Drain Transmit Low Power | 1.5 A @ 1 W (12 V DC) |
| Display Contrast Control | Oui |
| Display Dimensions Imperial | 1.65 x 1.3 |
| Display Dimensions Mm | 42 x 34 |
| Dsc Dual Receiver | Oui |
| External Speaker Support | Oui |
| Flush-mount kit included | Oui |
| Frequency Control Type | PLL |
| Frequency Stability Ppm | ±5 |
| Group Call Support | Oui |
| Inland Waterways Compliance | Rainwat |
| Local Distant Control Support | Oui |
| Low Battery Alert Voltage | 10.5 V DC +/- 0.5 V |
| Mmsi Directory Capacity | 20 numéros et groupes |
| Nmea0183 Input Sentences | RMC, GGA, GLL, GNS |
| NMEA 0183 output sentences | DSC (for DSC call), DSE (for enhanced position) |
| NMEA 2000 compatible | Non |
| Over Voltage Protection Threshold | >15.8 V +/- 0.5 V |
| Packaged weight kg | 2.2 |
| Position Polling Capability | Oui |
| Power Supply Voltage Nominal | 12 |
| Product weight (kg) | 1.18 |
| Radio Equipment Regulations Year | 2017 |
| Rainwat Signatory Countries | Austria, Belgium, Bulgaria, Croatia, Czech Republic, France, Germany, Hungary, Luxembourg, Moldova, Montenegro, Netherlands, Poland, Romania, Serbia, Slovak Republic, Switzerland |
| Replacement Fuse Dimensions Mm | 32 mm (1.25") |
| Replacement Fuse Type | Glass type 3 AG |
| Uk Declaration Of Conformity Url | www.lowrance.com |
| Usable Channels Modes | International, USA, Canada, Weather (country specific) |
| Vhf Antenna Impedance | 50 |
| Vhf Emission Mode | 16K0G3E (FM) / 16K0G2B (DSC) |
| Vhf Frequency Range Rx | 156.050 - 163.275 |
| Vhf Frequency Range Tx | 156.025 - 157.425 |
Description détaillée
Description détaillée
Designed for reliable marine communication, the Lowrance LINK-6S fixed VHF radio with DSC is an essential communication device for recreational boaters. This model positions itself as a reliable entry-level solution within the Lowrance lineup, offering basic safety functions without the complexity of more advanced systems such as VHF radios with integrated AIS transponders (e.g., Lowrance Link-9 or Simrad RS40). It serves as a direct alternative to comparable Class D DSC VHF models like the Garmin VHF 115i or Raymarine Ray53, distinguished by its Lowrance user interface and built-in GPS.
Features and Technical Performance
The LINK-6S operates on transmit frequencies of 156.025 - 157.425 MHz and receive frequencies of 156.050 - 163.275 MHz, covering all international, U.S., and Canadian channels. It offers selectable transmission power of 25 W or 1 W, suitable for long-distance or close-range communications. Its dual integrated receiver continuously monitors DSC channel 70, ensuring distress calls are received without interrupting voice communications. The radio includes a GPS with a frequency of 1575.42 MHz and horizontal accuracy better than 10 m, enabling automatic position transmission in DSC distress calls.
Connectivity and Integration
Equipped with an NMEA 0183 port, the LINK-6S can receive GPS data (RMC, GGA, GLL, GNS) and transmit DSC information (DSC calls and enhanced position DSE) to compatible navigation equipment. Although it lacks an NMEA 2000 port, its NMEA 0183 connectivity makes it compatible with many existing chartplotters and multifunction displays. The 42 mm x 34 mm FSTN LCD screen features adjustable contrast and backlighting for optimal readability in all conditions. The radio is IPx7 certified, ensuring temporary immersion resistance, and operates within a temperature range of -20 °C to +55 °C.
