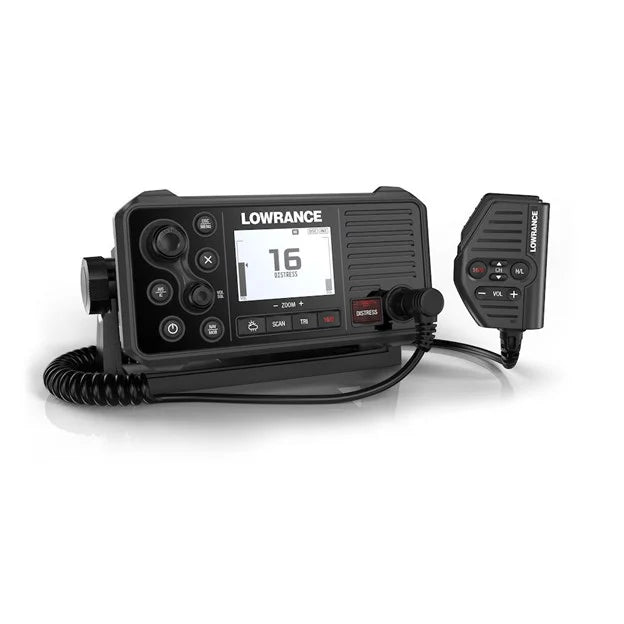

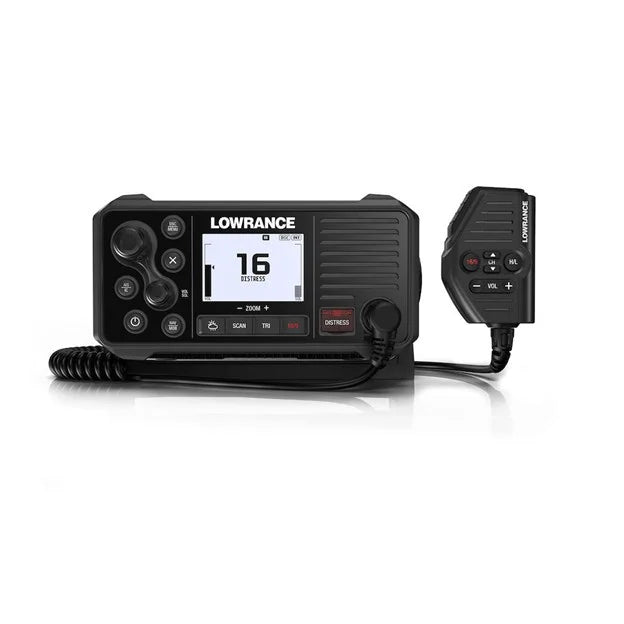

LINK-9 Marine VHF Radio with ASN and AIS-RX
LINK-9 Marine VHF Radio with ASN and AIS-RX
In stock
Caractéristiques techniques
Caractéristiques techniques
| Maximum power consumption | 81.6 W |
| Typical power consumption | 11.15 W |
| Operating voltage | 13.6 V |
| Operating temperature | -20 °C à +55 °C |
| Recommended fuse rating | 8 A |
| Wired network | NMEA 0183,NMEA 2000 |
| Wireless connectivity | Non |
| Audio output power | 2 W (interne) / 4 W (externe) |
| Product height | 107.2 mm |
| Product width | 208.3 mm |
| Product depth | 163.4 mm |
| Detachable handset | Oui |
| IP rating | IPx7 |
| Bus compatibility | NMEA 0183,NMEA 2000 |
| Compass safe distance | 50 cm |
| Mounting type | Sur étrier, Encastré |
| Certifications | CE,UKCA,FCC,CAN ICES-3(B)/NMB-3(B) |
| AIS class | Récepteur AIS |
| AIS reception | Oui, double canal |
| AIS transmission | Non |
| ATIS | Oui (modèles UE, pour voies navigables intérieures) |
| Antenna connector | SO-239 (50 Ohms) |
| DSC | Oui, Classe D |
| GPS | Oui, intégré |
| Intercom function | Oui (via fonction porte-voix) |
| VHF frequency range | Émission: 156.025 - 157.425 MHz, Réception: 156.050 - 163.275 MHz |
| VHF transmit power | 25 W / 1 W (sélectionnable) |
| Max wired handsets | 0.0 |
| Max AIS targets | 150 |
| Screen resolution | 256 x 160 pixels |
| Display type | LCD FSTN monochrome |
| Audio rewind feature | Non |
| GPS antenna connector | SMA (femelle) |
| Detachable fist mic | Oui |
| Package contents | Unité radio, microphone à combiné, étrier de montage, câble d'alimentation, kit d'encastrement |
| Available alarms | Alerte météo, Alerte batterie faible, Alerte de détresse DSC, Alerte de collision AIS, Homme à la mer (MOB). |
| Ais Rx Self Test Status At Power On | OK |
| Antenna impedance | 50 |
| Backlight color | Blanc |
| Backlight levels | 10 |
| Backlight Synchronization Nmea2000 | Oui |
| Channel Spacing Khz | 25 |
| Current Drain Receive Standby | 820 |
| Current Drain Transmit High Power | 6 |
| Current Drain Transmit Low Power | 1.5 |
| Display Contrast Control | Oui |
| Display Mode Day Night | Oui |
| Dsc Dual Receiver | Oui |
| Dsc Self Test Status At Power On | OK |
| Equipment category | B (Protected) |
| External GNSS antenna support | Oui |
| External Speaker Impedance | 4 |
| External Speaker Power Output | 4 |
| Flush-mount kit included | Oui |
| Frequency Control Type | PLL |
| Frequency Stability Ppm | ±5 |
| Fuse Dimensions Metric | 32 |
| Fuse type | Verre type 3 AG |
| Hailer Speaker Impedance | 4 |
| Loudhailer Power 4 Ohms | 30 |
| Low Battery Alert Voltage | 10.5 |
| Nmea0183 Input Sentences | RMC, GGA, GLL, GNS |
| NMEA 0183 output sentences | DSC, DSE, MOB |
| Nominal Operating Voltage | 13.6 |
| Over Voltage Protection Threshold | 15.8 |
| Packaged weight kg | 2.4 |
| Position Polling Interval Options | 5, 15, 30, 60 |
| Product weight (kg) | 1.46 |
| Receiver sensitivity | -12 dBµV (VHF, 12 dB SINAD) |
| Software Version | v3.47 |
| Cold start acquisition time | 90 s |
| Transmit power | 25 W / 1 W |
| Usable Channels Modes | International, USA, Canada, Météo |
| Vhf Modulation Type | 16K0G3E (FM) / 16K0G2B (DSC) |
| Wired input | RS-422 |
| Wired output | RS-422 |
Description détaillée
Description détaillée
Designed for safety and communication at sea, the Lowrance Link-9 marine VHF radio with ASN and AIS-RX is a fixed solution integrating essential functions. It represents an evolution of the Link-8 model, offering advanced communication and monitoring capabilities for recreational boaters and light commercial vessels. This fixed-class D VHF transceiver features selectable transmit power of 25 W or 1 W, allowing adaptation to short- or long-range communication needs.
Integrated AIS Safety and Monitoring
The Link-9 integrates a dual-channel AIS receiver capable of monitoring up to 150 AIS targets simultaneously. This feature enables visualization of data from nearby AIS-equipped vessels, such as status, destination, ETA, vessel name, type, call sign, MMSI number, and position, contributing to collision avoidance. This data can be displayed on the device’s 256x160 pixel monochrome FSTN LCD screen or overlaid on a compatible multifunction display via NMEA 2000 or NMEA 0183 networks.
GPS Positioning and Network Connectivity
With its integrated GPS receiver, the Lowrance Link-9 ensures precise and reliable positioning. It offers four methods to obtain a GPS fix: an integrated antenna, an SMA connector for an optional external GPS antenna (GPS-500), an NMEA 0183 input from a chartplotter, and an NMEA 2000 connection for a network antenna. This versatility ensures position data availability for ASN distress calls. The radio integrates easily with Lowrance navigation systems via its NMEA 2000 and NMEA 0183 ports, supporting specific PGNs for smooth data communication. It is compatible with 12 V DC power, with overvoltage protection above 15.8 V and a low-battery alert at 10.5 V DC.

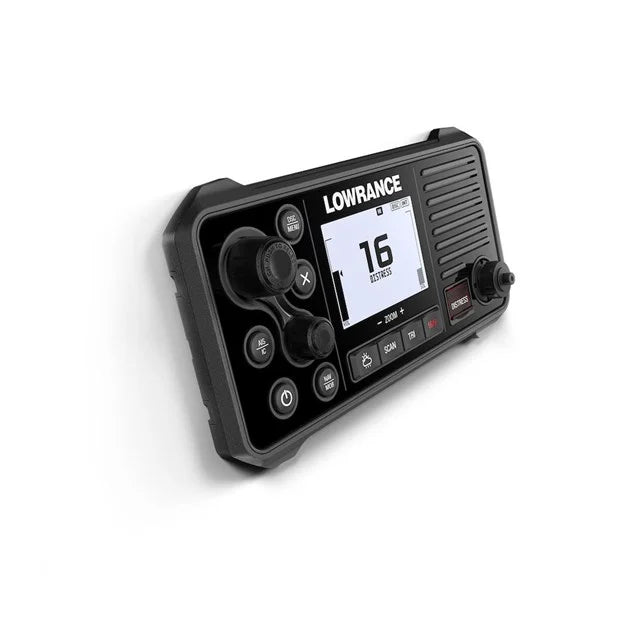

Advanced Features and Flexible Installation
The Link-9 is equipped with a removable 6-button microphone with an integrated speaker, which can be connected at the front or rear of the radio, with an optional extension cable for remote installation. Its mechanical design allows simplified front mounting thanks to easily removable top and bottom frames, blending with the aesthetics of Lowrance multifunction displays. Additional functions include a dedicated MOB button to instantly mark a man-overboard position and provide return instructions, as well as the Track Your Buddy™ feature to track the position of up to five contacts via DSC position requests. The radio also features a navigation mode displaying speed and heading, a public address/horn output with listening function, and supports Dual Watch, Tri Watch, and All Scan scanning modes. The unit is IPx7 certified for water resistance and operates within a temperature range of -20 °C to +55 °C.
