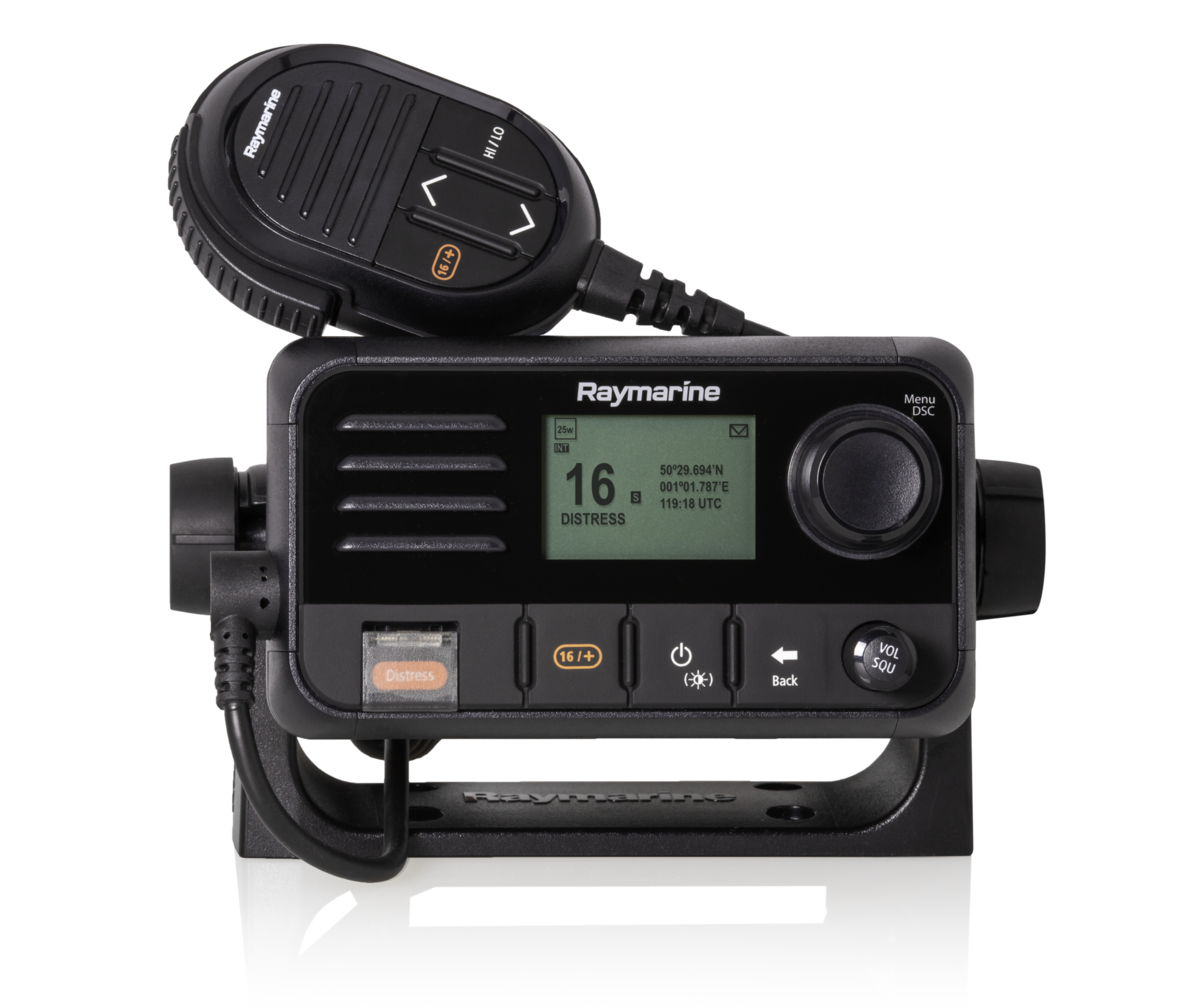

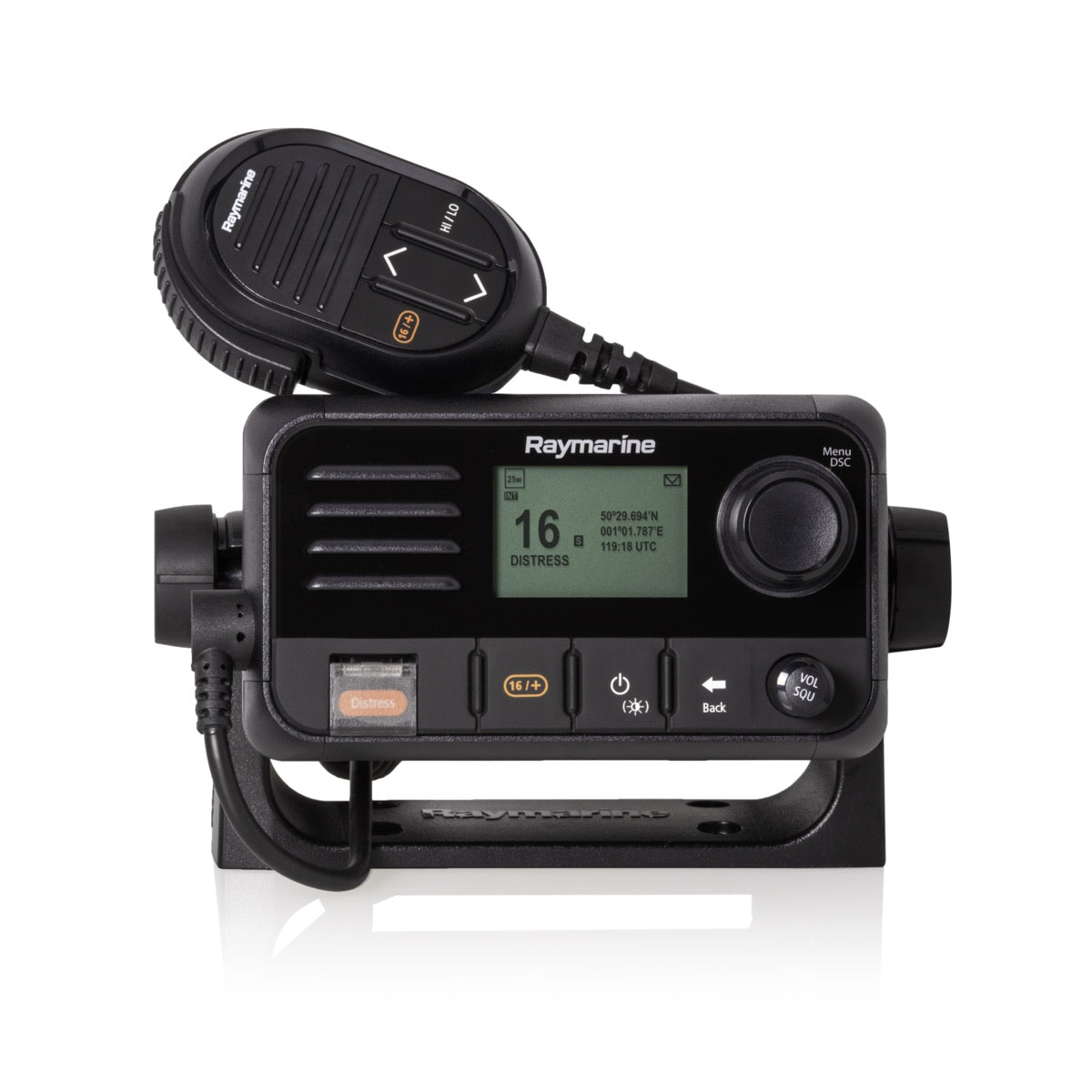

VHF transceiver with integrated GPS receiver Ray53

The GPS receiver integrated into the Raymarine Ray53 provides essential position data for the Digital Selective Calling (DSC) function. This allows your VHF radio to automatically transmit your position in an emergency without requiring the installation of a dedicated external GPS antenna, simplifying installation and improving safety.

The Raymarine Ray53 is equipped with NMEA 0183 and NMEA 2000 interfaces. These connections allow seamless integration with compatible Raymarine multifunction displays (MFD). You can share position data and access ASN functions directly from your navigation system.

Installing the Raymarine Ray53 offers flexibility with two main options:

Bracket mounting: The unit is secured to a surface using the supplied mounting bracket.Flush mounting: The unit is integrated into a panel, providing a more discreet and streamlined finish.Detailed dimensions for these mounting types are available in the product technical drawings.

No, the Raymarine Ray53 is not compatible with wireless handsets or speakers. This feature is typically available on higher-end models in the same series, such as the Ray63 and Ray73. The Ray53 is designed as a compact and efficient unit, focusing on essential functions in a smaller form factor.

The Raymarine Ray53 is designed to be compact, making it ideal for installations where space is limited. The exact dimensions of the unit are detailed in the technical drawings provided with the product, particularly for bracket or flush-mounting options.

Yes, you must obtain an MMSI (Maritime Mobile Service Identity) number to fully use the Digital Selective Calling (DSC) functions of your Raymarine Ray53. This unique number is assigned to your vessel and is essential for distress and emergency communications via VHF.

The Raymarine Ray53 has a waterproof rating compliant with the ingress protection standard specified in its technical specifications. However, it is important to note that Raymarine does not guarantee products that have been subjected to high-pressure washing, as this may potentially cause water infiltration and damage to the equipment.

Raymarine strongly recommends certified installation of your Ray53 by a Raymarine-certified installer. A professionally certified installation may entitle you to enhanced product warranty benefits. For full warranty details and conditions, refer to the separate warranty document included with your product.
