RS20S Marine VHF Radio with DSC
RS20S Marine VHF Radio with DSC
In stock
Caractéristiques techniques
Caractéristiques techniques
| Maximum power consumption | 72 W |
| Typical power consumption | 5.4 W (en veille) |
| Operating voltage | 13.6 V DC |
| Operating temperature | -20 °C à +55 °C |
| Recommended fuse rating | 8 A |
| Wired network | NMEA 0183 |
| Audio output power | 2 W (interne), 4 W (externe) |
| Product height | 89.2 mm |
| Product width | 166.7 mm |
| Product depth | 161.4 mm |
| Detachable handset | Non |
| IP rating | IPx7 |
| Bus compatibility | NMEA 0183 |
| Compass safe distance | 50 cm |
| Mounting type | Sur étrier, Encastré |
| Certifications | CE (RED 2014/53/EU),FCC Part 15,ISED Canada,UK 2017 |
| AIS reception | Non |
| AIS transmission | Non |
| ATIS | Oui, pour régions UE |
| Antenna connector | SO-239 (50 ohm) |
| DSC | Oui, Classe D (Global) |
| GPS | Oui, intégré |
| Intercom function | Non |
| VHF frequency range | 156.025 - 163.275 MHz |
| VHF transmit power | 25 W / 1 W sélectionnable |
| Max wired handsets | 0.0 |
| Display type | LCD FSTN |
| Audio rewind feature | Non |
| GPS antenna connector | SMA (femelle) |
| Detachable fist mic | Non |
| Available alarms | Batterie faible, Appel DSC entrant |
| Current Drain Receive Standby | 450 |
| Current Drain Transmit High Power | 6 |
| Current Drain Transmit Low Power | 1.5 |
| Fuse type | Glass type 3 AG |
| Low Battery Alert Voltage | 10.5 |
| Overvoltage protection | 15.8 |
| Packaged weight kg | 2.2 |
| Net product weight (kg) | 1.18 |
Description détaillée
Description détaillée

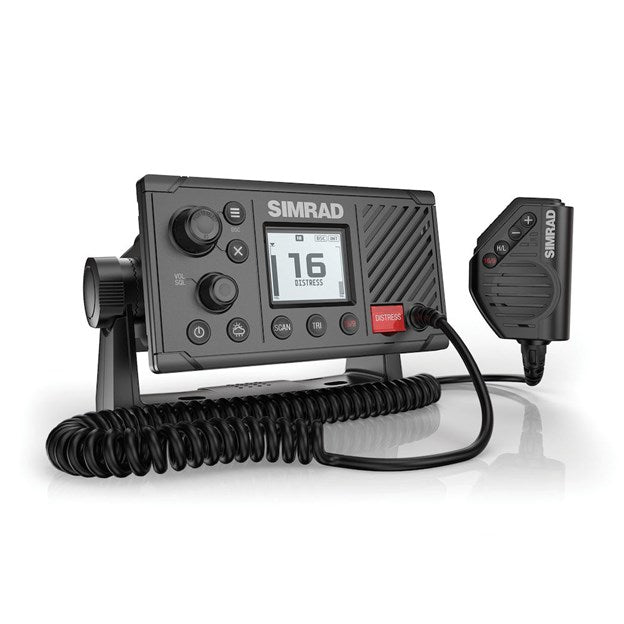

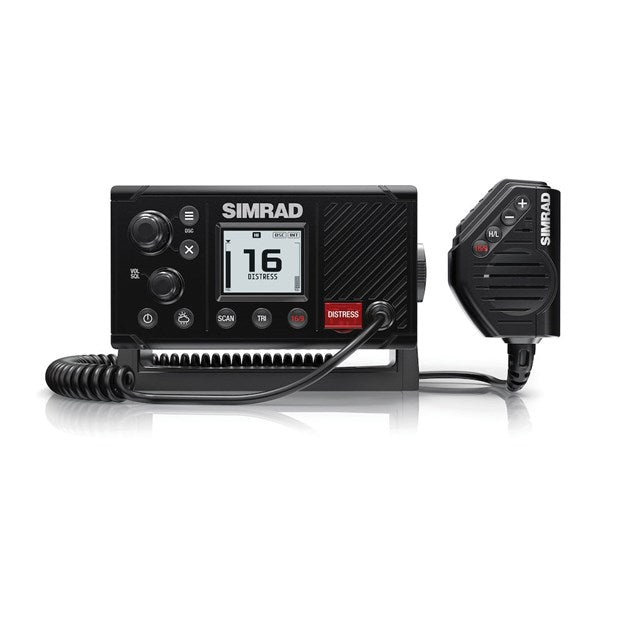

Designed for communication and safety at sea, the Simrad RS20S (also designated Link-6S) fixed VHF radio is a Class D DSC (Digital Selective Calling) marine communication solution with built-in GPS. It ensures reliable communication and precise location in emergency situations.
Performance and technical features
The Simrad RS20S offers selectable transmit power of 25 W or 1 W, with current consumption of ≤ 6 A at 25 W and ≤ 1.5 A at 1 W on 12 V DC. The radio covers international, US, and Canadian channels, as well as country-specific weather channels. Its 42 x 34 mm (1.65" x 1.3") FSTN LCD screen features contrast control and backlighting for optimal visibility in varying light conditions. Frequency stability is ±5 ppm, with a channel spacing of 25 kHz. Audio output power is 2 W with 10 % distortion for an 8 ohm speaker. An external speaker can be connected for improved audibility.
Connectivity and integration
The RS20S integrates a GPS receiver with an internal antenna and an SMA female connector for an optional external GPS antenna. This feature ensures autonomous position reporting for DSC distress calls, even without connection to other onboard GPS equipment. It features an NMEA 0183 port for input (supporting RMC, GGA, GLL, GNS sentences) and output (DSC for DSC calls, DSE for advanced position information), enabling integration with other compatible navigation systems. The RS20S also supports NMEA 2000 connectivity in addition to NMEA 0183, allowing flexible integration with other compatible navigation systems. The unit is CE certified (RED 2014/53/EU) and waterproof to IPx7 standards.
Safety and use
The Class D DSC functionality with dual receiver (individual CH70) ensures priority for distress calls. The radio includes features such as triple watch (Tri Watch), favorite channel scanning (My Channels), and full scan (All Scan). It also allows tracking up to 5 contacts (Track your Buddy) via automatic position requests. The MMSI and name directory can store 20 numbers and groups, and call logs retain 20 individual calls and 10 distress calls. The unit weighs 1.18 kg and can be bracket-mounted or flush-mounted for installation flexibility. Its dimensions are L=166.7 mm × H=89.2 mm × D=161.4 mm without the bracket, with a safe compass distance of 0.5 m.
Avis de l'expert
Avis de l'expert
« Analyse technique : radio VHF Simrad RS20S avec ASN et GPS intégré »
