MG ENERGY

MG5000728

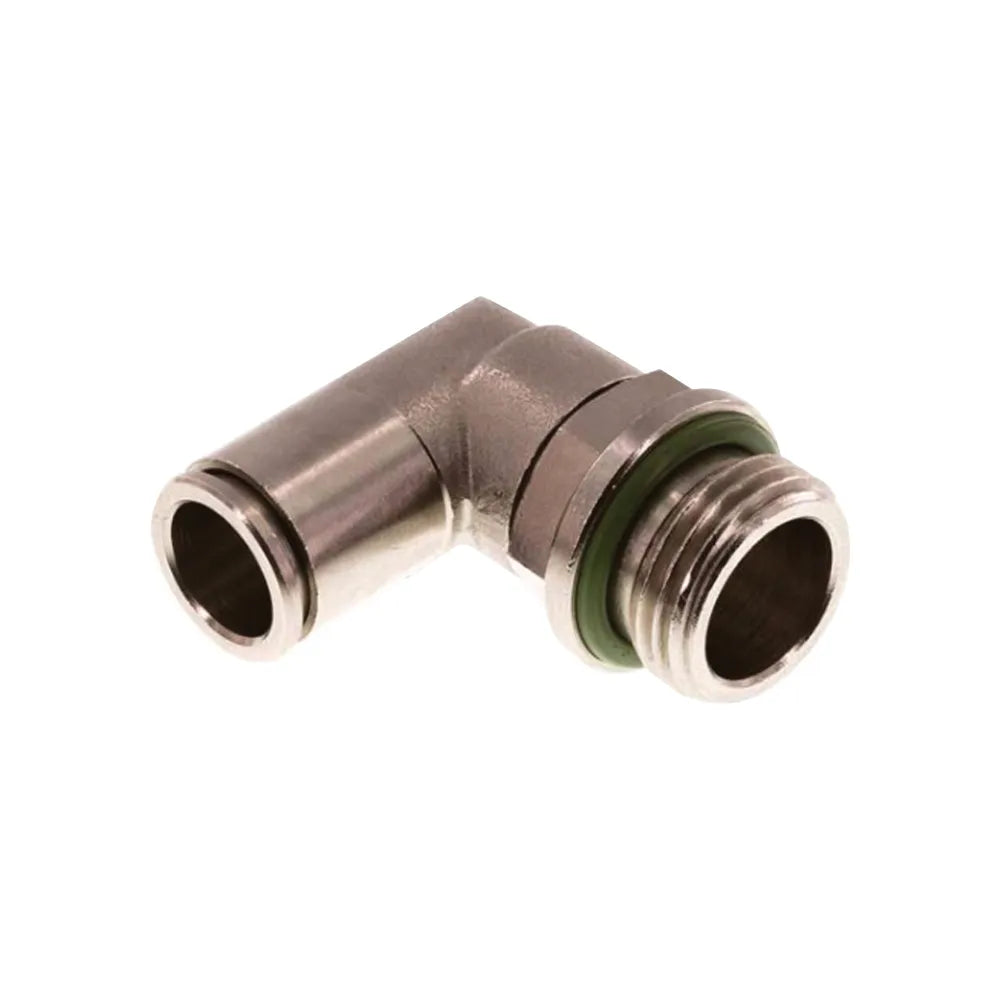

90° push-in elbow fitting 10 mm G1/4 male MG Energy – MG5000728

Name: 90° push-in elbow fitting 10 mm G1/4 male MG Energy – MG5000728
Brand: MG ENERGY
SKU: MG5000728
Price: 6.49 EUR

90° elbow fitting with push-in 10 mm quick-connect and external G1/4 thread, designed for an auxiliary MG Energy circuit validated for installation.

Retail priceBenefit from the professional rate

6,49€

6,49€ ~~7,21€~~

Shipping calculated at checkout.

Prices shown excluding VAT for Türkiye. If your delivery address is in the European Union, the VAT of the destination country will be added at checkout.

En cours de réappro

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Detailed description

90° elbow fitting with push-in connection for 10 mm outer diameter tubing and G1/4 external thread, intended for an auxiliary MG Energy circuit validated for installation.

Key features

Declared angle: 90°.
Push-in connection for 10 mm outer diameter tubing.
G1/4 external thread.
Identity, specifications, visual, and price sourced from the exact dealer product.

Intended use

Installers and maintainers of MG Energy auxiliary connections.

Compatibility and prerequisites

The dealer portal links it to the MG RS230 SLP battery family.
Verify fluid, pressure, tubing outer diameter, thread, and material before ordering.
Do not substitute with a straight, grooved, or different diameter fitting.

Installation and safety

Use the compatible seal and sealing compound for the circuit.
Push the tubing fully to the stop without kinks, tension, or stress on the elbow.
Perform a leak test before commissioning.

What's included

One 90° push-in elbow fitting 10 mm with G1/4 external thread.

To be supplied separately

Tubing, seal, manifold, clamp, and sealing consumables.

Shipping and handling

Declared shipping weight: 0.04 kg.
Product not classified as dangerous goods in dealer export.
Price, availability, and lead time to be confirmed via quote before ordering.

Mechanical specifications

Angle: 90°
Hose diameter: 10 mm Outer
Options: Push-In connection
Thread: G1/4 Outer

Logistics

HS Customs Code: 7412200000
Country of origin: Netherlands
Shipping weight: 0.04 kg
Classified as dangerous goods: No

Documentation

Official MG Energy datasheet - MG5000728

Integration advice: verify voltage, currents, protections, cooling, and interfaces of the complete system before installation.

Payment and security

Your payment information and data are processed securely.

90° push-in elbow fitting 10 mm G1/4 male MG Energy – MG5000728

6,49€

6,49€ ~~7,21€~~

Frequently Asked Questions

Need help? Contact us

What is the type of MG5000728 connector?

The MG5000728 is a 90-degree elbow fitting. It features a push-in quick-connect system and external threading.

What are the tube connection dimensions for this fitting?

This fitting is designed for tubes with an outer diameter of 10 mm. It uses a "push-in" connection for tube insertion.

What is the thread type of this fitting?

The MG5000728 fitting has an external thread of type G1/4.

What is the main function of the MG5000728 adapter?

This fitting is designed to create an auxiliary connection in an MG Energy circuit. It allows a 90° angled connection for 10 mm tubes with a G1/4 male thread.

Is the MG5000728 fitting an original MG Energy Systems product?

Yes, the MG5000728 is a reference in the MG Energy Systems catalog and is an original product from the brand.

What is the exact part number for this fitting?

The exact reference for this fitting is MG5000728.

What is the angle of this fitting?

This fitting is a 90-degree elbow.

Is this fitting suitable for all types of fluids?

Before ordering, it is essential to validate the compatibility of the fitting with the fluid, pressure, outer tube diameter, thread, and the material of the circuit in which it will be used.

Which components must be purchased separately for the installation of this fitting?

For the installation of this fitting, you will need to provide the following items separately:

TubeGasketManifoldClampsSealing consumables compatible with the system.

How to ensure watertightness when installing the fitting?

To ensure waterproofing, it is essential to use a gasket and sealant compatible with the circuit. A leak test must be performed before commissioning.

How to insert the tube into the push-in fitting?

The tube must be pushed fully into the fitting until it bottoms out. Ensure there are no kinks, tension, or excessive stress on the elbow during this operation.

What checks are required before commissioning the system with this connection?

Before commissioning, it is crucial to perform a watertightness check. Additionally, it is advisable to verify voltage, currents, protections, cooling, and interfaces of the complete system prior to installation.

Can this fitting be used to replace a straight fitting or one of a different diameter?

No, this 10 mm 90° elbow fitting must not be substituted with a straight, grooved, or differently sized fitting, as this could compromise system functionality and watertight integrity.
