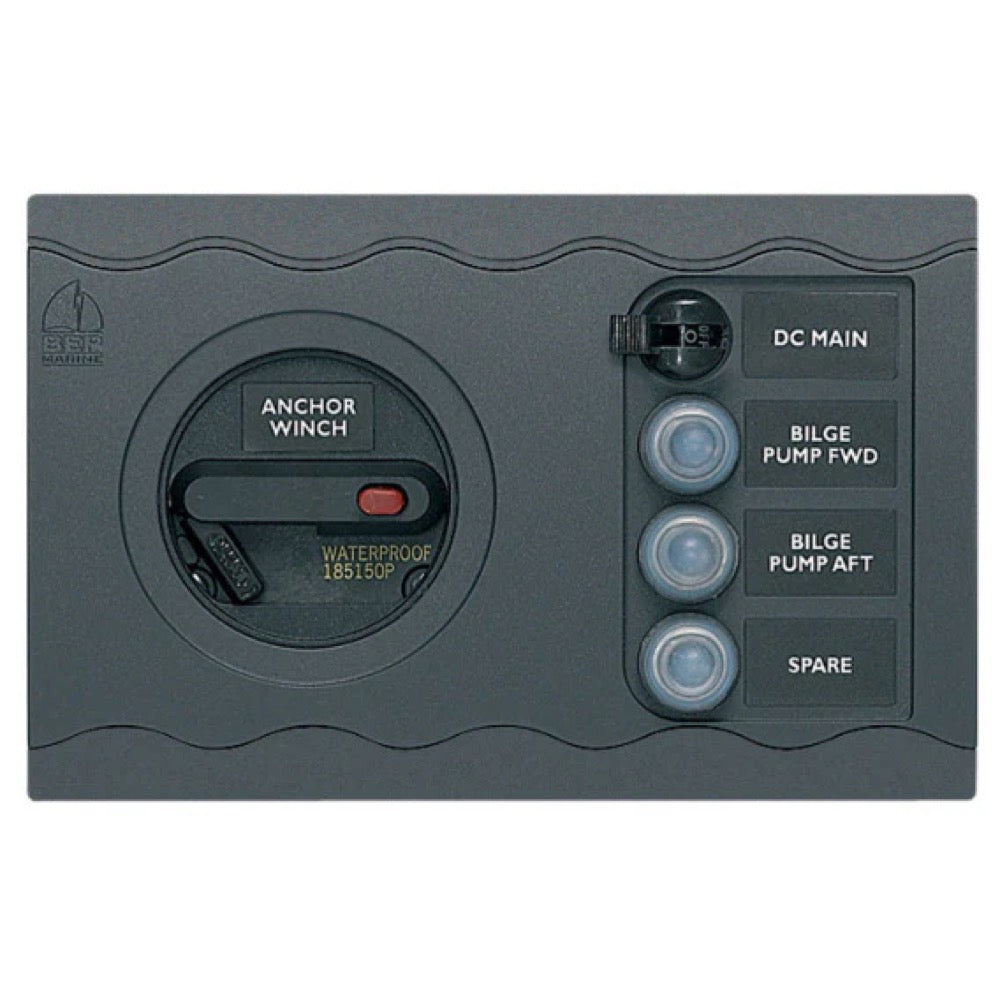

Panneau disjoncteurs BEP CC-804 5 voies - 4 disjoncteurs MC4

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Save 8%

BEP Marine

CC-804

CC H/DUTY CB - 4 CB MODULE MC4

BEP CC-804 Contour Connect panel for marine DC distribution: 5 circuits total, with 1 heavy-duty circuit breaker, 1 main DC switch, and 3 push-reset circuit breakers. It is an electrical protection module, not a data/CZone module.

Retail priceBenefit from the professional rate

255,01€

255,01€ ~~278,30€~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Mounting type	Flush-mounted or surface-mounted
Application Suitability	Windlass, bilge pumps, auxiliary DC starts
Type de disjoncteur	Thermal Bussmann
Connector type	Stud terminals
Design Feature	Contour Lock Molding
Dimensions (W x H x D)	166mm x 106mm x 55mm
Nombre de ports Ethernet	0.0
Flexibilité d'installation	Modular grouping with BEP Contour products
Material Housing	Marine composite materials
Nombre d'entrées	1.0
Nombre de sorties	5.0
Powering method	Wired (boat electrical system)
Product Grade	Heavy-duty
Product use	Contour Connect 5-way panel for marine DC circuit control and protection.
Product range	Contour Connect
Détail du type de produit	Circuit breaker panel
Protection features	Overload protection, Short-circuit protection
USB port count	0.0
Wired input	Stud terminals
Wired output	Stud terminals

Detailed description

The BEP CC H/DUTY CB - 4 CB MODULE MC4 is a 5-circuit switchboard featuring heavy-duty breakers designed for switchable protection of high-load electrical circuits in marine and recreational vehicle environments. It integrates into electrical systems, providing a solution for applications requiring reliable protection of multiple circuits.

Modular and Robust Design

This module incorporates Bussmann "heavy-duty" thermal circuit breakers, known for their resistance in demanding conditions. Its construction is engineered for high durability in marine environments. The modular design with Contour Lock molding allows easy grouping and clean installation alongside other products in the BEP Contour range.

Protection and Safety

The module provides switchable protection for five circuits, suitable for high loads such as windlasses or capstan winches, offering effective protection against overloads and short circuits.

Installation and Connectivity

The module is equipped with stud terminals for direct wiring. Its dimensions are 166mm (W) x 106mm (H) x 55mm (D), allowing integration into various electrical panels. Installation is simplified by clearly labeled terminals and compact footprint.

Expert opinion

Pol CONIN

Digital Manager

« Centralized and robust protection for high-power circuits »

The BEP CC H/DUTY CB - 4 CB MODULE MC4 circuit breaker panel is a structured solution for managing high-current electrical circuits aboard. Its practical value lies in centralizing and securing five circuits for power-hungry equipment such as windlasses, bow thrusters, or capstan winches, which require dedicated and easily accessible protection.

This type of module is particularly relevant for installations where space is optimized and a clean integration is sought. BEP’s "Contour Lock" molding system facilitates assembly with other panels or modules in the same range, enabling the creation of a coherent and scalable electrical switchboard. The integration of Bussmann heavy-duty thermal circuit breakers ensures reliable load interruption, even under significant stress.

Installation is simplified by its modular design and clear terminals. It is recommended to position it as close as possible to the batteries or main loads to minimize the length of heavy-gauge cables, thereby reducing voltage drops and wiring costs. This module is a strategic choice for naval architects and installers seeking a compact, robust solution that meets marine safety requirements for protecting multiple power circuits.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

CC H/DUTY CB - 4 CB MODULE MC4

255,01€

255,01€ ~~278,30€~~

Frequently Asked Questions

Need help? Contact us

What is the primary function of the BEP CC H/DUTY CB - 4 CB MODULE MC4 module?

The primary role of this module is to provide robust switchable protection for high-load electrical circuits. It is designed to secure your installation against overloads and short circuits in demanding environments.

For which types of environments is this circuit breaker panel designed?

This circuit breaker panel is specifically designed for marine environments and recreational vehicles, where the durability and reliability of electrical equipment are paramount.

What makes this module particularly robust?

Its robustness is ensured by a design optimized for high durability, particularly in marine environments. It integrates Bussmann "heavy-duty" thermal circuit breakers, known for their resistance in demanding conditions.

What type of electrical protection does this module provide?

The module provides effective switchable protection against overloads and short circuits, ensuring the safety of equipment and the electrical system.

Is this module suitable for high-load applications? If so, which ones?

Yes, this module is perfectly suited for applications requiring reliable protection of high-load circuits. It is particularly recommended for equipment such as windlasses or capstan winches.

Which brand of circuit breakers is used in this module?

This module integrates Bussmann "heavy-duty" thermal circuit breakers, selected for their reliability and performance.

How does the modular design of this panel simplify installation?

The modular design with Contour Lock molding allows easy grouping and clean installation with other BEP Contour range products, simplifying the organization of your electrical panel.

What are the exact dimensions of the BEP CC H/DUTY CB - 4 CB MODULE MC4?

The dimensions of this module are 166 mm (length) x 106 mm (height) x 55 mm (depth), allowing integration into various electrical panels.

Where is this product manufactured?

The BEP CC H/DUTY CB - 4 CB MODULE MC4 module is manufactured in New Zealand.

Which BEP product family does this module belong to?

This module is part of the BEP brand’s Panels range, designed for power distribution.

What is this product's power distribution classification?

This product is classified in the Power Distribution category, highlighting its essential role in the management and protection of electrical circuits.

How is the wiring done on the BEP CC H/DUTY CB - 4 CB MODULE MC4?

The module is equipped with stud terminals, allowing direct and secure wiring of electrical conductors for a reliable connection.

Is it possible to integrate this module into an existing electrical panel?

Yes, thanks to its dimensions and modular design, it is designed to be easily integrated into various electrical panels, offering a flexible solution for extending or upgrading your system.

Is the BEP CC H/DUTY CB - 4 CB MODULE MC4 module easy to install for a non-expert user?

While its modular design simplifies grouping and installation, for any work on an electrical system, it is always recommended to use a qualified professional to ensure safety and compliance of the installation.

How does the module attach to other products in the BEP Contour range?

The module uses a Contour Lock molded design, enabling easy bundling and clean installation with other BEP Contour range products, ensuring consistent and aesthetic mounting.

Is this module compatible with other BEP Contour range items?

Yes, its design is specifically engineered for easy and clean integration with other products in the BEP Contour range thanks to its modular design and Contour Lock molding.

Can this module be used in recreational vehicle electrical systems?

Yes, this circuit breaker panel is designed for use in both marine environments and recreational vehicles, providing protection suitable for these types of systems.

Is the BEP CC H/DUTY CB - 4 CB MODULE MC4 module suitable for all types of boats?

It is designed for marine environments in general. Its suitability will depend on the specific protection requirements of your boat's high-load circuits. Consult your installation's technical specifications to confirm its relevance.
