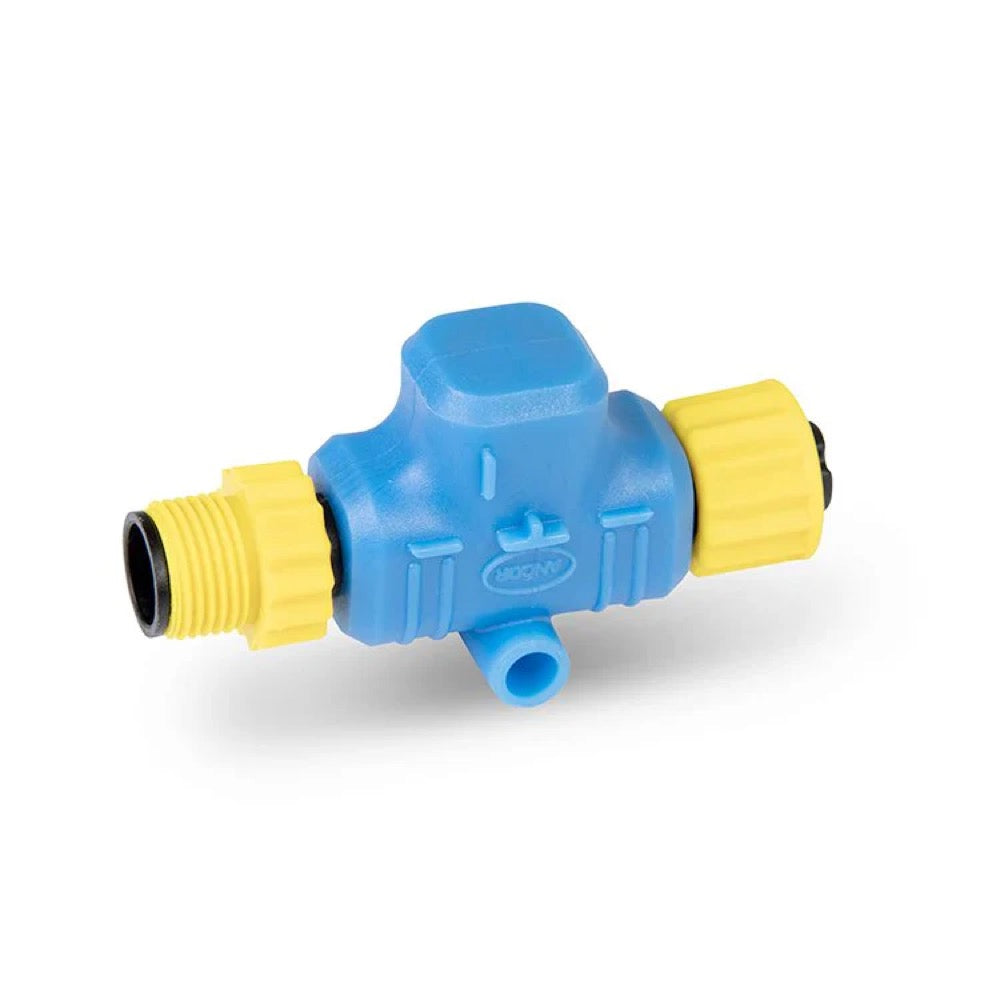

Isolateur d'alimentation NMEA 2000

The NMEA 2000 CZone power isolator is a network interface designed to connect two NMEA 2000 networks while isolating their power sources. Its primary role is to ensure data communication between network segments while keeping them electrically independent. This prevents unwanted backfeed, ground loops, and interference between the network’s different power supplies.

Key benefits of using this isolator:

Prevents electrical issues: It isolates power sources, avoiding ground loops and current backflow that can cause malfunctions or damage equipment.Expands the network: It enables extending NMEA 2000 networks beyond the usual 40-device (node) limit by adding 40 additional nodes per isolated segment.Reduces standby power consumption: It helps lower current draw in standby mode by allowing isolation of network sections when not in use.Improved reliability: By isolating segments, it enhances overall stability and reliability of the NMEA 2000 network.

The CZone power isolator is entirely made of marine-grade plastic. This construction is specifically designed to withstand harsh marine environments, corrosion, and rust, ensuring optimal durability.

The CZone power isolator is designed to operate within a wide temperature range, from -20°C to +80°C. This thermal robustness ensures its reliability in various marine environmental conditions.

The CZone power isolator helps reduce standby current consumption by allowing isolation of specific sections of the NMEA 2000 network. By cutting power to non-essential or inactive segments, it is possible to minimize overall energy consumption when the system is not fully utilized.

The primary function of power isolation on a NMEA 2000 network is to prevent unwanted current returns and ground loops between different power sources. This ensures that each segment of the network is powered independently, protecting connected equipment and ensuring stable, interference-free data communication.

Yes, the CZone power isolator is designed to be corrosion-resistant. Its marine-grade plastic construction effectively protects it against salt and moisture, extending its lifespan and reliability.

The CZone product reference for this item is 80-911-0137-00.

Yes, this product is from the CZone brand, which is part of the Navico group.

The NMEA 2000 CZone power isolator weighs 0.5 kg.

The CZone NMEA 2000 power isolator is designed for inline installation. It connects directly between two segments of your existing NMEA 2000 network. It features 5-pin connectors (female to male) that interface with standard NMEA 2000 cables. Simply plug it between the two parts of the network you wish to isolate.

Yes, it is strongly recommended to power down your NMEA 2000 network before any maintenance or installation of new components, including the power isolator. This precaution prevents any risk of short-circuit, equipment damage, or electric shock.

No, the CZone NMEA 2000 power isolator does not require a separate power supply. Its function is to isolate the existing power sources of the two NMEA 2000 network segments it connects, while allowing data to pass through.

This isolator uses standard 5-pin NMEA 2000 connectors, inline format, typically female to male, for easy integration into your existing network wiring.

While installation is relatively straightforward (online connection), a basic understanding of NMEA 2000 network architecture and wiring is useful to ensure the isolator is placed in the correct location to achieve the desired isolation. When in doubt, it is always best to consult a professional.

This isolator is compatible with NMEA 2000 networks. It is specifically designed to integrate into a NMEA 2000 system and ensure data communication between isolated segments.

The CZone power isolator is designed to operate with NMEA 2000 networks and NMEA 2000-certified devices. While it can physically connect to some non-certified devices, optimal functionality and performance are only guaranteed with equipment compliant with the NMEA 2000 standard.

Yes, as long as the equipment is NMEA 2000 certified and uses standard 5-pin connectors, the CZone power isolator is compatible with other NMEA 2000 brands. The NMEA 2000 standard ensures interoperability between products from different manufacturers.

Yes, it is entirely possible to connect multiple power isolators on the same NMEA 2000 network. This allows the creation of multiple isolated segments, providing greater flexibility for network architecture, power management, and expansion of the total number of connected devices.
