Grooved coupling 10 mm G1/4 male – MG Energy – MG5000471

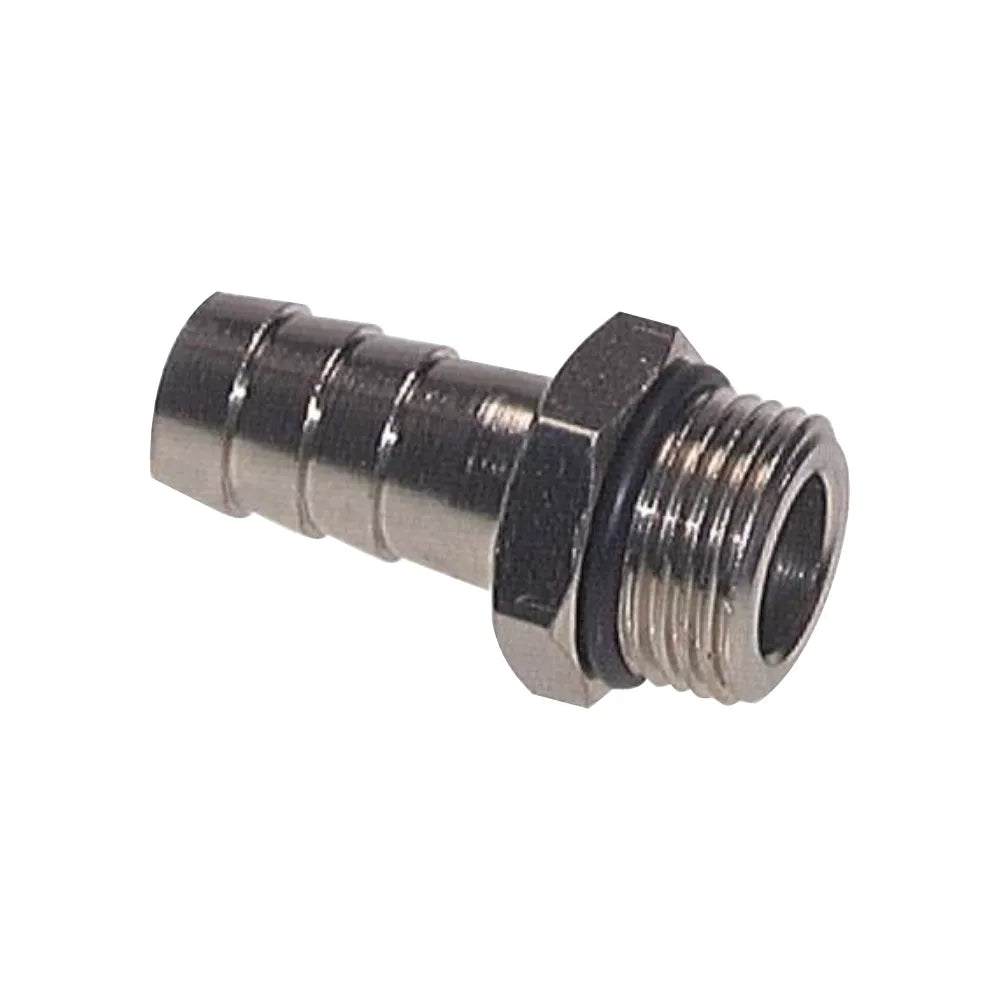

The MG5000471 grooved fitting is designed to connect a hose with an internal diameter of 10 mm to a system with a G1/4 female thread. It is specifically intended for auxiliary connection circuits in MG Energy installations, particularly in MG RS230 rack setups.

This fitting has a corrugated end for a hose with an inner diameter of 10 mm. Its thread is G1/4 male (external).

The packaging includes a 10 mm grooved fitting with a G1/4 external thread. No other accessories are included.

The following items are not included and must be provided separately:

HoseClampGasketManifoldSealing consumables

The customs HS (Harmonized System) code 7419809099 associated with this product corresponds to the category "Other articles of copper". This indicates that the fitting is made of copper or copper alloy. It is important to verify the material compatibility with the specific fluid in your application.

The declared shipping weight for this fitting is 0.02 kg.

The country of origin for the MG5000471 fitting is the Netherlands.

No, this product is not classified as dangerous goods for export.

This fitting is intended for MG Energy wiring circuits. It is specifically documented in the context of flexible hose fittings for MG RS230 racks.

Before ordering and installation, several points must be validated:

The fluid being transportedThe inner diameter of the hose (must be 10 mm)The thread type (must be G1/4 female for the connection)The fitting material in relation to the fluidThe applicability to the exact SKU of the system must be confirmed by the integrator.

No, this fitting is specifically designed for a hose with an inner diameter of 10 mm. Using a hose with a different diameter could compromise the watertightness and safety of the installation.

The MG5000471 fitting has an external G1/4 thread. It must therefore be connected to a port or component with an internal (female) G1/4 thread.

Yes, the current RS230 manual from MG Energy Systems documents the assembly of rack connectors and hoses, which may be a useful resource for installing this connector.

This product must be installed only by a qualified electrician to ensure correct and safe installation.

During installation, it is essential to:

Use the gasket, clamp, and sealant compatible with the circuit. Follow the routing of hoses and avoid any pinching or tension. Perform a complete leak test before commissioning the system.

Yes, it is recommended to apply grease under and over the silicone sealing ring, as well as when connecting hoses. This makes assembly easier and helps ensure proper system sealing.

To ensure waterproofing, it is crucial to use a gasket, a clamp, and a sealant compatible with the system. Additionally, a full waterproofing test must be performed before commissioning the system.

Before commissioning, it is strongly recommended to perform a thorough check of the entire system, including:

VoltageCurrent protectionCoolingSystem interfacesThis ensures correct and secure installation.

Yes, an official datasheet is available for the MG Energy MG5000471 connection, providing technical details and relevant information for its use and installation.
