B&G

000-15740-001

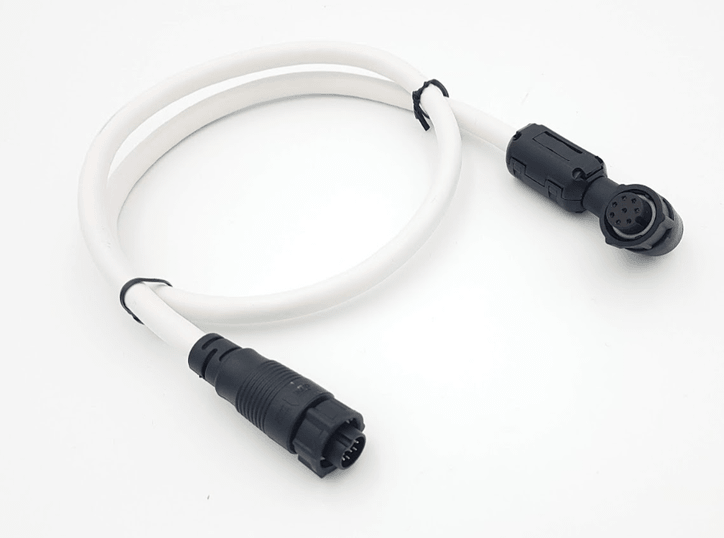

Nemesis Interconnect Cable

This B&G Nemesis interconnection cable (000-15740-001) is 0.6 meters long and is designed for Nemesis navigation displays. It provides power and Ethernet connectivity between a Nemesis display and the Nemesis hub, simplifying system integration. The product includes a 0.6m Nemesis interconnection cable.

Retail priceBenefit from the professional rate

£59.93 GBP

£59.93 GBP ~~£60.99 GBP~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Section (mm²)	0.34
Section (AWG)	22.0
Number of conductors	10.0
Color	Black
Max voltage	48.0
Shielding	Shielded
Flexibility	Standard
Current type	DC
Outer diameter	7.0
Nominal current	3.0
Jacket material	PVC
Conductor material	Copper
Certifications	CE
Conductor finish	Tinned
Cable type	Ethernet cable
Cable length	0.6
Compatible network	Ethernet
Pre-molded connectors	Yes
Installation location	Between the B&G Nemesis display and the Nemesis hub (mast, cockpit, helm station)
Cable application	Interconnection
Operating temperature	-20 to 70
Storage temperature	-40 to 85
Connector type	B&G owner
Shielding type	Braid
UV resistance	Good
Type de construction du câble	Single cable
Cable length (ft)	2
Protocole de communication	Ethernet
Compatibility Restriction	Exclusively B&G Nemesis
Compatible Device Series	B&G Nemesis
Compatible Hub Max Displays	3
Compatible with	B&G Nemesis Displays
Connection Purpose	Power and Ethernet data
Simplicité d'installation	Simplified
Intended use	Nemesis Hub Interconnect
Nemesis compatibility	Yes
Poids emballé	0.12
Per Display Connection Requirement	One cable per Nemesis display
Product use	Interconnect cable for B&G Nemesis displays and the Nemesis hub, providing power and Ethernet data.
Product range	Nemesis
Product type	Interconnect Cable
Product weight	0.1
Wired network	Ethernet
Wire gauge	26

Detailed description

The Nemesis B&G interconnect cable (part number 000-15740-001) is an essential component of the Nemesis ecosystem, designed to ensure integration of the intelligent navigation displays in the series. At 0.6 meters (2 feet) long, this single cable combines both power supply and Ethernet data connectivity, simplifying installation and reducing clutter at consoles or mast bases. This dedicated solution guarantees a reliable and high-performance link between Nemesis displays and the Nemesis hub.

System integration and compatibility

Each Nemesis display requires its own Nemesis interconnect cable to operate within the system. The Nemesis hub is designed to manage up to three displays, enabling a centralized and robust multi-display configuration. This cable is exclusively compatible with B&G Nemesis displays and hub, ensuring optimal performance and stability for this advanced navigation instrument range. Unlike generic Ethernet cables, it combines power and network in a proprietary manner, guaranteeing seamless integration in demanding marine environments.

Technical specifications

The B&G 000-15740-001 cable is optimized for short connections, providing a compact solution for installations where the display and hub are in close proximity. Its design combines two essential functions into a single element, minimizing complex wiring and potential failure points. This cable is an indispensable component for any installation or expansion of the Nemesis display system, ensuring simultaneous and stable transmission of critical data and power required for B&G performance displays to operate.

Expert opinion

Pol CONIN

Digital Manager

« Nemesis Cable: the essential interconnection for B&G systems »

The Nemesis B&G interconnection cable is a key component for implementing Nemesis display systems. Its combined power supply and Ethernet transmission function via a single 0.6-meter cable significantly simplifies installation and wiring management on board. This proprietary approach reduces connection error risks and ensures optimal signal integrity in a marine environment. It is mandatory to use this specific cable to guarantee compatibility and the expected performance of Nemesis displays, which are essential performance instruments for sailboats. Its design is optimized for short links between the display and the Nemesis hub, a central network element, supporting up to three displays. Its use is non-negotiable for reliable and stable integration of the Nemesis system.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Nemesis Interconnect Cable

£59.93 GBP

£59.93 GBP ~~£60.99 GBP~~

Frequently Asked Questions

Need help? Contact us

What exactly is the Nemesis interconnection cable used for?

This cable, part number 000-15740-001, is specifically designed to connect a B&G Nemesis navigation display to the Nemesis hub. It provides both power supply to the display and data transmission via Ethernet in a single connection.

What is the length of this cable?

The length of this interconnect cable is 0.6 meters (approximately 2 feet). This size is optimized for short, direct connections between the display and the hub to minimize clutter.

Is this cable compatible with other B&G displays such as the Triton² or Vulcan?

No, this cable is exclusively compatible with B&G Nemesis series displays and hub. It will not work with other B&G product ranges or other brands.

Do I need to buy a cable for each Nemesis display I install?

Yes, each Nemesis display connected to the hub requires its own 000-15740-001 interconnection cable to function properly.

Can I use a standard Ethernet cable instead of this one?

No, it is not possible to replace it with a standard cable. The Nemesis cable is a specific model that combines in a single connector both the power supply and the Ethernet network connection, which a standard cable cannot do.

How does this cable connect to the system?

The cable connects on one end to the Nemesis display and on the other end to one of the available ports on the Nemesis hub. Installation is simplified thanks to this single-cable design.

Is the Nemesis hub supplied with this cable?

No, the Nemesis hub and displays are sold separately. This product includes only the 0.6m interconnection cable.

How many displays can I connect to a single Nemesis hub?

The Nemesis hub is designed to manage up to three Nemesis displays simultaneously, each requiring its own interconnect cable.

Is this an original B&G part?

Yes, this is an authentic B&G interconnect cable, part number 000-15740-001. Using original parts is recommended to ensure optimal performance and compatibility with your Nemesis system.

What is the main advantage of using this cable?

The main advantage is simplified installation. By combining power and data in a single cable, it reduces the number of cables to run, minimizes clutter, and makes installation cleaner and faster.

Can this cable be used with equipment from other brands (Garmin, Raymarine, etc.)?

No, this cable is a proprietary product designed for the B&G Nemesis ecosystem. It is not compatible with devices from other manufacturers.

What types of signals does this cable carry?

This cable carries two types of signals simultaneously:

The electrical power required to operate the Nemesis display.The Ethernet network data for communication with the hub and other instruments on the network.

Is 0.6 m the only length available?

This product, under reference 000-15740-001, specifically corresponds to the 0.6-meter version. This length is ideal for setups where the display and the hub are close to each other.

Is it possible to extend this cable if it is too short?

It is not recommended to modify or extend this specific cable, as this could affect signal and power integrity. It is designed for a direct 0.6m connection.

Is the cable designed for a marine environment?

Yes, like all B&G products, this cable and its connectors are made with high-quality materials to withstand the demanding conditions of the marine environment (humidity, salt, UV).

Which devices are connected by this cable?

This cable is specifically used to establish the physical link between a B&G Nemesis display and the B&G Nemesis hub.

Does installing this cable require a professional?

Connecting the cable itself is straightforward (plug-and-play). However, the complete installation of the Nemesis system (mounting the display, the hub, and connecting to the boat's network) may require marine electronics skills.
