20 A - 4 Circuit Terminal Block

The Blue Sea Systems 20 A - 4-circuit terminal block (part number 2404-BSS) is an electrical component designed to organize and secure power distribution on marine systems.

Its main function is to centralize and distribute electrical power to four separate circuits, ensuring organized and secure current management for specific equipment.

This terminal block is designed to handle four separate electrical circuits, providing a solution for individualized distribution.

Each terminal block circuit in this unit can handle a maximum current of 20 amperes.

Yes, this terminal block is specifically designed for marine applications, providing a reliable solution for electrical distribution aboard vessels.

This terminal block belongs to the Blue Sea Systems 24XX series, a range of modular terminal blocks designed for various distribution needs.

Yes, its dimensions are optimized for easy integration in tight spaces, making it suitable for compact electrical panels.

The reference number (SKU) for this product is 2404-BSS.

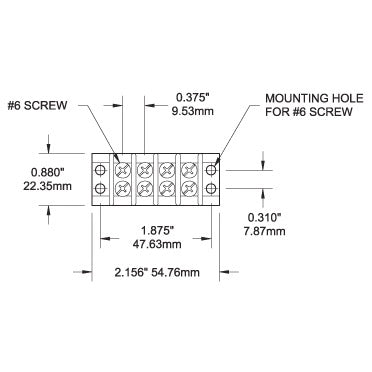

Typical terminal block dimensions are:

Width: 21.8 mm (0.86 in)Height: 9.5 mm (0.37 in)Depth: 13.0 mm (0.51 in)Total length for the 4-circuit model is approximately 47.6 mm (1.87 in).

For stable mounting, use #6 [M3.5] mounting screws.

The terminations used for cable connections are type #6 [M3], ensuring a reliable electrical connection.

The terminal block is mounted using #6 [M3.5] screws for secure fastening. Mounting points are provided on the terminal block for this installation.

This terminal block is primarily intended for secondary or tertiary circuits requiring individual power management, with a maximum current of 20 A per line.

No, this terminal block is not designed for main high-power circuits. It is intended as a solution for secondary or tertiary circuits, complementing more complex distribution systems.

Yes, it is designed to complement more complex distribution systems by providing reliable connection points for specific equipment that requires up to 20 A per line.

The typical width of the terminal block is 21.8 mm (0.86 inches).

The typical height of the terminal block is 9.5 mm (0.37 inches).

The typical depth of the terminal block is 13.0 mm (0.51 inches).

Yes, the 2404-BSS terminal block is part of Blue Sea Systems' 24XX series, which is a range of modular junction blocks.

Technical specifications indicate that #6 [M3.5] mounting screws are required for installation, but do not specify whether these screws are included with the 2404-BSS terminal block.
