GNX™ 43 wired sail pack
In stock
Technical specifications
Technical specifications
| IP rating | IPX7 |
| Operating voltage | 9 - 16 |
| Product height | 170 |
| Product width | 90 |
| Wired network | NMEA 2000, Nexus |
| Backlight color | White |
| Housing color | Black |
| Housing material | ABS plastic |
| Max power consumption | 1.1 |
| Product depth | 50 |
| Typical power consumption | 1.1 W |
| NMEA 2000 Load Equivalency Number (LEN) | 4 |
| Mounting type | Flush-mounted |
| Operating temperature | -15 to 70 |
| Recommended fuse rating | 1 A |
| Bus compatibility | NMEA 2000, Nexus |
| Wireless connectivity | No |
| Certifications | CE, IEC 60945 |
| Display resolution | 320 x 240 pixels |
| Display type | LCD |
| Screen brightness | Not specified |
| Screen size | 4.3 |
| Touchscreen | No |
| Wired input | USB, Nexus, NMEA 2000 |
| Storage temperature | -15 to 70 |
| Bonded LCD | Yes |
| Package contents | GNX 43 display, GND 10 housing, USB cable, Nexus depth sounder cable, NMEA 2000 power cable, NMEA 2000 drop cable, NMEA 2000 T-connectors, NMEA 2000 terminators, mounting screws, documentation |
| Race timer function | Yes |
| Available alarms | Depth, temperature, wind, navigation alarms |
| Wind vane / anemometer compatibility | Garmin gWind, gWind Race wind transducers / vane anemometers |
| Boat speed calibration | Yes (via NexusRace software for wind sensors, configurable via the instrument for other data) |
| Compass safe distance | 10 cm |
| Compatible systems | NMEA 2000 network, Nexus network, Expedition software, Adrena |
| Résolution de l'écran | 480 x 272 |
| Taille de l'écran | 4.3 |
| Display Type Description | Monochrome LCD dot-matrix display |
| Gnd 10 Compass Safe Distance Cm | 10 |
| Gnd 10 Dimensions Mm | 170 x 90 x 50 |
| Gnd 10 Nmea2000 Input Voltage Range | 9 - 16 |
| Gnd 10 Nmea2000 Len | 4 |
| Gnd 10 Nmea2000 Power Draw W | 1.1 |
| Gnd 10 Operating Temperature Range | -15 to 70 |
| Gnd 10 Waterproof Rating | IPX7 |
| Gnd 10 Weight G | 196 |
| Gnx 43 Auto Scroll | Yes |
| Gnx 43 Race Timer | Yes |
| Warranty period | 2 years |
| Installation location | Display: cockpit or chart table (flush-mounted); GND 10 housing: below deck (surface-mounted) |
| Measurement range | 0 - 360° (wind angle) |
| Nexus Ports Count | 2 |
| NMEA 2000 port count | 1 |
| Poids net du produit | 0.6 |
| Retractable | No |
| Self-closing valve | No |
| Sensor compatibility | Nexus sensors (wind, depth, speed, temperature), NMEA 2000 sensors |
| Sensor output type | NMEA 2000, Nexus, USB |
| Sensor type | Propeller anemometer with dual-fin vane (optical), Depth transducer, Speed/temperature transducer |
| Software Configuration Tool | NexusRace |
| Temperature measurement | No (display only if compatible sensor is connected) |
| Third Party Software Compatibility | Expedition, Adrena |
| Transducer mounting type | Mount on mast (wind transducer), through-hull (depth/speed/temperature transducers) |
| USB port count | 1 |
Detailed description
Detailed description

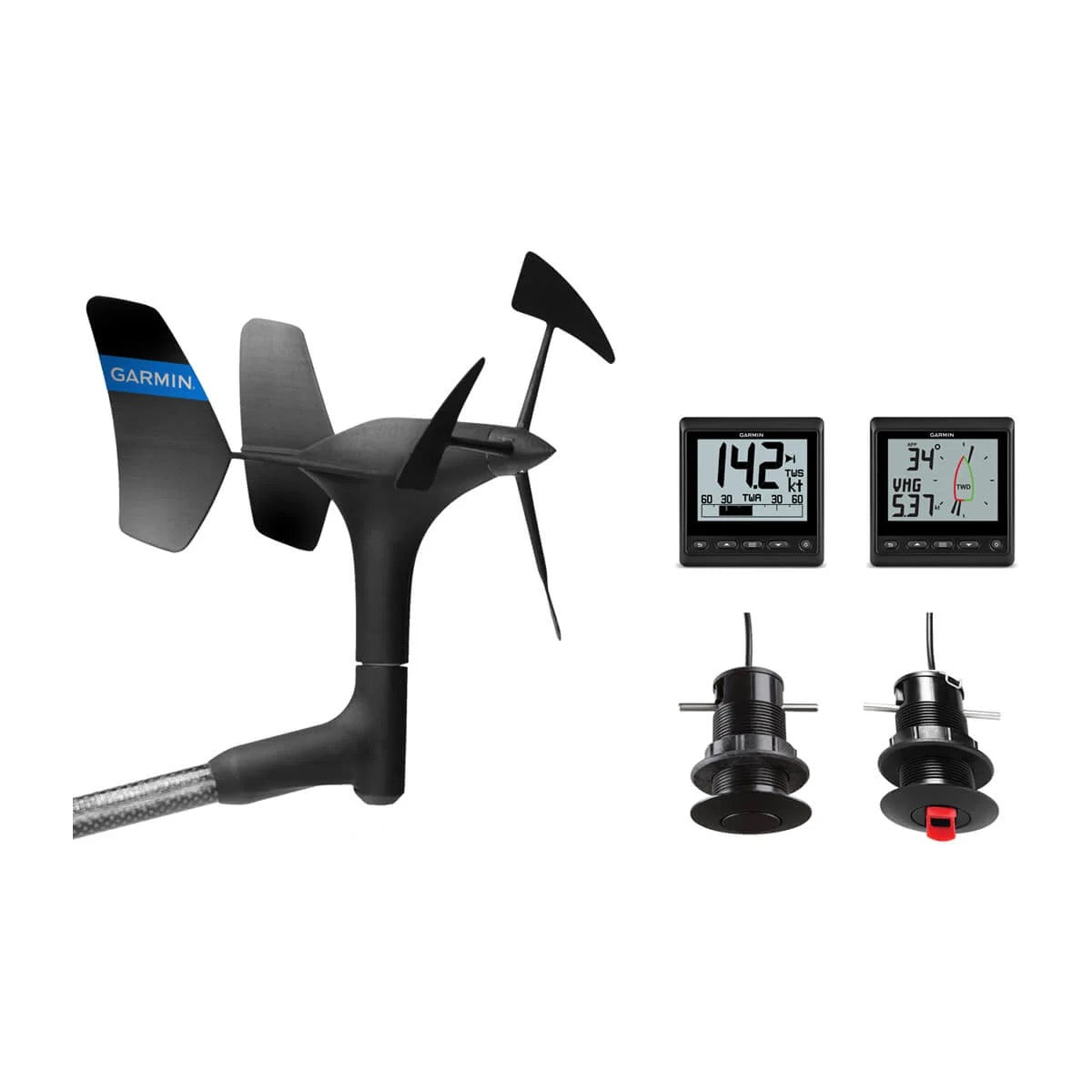

The GNX™ 43 wired sail pack by Garmin is an integrated solution designed for cruising and racing sailboats requiring clear and reliable navigation data display. This pack combines the GNX™ instrument displays, known for their readability, with a GND™ 10 network bridge, enabling the connection of Nexus® sensors (such as the gWind™ wind vane-anemometers) to a NMEA 2000® network. Unlike Garmin’s multifunction chartplotters, this pack focuses on dedicated display of essential data (speed, heading, wind, depth) without distraction. It serves as a more accessible and specialized alternative to full systems like B&G’s Zeus³S, while offering native integration with racing navigation software such as Expedition® and Adrena®.
Components and connectivity of the GNX™ 43 pack
The pack includes a GNX™ 43 instrument (likely a 4.3-inch display) and the GND™ 10 interface box. The GND™ 10 acts as a gateway between the proprietary Nexus® network and the NMEA 2000® standard. It allows Nexus® sensor data, such as wind speed and angle, to be transmitted over the NMEA 2000® network for sharing with other compatible instruments and chartplotters. The GND™ 10 also features a USB port for PC connection, enabling advanced calibration of wind sensors (such as the gWind Race™) via the NexusRace™ software and data export to routing and tactical software. The pack ships with a field-installable Nexus® mast cable with connector.
Performance and data display
The GNX™ 43 instrument displays data from sensors connected via the NMEA 2000® network or directly from the Nexus® network. It offers preconfigured profiles for cruising (SAIL CRUISE) and racing (SAIL RACE), with dedicated instrument pages (SOG, heading, true wind angle and speed, waypoint distance). Users can customize data fields and display layouts. The screen is designed for optimal readability even in bright sunlight, and the instrument is waterproof to IPX7 standards. The GND™ 10 box provides robust power and data management with a power consumption limited to 1.1 W on the NMEA 2000® network.
Expert opinion
Expert opinion
Pol CONIN
Digital Manager
« The GND™ 10 deck unit: the key to Nexus® integration »
