Raymarine

R70561

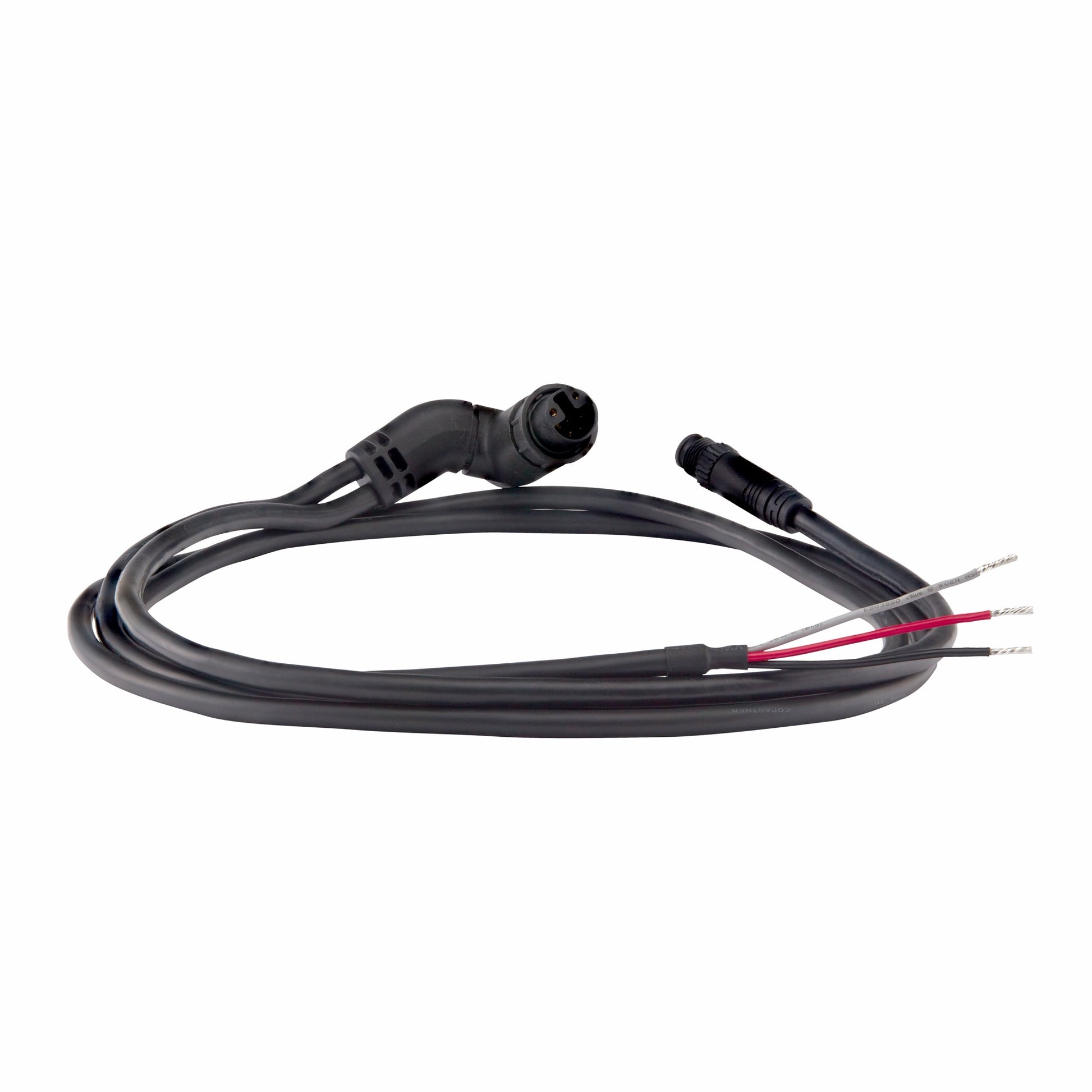

Power cable Element / AXIOM / AXIOM+ 90 degrees 1.5 m with NMEA2000 connector

Designed for Raymarine Element, AXIOM and AXIOM+ multifunction displays, the R70561 1.5 m power cable features a 90-degree connector for easier installation in confined spaces and an NMEA2000 connector for simplified system integration. This cable is an essential spare or new installation part for these MFD ranges. Includes: 1.5 m 90-degree Element / AXIOM / AXIOM+ power cable with NMEA2000 connector.

Retail priceBenefit from the professional rate

£42.82 GBP

£42.82 GBP ~~£44.20 GBP~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Connector type	Raymarine 90-degree NMEA 2000 power connector
Cable type	Power and data cable
Cable length	1.5
Compatible network	NMEA 2000
Wired network	NMEA 2000
Operating voltage	12 V DC
Certifications	CE,NMEA 2000,IEC 60945
Product type	Power and data cable
Compatible models	Raymarine Element, Raymarine AXIOM, Raymarine AXIOM+

Detailed description

The Raymarine R70561 power cable is specifically designed for the multifunction displays (MFD) of the Element, AXIOM, and AXIOM+ ranges. With a length of 1.5 meters and a 90-degree connector, it facilitates installation in confined spaces while ensuring a reliable and secure connection. This cable also integrates an NMEA2000 connector, allowing power supply and data communication via a single connection point.

Integration and compatibility

This R70561 cable is an essential component for installing Raymarine Element, AXIOM, and AXIOM+ MFDs. The 90-degree design of the power connector is optimized for flush-mounted installations where space behind the dashboard is limited. The integration of NMEA2000 via the same cable simplifies the overall system wiring, reducing the number of separate connections required for power and data networking. AXIOM MFDs, particularly those running LightHouse 4, fully benefit from this integration for engine data management, sensor inputs, and other devices connected to the NMEA2000 network.

Positioning in the Raymarine range

The R70561 is positioned as an indispensable accessory for professional and clean installations of Raymarine’s mid-range and high-end MFDs. Unlike standard power cables or solutions requiring separate NMEA2000 adapters, this cable provides a unified solution. It ensures perfect compatibility and stable performance with Element, AXIOM, and AXIOM+ devices, guaranteeing interference-free power and data transmission. Its design aims to optimize installation ergonomics and wiring cleanliness for modern marine systems.

Documentation

Type	Nom
	FR - Manuel d'utilisation - Câble alimentation Element / AXIOM / AXIOM+ 90 degrés 1.5 m avec connecteur NMEA2000

Expert opinion

Pol CONIN

Digital Manager

« Optimized cabling for Raymarine Element and AXIOM MFDs »

The Raymarine R70561 power cable is a key component for optimizing the installation of Element, AXIOM, and AXIOM+ multifunction displays. Its primary value lies in its 90-degree connector, a technical detail that makes a significant difference when integrating MFDs into consoles with limited rear space. This design prevents excessive stress on the cable and connector, increasing installation durability.

Integrating the NMEA 2000 connector directly into the power cable also simplifies the wiring process. Instead of managing two separate cables (power and NMEA 2000 data) that could follow different paths or require additional mounting points, the R70561 provides a unified solution. This reduces installation time and minimizes the risk of connection errors. It is particularly well-suited for pleasure craft and small fishing vessels where every square centimeter and every minute of installation counts.

While its 1.5-meter length is sufficient for many setups, it is crucial to verify the distance between the MFD location and the power/NMEA 2000 network connection point to ensure no extension is required. This cable is specifically designed for the Element and AXIOM/AXIOM+ ranges and will not be compatible with older Raymarine models or MFDs from other brands, a limitation to consider when planning the system.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Power cable Element / AXIOM / AXIOM+ 90 degrees 1.5 m with NMEA2000 connector

£42.82 GBP

£42.82 GBP ~~£44.20 GBP~~

Frequently Asked Questions

Need help? Contact us

What is the Raymarine R70561 cable used for?

The Raymarine R70561 cable is designed to supply power to multifunction displays (MFD) in the Element, AXIOM, and AXIOM+ ranges. It also includes an NMEA 2000 connector, allowing it to handle both power supply and data communication through a single connection point.

What is the exact length of the Raymarine R70561 power cable?

The exact length of the Raymarine R70561 power cable is 1.5 meters.

Does the R70561 cable include data communication features?

Yes, the R70561 cable includes an NMEA 2000 connector. This allows it to supply power and ensure data communication for your Raymarine system.

With which Raymarine multifunction display models is the R70561 cable compatible?

This cable is specifically compatible with the multifunction displays (MFD) of the Raymarine Element, AXIOM, and AXIOM+ series.

Does this cable work with Axiom MFDs running LightHouse 4 software?

Yes, Axiom MFDs—particularly those running LightHouse 4—fully support this cable’s NMEA 2000 integration for engine data, sensor management, and other devices connected to the NMEA 2000 network.

What is the advantage of the 90-degree connector on this cable?

The 90-degree connector is designed to simplify installation in tight spaces, particularly for flush-mounted setups where space behind the dashboard is limited. It ensures a reliable and secure connection while optimizing installation ergonomics.

How does the R70561 cable help simplify the overall wiring on board?

By integrating both power supply and NMEA 2000 data communication through a single cable, the R70561 significantly simplifies the system’s overall wiring. It reduces the number of separate connections required, resulting in cleaner and more organized cabling.

Is this cable suitable for installations where space is limited?

Yes, the 90-degree connector design is specifically engineered for installations in confined spaces, such as flush-mounted setups or behind a dashboard where access is restricted, making it easier to integrate your MFD.
