Raymarine

E26005

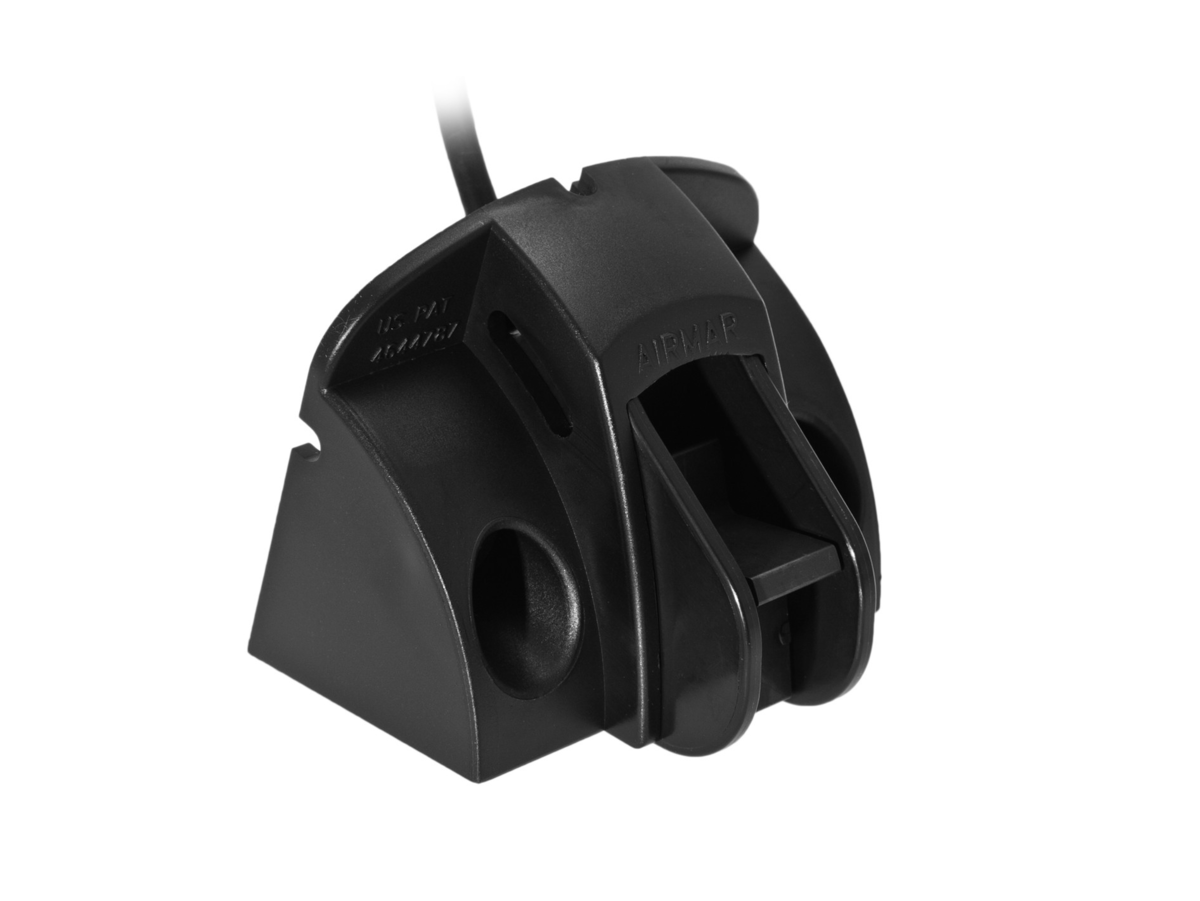

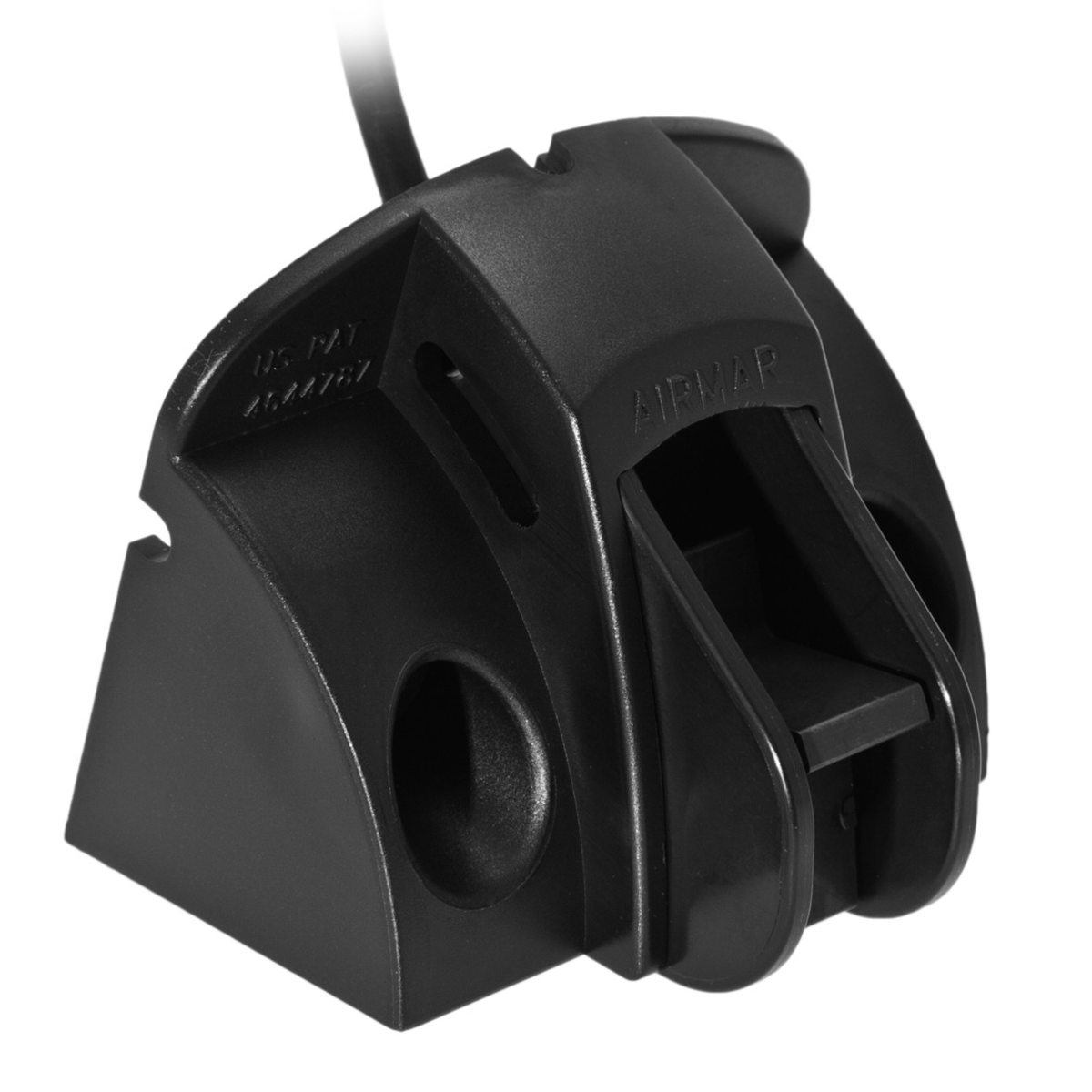

Rear-panel speed/temperature sensor with 13.8m cable

Designed for installation on the transom, the Raymarine E26005 sensor provides accurate speed and water temperature data. This model features a 13.8-meter cable for optimal installation flexibility. It integrates with Raymarine navigation systems.

Includes: speed/temperature sensor and 13.8m cable.

Retail priceBenefit from the professional rate

£114.46 GBP

£114.46 GBP ~~£119.34 GBP~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Operating voltage	12V DC
Operating temperature	-10°C to +55°C
Max power consumption	Less than 1W
Typical power consumption	Less than 1W
Transducer material	Plastic
Sonar connector type	SeaTalk connector
Cable length	13.8
Product width	63.5 mm
Integrated temperature sensor	Yes
Product height	70.4 mm
Compatible displays	Raymarine ST series, i50/i60 (via iTC-5), Raymarine display compatible
Product depth	57.7 mm
IP rating	IPX7
Bus compatibility	SeaTalk
Wired network	SeaTalk
Mounting type	Rear panel
Certifications	CE
Temperature measurement range	-5°F to +104°F
Integrated speed sensor	Yes
Warranty	2.0

Detailed description

The Raymarine E26005 sensor is designed for simultaneous measurement of water speed and temperature. Intended for installation on the transom, it provides an integrated solution for Raymarine navigation systems. This model includes a 13.8-meter cable, facilitating integration on a variety of hulls and boat configurations.

Functionality and integration

This transom-mounted sensor serves as an alternative to through-hull models, often preferred for its ease of installation and the absence of major hull drilling below the waterline. It provides essential speed and temperature data required for display on Raymarine multifunction displays or dedicated repeater units. Compared to more complex transducers integrating depth or CHIRP technology, the E26005 focuses on core navigation and surface marine condition monitoring parameters.

Design and specifications

With its 13.8-meter cable, the Raymarine E26005 sensor allows flexible installation to reach main display units, even on medium-sized vessels. Its transom-mount design makes it suitable for boats where through-hull installation is difficult or undesirable. It integrates into the Raymarine ecosystem to provide real-time navigation data.

Expert opinion

Pol CONIN

Digital Manager

« Analysis of Raymarine speed/temperature sensor for transom mount »

The Raymarine E26005 sensor provides a practical solution for acquiring water speed and temperature data. Its main advantage lies in its transom-mounted installation type, which eliminates the need for a through-hull fitting below the waterline. This feature makes it particularly suitable for planing hulls or aluminum/steel hulls where through-hull installations can be more complex or require specific adaptations.

Integrating this sensor into a Raymarine system is straightforward, providing raw speed and temperature data to compatible displays or processors. The 13.8-meter cable is a generous length that offers appreciable flexibility for routing in most recreational boat configurations, allowing it to reach the electrical panel or central unit without requiring additional extensions in most cases. This is a reliable component for basic navigation needs, without the complexities associated with more advanced multifunction transducers.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Rear-panel speed/temperature sensor with 13.8m cable

£114.46 GBP

£114.46 GBP ~~£119.34 GBP~~

Frequently Asked Questions

Need help? Contact us

What data can the Raymarine E26005 sensor measure?

The Raymarine E26005 sensor is designed to simultaneously measure two essential navigation parameters: water speed and water temperature.

What is the mounting type of this sensor and where should it be installed on the boat?

This sensor is a transom-mount type. It must be installed on the transom of your vessel, providing a convenient installation solution that avoids major hull drilling below the waterline.

Does the E26005 sensor require hull penetration below the waterline?

No, the Raymarine E26005 sensor is a transom-mounted model. This installation type avoids hull penetration below the waterline, which is often preferred for its simplicity and to preserve hull integrity.

With which Raymarine systems and instruments is the E26005 sensor compatible?

The Raymarine E26005 sensor is designed to integrate with Raymarine navigation systems. It is compatible with a range of Raymarine instruments and multifunction displays, typically including the i50, i70, ST40, and ST60 instrument series, for displaying speed and temperature data.

What is the main difference between a transom-mount transducer and a thru-hull transducer?

The main difference lies in their installation method and their impact on the hull:

A transom-mount transducer (such as the E26005) is installed externally on the boat's transom and does not require drilling through the hull below the waterline. A thru-hull transducer requires drilling a hole through the hull and is mounted through it, sometimes providing a more stable reading but with a more complex installation.

Is the installation of the Raymarine E26005 sensor complex for a user?

Installation of the E26005 sensor is considered relatively simple compared to other sensor types. As a transom-mounted model, it does not require major hull drilling below the waterline, making it more accessible for installation by the user or a professional installer.
