ICOM

IC-M510BB

Fixed-mount black-box VHF IC-M510BB

L'Icom IC-M510BB est une VHF fixe "boîte noire" de nouvelle génération, offrant une intégration discrète et des fonctionnalités avancées pour la navigation. Elle intègre un récepteur AIS, un GPS/GNSS interne et une connectivité NMEA 2000/0183-HS pour une communication et une connaissance situationnelle optimales. Le produit est livré avec le CommandMic™ HM-195 et un câble OPC-1540 de 6.1 m.

Prix publicBénéficier du tarif pro

1.039,20€

Incl. tax Shipping calculated at checkout.

In stock

Livraison offerte dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Maximum power consumption	66
Typical electrical consumption	18
Operating voltage	12.0
Operating temperature	-20 à 60
Recommended fuse rating	10 A
Wired network	NMEA 2000,NMEA 0183-HS
Wireless connectivity	N/A
Audio output power	Plus de 13 W (Hailer), Plus de 2 W (CommandMic)
Product height	79
Product width	216
Product depth	113
Detachable handset	Oui
NMEA 2000 load equivalence number (LEN)	Non spécifié
IP rating	IPX7
Bus compatibility	NMEA 2000,NMEA 0183
Compass safe distance	100 cm
Mounting type	Montage déporté
Certifications	Class D DSC,EN 300 338-8,EN301 025
AIS class	N/A
AIS reception	Oui
AIS transmission	Non
ATIS	Oui
Antenna connector	SO-239
DSC	Class D
GPS	Oui (GNSS intégré)
Intercom function	Oui
VHF frequency range	156.025 – 162.000
VHF transmit power	25 / 1
Max wired handsets	3.0
Display resolution	N/A
Display type	N/A
Audio rewind feature	Oui (jusqu'à 2 minutes)
GPS antenna connector	N/A
Detachable fist mic	Non
Package contents	Unité RF, CommandMic™ (HM-195), Câble OPC-1540 (6.1m), Antenne GPS (version EUR)
Available alarms	Détresse DSC, AIS (CPA/TCPA)

Accessoires

B&G Interface WS310 convertit NMEA 0183 en NMEA 2000

WS310 Interface converts NMEA 0183 to NMEA 2000

238,80€

Shop

RG58 PUR coaxial cable for VHF

5,48€

5,48€ m

Shop

10mm² HI FLEX Red Cable

5,74€

5,74€ m

Shop

Description détaillée

The fixed-mount black-box VHF Icom IC-M510BB is an advanced marine communication solution designed for vessels requiring a discreet installation and full-featured operation. This compact RF unit (216 × 79 × 113 mm, 890 g) fits easily into any space, while all operations are controlled via the remote CommandMic™. The system operates on a TX frequency range of 156.025 to 161.425 MHz and RX range of 156.050 to 162.000 MHz, with selectable output power of 25 W or 1 W. Power requirement is 12.0 V DC nominal (10.8 – 15.6 V DC), and the unit operates in a temperature range from -20°C to 60°C.

Advanced Integration and Connectivity

The IC-M510BB features extensive connectivity, including NMEA 2000 and NMEA 0183-HS, enabling seamless integration with existing navigation systems. It includes an integrated AIS receiver, providing enhanced situational awareness by displaying nearby vessel data directly on compatible chartplotters. An internal GPS/GNSS receiver is also included, with a supplied GPS antenna for the EUR version, ensuring precise and reliable positioning without additional external hardware. This VHF is Class D DSC certified (EN 300 338-8), ensuring digital distress calls compliant with international standards, and can manage up to 3 CommandMic™ stations in total.

Audio Performance and Durability

Equipped with active noise-cancelling, the IC-M510BB delivers exceptional audio clarity even in noisy marine environments. The CommandMic™ audio output exceeds 2 W (4 Ω, 10% distortion), while the RX hailer provides over 13 W (4 Ω), ensuring optimal intelligibility. Unlike the IC-M410BB, the IC-M510BB includes voice recording and playback (up to 2 minutes). The RF unit is built to withstand harsh marine conditions, with an IPX7 rating (immersion to 1 m for 30 minutes), and dimensions of 216 × 79 × 113 mm weighing 890 g. Nominal antenna impedance is 50 Ω.

Documentations

Type	Nom
	EN - Brochure commerciale - VHF fixe boîte noire

Avis de l'expert

« Technical analysis: Icom IC-M510BB, the connected black-box VHF »

The Icom IC-M510BB fixed black-box VHF is a robust marine communication solution with high integration capabilities, ideal for vessels where dashboard space is limited or a clean aesthetic is desired. Its "black-box" architecture allows the main RF unit, IPX7-certified, to be mounted in a technical compartment while providing full control via the remote CommandMic™. This setup significantly simplifies installation and maintenance of navigation systems.

In terms of integration, the IC-M510BB excels thanks to its NMEA 2000 and NMEA 0183-HS interfaces. This ensures native compatibility with most modern electronic networks, enabling direct sharing of integrated AIS and GPS data on multifunction displays. The embedded AIS receiver, absent on models like the IC-M410BB, provides a critical safety layer by overlaying real-time maritime traffic information. The internal GPS/GNSS receiver, with its included antenna, eliminates the need for a dedicated external GPS antenna, further simplifying wiring.

Audio quality is a standout feature thanks to active noise cancellation, crucial in a marine environment. The voice recording function, specific to the IC-M510BB compared to the IC-M410BB, can be very useful for transcribing important information. The ability to manage up to three CommandMic™ stations offers valuable flexibility for large vessels or those requiring multiple communication points.

Durabilité

Facilité d'installation

Rapport performance / prix

Pièces de rechange

Fusible AMI/MIDI - 30 A (2 pièces) - AMI / MIDI Fuse - 30 Amp

AMI/MIDI fuse - 30 A (2 pieces)

9,84€

Shop

Fusible AMI/MIDI - 50 A (2 pièces) - AMI / MIDI Fuse - 50 Amp

Fuse AMI/MIDI - 50 A (2 pieces)

9,84€

Shop

10mm² HI FLEX Red Cable

5,74€

5,74€ m

Shop

10mm² HI FLEX Black Cable

5,74€

5,74€ m

Shop

B&G ZG100 GPS Antenna

275,56€

275,56€ ~~351,54€~~

Shop

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

Fixed-mount black-box VHF IC-M510BB

1.039,20€

Complétez votre installation avec des

Équipements complémentaires

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde - photo 2

B&G

Chartplotter Zeus 3S 12" with world base map

Ref : 000-15412-002

3.981,96€

3.981,96€ ~~4.772,38€~~

B&G Traceur de cartes Zeus 3S 9" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 9" avec carte de base du monde - photo 2

B&G

Zeus 3S 9" chartplotter with world base map

Ref : 000-15411-001

2.400,00€

2.400,00€ ~~3.669,60€~~

B&G Afficheur numérique Triton² 4,1" - photo 2

B&G

B&G Triton² 4.1" digital display

Ref : 000-13294-001

525,96€

525,96€ ~~648,90€~~

IDST-810 depth, speed, temperature sensor - NMEA 2000

AIRMAR

IDST-810 depth, speed, temperature sensor - NMEA 2000

Ref : 000-15735-001

664,80€

B&G

B&G ZG100 GPS Antenna

Ref : 000-11048-002

275,56€

275,56€ ~~351,54€~~

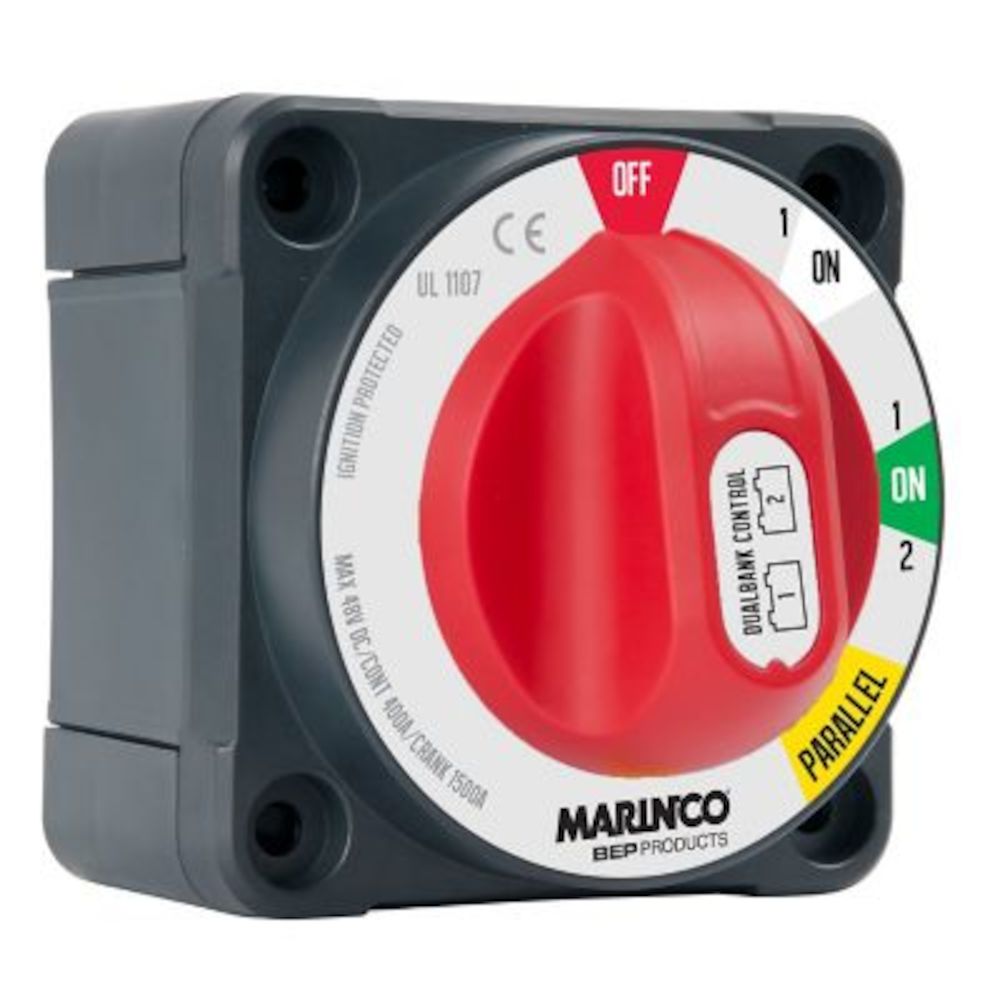

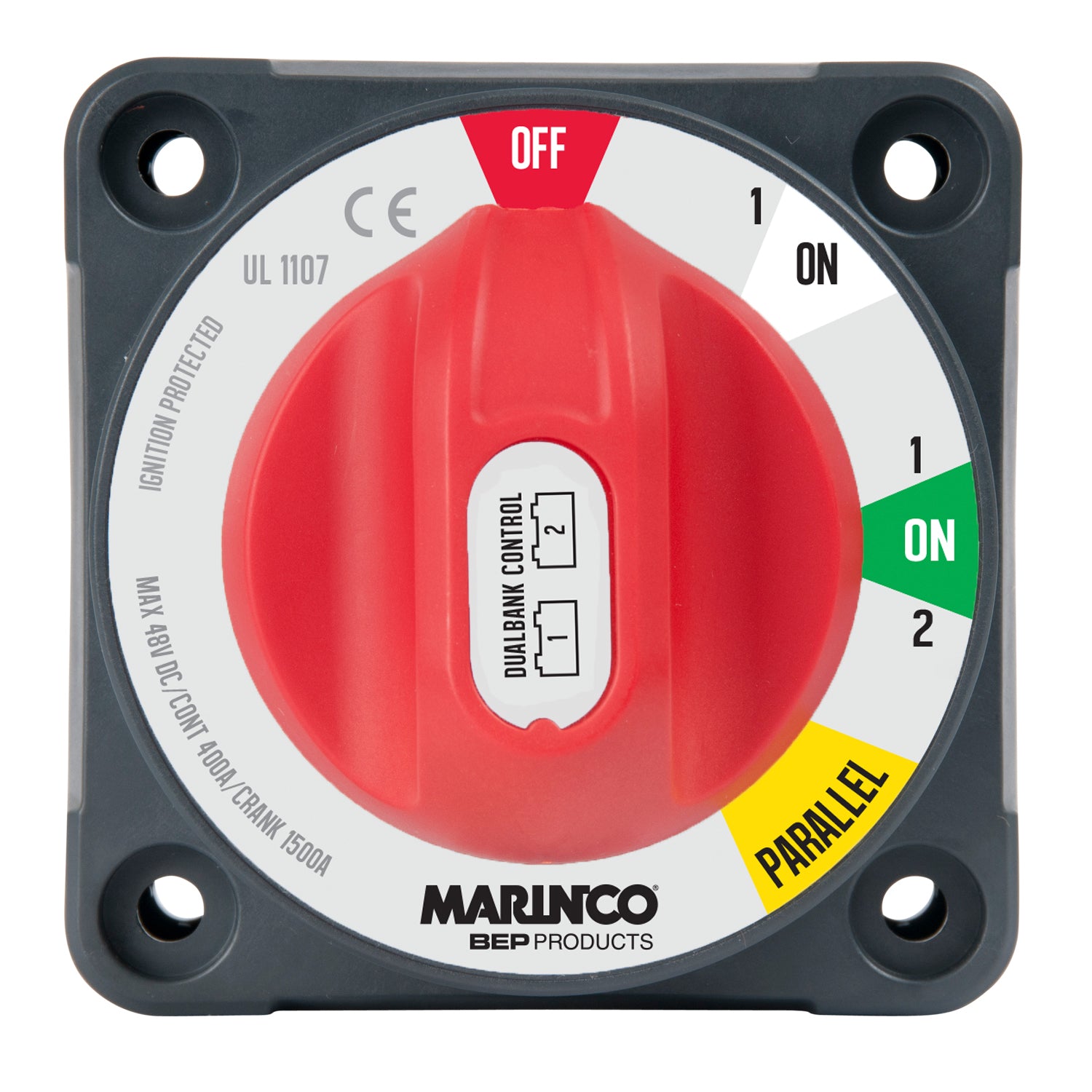

Battery switch 2 parallel banks EZ 400A continuous 1/1&2/Parallel/Off 48V

BEP Marine

Battery switch 2 parallel banks EZ 400A continuous 1/1&2/Parallel/Off 48V

Ref : 772-DBC

134,40€

BEP Marine

High-duty battery switch 600 A 48 V

Ref : 720B

73,75€

73,75€ ~~98,28€~~

Bloc de fusibles SafetyHub 100 - SafetyHub 100 Fuse Block

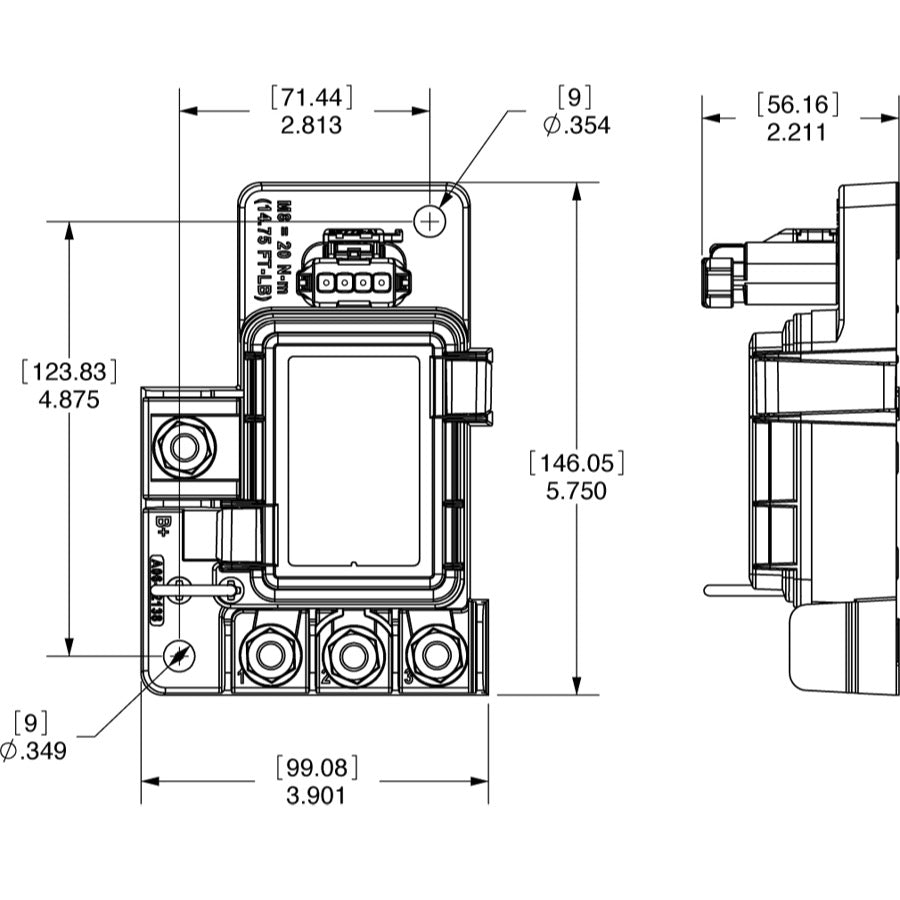

Bloc de fusibles SafetyHub 100 - Dimensioned Drawing

Blue Sea Systems

SafetyHub 100 fuse block

Ref : 7725B-BSS

163,18€

Bloc de fusibles à lame ST - 12 circuits avec bus négatif et couvercle - ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover

Bloc de fusibles à lame ST - 12 circuits avec bus négatif et couvercle - Dimensioned Drawing

Blue Sea Systems

ST Blade 12-circuit fuse block with negative bus and cover

Ref : 5026B-BSS

79,50€

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is a fixed black box VHF like the IC-M510BB?

A fixed black box VHF is a marine communication system where the main RF (radio frequency) unit is installed discreetly, usually hidden, and all operations are controlled remotely via a remote microphone, such as the CommandMic™ for the IC-M510BB. This allows flexible installation and space savings on the dashboard.

What are the dimensions of the IC-M510BB's RF unit?

The IC-M510BB's RF unit has compact dimensions of 216 × 79 × 113 mm (width × height × depth), excluding projections.

What is the approximate weight of the RF unit of the IC-M510BB VHF?

The approximate weight of the RF unit of the IC-M510BB is 890 grams.

What is the output power of the IC-M510BB VHF?

The IC-M510BB VHF offers selectable output power of 25 W (high) or 1 W (low).

What is the transmission frequency range (TX) of this VHF?

The transmission frequency range (TX) of the IC-M510BB is 156.025 to 161.425 MHz.

What is the receive frequency range (RX) of the IC-M510BB VHF?

The receive frequency range (RX) of the IC-M510BB is 156.050 to 162.000 MHz.

Is the IC-M510BB waterproof and what is its IP rating?

Yes, the IC-M510BB (RF unit and CommandMic™) is waterproof with an IPX7 rating. This means it is protected against temporary immersion in water up to 1 meter for 30 minutes.

Does the IC-M510BB have a voice recording function?

Yes, the IC-M510BB includes a voice recording and playback function, allowing up to 2 minutes of conversation to be recorded.

What is the audio power level of the CommandMic™ and the RX hailer?

The IC-M510BB's CommandMic™ delivers over 2 W of audio power (at 4 Ω impedance and 10% distortion). The RX hailer, in turn, delivers over 13 W (at 4 Ω impedance).

Does the IC-M510BB VHF have an active noise suppression system?

Yes, the IC-M510BB features active noise suppression for clear audio even in noisy marine environments.

What is the operating temperature range of the IC-M510BB VHF?

The IC-M510BB VHF is designed to operate within a temperature range of -20°C to 60°C.

What power supply is required for the IC-M510BB?

The IC-M510BB requires a nominal 12.0 V DC power supply (with an operating range of 10.8 to 15.6 V DC) and a negative ground.

What is the maximum current consumption of the RF unit during transmission?

The maximum current consumption of the RF unit in the IC-M510BB during transmission (TX at full power) is 5.5 A.

Which accessories are included with the IC-M510BB VHF?

The IC-M510BB comes with the OPC-1540 accessory, a 6.1 m (20 ft) cable. For the EUR version, a GPS antenna is also included.

Is the IC-M510BB compatible with NMEA networks?

Yes, the IC-M510BB features extended connectivity, including NMEA 2000 and NMEA 0183-HS, enabling seamless integration with existing navigation systems.

How many CommandMic™ units can be connected to the IC-M510BB?

The IC-M510BB can manage up to 3 CommandMic™ stations in total, including the main unit and up to 2 additional options.

Does the IC-M510BB integrate an AIS receiver?

Yes, the IC-M510BB includes an integrated AIS receiver, providing enhanced situational awareness by displaying nearby vessel data directly on your compatible chartplotter.

Does the IC-M510BB have an internal GPS receiver?

Yes, an internal GPS/GNSS receiver is included in the IC-M510BB. Additionally, a GPS antenna is supplied with the EUR version of the unit, ensuring accurate and reliable positioning without the need for additional external equipment.
