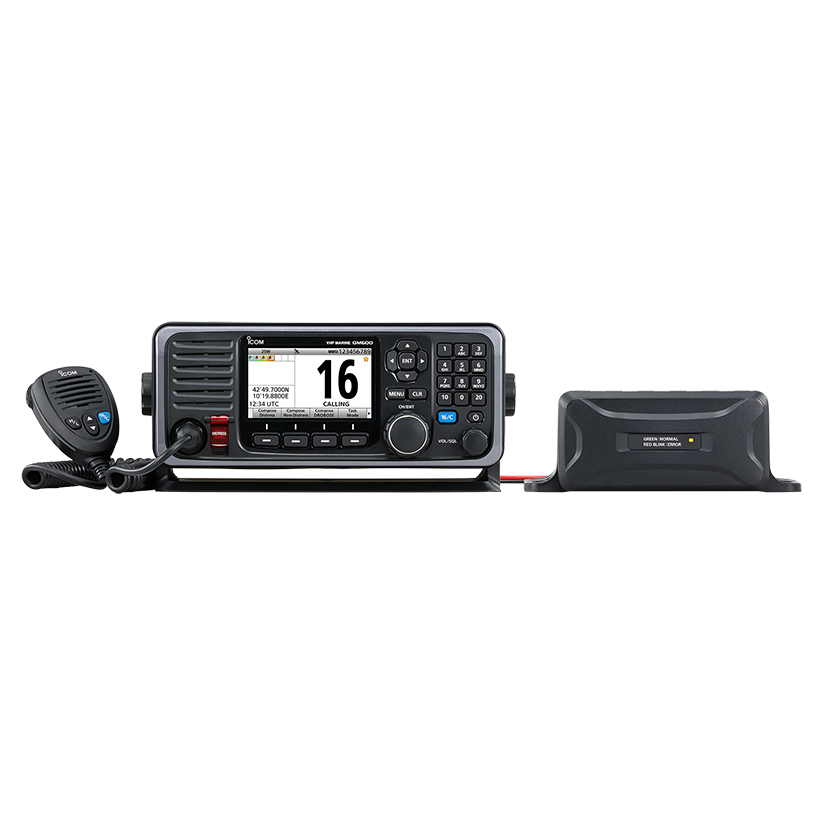

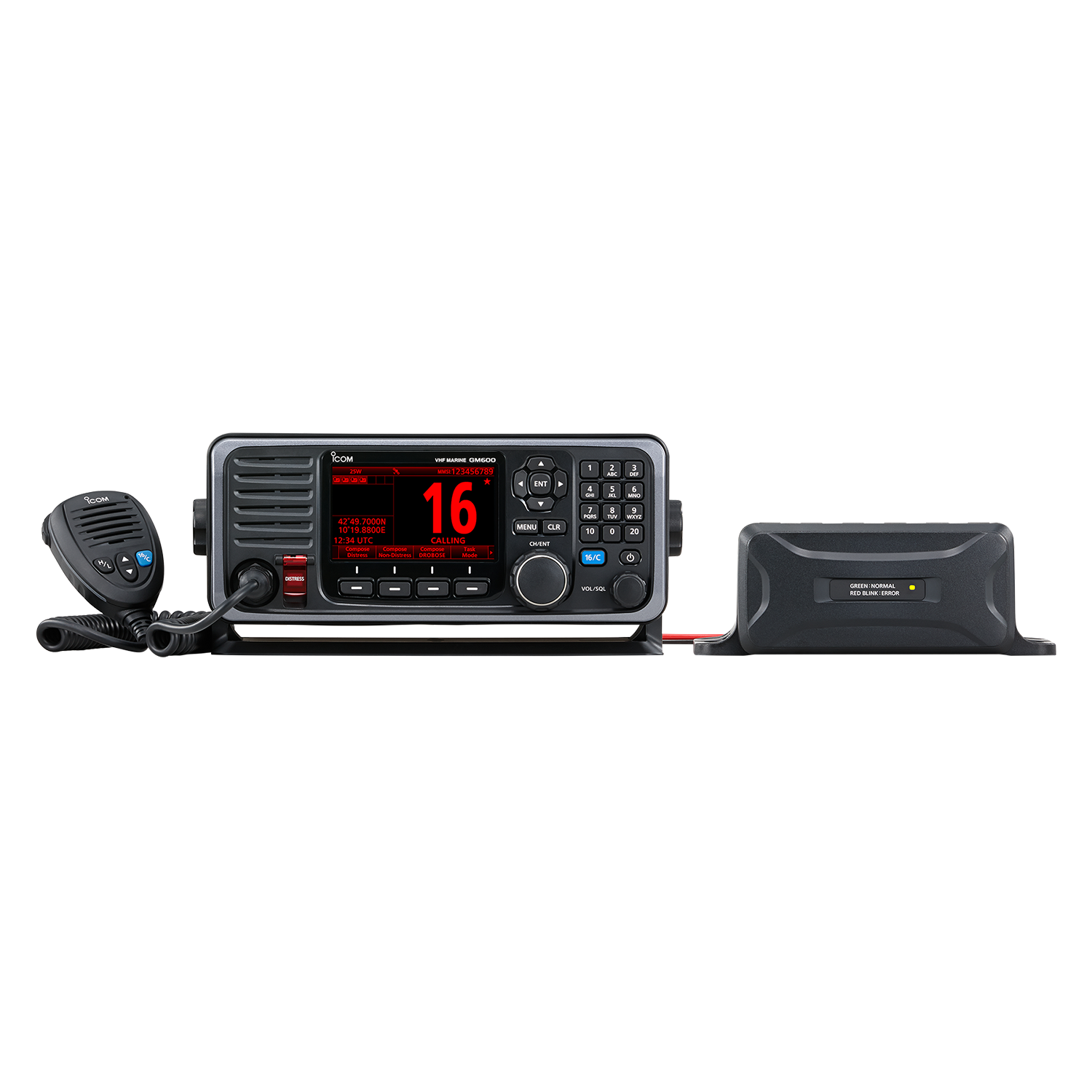

GMDSS GM600 24V Fixed VHF Pack

The Icom GM600 fixed VHF is certified MED (Marine Equipment Directive) and SOLAS. It also complies with international standards IMO and IEC, ensuring absolute reliability for distress and safety communications at sea.

This radio communication equipment is designed and approved to ensure the safety of vessels operating in maritime zones A1 and A2 within the Global Maritime Distress and Safety System (GMDSS).

The GM600 VHF delivers a maximum RF output power of 25 W for long-range communications. It can also be switched to 1 W for short-range exchanges, saving energy and reducing interference.

Yes, the GM600 VHF front panel has IPX7 protection. This means it is fully waterproof against water splashes and can withstand temporary immersion up to 1 meter deep for 30 minutes.

The GM600 VHF is a compact unit designed to fit easily into your helm station. Its overall dimensions are 274 × 114 × 121.5 mm and it weighs approximately 1.6 kg.

Yes, the pack includes the HM-214V hand microphone. Like the radio’s front panel, this microphone is waterproof certified to IPX7 standards for safe use even in wet conditions.

This specific pack is designed for direct 24 V DC power supply, with a tolerance range from 21.6 to 31.2 V. The device can also operate on a 12 V DC network (10.8 to 15.6 V) depending on your vessel's configuration.

Yes. The GM600 VHF integrates a Class A DSC (Digital Selective Calling) receiver. It uses channel 70 (156.525 MHz), permanently dedicated to distress alert monitoring and transmission.

Integration with navigation instruments is done via the IEC 61162-1 standardized data interface. Simply connect the corresponding data wires so the VHF receives the vessel's exact position in real time.

For position data reception, the VHF interface accepts NMEA sentences in RMC, GGA, GNS, GLL, and VTG formats.

The GM600 VHF transmits data related to Digital Selective Calling (DSC) calls to other onboard equipment using output sentences in DSC and DSE format.

Yes, it is perfectly possible to connect an external speaker. The radio has excellent amplification capability, delivering 10 W of audio power to an external 4 Ω speaker.

If you are not using an external speaker, the internal speaker of the VHF GM600 delivers a clear audio power of 2 W, which is more than sufficient for a typical bridge environment.

The VHF covers the standard marine frequency range. Transmission (Tx) operates from 156.025 to 161.600 MHz, while reception (Rx) covers 156.025 to 162.000 MHz.

The VHF can be installed in two ways: either placed on a mounting bracket (bracket), or flush-mounted directly into the chart table console for a professional finish and optimal space saving.

The device must be connected to the vessel's 24V battery bank using a DC power cable with an appropriate cross-section to handle a peak current of approximately 3.3 A during full-power transmission.

Yes, the GM600 VHF connects to any standard marine VHF antenna operating in the 156 MHz band with 50 ohm impedance. The connection is made via the antenna port located at the rear of the unit.

Yes, with its SOLAS and MED (wheelmark) certifications, the GM600 VHF fully complies with carriage requirements for passenger vessels and cargo vessels of 500 GT (UMS) or more subject to the SOLAS convention.
