ICOM

IC-M73EURO

ICOM IC-M73EURO portable VHF

La VHF portable Icom IC-M73EURO est une radio marine robuste de 6 W, offrant une portée de communication étendue et une étanchéité IPX8 pour une immersion de 1,5 m pendant 30 minutes, garantissant des communications fiables en mer. Dotée d'un audio puissant de 700 mW et de la fonction AquaQuake pour l'évacuation d'eau, ce modèle compact assure clarté et durabilité. Il s'agit d'une référence plus ancienne de la gamme Icom, sans les fonctions avancées (enregistrement vocal, annulation de bruit active) présentes sur la version PLUS ou les modèles plus récents.

Inclus : batterie Li-Ion BP-245H, antenne FA-564V, clip ceinture MB-103 et chargeur rapide BC-210.

Version: Standard

Standard Plus

Prix publicBénéficier du tarif pro

348,00€

Incl. tax Shipping calculated at checkout.

Livraison offerte dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Operating voltage	7.2
Operating temperature	-15°C à +55°C
Product height	125
Product width	52.5
Product depth	30
IP rating	IPX8
Certifications	MIL-STD-810G, MIL-STD-810-C, MIL-STD-810-O, MIL-STD-810-E, MIL-STD-810-F, EN 301 178-2
Wireless connectivity	N/A
DSC	Non
ATIS	Non
GPS	Non
AIS class	N/A
AIS reception	Non
AIS transmission	Non
VHF frequency range	Tx: 156.000-161.450 MHz, Rx: 156.000-163.425 MHz
VHF transmit power	6 W / 3 W / 1 W
Battery type	Lithium-Ion (BP-245H)
Battery capacity	2000
Charging method	Chargeur rapide BC-210
Audio output power	0.7 W (haut-parleur interne), 0.2 W (haut-parleur externe)
Display type	LCD
Display resolution	N/A
Buoyancy	Non
Keypad lock	Oui
Emergency strobe	Non
Available alarms	Alarme de batterie faible
Maximum power consumption	10.8
Typical electrical consumption	10.8

Description détaillée

The Icom IC-M73EURO portable VHF is a marine transceiver designed for reliable communication at sea. This model delivers 6 W RF power with extended battery life, all housed in an ergonomic and rugged chassis. It includes essential features for safety and convenience for marine users.

Audio Performance and RF Power

The Icom IC-M73EURO provides 700 mW audio output via its internal speaker, thanks to a BTL (bridge-tied load) amplifier for clear sound. Its 6 W RF transmission power (adjustable to 3 W or 1 W) ensures extended communication range. Powered by a Li-Ion BP-245H battery, it offers up to 17 hours of operation in 5:5:90 duty cycle, or 20 hours for the base version. The wide-angle, high-intensity LCD display ensures optimal readability.

Durability and Technical Specifications

The IC-M73EURO meets advanced IPX8 waterproofing standards, allowing it to withstand immersion to 1.5 m depth for 30 minutes. Its rugged design also complies with MIL-STD-810G military standards, including tests for low and high temperature (502.5 I, II), thermal shock (503.5 I-C), vibration (514.6 I), and shock (516.6 I, IV). The frequency range is 156.000–161.450 MHz for transmission and 156.000–163.425 MHz for reception, with ±1.5 kHz stability. Dimensions are 52.5×125×30 mm and weight is 320 g (with BP-245H battery, FA-564V antenna, and MB-103 clip).

Positioning and Advanced Features

Unlike the IC-M73EURO PLUS model, which includes voice recording, active noise reduction, and bass enhancement, the IC-M73EURO focuses on core functionality with solid audio and RF performance, certified durability, and shared IPX8 waterproofing. It includes the AquaQuake water drainage function, dual/triple watch for channels 16 and calling, a 4-level battery indicator, favorite and labeled channel scanning, and support for four-digit marine channels since January 2017. The BC-210 fast charger is included.

Documentations

Type	Nom
	EN - Brochure commerciale - VHF portable

Avis de l'expert

« Icom IC-M73EURO: the rugged and reliable marine handheld VHF »

The Icom IC-M73EURO handheld VHF is positioned as an essential communication tool for any sailor demanding reliability and robustness. Its 6 W power output, combined with a 700 mW audio output, ensures superior range and voice clarity, even in challenging conditions. The integration of IPX8 waterproofing and MIL-STD-810G military certification attests to a design built for the harshest marine environments, providing resilience against immersion, shocks, and temperature variations. This model stands out for its pragmatic approach, prioritizing core communication functions without the superfluous additions found in more advanced versions like the IC-M73EURO PLUS. It is a strategic choice for those seeking a high-performance, durable, and user-friendly VHF, ensuring enhanced safety at sea with a significant battery life of 17 to 20 hours.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

ICOM IC-M73EURO portable VHF

348,00€

Complétez votre installation avec des

Équipements complémentaires

B&G

B&G V20S VHF Radio

Ref : 000-14492-001

400,12€

400,12€ ~~496,44€~~

B&G

VHF radio V60 with AIS-RX

Ref : 000-14471-001

669,48€

669,48€ ~~868,14€~~

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde

B&G Traceur de cartes Zeus 3S 12" avec carte de base du monde - photo 2

B&G

Chartplotter Zeus 3S 12" with world base map

Ref : 000-15412-002

3.981,96€

3.981,96€ ~~4.772,38€~~

B&G Pack Zeus 3S, traceur 9", Radar HALO 20+

B&G Pack Zeus 3S, traceur 9", Radar HALO 20+ - photo 2

B&G

B&G Zeus 3S 9" Pack with HALO 20+ Radar

Ref : 000-15563-001

4.136,59€

4.136,59€ ~~5.407,75€~~

B&G

HALO20 Radar

Ref : 000-14540-001

2.601,60€

2.601,60€ ~~3.099,60€~~

B&G Pack Radio VHF, système V100-B, AIS+GPS 500

B&G Pack Radio VHF, système V100-B, AIS+GPS 500 - photo 2

B&G

VHF Radio Pack, V100-B system, AIS+GPS 500

Ref : 000-15793-001

1.982,40€

B&G Pack Triton² vitesse/profondeur/vent, filaire

B&G Pack Triton² vitesse/profondeur/vent, filaire - photo 2

B&G

Triton² speed/depth/wind pack, wired

Ref : 000-14955-002

1.390,69€

1.390,69€ ~~1.776,60€~~

B&G

B&G ZG100 GPS Antenna

Ref : 000-11048-002

275,56€

275,56€ ~~351,54€~~

B&G Afficheur numérique Triton² 4,1" - photo 2

B&G

B&G Triton² 4.1" digital display

Ref : 000-13294-001

525,96€

525,96€ ~~648,90€~~

B&G Pack Système Zeus³S Glass Helm 16", GPS, clavier ZC2 et accessoires.

B&G Pack Système Zeus³S Glass Helm 16", GPS, clavier ZC2 et accessoires. - photo 2

B&G

B&G Zeus³S Glass Helm 16" Pack: GPS, ZC2 Keypad and Accessories

Ref : 000-15129-001

6.361,86€

6.361,86€ ~~8.100,55€~~

B&G

Triton² speed/depth/wind pack, wired

Ref : 000-14957-002

1.829,78€

1.829,78€ ~~2.555,28€~~

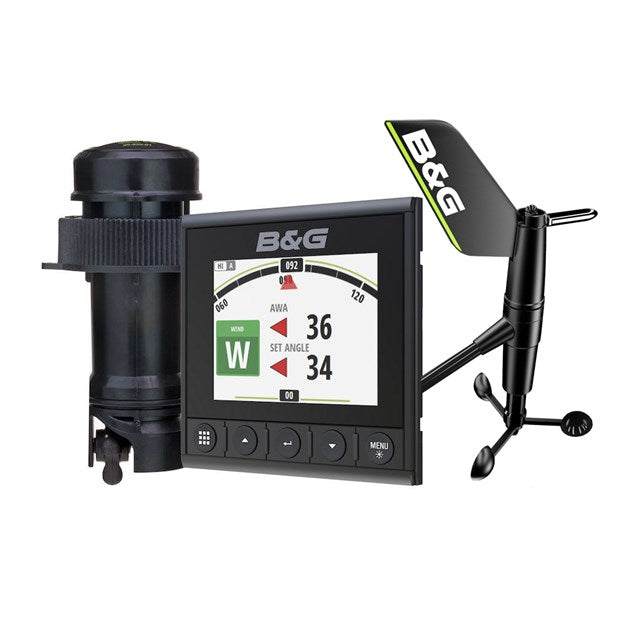

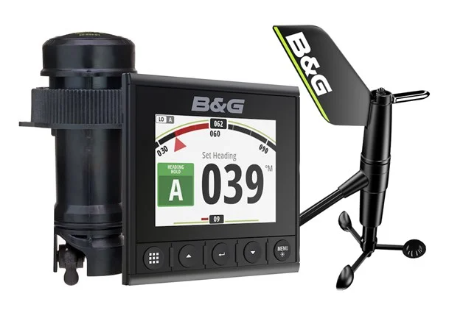

B&G Pack Triton² vitesse/profondeur/vent, sans fil

B&G Pack Triton² vitesse/profondeur/vent, sans fil - photo 2

B&G

Triton² speed/depth/wind wireless pack

Ref : 000-14956-002

1.366,19€

1.366,19€ ~~1.888,74€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the maximum transmission power of the IC-M73EURO handheld VHF?

The IC-M73EURO handheld VHF offers adjustable RF output power in three levels: 6 W (high), 3 W (medium) or 1 W (low). This allows you to adapt the communication range to specific conditions and save battery if lower power is sufficient.

What is the battery life of the IC-M73EURO VHF radio?

The IC-M73EURO is powered by a high-capacity Lithium-Ion BP-245H battery. It provides up to 17 hours of typical use (based on a 5:5:90 cycle: 5% transmit, 5% receive, 90% standby). Base versions can reach 20 hours of battery life.

Is the IC-M73EURO handheld VHF waterproof?

Yes, the IC-M73EURO has advanced waterproofing compliant with IPX8 standards. This means it is designed to survive immersion to a depth of 1.5 meters for 30 minutes.

What are the dimensions and weight of the IC-M73EURO VHF?

The dimensions of the IC-M73EURO VHF (width × height × depth) are 52.5 × 125 × 30 mm, excluding projections. Its weight is approximately 320 g, including the BP-245H battery, FA-564V antenna, and MB-103 clip.

Which marine channels does the IC-M73EURO VHF support?

The IC-M73EURO handheld VHF supports INT (international) and USA channel groups. It is also compatible with the new four-digit marine channels introduced since January 1, 2017.

Is the IC-M73EURO VHF resistant to shocks and extreme temperatures?

Yes, the IC-M73EURO complies with the U.S. military MIL-STD-810G standard. This ensures its resistance to shocks, vibrations, extreme temperatures (-15°C to +55°C), humidity, and salt spray, making it suitable for demanding marine environments.

What is the frequency range of the IC-M73EURO VHF?

The transmission (Tx) frequency range of the IC-M73EURO is 156.000 to 161.450 MHz. The reception (Rx) frequency range is 156.000 to 163.425 MHz, covering all international marine channels.

What is the AquaQuake™ function on the IC-M73EURO VHF?

The AquaQuake™ function is a water drainage technology built into the IC-M73EURO. It emits a sound vibration to expel water from the speaker, ensuring audio clarity is maintained even after the unit has been exposed to moisture or immersion.

Is the IC-M73EURO VHF screen easy to read?

Yes, the IC-M73EURO features a wide-angle, high-brightness LCD screen. It displays bright, easy-to-read characters, ensuring good visibility of information even in bright sunlight or low-light conditions.

What are the channel monitoring functions available on the IC-M73EURO VHF?

The IC-M73EURO VHF integrates Dual/Tri-Watch functions. These allow simultaneous monitoring of channel 16 (distress channel) and/or a selected calling channel, in addition to the working channel, to ensure no important communication is missed.

What is the difference between the IC-M73EURO VHF and the IC-M73EURO PLUS?

The IC-M73EURO VHF is a robust and efficient solution focused on the essentials. Unlike its counterpart, the IC-M73EURO PLUS, it does not include voice recording, bidirectional active noise reduction, or bass boost. The IC-M73EURO prioritizes durability and communication power without these additional features.

What type of antenna connector is used on the IC-M73EURO VHF radio?

The IC-M73EURO handheld VHF uses an SMA-type antenna connector, with an impedance of 50 Ω. This allows connection of the supplied antenna or other antennas compatible with this standard.

Can I connect an external speaker to the IC-M73EURO VHF?

Yes, the IC-M73EURO VHF has an external speaker output. It can deliver 200 mW of audio power to an external speaker (at 10% distortion, 8 Ω load), which is useful in very noisy environments or for more comfortable listening.

How to recharge the battery of the IC-M73EURO VHF?

The Lithium-Ion BP-245H battery of the IC-M73EURO VHF is recharged using the supplied BC-210 fast charger. Simply insert the VHF (with the battery) into the charging dock to start recharging.

Does the IC-M73EURO VHF have power-saving features?

Yes, the IC-M73EURO VHF includes an automatic power-saving function. This feature extends battery life by optimizing energy consumption when the unit is in standby or receive mode, without compromising performance.

Is the IC-M73EURO VHF covered by a warranty?

Yes, the IC-M73EURO portable VHF is covered by a manufacturer’s warranty. For specific details regarding warranty duration and conditions, refer to the information provided with the product or contact customer service.

Is the IC-M73EURO VHF ready for immediate use upon delivery?

Yes, the IC-M73EURO VHF is designed for quick deployment after delivery. It ships with its Lithium-Ion battery BP-245H, antenna, and a BC-210 fast charger, allowing you to put it into service after an initial charge.
