Garmin

010-12117-05

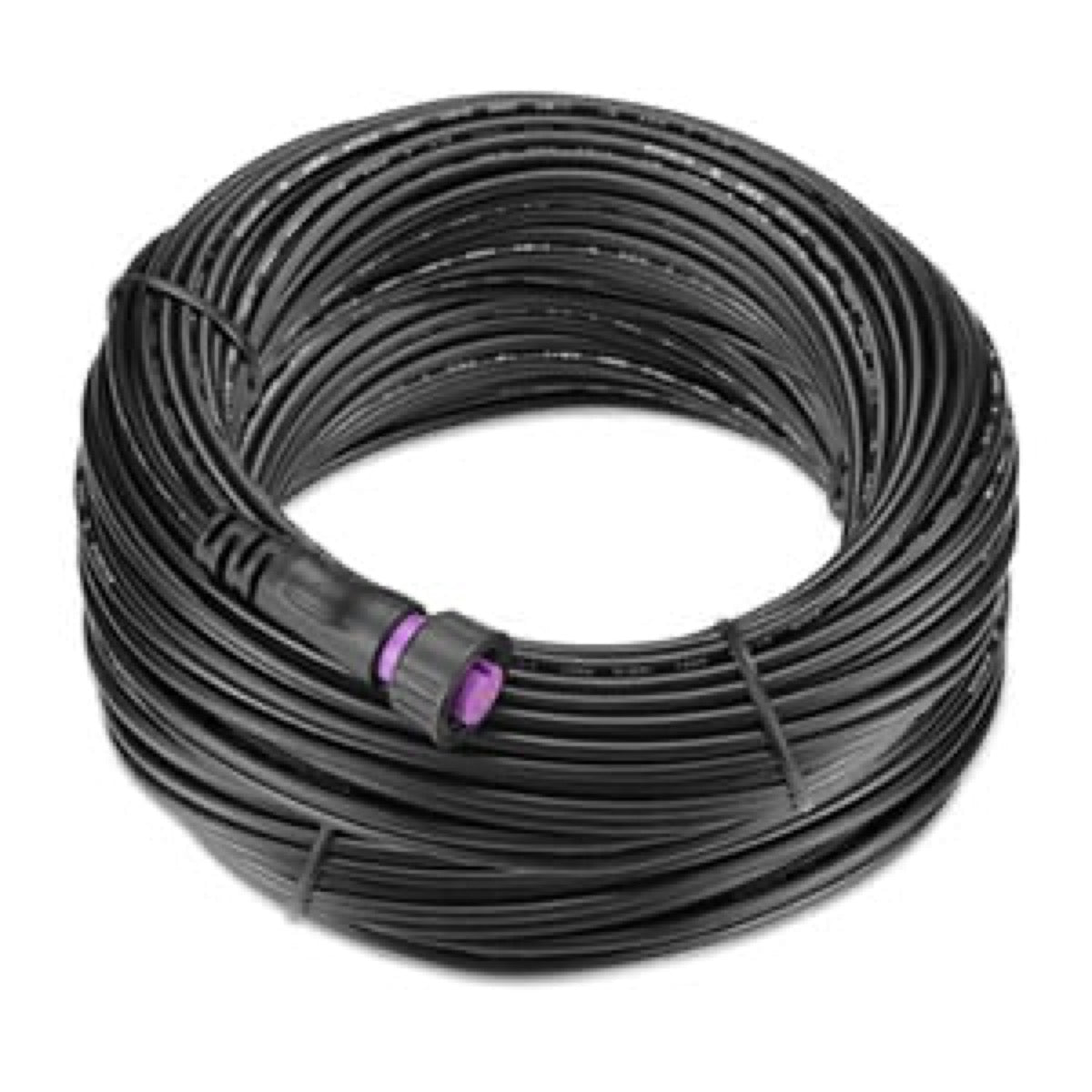

Cablu de catarg, 40 m

Ce câble de mât Garmin de 40 mètres (010-12117-05) est un accessoire essentiel pour l'extension des transducteurs gWind™ et gWind Race. Sa conception avec blindage assure une transmission de signal fiable et minimise les pertes sur de longues distances.

Il est livré avec le câble de 40 mètres uniquement, sans accessoires de montage spécifiques. Il s'agit d'une pièce de rechange ou d'extension pour les installations de transducteurs gWind™ et gWind Race.

Prix publicBénéficier du tarif pro

83,56€

83,56€ ~~109,00€~~

TTC Expediere calculată la momentul plății.

Stoc epuizat

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Număr de conductori	2.0
Ecranare	Blindé
Flexibilitate	Flexible
Tip curent	DC
Diametru exterior	11.0
Material conductor	Cuivre étamé
Certificări	CE
Finisaj conductor	Étamé
Tip cablu	Câble coaxial
Lungimea cablului	40.0
Rețea compatibilă	Garmin gWind
Conectoare pre-montate	Oui
Amplasament instalare	Mât
Aplicație cablu	Transducteur (gWind/gWind Race)
Rază de curbură minimă	110 mm
Tip de conector	Propriétaire Garmin
Tip ecranare	Tresse en cuivre étamé
Rezistență UV	Oui
Cable Jacket Flexibility	Bonne
Cable Jacket Uv Rating	Élevé
Finisajul mantalei exterioare	Lisse
Indice de protecție conector	IPX7
Material conector	Laiton nickelé
Impedanță	50
Tipul produsului	Câble
Shielding Effectiveness	Élevée
Greutate	0.816

Description détaillée

Proiectat pentru instalații marine exigente, cablul de catarg Garmin de 40 de metri, referință 010-12117-05, este special elaborat pentru extinderea transductoarelor gWind™ și gWind Race. Această soluție permite o conexiune fiabilă pe distanțe mari, esențială pentru catargele înalte sau configurațiile complexe la bordul navelor, aeronavelor și vehiculelor de comunicații tactice.

Construcție și performanță tehnică

Cu o lungime de 40 de metri (131 picioare), acest cablu coaxial de calitate RG-Grade integrează un ecranare EMI/RFI. Această construcție minimizează pierderea semnalului pe distanțe mari, un factor crucial pentru menținerea integrității datelor în comunicațiile de înaltă frecvență și sistemele de navigație. Diametrul exterior al cablului este de aproximativ 11 mm, oferind o robustețe adaptată mediilor marine și aeronautice. Greutatea sa este de 1,8 lbs.

Integrare și compatibilitate sistem

Conectorii sunt proiectați conform specificațiilor Garmin pentru a asigura o corespondență corectă a impedanței și conexiuni sigure, evitând întreruperile semnalului. Acest cablu este compatibil cu o gamă de sisteme GPS și de comunicații Garmin, în special transductoarele gWind™ și gWind Race, precum și pachetele de instrumente GMI™ Wired Start Pack 52, GMI™/GNX™ Wired Sail Pack 52, GNX™ Wired Sail Pack 43 și GNX™ Wired Sail Pack 52. Permite poziționarea optimă a antenei, departe de echipamentele principale, pentru o claritate și o rază de acțiune a semnalului îmbunătățite.

Avertisment important

Conform propunerii 65 a statului California, acest produs poate expune la substanțe chimice cunoscute pentru a cauza cancer, malformații congenitale sau alte probleme de reproducere.

Avis de l'expert

« Garmin 40 m mast cable: extension solution for gWind transducers »

Installing a masthead anemometer transducer requires a reliable and robust connection. The Garmin 40-meter mast cable (010-12117-05) is specifically designed for this task with gWind and gWind Race transducers. Its 40-meter length is a key technical advantage for large sailboats or those with complex mast layouts, allowing it to reach the junction box or main instrumentation without intermediate splices—common points of failure or signal loss.

Using a shielded cable is essential to maintain the integrity of wind data signals, which are particularly sensitive to electromagnetic interference from other onboard electronic equipment. Garmin’s specific connectors ensure optimal electrical and mechanical compatibility, preventing issues like loose contacts or corrosion that could affect wind measurement accuracy. While routing a 40-meter cable can be logistically challenging, installation is simplified by the cable being plug-and-play, requiring no crimping or soldering. It is critical to adhere to minimum bend radii during installation to avoid damaging the jacket and shielding.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

Cablu de catarg, 40 m

83,56€

83,56€ ~~109,00€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the Garmin 40-meter mast cable (reference 010-12117-05) used for?

This cable is specifically designed by Garmin for extending gWind™ and gWind Race transducers. It ensures reliable connections over extended distances, which is critical for tall masts or complex onboard configurations.

What is the exact length of this Garmin mast cable?

The length of this Garmin mast cable is 40 meters, which is approximately 131 feet.

What is the construction type of this cable?

This is an RG-grade coaxial cable. It features EMI/RFI shielding to minimize signal loss.

What is the outer diameter of the cable?

The outer diameter of this cable is approximately 11 mm.

What is the weight of this Garmin mast cable?

The weight of this cable is 1.8 pounds (approximately 0.82 kg).

Why is this cable shielded against EMI/RFI?

The EMI/RFI shielding (electromagnetic interference/radio frequency interference) is integrated to minimize signal loss over extended distances. This is crucial for maintaining data integrity in high-frequency communications and navigation systems.

What types of connectors does this cable use?

The connectors are designed according to Garmin specifications to ensure correct impedance matching and secure connections, preventing signal interruptions.

Is this cable only compatible with gWind™ and gWind Race transducers?

This cable is primarily designed for extending gWind™ and gWind Race transducers. However, it is also compatible with a range of Garmin GPS and communication systems.

Can I use this cable with non-Garmin equipment?

This cable is designed with Garmin-specific connectors and specifications to ensure optimal impedance matching and signal integrity with Garmin systems. Its use with non-Garmin equipment is not guaranteed and could compromise performance or compatibility.

How does this cable ensure good signal integrity over 40 meters?

Signal integrity is ensured by its construction using high-grade RG coaxial cable and EMI/RFI shielding. These features minimize signal loss and interference, even over extended distances.

Is this cable suitable for installations on tall masts?

Yes, with its 40-meter length, this cable is specifically designed for demanding marine installations and tall masts, ensuring reliable connections over extended distances.

Are there any special considerations for routing this cable up a mast?

During installation, ensure the cable is routed to avoid pinching, excessive twisting, or abrasion that could damage the shielding or outer jacket, thereby compromising performance.

Can the cable be cut to a shorter length if 40 meters are not required?

While technically possible, it is generally recommended to use the provided cable length or consult a professional. Cutting and re-connecting a coaxial cable of this quality can affect impedance and signal integrity if not done with the proper tools and expertise.

Is this cable compatible with Garmin G-series instrumentation packs?

Yes, the description states that this cable is compatible with a range of Garmin GPS and communication systems, including G-series instrumentation packs, as well as gWind™ and gWind Race transducers.

Is this cable UV and saltwater resistant?

Designed for demanding marine environments, the cable is made from robust materials that provide appropriate resistance to external conditions, including UV exposure and saltwater, to ensure its durability.

How to ensure a secure connection with this cable?

The connectors are specifically designed by Garmin to ensure secure connections and correct impedance matching. It is important to ensure that the connectors are clean, dry, and properly tightened during installation to avoid any signal interruption.

Is this cable flexible to facilitate installation?

Although it is robust with a diameter of about 11 mm, the cable is designed to allow practical installation on masts and through cable passages while maintaining its durability and performance.

Is this product covered by a warranty?

This mast cable is a Garmin accessory. The applicable warranty conditions are those defined by Garmin for its accessories.

What is included in the Garmin mast cable packaging?

The packaging contains the Garmin mast cable of 40 meters (reference 010-12117-05) as described. No other accessories or components are specified as being included.
