Cabluri rețea Marine Network, conectoare mici (15 metri)

This Garmin BlueNet™ network cable is designed to establish and extend connections between various Garmin BlueNet-compatible marine electronic devices on your vessel. It enables data communication between chartplotters, radars, fishfinders, IP cameras, and other Garmin network peripherals.

This Garmin BlueNet™ network cable is 15 meters long.

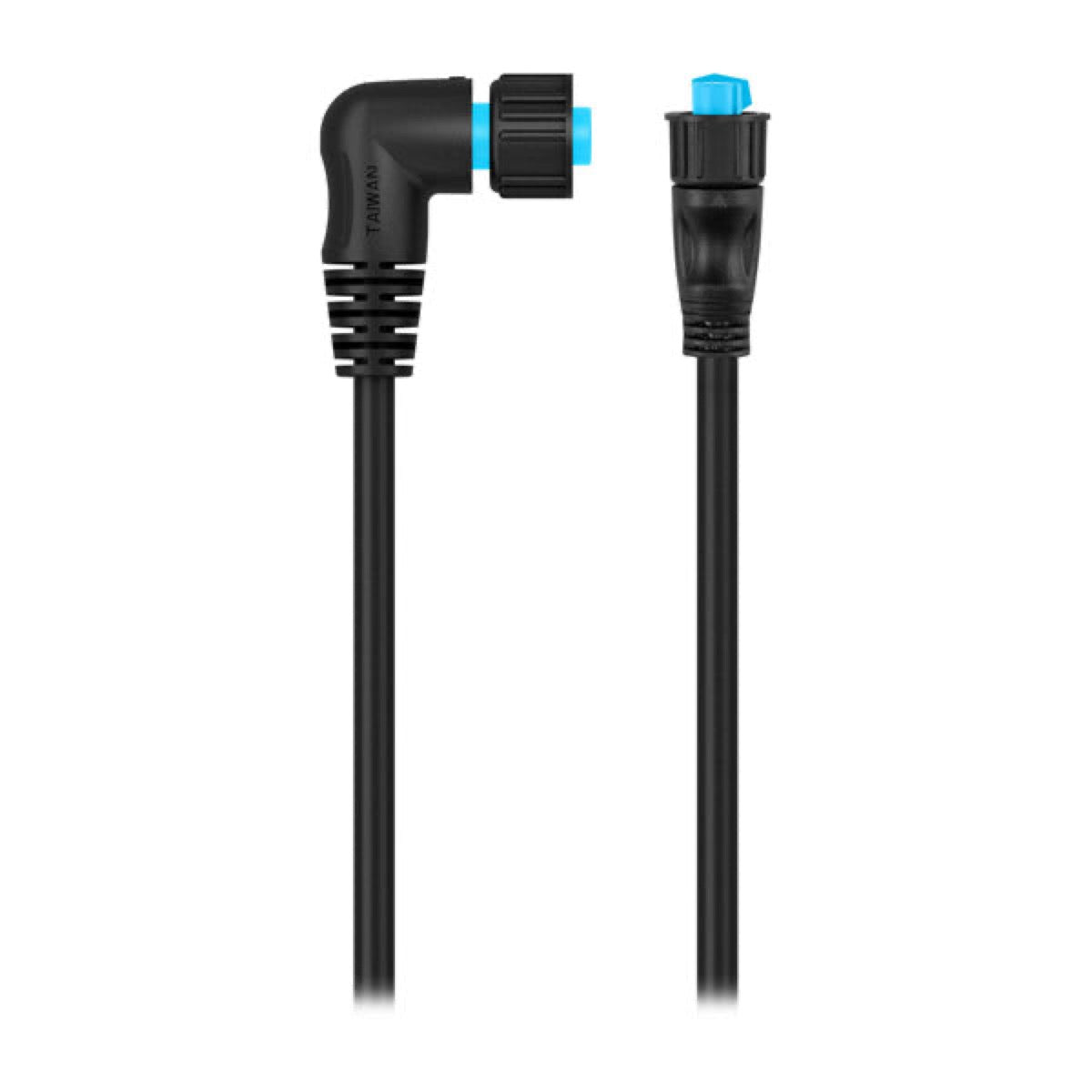

This cable is fitted with a small right-angle connector. This design is particularly useful for installations in confined spaces or for a more discreet integration.

Yes, this cable is specifically designed for use with Garmin BlueNet™ marine network systems and devices, and, via specific gateways or couplers, with some older Garmin Marine Network devices.

The Garmin BlueNet™ is a newer and more advanced networking technology, offering higher data transfer speeds and better integration. The Garmin Marine Network is the previous generation. This cable is natively compatible with BlueNet but can be used with older Garmin Marine Network devices via a Garmin BlueNet 30 gateway.

This cable is compatible with a wide range of Garmin BlueNet™ devices. It can be used with marine IP cameras such as the GC™ 200, radars including GMR Fantom™ 124, 126, 54, and 56, as well as the Panoptix LiveScope™ system. It also allows Garmin BlueNet devices to be connected to each other.

Yes, this cable is compatible with Garmin GMR Fantom™ 124, 126, 54 and 56 radars, allowing their connection to the Garmin BlueNet™ marine network.

Yes, this network cable is compatible with the Garmin Panoptix LiveScope™ system, ensuring the connectivity required for its operation within the marine network.

Yes, this cable can be used with older Garmin Marine Network devices, but it requires a Garmin BlueNet 30 gateway to ensure compatibility and communication between the two types of networks.

To connect certain compatible IP cameras to a Garmin Marine Network chartplotter or a GMS 10 switch, you may need a PoE isolation coupler (reference 010-10580-10) in addition to this cable.

Yes, this cable is designed to connect Garmin BlueNet devices to each other or to a Garmin BlueNet 20 switch, facilitating the extension of your marine network.

No, this cable is specifically designed for the Garmin BlueNet™ network and is not compatible with networking equipment from other brands.

It is important to note that a single Garmin BlueNet™ network cable run must not exceed 87 meters to maintain optimal network performance.

Yes, it is possible to use a coupler to extend the length. However, a single Garmin BlueNet™ network cable link must not contain more than one coupler to ensure network stability and performance.

The small right-angle connector is designed to simplify cable installation in confined or hard-to-reach spaces aboard your vessel, allowing for a cleaner and more discreet routing.

During installation, ensure the cable is properly routed to avoid electromagnetic interference, pinching, or excessive twisting. The angled connector helps manage tight angles. Respect the maximum length of 87 meters for a single run and do not use more than one coupler per run.

Yes, as a Garmin Marine Network product, this cable is designed to withstand the demanding conditions of the marine environment, including humidity and temperature variations, ensuring long-lasting reliability.

Yes, this network cable is covered by Garmin's standard manufacturer warranty.

This product’s packaging includes a 15-meter Garmin BlueNet™ network cable with a small connector, ready for installation.
