AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde

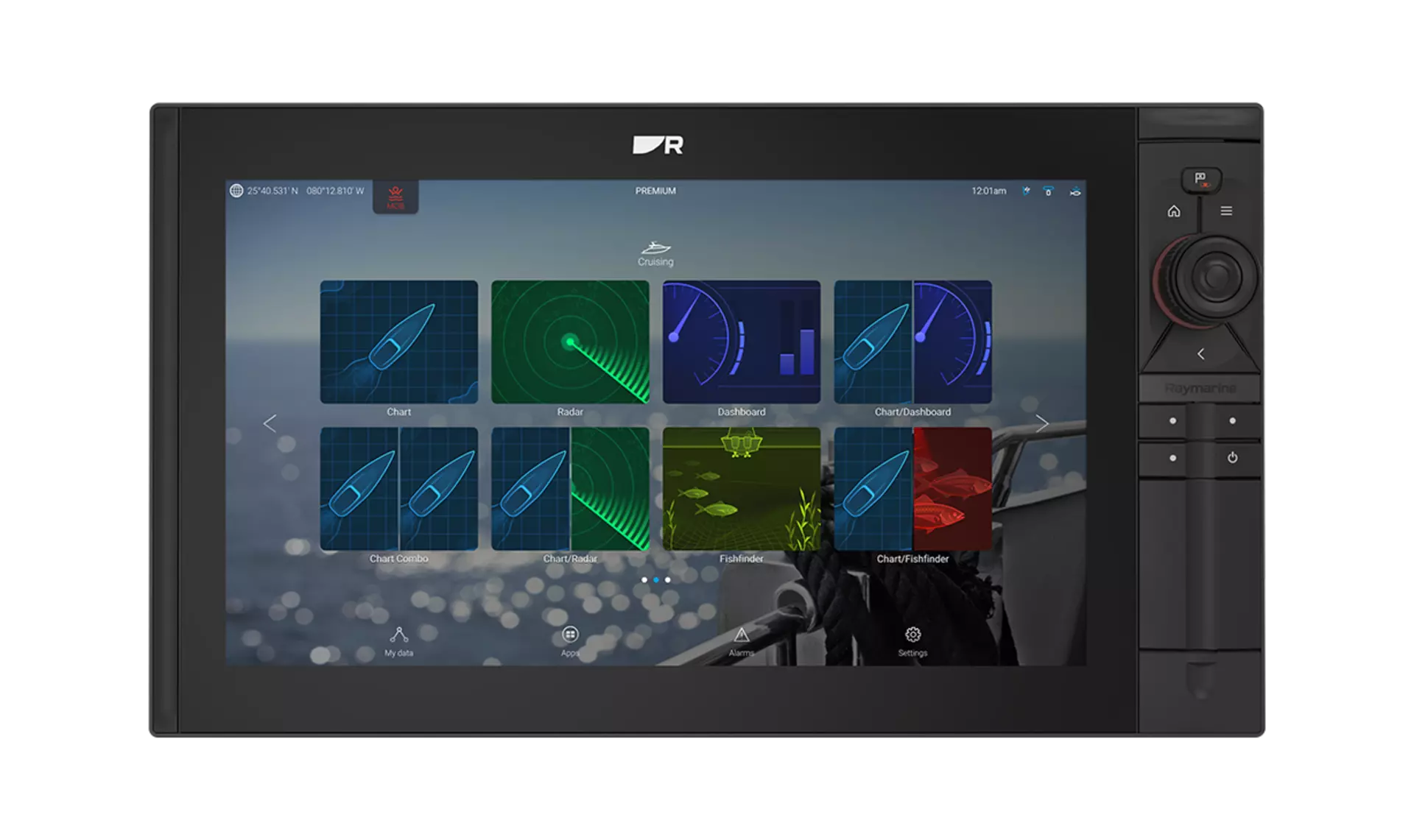

Axiom 2 Pro 16 Front No Bracket Homescreen

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Economisești 6%

Raymarine

E70657-00-NEU

AXIOM2 16 Pro-S, ecran hibrid tactil multifuncțional 16", sondă CHIRP pentru sonda CPT-S, Wifi, cartografie Lighthouse Europa de Nord, fără sondă

Le Raymarine AXIOM2 16 Pro-S est un écran hybride multifonctions de 16 pouces intégrant un sondeur CHIRP pour sondes CPT-S, idéal pour la navigation et la détection. Faisant partie de la gamme AXIOM2 actuelle, il offre une connectivité Wifi et inclut la cartographie Lighthouse Europe du Nord. La sonde est à acquérir séparément.

Dimensiune: 16 țoli

9 țoli 12 țoli 16 țoli

Cartografie: Nordul Europei

Marea Mediterană Nordul Europei Europa de Vest

Prix publicBénéficier du tarif pro

6.249,62€

6.249,62€ ~~6.654,00€~~

TTC Expediere calculată la momentul plății.

Stoc epuizat

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Tensiune de funcționare	12 V DC
Număr de diviziuni ale ecranului	4.0
Tehnologii de sondeu suportate	CHIRP traditionnel
Frecvențe sonar	CHIRP Haute Fréquence
Tip conector sonar	Raymarine 7-pin (CPT-S)
Compatibil ActiveTarget	Non
Compatibilitate hărți	LightHouse, Navionics, C-MAP
Indice IP	IPx6, IPx7
Înregistrare sonar	Oui
Compatibilitate magistrală	NMEA 2000,NMEA 0183,SeaTalkng,SeaTalkhs
Integrare motor electric	Non
Rețea cablată	Ethernet (SeaTalkhs),NMEA 2000,NMEA 0183
Antena GPS integrată	Oui
Conectivitate wireless	Wi-Fi,Bluetooth
Tip de montaj	Encastré, Sur étrier
Certificări	CE,IEC 60945
Rezoluție ecran	1920 x 1080 pixels
Tip ecran	LCD couleur avec rétroéclairage LED
Dimensiune ecran	16
Ecran tactil	Oui
Mărime maximă a cardului SD	Jusqu'à 2 To (MicroSDXC)
Metodă actualizare software	Carte mémoire, Internet (Wi-Fi)
Intrare cablată	Vidéo composite,Alimentation
Nivel utilizator	Intermédiaire/Expert
Tip de pescuit	Mer
Anul lansării	2023.0
Alarme disponibile	Ancre, Profondeur, Arrivée, MOB, Tension, Collision AIS, Température eau
Suport Om la apă (MOB)	Oui

Accessoires

Sondă de lipit cu fascicul conic HIGH CHIRP, unghi 0/12/20°, CPT-S, cablu 6 m

179,29€

179,29€ ~~198,00€~~

Cumpără

Rallonge Raymarine A80273 4 m pour sondes CPT-S, CPT100, CPT110 et CPT120

Cablu prelungitor 4 m pentru sonde CPT-S, CPT100, CPT110 & CPT120

48,26€

48,26€ ~~54,00€~~

Cumpără

Cablu de alimentare radar QUANTUM 10m

76,90€

76,90€ ~~90,00€~~

Cumpără

Raymarine Câble data pour radar Cyclone A80656

Cablu de date QUANTUM 10m

140,16€

140,16€ ~~162,00€~~

Cumpără

Cablu 1.5m SeaTalk NG SPUR F / conector Devicenet NMEA 2000 M

43,54€

43,54€ ~~48,00€~~

Cumpără

Cablu SeaTalk NG / Devicenet NMEA2000 femelă (400mm)

48,96€

48,96€ ~~54,00€~~

Cumpără

Kit Convertisseur STNG vers NMEA183 VHF (1xR52131, 2xA06031, 2xA06032, 1xA80265, 1xA06049, 1xA06039)

Kit convertor STNG către NMEA183 VHF (1xR52131, 2xA06031, 2xA06032, 1xA80265, 1xA06049, 1xA06039)

139,76€

139,76€ ~~156,00€~~

Cumpără

Description détaillée

Următorul cartograf Raymarine AXIOM2 16 Pro-S (E70657-00-NEU) este proiectat pentru navigație exigentă, oferind un ecran hibrid tactil de 16 inci. Această unitate integrează o sondă CHIRP dedicată sondelor CPT-S, furnizând capacități precise de detectare subacvatică pentru pescuit și siguranță. Cu conectivitate Wifi integrată și cartografia Lighthouse Europa de Nord preîncărcată, AXIOM2 16 Pro-S reprezintă o soluție completă de navigație.

Interfață și funcționalități LightHouse 4

Funcționând sub sistemul de operare LightHouse 4 (versiune aplicabilă v4.10.149), acest ecran multifuncțional oferă o interfață intuitivă. Seria AXIOM2 Pro se distinge prin controlul hibrid, combinând un ecran tactil reactiv cu butoane și un joystick fizic, o caracteristică care îl diferențiază de modelele Axiom și Axiom+ pur tactile. Această construcție este utilă în condiții de mare agitată sau vreme umedă. Sistemul suportă crearea de rute automate, modificarea orientării aplicațiilor Hartă și Radar, precum și afișarea fluxurilor video. Funcționalități avansate pentru hărți LightHouse sunt incluse, precum afișarea blocurilor, conductelor și platformelor offshore din Golful Mexic, precum și clădiri.

Integrare și compatibilitate

AXIOM2 16 Pro-S este compatibil cu o gamă largă de dispozitive Raymarine și integrare cu terțe părți. Poate fi conectat la ecranele anterioare din seriile eS și gS, precum și la antenele radar Quantum pentru monitorizare radar avansată. Integrarea aplicației Suzuki permite monitorizarea detaliată a datelor motor. Spre deosebire de modelele Axiom2 Pro-R care integrează sonda RealVision/HyperVision, Pro-S este optimizat special pentru sondele CHIRP CPT-S, oferind o soluție de sondă simplă dar eficientă, fără a include sonda în sine. Actualizările software pot fi efectuate prin card MicroSD sau direct prin Internet, asigurând accesul la cele mai noi funcționalități.

Documentations

Type	Nom
	FR - Manuel d'utilisation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Declaration de conformite - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Declaration de conformite - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Declaration de conformite - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	FR - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	FR - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	FR - Notice d'installation - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde
	EN - Gabarit de montage - AXIOM2 16 Pro-S, Écran Hybride tactile multifonctions 16”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Europe du Nord, sans sonde

Avis de l'expert

Pol CONIN

Responsabil digital

« Raymarine AXIOM2 16 Pro-S: the reliable hybrid for navigation and CHIRP CPT-S fishfinder »

The Raymarine AXIOM2 16 Pro-S is aimed at recreational sailors and semi-professionals seeking a reliable multifunction display with a hybrid user interface. The combination of a touchscreen and physical controls is a major asset for operations in rough seas or bad weather, providing redundancy and precise control that purely touch-based displays cannot match. Its 16-inch size makes it ideal for primary helm stations on medium to large boats, or as a secondary display on larger vessels.

This "Pro-S" model stands out for its integration of a CHIRP fishfinder optimized for CPT-S transducers. It is important to note that this is not a RealVision or HyperVision system. This means the user must have a clear need for a traditional high-quality CHIRP fishfinder rather than advanced lateral or 3D imaging capabilities. The absence of an included transducer offers flexibility to choose the CPT-S transducer best suited to the vessel’s specific installation (transom, through-hull, etc.), but this must be factored into the budget and installation planning.

Integrating the AXIOM2 16 Pro-S into a Raymarine ecosystem is seamless with LightHouse 4, enabling connection to Quantum radars, autopilots, and NMEA 2000 sensors. Compatibility with the Suzuki app for engine monitoring is a significant advantage for boats equipped with these engines. For optimal installation, it is recommended to plan a robust NMEA 2000 network to aggregate all onboard data and consider adding an external GPS antenna if the display’s location does not ensure ideal GNSS reception.

Durabilité

Facilité d'installation

Rapport performance / prix

Pièces de rechange

Raymarine Cartographie Europe du Nord v1.3.0

Cartografie Europa de Nord v1.3.0

207,47€

207,47€ ~~234,00€~~

Cumpără

Cablu prelungitor 4 m pentru sonde CPT-S, CPT100, CPT110 & CPT120

48,26€

48,26€ ~~54,00€~~

Cumpără

Cablu de adaptare (9 pini către 25 pini) pentru sondă (CPTxx) pe AXIOM RV sau Axiom Pro RVX

70,16€

70,16€ ~~78,00€~~

Cumpără

Sondă de lipit cu fascicul conic HIGH CHIRP, unghi 0/12/20°, CPT-S, cablu 6 m

179,29€

179,29€ ~~198,00€~~

Cumpără

Cablu 30 metri și conector pentru vârf de catarg

162,98€

162,98€ ~~180,00€~~

Cumpără

Kit pală și cupă de giruetă

81,14€

81,14€ ~~84,00€~~

Cumpără

Combiné sans fil Raymarine A80544 avec support-chargeur pour Ray90/Ray91

Combinat Ray90 fără fir (inclus suport/incărcător)

327,77€

327,77€ ~~348,00€~~

Cumpără

Haut-parleur actif pour Ray 90/91 sans-fil

Boxă activă pentru Ray 90/91 fără fir

158,70€

158,70€ ~~186,00€~~

Cumpără

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

AXIOM2 16 Pro-S, ecran hibrid tactil multifuncțional 16", sondă CHIRP pentru sonda CPT-S, Wifi, cartografie Lighthouse Europa de Nord, fără sondă

6.249,62€

6.249,62€ ~~6.654,00€~~

Complétez votre installation avec des

Équipements complémentaires

Raymarine

AIS 700 CLASĂ B cu SPLITTER de antenă integrat

Ref : E70476

1.305,60€

1.305,60€ ~~1.434,00€~~

Raymarine

Afișaj multifuncțional Raymarine i70s

Ref : E70327

678,00€

678,00€ ~~714,00€~~

Raymarine

Pachet i50 & i60 Vânt, Viteză, Adâncime

Ref : E70153

2.096,68€

2.096,68€ ~~2.220,00€~~

Émetteur-récepteur VHF avec ASN Ray 90 (Inc combiné, HP Passif et câble)

Raymarine

Emisie-recepție VHF cu ASN Ray 90 (inclus combinat, difuzor pasiv și cablu)

Ref : E70492

1.031,53€

1.031,53€ ~~1.074,00€~~

Émetteur-récepteur VHF avec ASN et AIS Rx Ray 91 (Inc combiné, HP Passif et câble)

Raymarine

Emisie-recepție VHF cu ASN și recepție AIS Ray 91 (inclus combinat, difuzor pasiv și cablu)

Ref : E70493

1.200,97€

1.200,97€ ~~1.314,00€~~

Émetteur-récepteur VHF avec récepteur GPS intégré Ray53

Raymarine

Emisie-recepție VHF cu receptor GPS integrat Ray53

Ref : E70524

450,92€

450,92€ ~~498,00€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

Which depth sounder is compatible with the Raymarine AXIOM2 16 Pro-S multifunction display?

The Raymarine AXIOM2 16 Pro-S multifunction display is specifically designed to work with CHIRP CPT-S transducers. The product is sold without a transducer. Here are some examples of compatible CPT-S transducers:

CPT-S through-hull transducer (plastic) - 0 degrees (E70339)
CPT-S through-hull transducer (bronze) - 0 degrees (A80446)
CPT-S through-hull transducer (bronze) - 12 degrees (E70340)
CPT-S through-hull transducer (plastic) - 12 degrees (A80447)
CPT-S through-hull transducer (bronze) - 20 degrees (E70341)
CPT-S through-hull transducer (plastic) - 20 degrees (A80448)
CPT-S through-hull transducer (plastic) - 20 degrees (Dragonfly) (A80545)
These transducers enable full use of the AXIOM2’s CHIRP sonar capabilities.

What preloaded cartography is included on the Axiom 2 16 Pro-S?

The Raymarine AXIOM2 16 Pro-S multifunction display comes preloaded with Lighthouse North Europe mapping. This mapping is ready for immediate use in navigation within this region.

How is the Axiom 2 16 Pro-S multifunction display controlled? Is it touchscreen only?

The AXIOM2 16 Pro-S is a multifunction display with hybrid control. It combines a responsive 16-inch touchscreen with physical buttons and a joystick. This design allows intuitive and precise operation, even in rough sea conditions or wet weather, providing superior flexibility compared to purely touch-based models.

Does the Axiom 2 16 Pro-S have wireless connectivity?

Yes, the Raymarine AXIOM² 16 Pro-S multifunction display integrates Wi-Fi connectivity. This enables features such as software updates via the internet and integration with other compatible devices.

What are the mounting options for the AXIOM² 16 Pro-S display?

The Axiom 2 16 Pro-S is a multifunction display designed for demanding navigation. It typically offers flexible mounting options, including flush mounting for a clean integration into the console, or bracket mounting for surface installation. The choice depends on your dashboard configuration and usage preferences.

How can I update the software on my AXIOM2 16 Pro-S?

You can update the software of your AXIOM2 16 Pro-S in two main ways:

Via a memory card: Download the update file from Raymarine’s website to a MicroSD card, then insert it into the device.\nBy Internet: If the device is connected to a Wi-Fi network with Internet access, it can check for and download software updates automatically.\nThe applicable operating system is LightHouse 4 (version v4.10.149).

Is the Axiom 2 16 Pro-S compatible with Suzuki outboards?

Yes, the AXIOM2 16 Pro-S offers integration with the Suzuki application. This allows detailed monitoring of your Suzuki engine data directly on the multifunction display, giving you access to important performance information about your engine.

What does the Axiom 2 16 Pro-S box contain upon delivery?

The AXIOM2 16 Pro-S box contains the Raymarine AXIOM2 16 Pro-S hybrid multifunction touchscreen display itself. It is important to note that this model is sold without a transducer, meaning the compatible CHIRP CPT-S transducer must be purchased separately.
