Element 7 HV - Ecran GPS 7", Wi-Fi, sondă CHIRP și HyperVision, sondă HV-100+, hartă Lighthouse Mediterană

The Raymarine Element 7 HV integrates traditional CHIRP sonar technology along with Raymarine's HyperVision sonar. HyperVision uses 1.2 MHz frequencies, delivering superior seabed and underwater target imaging resolution. This technology is complemented by DownVision and SideVision modes, providing a scanning coverage of up to 60 meters (200 feet) to the sides and in depth.

The Element 7 HV is supplied with Lighthouse Mediterranean mapping. This mapping is specifically tailored for navigation in this region.

The Raymarine Element 7 HV comes with an HV-100+ transom mount transducer. This transducer is designed to be installed on the transom of your boat.

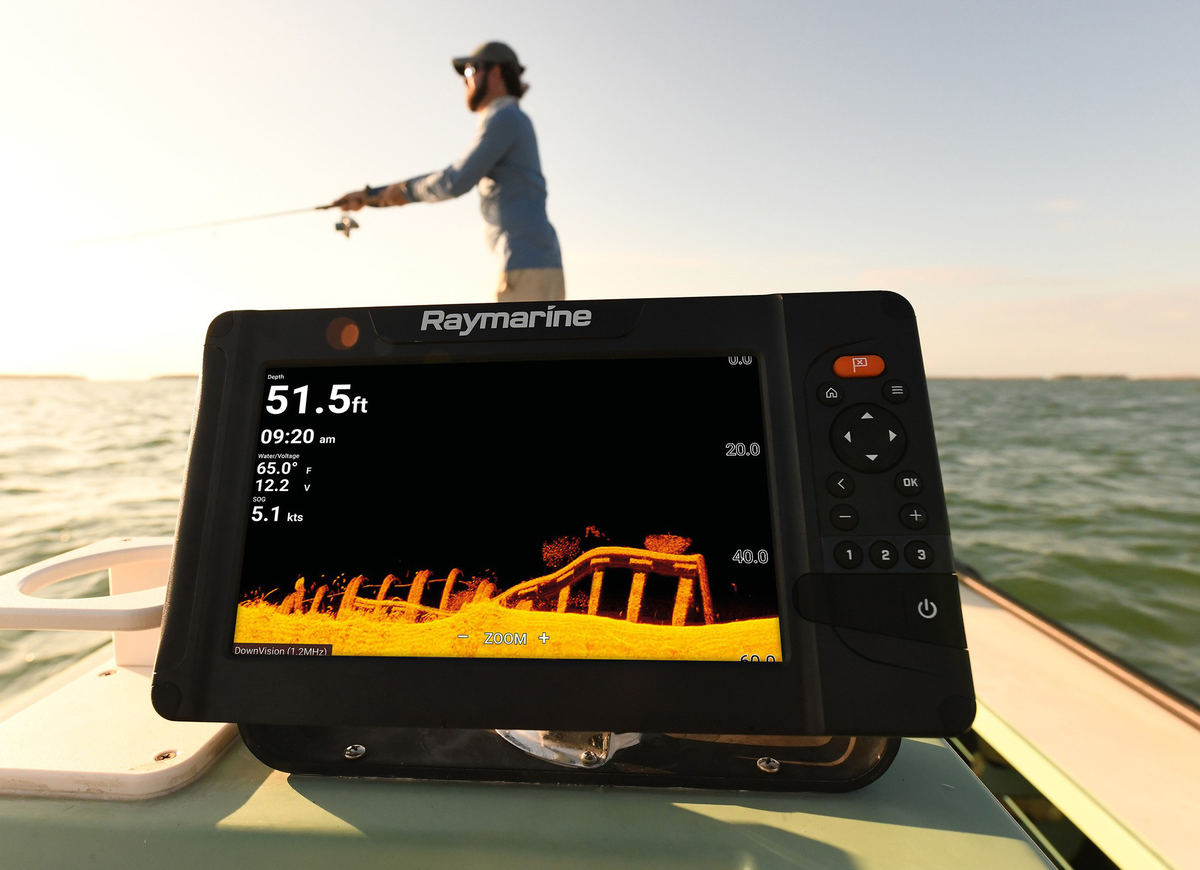

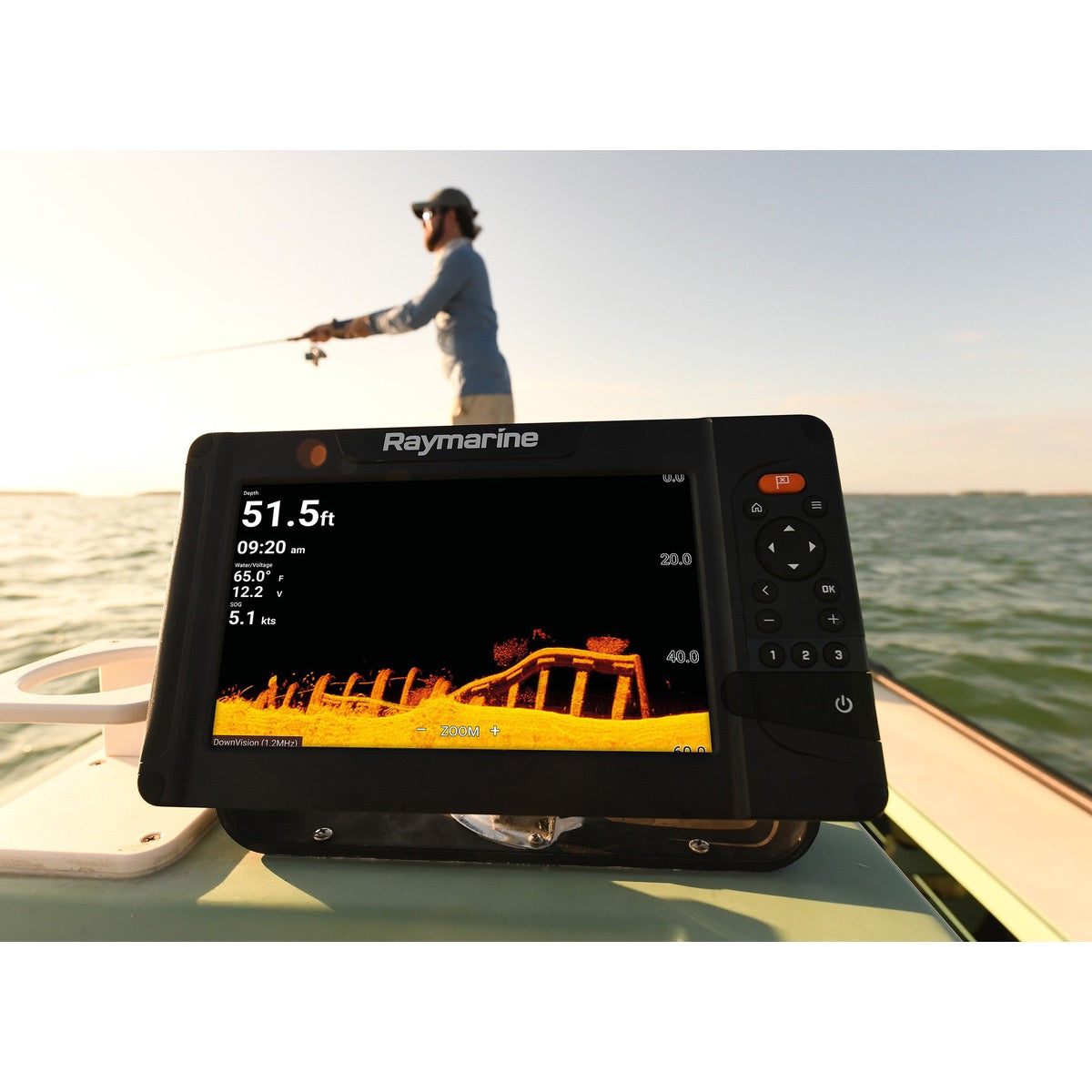

The Raymarine Element 7 HV is equipped with a 7-inch GPS display. This screen provides a clear interface for navigation and fishfinder data display.

Yes, the Raymarine Element 7 HV is equipped with Wi-Fi. This feature allows access to software updates and integration with compatible mobile applications.

To ensure the Element 7 HV mounting template is printed at actual size, follow these steps using Adobe Acrobat Reader:

Open the mounting template document in Acrobat Reader.Select File → Properties and note the page format.Select File → Print.In the print dialog, ensure the paper size is set to the same dimensions as the previously noted page format.Verify that the "Page Size Options" and "Scaling" (if applicable) settings are set to "Actual Size" or "None".Ensure the "Auto-rotate and Center Pages" or "Auto Portrait/Landscape" option (as applicable) is NOT checked.Select the appropriate orientation to match the template's orientation.

During installation of the HV-100+ transducer, the following points are critical:

Use only neutral marine-grade polyurethane sealants. Do NOT use acetates or silicones, as they can damage plastic components.Test and operate the transducer only in water. Do NOT run it out of water to prevent overheating.For antifouling paint, use only water-based paint. Do NOT use ketone- or copper-based antifouling paint.Ensure the boat’s electrical power is disconnected before starting installation.

To maintain optimal performance of your HV-100+ depth sounder, regular maintenance is recommended:

Perform routine checks to ensure it is clean and in good condition. Clean the transducer to remove marine fouling. If necessary, reapply antifouling paint. It is imperative to use only water-based antifouling paint. Do NOT use ketone-based or copper-based paint.
