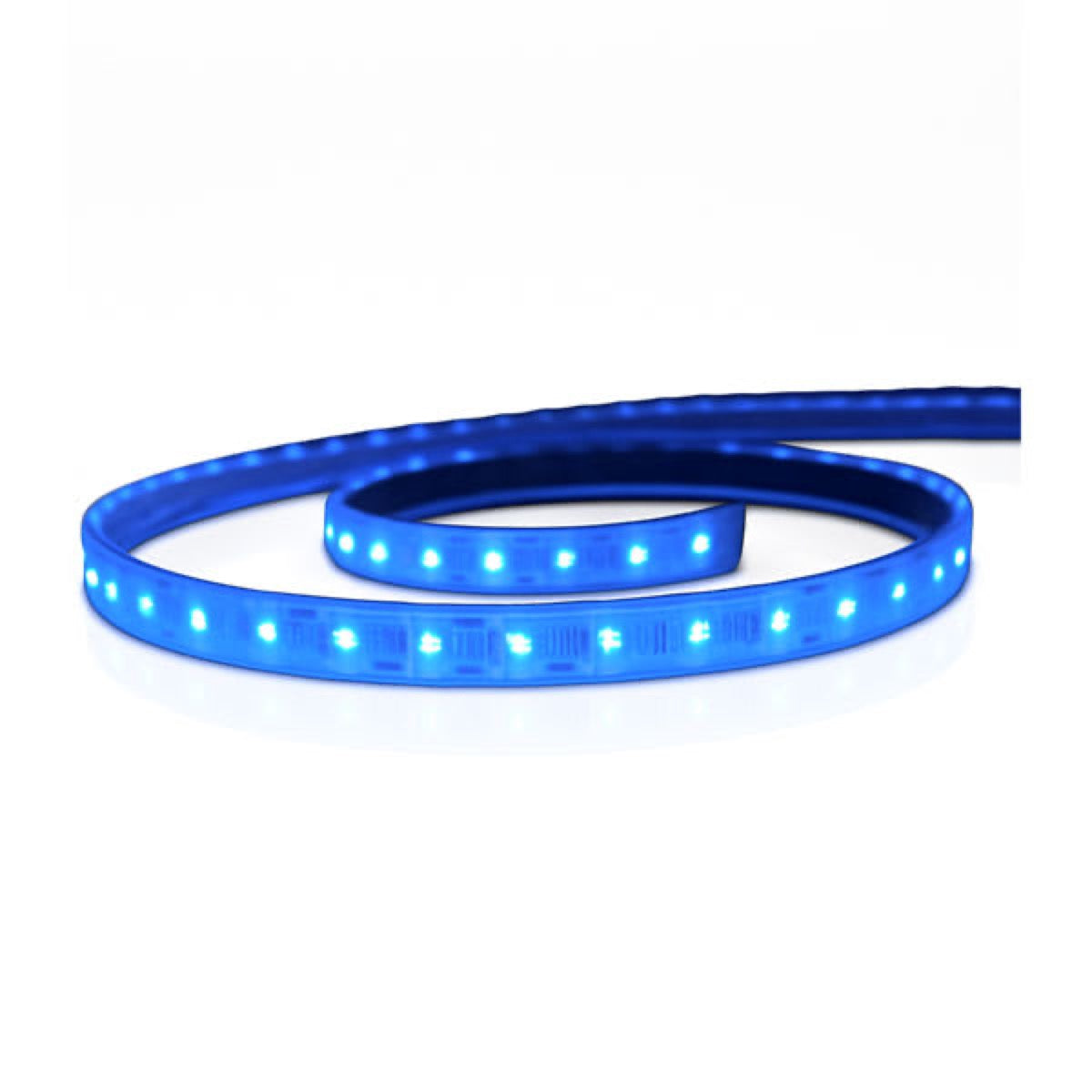

ECLIPSE SL100, Strip Light, 1M - Garmin image 1

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Ušetříte 12%

Garmin

010-04537-00

ECLIPSE SL100, LED pásové osvětlení, 1 m

Conçue pour l'éclairage marin, la bande lumineuse Lumishore ECLIPSE SL100, commercialisée par Garmin, de 1 mètre offre une solution flexible et discrète avec 60 LED par mètre. Résistante aux UV et certifiée IP68, elle fonctionne en 12V DC et peut être coupée à longueur pour une intégration parfaite. Ce modèle SL100 (SKU 010-04537-00) est une bande lumineuse RGB de la gamme ECLIPSE de Lumishore, commercialisée par Garmin, et compatible avec les systèmes de contrôle Garmin.

Le produit inclut un kit de scellement et silicone, des bandes adhésives, et des clips de fixation.

Prix publicBénéficier du tarif pro

872,05 CZK

872,05 CZK ~~997,45 CZK~~

s DPH Doprava se vypočítá při platbě.

Skladem

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Typ výrobku	Ruban lumineux
Provozní napětí	10-15V
Typická spotřeba elektrické energie	6 W
Stupeň krytí IP	IP68
Kompatibilní s stmíváním	Oui
Délka pásku	1.0
Hustota LED / metr	60.0
Lepící podklad	Oui
Bend Axis Restriction	Vertical uniquement
Current Draw Typical Per Meter	0.41 A/m
Installation Environment Suitability	Intérieur, Extérieur, Zones humides, Submersion temporaire
Materiál	Matériau résistant aux UV
Max Strip Length Per Control Zone	20
Min Bend Radius Vertical	50
Typ montáže	Adhésif, Clips de fixation
Power Consumption Typical Per Meter	5 W/m
Typ napájení	DC
Kompatibilita systémového napětí	12V DC uniquement

Description détaillée

LED pásové osvětlení Lumishore ECLIPSE SL100 od společnosti Garmin, délky 1 metr, je flexibilní řešení pro námořní osvětlení určené k diskrétní integraci a dekorativním efektům na palubě. S hustotou 60 LED na metr poskytuje nepřímé osvětlení pro boky lodi, pod palubními prvky nebo za stropními panely. Funguje výhradně na 12V DC (rozsah 10–15V DC) a má typickou spotřebu 6 W na metr (0,5 A při 12V).

Univerzálnost a námořní odolnost

Pásové osvětlení ECLIPSE SL100 je zcela zapouzdřené a vyrobené z materiálu odolného proti UV záření, což zajišťuje ochranu IP68 proti prachu a dočasnému ponoření. Snese minimální ohyb 50 mm ve vertikální ose, což usnadňuje přizpůsobení tvarům plavidel oproti rigidnějším řešením. Kompaktní rozměry 10,8 mm × 5,2 mm umožňují téměř neviditelnou integraci. Přestože je robustní pro vlhké prostředí, není určeno pro trvalé ponoření.

Instalace a pokročilé ovládání

Instalace pásu ECLIPSE SL100 je usnadněna pomocí dodávaných lepicích pásů a montážních svorek, přičemž se doporučuje použít dodatečné mechanické upevnění pro venkovní instalace nebo vlhké oblasti. Pás lze na označených místech nastříhat na požadovanou délku a utěsnit pomocí dodaného kitu a silikonu. Ovládání probíhá prostřednictvím jednoduchého spínače u variant s jednou nebo dvěma barvami. Pro varianty RGB (tento model je RGB) je vyžadováno zařízení ECLIPSE Command Center, které umožňuje pokročilé ovládání prostřednictvím multifunkčního displeje Garmin nebo chytrého zařízení. Řada ECLIPSE SL100 nabízí také délky 2,5 a 5 metrů pro různé požadavky na osvětlení.

Documentations

Type	Nom
	Installation Manual - Installation Guide for ECLIPSE SL100 Strip Light (1 meter) (EN)

Avis de l'expert

« Technical analysis of the Lumishore ECLIPSE SL100 1M light strip (Garmin) »

The Lumishore ECLIPSE SL100 LED strip, marketed by Garmin, is a relevant option for boat owners looking to integrate subtle ambient or functional lighting. Its flexibility, with a 50mm vertical bend radius, makes it ideal for following hull curves or interior layouts where rigid fixtures would not fit. It is crucial to respect this bending constraint and avoid twisting it to ensure its longevity.

Installation is simplified by the pre-applied adhesive, but for demanding marine environments or vibration-prone areas, adding the supplied mounting clips is strongly recommended for durable mechanical retention. The ability to cut to length and seal with the included kit offers valuable adaptability for custom projects. However, this sealing step must be performed carefully to maintain IP68 waterproofing.

This type of lighting is particularly suited to recreational boats, sailboats, and motorboats for applications such as indirect cockpit lighting, highlighting steps, or storage lighting. Its 12V DC operation is standard for most marine installations. RGB versions (this model, SKU 010-04537-00, is RGB) require an ECLIPSE Command Center, positioning these LED strips as components of a Garmin integrated lighting system offering centralized control and advanced customization options.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

ECLIPSE SL100, LED pásové osvětlení, 1 m

872,05 CZK

872,05 CZK ~~997,45 CZK~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the length of this Garmin ECLIPSE SL100 LED light strip?

The Garmin ECLIPSE SL100 light bar has a length of one meter (1M).

What is the required supply voltage for the ECLIPSE SL100 LED strip?

This LED strip operates exclusively on direct current (DC) in 12V systems. The accepted voltage range is 10 to 15V DC.

Can I install the ECLIPSE SL100 LED strip outdoors on my boat?

Yes, the ECLIPSE SL100 LED strip is fully encapsulated and made from UV-resistant material, making it suitable for indoor or outdoor installation. However, it must not be installed in areas exposed to direct sunlight.

Is the ECLIPSE SL100 light bar waterproof?

Yes, it offers IP68 protection against dust and temporary immersion. It is designed for damp areas but is not intended for permanent submersion in water.

What is the power consumption of the ECLIPSE SL100 LED strip per meter?

The typical power consumption of this LED strip is 6 watts per meter, which corresponds to a current draw of 0.5A at 12V.

What are the physical dimensions of the ECLIPSE SL100 light strip?

The compact dimensions of the light strip are 10.8 mm wide by 5.2 mm high, allowing for nearly invisible integration.

How can I mount the ECLIPSE SL100 LED strip?

Installation is facilitated by adhesive strips and mounting clips provided. For outdoor installations in wet areas or with tight bend radii, it is recommended to use additional mechanical fastenings in addition to the adhesive.

What is the minimum allowed curvature for the light strip?

The light strip supports a minimum curvature radius of 50mm (approximately 1.968 inches) on the vertical axis only. It is critical not to bend it on the horizontal axis or twist it.

Can the ECLIPSE SL100 LED light strip be cut to the desired length?

Yes, the LED strip can be cut. Locate the marked cut points, then use a pair of scissors to cut the strip with a single cut motion at the center of the cut marks.

What happens if I do not properly seal the cut end of the light strip?

It is crucial to properly seal the cut end. Failure to do so could compromise the waterproof properties of the assembly and risk voiding the product warranty.

What type of lighting does the ECLIPSE SL100 strip provide?

The ECLIPSE SL100 LED strip provides indirect lighting, ideal for toe rails, under furniture or behind ceiling panels, creating decorative effects on board.

How many LEDs are there per meter on this LED strip?

The ECLIPSE SL100 LED light bar is equipped with a density of 60 LEDs per meter.

Can I connect the ECLIPSE SL100 LED strip to an AC power supply?

No, this LED strip is designed to operate only with 12V DC systems. Never connect it to a voltage outside the 10-15V DC range or directly to AC power.

Is it necessary to hire a professional for installation?

A qualified professional should perform the electrical and mechanical installation of the ECLIPSE SL100 LED strip.

How to prepare the surface before sticking the LED strip?

Before installation, thoroughly clean the mounting surface using isopropyl alcohol (IPA) to ensure it is free of dust and dirt.

How to seal the cut end of the LED strip?

To seal the end, remove 20mm of the adhesive backing, then lightly mark the adhesive at 10mm from the end. Peel off the tape to expose the silicone. Fill the end cap halfway with the supplied silicone adhesive, then fit the cap and wipe off excess. Allow to cure for 24 hours.

Can I bend the ECLIPSE SL100 light strip to fit complex shapes?

No, the light strip must not be twisted or bent along the horizontal axis. It is only designed for bending along the vertical axis with a minimum radius of 50mm.

Is the ECLIPSE SL100 LED strip compatible with an ECLIPSE Command Center controller?

Yes, the ECLIPSE SL100 LED light strips (whether single-color, dual-color, or RGB) can be used with an ECLIPSE Command Center. However, do not mix different types of lights (single-color, dual-color, RGB) on the same zone output of the Command Center.
