ECLIPSE SMX24, bílý povrchový reflektor

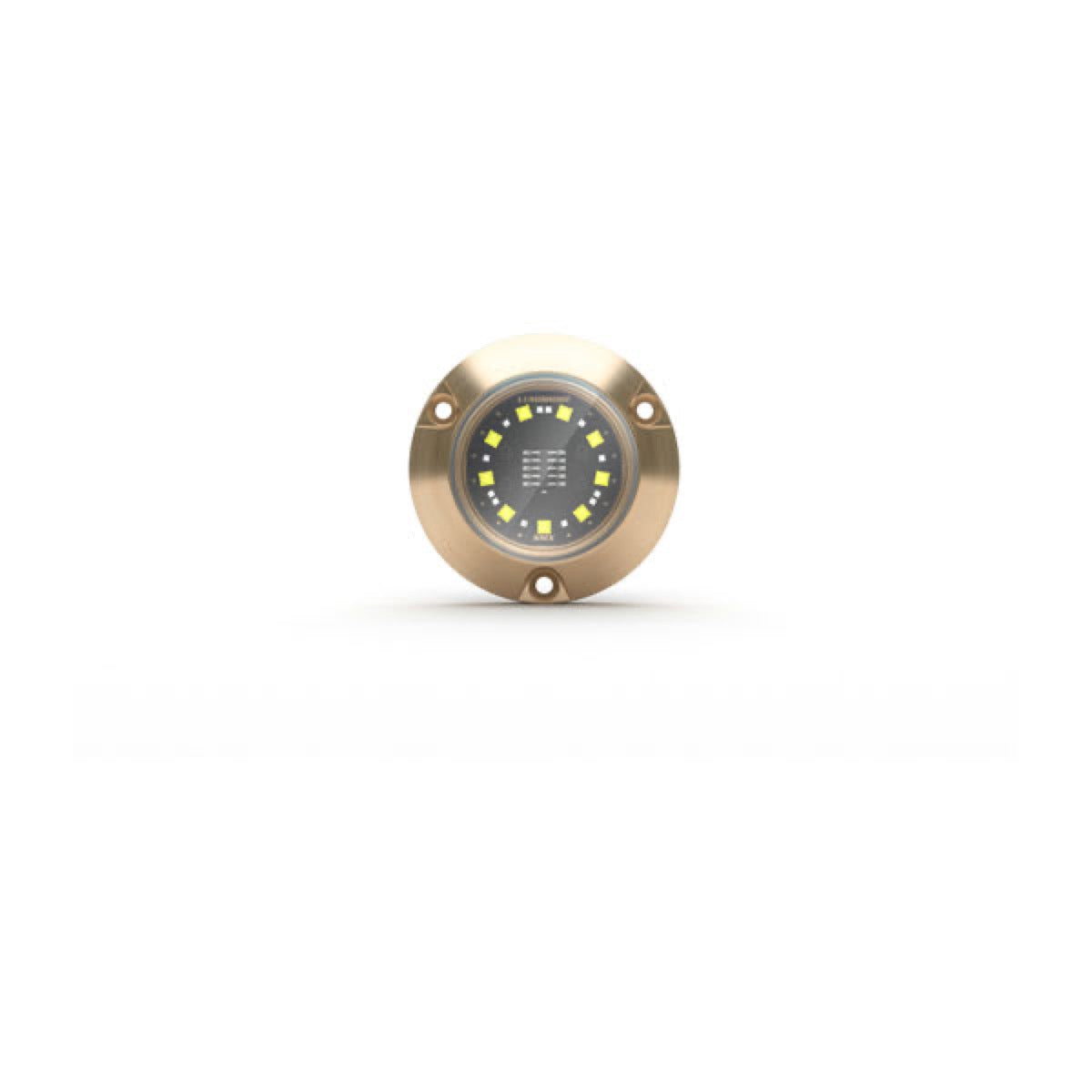

The Garmin ECLIPSE SMX24 underwater light in white is designed for small boats (less than 7.5 meters or 25 feet). It provides a reliable lighting solution that is easy to install thanks to its two-wire connection and integrated driver. It mounts on the surface and features a robust marine-grade bronze construction with a glass lens.

The ECLIPSE SMX24 white underwater light delivers a raw luminous output of 6,975 lumens, with 3,100 verified lumens. This performance is achieved with 9 x 5W white LEDs arranged in a HICOB matrix, providing a wide 90° beam angle for extended underwater illumination.

The ECLIPSE SMX24 spotlight is specifically designed for small vessels, i.e., those measuring up to 7.5 meters (25 feet).

The ECLIPSE SMX24 spotlight is built with a marine-grade bronze body and a glass lens, providing excellent resistance to harsh marine environments and corrosion.

The ECLIPSE SMX24 spotlight has a diameter of 70 mm (2.75 inches). Its depth is 17 mm (0.67 inch) and the cable section requires 12 mm (0.47 inch) of clearance. The pitch circle diameter (PCD) for mounting is 61 mm (2.40 inches).

For maintenance, it is recommended to regularly check the body and lens of the spotlight to ensure they are free of marine growth. For cleaning, use a soft cloth or a soft-bristle brush. It is important not to use abrasive cleaning materials, liquids containing solvents, acids, or alkalis, or high-pressure cleaning equipment or sandblasting, as this could damage the spotlight.

The ECLIPSE SMX24 spotlight is a surface-mount model. It must be installed on a flat surface of the boat, such as the transom or the hull side, for optimal performance.

For optimal underwater lighting, Lumishore recommends installing the ECLIPSE SMX24 floodlight between 100 and 300 mm (4 to 12 inches) below the vessel’s minimum loaded waterline.

For mechanical installation, you will need a drill, drill bits, marine sealant (such as 3M 4200 or equivalent), an F2 Frearson screwdriver, a flat-head screwdriver, and a cloth for cleaning.

Pilot holes for screws: 9/64 inches (3.5 mm)
Hole for cable: 9/32 inches (7 mm)
Cable gland recess: A hole with a diameter of 17/32 inches (13.5 mm) and a depth of 5/8 inches (15 mm) is required for the cable gland to fit flush with the surface.

Apply a continuous and thick bead of marine sealant to the rear of the light fixture, ensuring it slightly overlaps into the recess of the outer edge. Also apply a bead of sealant around the cable gland to ensure complete watertightness.

Yes, it is important to hand-tighten the three supplied screws with a screwdriver. Do not overtighten and never use power tools for tightening to avoid damaging the projector or the hull.

Yes, an insulation kit (reference 39-0203) is mandatory for installations on boats with conductive hulls, particularly those up to 7.5 meters (25 feet).

If you install three or more underwater lights, it is recommended to space them 2.5 to 3 feet (approximately 76 to 91 cm) apart to achieve uniform underwater light diffusion.

Yes, the ECLIPSE SMX24 spotlight is temperature-sensitive. It must not be installed near an exhaust outlet or any other heat source to ensure proper operation and longevity.

The ECLIPSE SMX24 spotlight operates on a 12V or 24V DC supply. The accepted voltage range is 10.5 to 31V DC. It must never be connected directly to an AC supply or to any other DC voltage than those specified.

Each ECLIPSE SMX24 spotlight must be individually protected by a fuse. Use a 4A fuse for a 12V DC installation and a 2A fuse for a 24V DC installation.

The ECLIPSE SMX24 spotlight uses a two-wire connection: the red wire for +VDC (12V or 24V DC) and the black wire for ground (GND). A power switch must be installed in the circuit to control the spotlight. All connections must be made watertight.

Yes, the projector cables can be extended. It is essential to use the correct cable gauge suitable for marine applications to avoid voltage drop issues. Follow ABYC recommendations for a maximum voltage drop of 3% at 12V and 10% at 24V.

Lumishore lighting systems, including the ECLIPSE SMX24 spotlight, are warranted against manufacturing defects for a period of three years from the original purchase date. The warranty is void in cases of misuse, abuse, incorrect installation, neglect, damage caused by disasters (fire, flood, etc.), installation by unqualified personnel, unauthorized repair or modification, or failure to comply with installation and maintenance guidelines.
