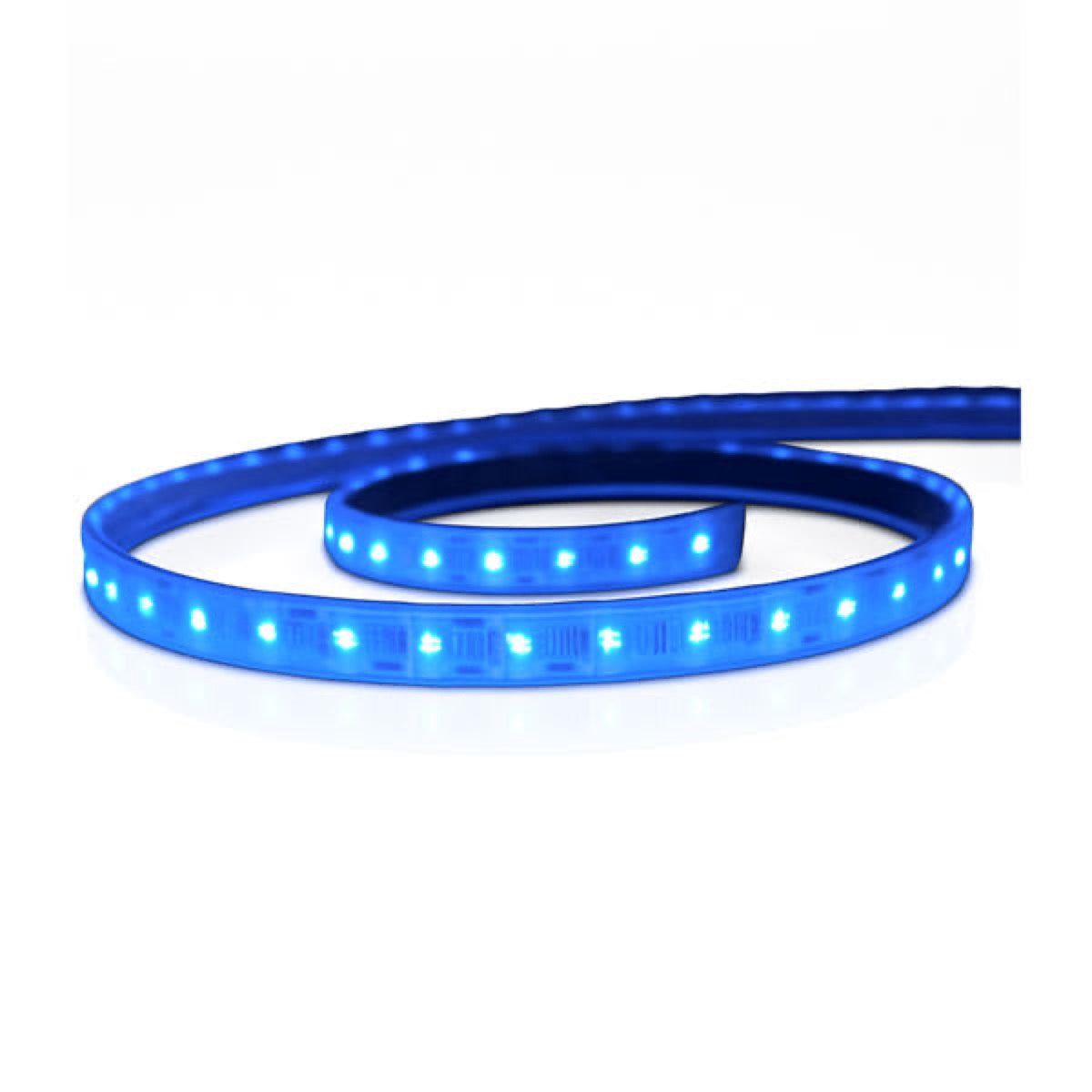

ECLIPSE SL100, Strip Light, Blue, 5m - Garmin image 1

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Ušetříte 13%

Garmin

010-04479-00

ECLIPSE SL100, LED pás modré, 5 m

Le bandeau lumineux flexible Garmin ECLIPSE SL100 bleu de 5m est une solution d'éclairage marin IP68 conçue pour l'ambiance et la décoration. Résistant aux UV et opérant sous 12V DC, il est idéal pour une intégration discrète dans divers espaces. Ce modèle fait partie de la collection ECLIPSE et est fourni avec des fixations à vis et un tube de silicone pour le scellement.

Prix publicBénéficier du tarif pro

130,04€

130,04€ ~~149,99€~~

s DPH Doprava se vypočítá při platbě.

Skladem

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Typ výrobku	Bandeau lumineux
Provozní napětí	12V
Typická spotřeba elektrické energie	5 W/m
Barva světla	Bleu
Stupeň krytí IP	IP68
Kompatibilní s stmíváním	Oui
Délka pásku	5.0
Hustota LED / metr	60.0
Lepící podklad	Oui
Bend Axis Restriction	Courbure uniquement verticale, pas d'axe horizontal ni de torsion
Current Consumption Per Meter	0.41A @ 12V
Encapsulation Type	Entièrement encapsulé et 'potted'
Prostředí instalace	Intérieur, Extérieur, Zones humides
Min Bend Radius Vertical	50
Operating Voltage Range Precise	10-15V DC
Tloušťka pásku	5.2
Šířka pásku	12.0
Systémová kompatibilita	Interrupteur simple, ECLIPSE Command Center
Odolnost vůči UV	Oui

Description détaillée

Navržen pro osvětlení prostředí a dekorativní osvětlení na palubách lodí. LED pás ECLIPSE SL100 od Garmin představuje flexibilní osvětlovací řešení o délce 5 metrů v modré barvě. Patří do kolekce ECLIPSE a poskytuje nepřímé a diskrétní osvětlení pro lodní boky, pod palubní nábytek nebo za stropní panely. Odlišuje se od funkčních osvětlovacích systémů, jako jsou navigační světla nebo projektory.

Konstrukce a technické specifikace

Model SL100 obsahuje 60 LED na metr, které poskytují stálý modrý svit po celé délce 5 metrů. Pracuje výhradně s napětím 12 V DC, s provozním rozsahem 10 až 15 V DC. Typická spotřeba je přibližně 5 wattů na metr, přičemž proud při 12 V činí 0,41 A. Konstrukce je zcela zalitá ("potted"), což zajišťuje vysokou odolnost v námořním prostředí. Při průřezu 10,8 mm x 5,2 mm je pás vyroben z materiálu odolného proti UV záření, i když se doporučuje vyhnout se dlouhodobému přímému slunečnímu záření. Stupeň krytí IP68 zaručuje vysokou odolnost proti prachu a vodě, což umožňuje instalaci ve vlhkých prostorách, nikoli však pro trvalé ponoření.

Instalace a flexibilita

LED pás ECLIPSE SL100 umožňuje minimální ohybový poloměr 50 mm ve vertikální ose, což umožňuje přizpůsobení tvaru lodi. Nesmí být ohýbán v horizontální ose ani zkroucen. Elektrická instalace je zjednodušena díky dvouvodičovému zapojení u monochromatického modelu. Pás lze nařezat na požadovanou délku, přičemž řezaná konce musí být neprodyšně utěsněna pomocí dodaného silikonu, aby byla zachována vodotěsnost. Montáž se provádí pomocí 3M lepicí pásky a šroubových svorek (dodávaných) nebo volitelných nerezových svorek, což zajišťuje mechanické upevnění, zvláště doporučené pro venkovní instalace nebo oblasti s ostrými ohyby.

Ovládání a integrace

Ovládání SL100 lze provádět pomocí jednoduchého spínače zapnuto/vypnuto. Patří do kolekce ECLIPSE od Garmin, což je řada výrobků pro osvětlení námořních plavidel vyvinutá společností Lumishore a distribuovaná pod značkou Garmin. Zaručuje estetickou a technickou souladnost v rámci námořní instalace. Na výrobek je poskytována 3letá záruka.

Documentations

Type	Nom
	Installation Guide - Garmin Eclipse SL100 Strip Light (EN)

Avis de l'expert

« Technical analysis of the Garmin ECLIPSE SL100 light strip »

The Garmin ECLIPSE SL100 LED strip offers a relevant solution for integrating ambient or decorative lighting on a variety of vessels, from cruising sailboats to motorboats. Its flexibility and ability to be cut to length allow for high adaptability in applications such as indirect lighting under coachroofs, along side decks, or to highlight interior and exterior architectural elements.

Electrical installation is straightforward for this monochrome version, with a 2-wire connection to a 12V circuit. The ability to cut the strip to the required size is a major advantage, enabling precise customization. However, it is critical to follow the procedure for sealing the cut end with the supplied silicone to maintain the IP68 rating and ensure product durability in marine environments. Using both the adhesive tape and screw clips is strongly recommended, especially in areas exposed to moisture or vibrations, to ensure long-term secure mounting.

This model is a reliable option for accent lighting, distinguished from generic solutions by its marine-grade IP68 design and UV resistance. It is not, however, suitable for use as a primary light source or for permanent submersion. Its minimum bending radius of 50 mm on the vertical axis must be considered during installation planning to avoid damaging the strip with excessive bending, including on the horizontal axis.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

ECLIPSE SL100, LED pás modré, 5 m

130,04€

130,04€ ~~149,99€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the color of this LED strip?

The Garmin ECLIPSE SL100 LED strip emits blue light. It is designed for ambient and decorative lighting.

What is the total length of the ECLIPSE SL100 LED strip?

The ECLIPSE SL100 LED strip has a total length of 5 meters.

Is the Garmin ECLIPSE SL100 LED strip waterproof?

Yes, the ECLIPSE SL100 LED strip is fully encapsulated and has an IP68 rating. This means it is highly resistant to dust and water, allowing installation in damp areas.

However, it is not designed for permanent submersion in water.

What is the power consumption of this LED strip?

The typical power consumption of the ECLIPSE SL100 LED strip is approximately 5 watts per meter.

The current draw is approximately 0.41 ampere at 12V DC.

How many LEDs per meter are there on the ECLIPSE SL100 strip?

The ECLIPSE SL100 LED strip features 60 LEDs per meter, providing a constant blue light along its entire length.

What is the purpose of the ECLIPSE SL100 LED light bar?

The ECLIPSE SL100 LED strip light is designed for ambient and decorative lighting aboard vessels. It is ideal for indirect and discreet illumination of bulwarks, under furniture, or behind ceiling panels.

Is the LED strip UV-resistant?

Yes, the ECLIPSE SL100 LED strip is made from UV-resistant material. However, prolonged direct exposure to sunlight should be avoided to preserve its durability.

Can the LED strip be used in very humid areas or outdoors?

Yes, due to its IP68 protection rating and fully sealed design, the LED strip can be installed in wet areas or outdoors.

However, it is not designed for permanent submersion in water.

What is the minimum bending radius for installing the LED strip?

The ECLIPSE SL100 LED strip has a minimum bending radius of 50 mm on the vertical axis. It is critical not to bend it on the horizontal axis or twist it to avoid damaging the product.

What precautions should be taken when installing the LED strip light?

During installation, it is important to:

Ensure the vessel’s power source is disconnected or isolated.Handle the strip carefully, unrolling it gently from the reel.Do not apply pressure to the LEDs, only to the edges of the strip.Do not pull, stretch, twist, or bend the strip along the horizontal axis.Use two people for lengths over one meter.Lay the strip flat and straight.

Is it necessary to disconnect the boat's power source before installation?

Yes, it is imperative to always ensure that the vessel's power source and the battery are disconnected or isolated before installing the LED strip light. This safety measure is essential.

How to wire the ECLIPSE SL100 LED strip?

The ECLIPSE SL100 LED strip is a single-color model. For simple connection, it can be wired to an on/off switch. The red wire of the strip connects to the positive (with an appropriate fuse) of the 12V DC power supply, and the black wire connects to the negative, potentially via the switch.

For integration with an ECLIPSE Command Center, refer to the Command Center installation manual, but for a single-color strip, the ECLIPSE red cable harness connects to the strip's red wire, and the harness's blue and white wires connect to the strip's black wire.

What power supply voltage is required for the Garmin ECLIPSE SL100 LED strip?

The Garmin ECLIPSE SL100 LED banner is designed to operate exclusively with boats equipped with a 12V DC power supply. Its operating range is 10 to 15V DC. It must not be connected to voltages outside this range or directly to an AC voltage.

Is the LED strip compatible with ECLIPSE Command Center control systems?

Yes, the ECLIPSE SL100 LED strip is compatible with ECLIPSE Command Center control systems. For a complete installation and control via the Command Center, consult the Command Center installation manual.

Can the LED light strip be connected to an AC power supply?

No, the ECLIPSE SL100 LED strip is designed to operate only with a 12V direct current (DC) power supply. It must never be connected directly to an alternating current (AC) supply.

What is the length of this ECLIPSE SL100 LED light strip?

This part number corresponds to a Garmin ECLIPSE SL100 5 m light strip. The available length must be accounted for during installation planning to avoid tight bends and stressed cable sections.

In which direction can the LED strip be bent?

Technical data indicates curvature only in the vertical plane, with a minimum radius of 50 mm. Do not force the tape into torsion or bend it along the horizontal axis, as this may damage the encapsulation or the LEDs.

Is this ribbon compatible with the ECLIPSE Command Center control?

Yes, Nexus indicates compatibility with a single switch and with the ECLIPSE Command Center. For a scalable installation, you must plan the wiring and electrical protections corresponding to the selected control mode.

What power supply is required for the ECLIPSE SL100?

This tape operates on 12 V DC, with a specified range of 10 to 15 V DC. The circuit must be protected according to the installed length and no connection should be made to an AC power supply.

Can the ECLIPSE SL100 be installed outdoors?

Yes, Nexus data indicates indoor, outdoor, and wet area use, with IP68 rating and UV resistance. Final durability depends primarily on surface preparation, bonding, and mechanical protection of the wiring.
