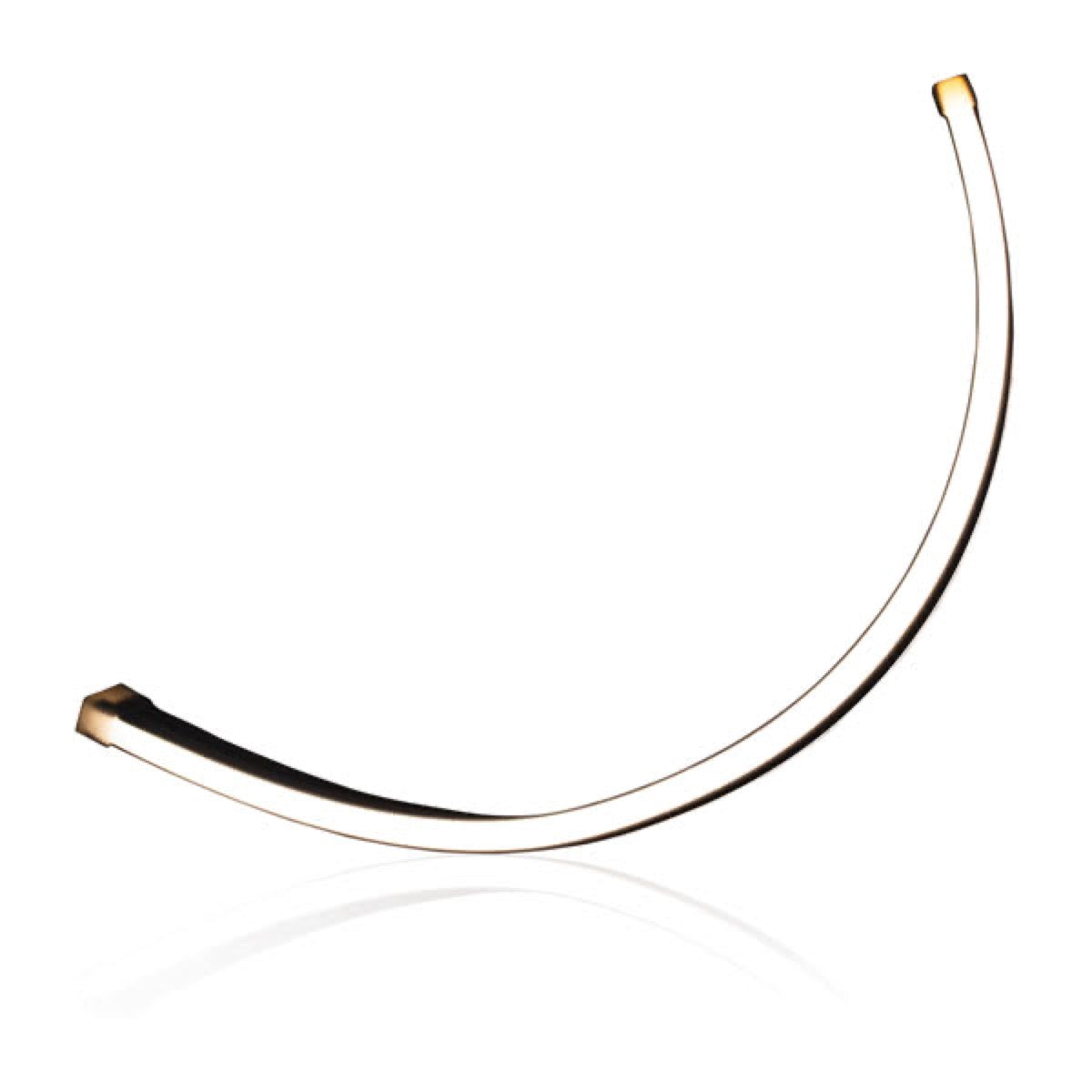

ECLIPSE SNL100, Neon Flex Light, 2.5M - Garmin image 1

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Ušetříte 7%

Garmin

010-04535-00

ECLIPSE SNL100, pás Neon Flex, 2,5 m

Le Garmin ECLIPSE SNL100 est un ruban LED flexible de 2,5 mètres offrant un éclairage sans points, idéal pour des installations marines intérieures et extérieures. Résistant aux UV et certifié IP68, il peut être coupé tous les 25 mm pour s'adapter à divers contours. Pour le contrôle des couleurs, un ECLIPSE Command Center est requis pour cette version RGB. Il est livré avec un kit de scellement, des embouts et des clips de fixation en acier inoxydable.

Prix publicBénéficier du tarif pro

128,99€

128,99€ ~~139,99€~~

s DPH Doprava se vypočítá při platbě.

Skladem

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Typ výrobku	Ruban lumineux LED flexible
Typická spotřeba elektrické energie	37.5W
Barva světla	RVB
Stupeň krytí IP	IP67
Kompatibilní s stmíváním	Oui
Otočný paprsek	false
Úhlová šířka paprsku	180
Bend Direction	Latéral
Barva / povrchová úprava	Translucide
Command Center Required	Oui
Cut Increment Mm	25
Výška	22
Materiál krytu	Silicone résistant aux UV
Typ instalace	Montage en surface
Integrovaný spínač	false
Length	2.5
Max Length Per Zone	20
Minimální poloměr ohybu	120
Rozsah provozního napětí	10-15V
Power Consumption Typical Per Meter	5
Sealing Kit Included	Oui
Šířka	16

Description détaillée

Garmin ECLIPSE SNL100 Neon Flex Light o délce 2,5 metru je řešením LED osvětlení navrženým pro námořní prostředí. Tento flexibilní světelný pás poskytuje nepřerušované osvětlení bez viditelných bodů, podobně jako klasický neon, avšak s odolností a účinností LED. Je speciálně uzpůsoben pro přizpůsobení zakřiveným povrchům lodí, jako jsou lodní boky, obložení kabin nebo T-topy.

Konstrukce a flexibilita

SNL100 je vyroben z materiálu odolného proti UV záření, což zajišťuje delší životnost i při venkovním použití, i když se nedoporučuje instalace na přímém slunci. Jeho konstrukce "Bend-Flex" umožňuje minimální ohyb o průměru 120 mm na vertikální ose, čímž poskytuje vysokou přizpůsobivost pro individuální instalace. Na rozdíl od tuhých nebo méně ohebných osvětlovacích řešení umožňuje ECLIPSE SNL100 vytvářet plynulé světelné linie. Pás lze stříhat na požadovanou délku po 25mm krocích, což poskytuje flexibilitu pro zakázkové projekty. Součástí balení jsou těsnicí sada a koncovky pro zajištění vodotěsnosti po každém střihu.

Integrace a ovládání

Při napájení 12V DC (rozsah 10–15V) tento světelný pás spotřebovává přibližně 5 Wattů na metr a je k dispozici v monochromatických (modrá nebo bílá) a dvoubarevných (modrá/bílá) verzích, které lze ovládat pomocí jednoduchého spínače zapnuto/vypnuto. Pro pokročilejší řízení a RGB varianty musí být SNL100 propojen s volitelným ECLIPSE Command Center. Toto řídicí centrum umožňuje ovládání prostřednictvím multifunkčního displeje (MFD) Garmin nebo chytrých zařízení přes Wi-Fi, včetně řízení po zónách. Řada ECLIPSE, původně vyvinutá společností Lumishore, je známá integrovanými námořními osvětlovacími řešeními, a SNL100 navazuje na tuto tradici nabídkou srovnatelné instalační flexibility jako produkty Lumishore SMX nebo TIX.

Námořní odolnost

S krytím IP68 je Garmin ECLIPSE SNL100 zcela vodotěsný a chráněný proti dočasnému ponoření, což jej činí vhodným pro instalace jak ve vnitřních, tak vnějších vlhkých prostorách. Součástí dodávky jsou upevňovací spony z nerezové oceli pro bezpečnou montáž. Toto úroveň ochrany zajišťuje dlouhou životnost v námořním prostředí a je poskytována tříletá záruka.

Documentations

Type	Nom
	Installation Guide - ECLIPSE SNL100 Neon Flex (EN)

Avis de l'expert

« Technical analysis: Garmin ECLIPSE SNL100 flexible LED strip »

The Garmin ECLIPSE SNL100 LED strip, based on Lumishore technology, is a versatile architectural lighting solution for recreational and rigid inflatable boats. Its primary use case lies in its ability to create continuous, customizable light lines, ideal for highlighting the interior or exterior contours of the boat without the constraints of traditional neon lights. The flexibility of the strip, with a minimum bending radius of 120 mm, allows for complex installations along the gunwales, under steps, or around T-tops, where rigid linear lighting would be unsuitable.

During installation, it is crucial to respect the 25 mm cutting points and use the provided sealing kit to maintain the IP68 waterproof rating. For color control, adding an ECLIPSE Command Center is essential for this RGB version. This transforms the SNL100 from a simple light source into part of an intelligent lighting system, controllable via MFD or smartphone. It is important to note that installing the 2.5-meter strip, while manageable, benefits from two people to avoid unwanted twists or folds that could damage the internal LED strip. This product is particularly suited for decorative or ambient lighting applications rather than primary functional lighting.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

ECLIPSE SNL100, pás Neon Flex, 2,5 m

128,99€

128,99€ ~~139,99€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the Garmin ECLIPSE SNL100 Neon Flex Light?

The Garmin ECLIPSE SNL100 Neon Flex Light is a 2.5-meter flexible LED light strip designed specifically for marine environments. It provides continuous and uniform illumination without visible points, similar to a traditional neon light, but with the durability and energy efficiency of LEDs.

What is the length of this LED light strip?

This specific Garmin ECLIPSE SNL100 Neon Flex Light model has an overall length of 2.5 meters.

Is it suitable for outdoor or marine use?

Yes, the ECLIPSE SNL100 is fully sealed and designed for installation both indoors and outdoors. It can be used in wet areas, but it is not designed for permanent submersion in water.

Is the LED light strip UV-resistant?

Yes, the Neon Flex is made from a UV-resistant material. However, it is not recommended to install it in areas exposed to strong direct sunlight to preserve its longevity.

What is the specific feature of the SNL100 lighting?

The SNL100’s distinguishing feature is its continuous, seamless illumination with no visible points, giving it the appearance of a traditional neon light. This design allows for smooth, aesthetic light lines that adapt perfectly to the curved surfaces of boats.

Can the ribbon be cut to the desired length? If so, how?

Yes, the LED light strip can be cut to the desired length. It is important to cut only at the marked cutting points, in 25 mm increments. Scissors can be used to make the cut.

Which accessories are provided for cutting and sealing?

A sealing kit and end caps are provided with the LED strip. These accessories are essential to ensure the strip remains watertight after each cut, thereby guaranteeing its durability and protection.

What is the flexibility of the LED light strip?

The ECLIPSE SNL100 features a "Bend-Flex" design for high adaptability. It has a minimum bend radius of 120 mm (4.724 in) on the vertical axis. It is critical not to bend it on the horizontal axis or twist it.

What precautions should be taken before starting the installation?

Before any installation, it is imperative to ensure that the vessel's power source and the battery are disconnected or isolated. This safety measure is essential to avoid any electrical risk.

Who should perform the electrical and mechanical installation?

It is strongly recommended that a qualified professional carry out both the electrical and mechanical installation of the LED strip to ensure proper and safe installation.

Where should the LED strip not be installed?

Although the tape is UV-resistant, it must not be installed in areas with intense direct sunlight. Additionally, while it can be installed in damp areas, it is not designed to be permanently submerged in water.

What are the handling rules for the tape during installation?

When handling, it is important to follow these rules:

Do not unroll the Neon Flex by pulling only one end. Carefully unroll it along its entire length.Do not drop or twist the LED strip during installation.Do not apply excessive pressure, as this could damage the internal LED strip.Do not pull, stretch, twist, or bend the Neon Flex on the horizontal axis. Curvature is only permitted on the vertical axis with a minimum radius of 120 mm.

Do you need to be alone or in a group to install the LED strip?

For ribbon lengths exceeding 1 meter, it is recommended to use two people for installation. One person handles the installation while the other maintains and unspools the Neon Flex to prevent bending or twisting.

How to prepare the tape before cutting it?

Before cutting the tape, it is advisable to unroll it completely from the spool and let it relax for about an hour. Then, place the tape at the installation location and mark the nearest cutting point, ensuring you only cut at the indicated cutting points.

How to ensure waterproofing after cutting the tape?

After cutting the strip to the desired length, it is crucial to use the sealing kit provided with the end caps to seal the freshly cut ends. To do this, it is recommended to rewind the Neon Flex to retract the printed circuit board (PCB) inside the extrusion, which will prevent the sealing product from covering the LEDs and avoid discoloration.

What is the required supply voltage for the Garmin ECLIPSE SNL100?

The Garmin ECLIPSE SNL100 is designed to operate on a 12V DC (direct current) power supply. The operating voltage range is 10 to 15 Volts DC.

Can the LED light strip be connected to an alternating current (AC) power source?

No, it is imperative not to connect the LED strip to an alternating current (AC) source. The Garmin ECLIPSE SNL100 is designed to operate only with direct current (DC) in the 10 to 15 Volt range.

Is the LED light strip compatible with all types of boats?

The Neon Flex is specifically designed for use on boats with a 12V electrical system. It must not be connected to voltages outside the 10–15V DC range.

How to control the lighting of the LED strip?

Lighting control depends on the type of strip:

For monochrome or bicolor strips, a simple connection to an on/off switch may suffice. For RGB strips (color), or for advanced control of monochrome/bicolor strips, the use of an ECLIPSE Command Center and optional extension modules is required.

Can different types of LED strips (mono, dual, RGB) be mixed in the same area of the ECLIPSE Command Center?

No, it is specified that monochrome, bicolor, and RGB lights must not be added to the same zone output of the ECLIPSE Command Center. A separate zone output must be used for each type of LED strip to ensure correct operation.
