LUX SL180, LED pás, CRGBW, 900 mm

This is a 900 mm long CRGBW LED light strip designed for marine lighting. It provides a full color spectrum including red, green, blue, as well as adjustable cold white and warm white.

The Garmin LUX SL180 light strip has a predefined length of 900 mm.

The LUX SL180 provides CRGBW lighting, meaning it can produce red, green, blue, as well as cool white and warm white.

Yes, the color temperature of white is adjustable, ranging from a warm white of 2700 K to a cool white of 6500 K.

The LUX SL180 strip features 60 CRGBW LEDs per meter.

Yes, the LED light strip is made from UV-resistant materials. However, it is recommended not to install it in areas exposed to direct strong sunlight.

The power consumption is 5 watts per meter. For the 900 mm band, this represents a consumption of approximately 4.5 watts.

The LED strip is fully sealed (IP68) and can be installed indoors or outdoors, including in damp areas. However, it is not designed for permanent immersion in water.

Before any installation, it is imperative to ensure that the vessel's power source and battery are disconnected or isolated.

The light strip has a minimum bend radius of 50 mm on the vertical axis only. Do not bend it on the horizontal axis or twist it.

The LED strip is equipped with a 3M adhesive layer for mounting. For outdoor installations, wet areas, or tight bends, it is recommended to use additional mechanical fastenings every 25 to 30 cm, or on each side of a bend. Stainless steel mounting clips can also be provided by Lumishore as an optional accessory.

Yes, a qualified professional should carry out the electrical and mechanical installation to ensure correct and safe installation.

The adhesive must be allowed to set for 24 hours before turning on the light strip to ensure optimal adhesion.

It is important to unroll the strip carefully, without letting it drop or twist. Do not apply pressure on the LEDs, only on the edges of the strip. Do not pull, stretch, twist, or bend it on the horizontal axis. For lengths over one meter, it is advisable to use two people for installation.

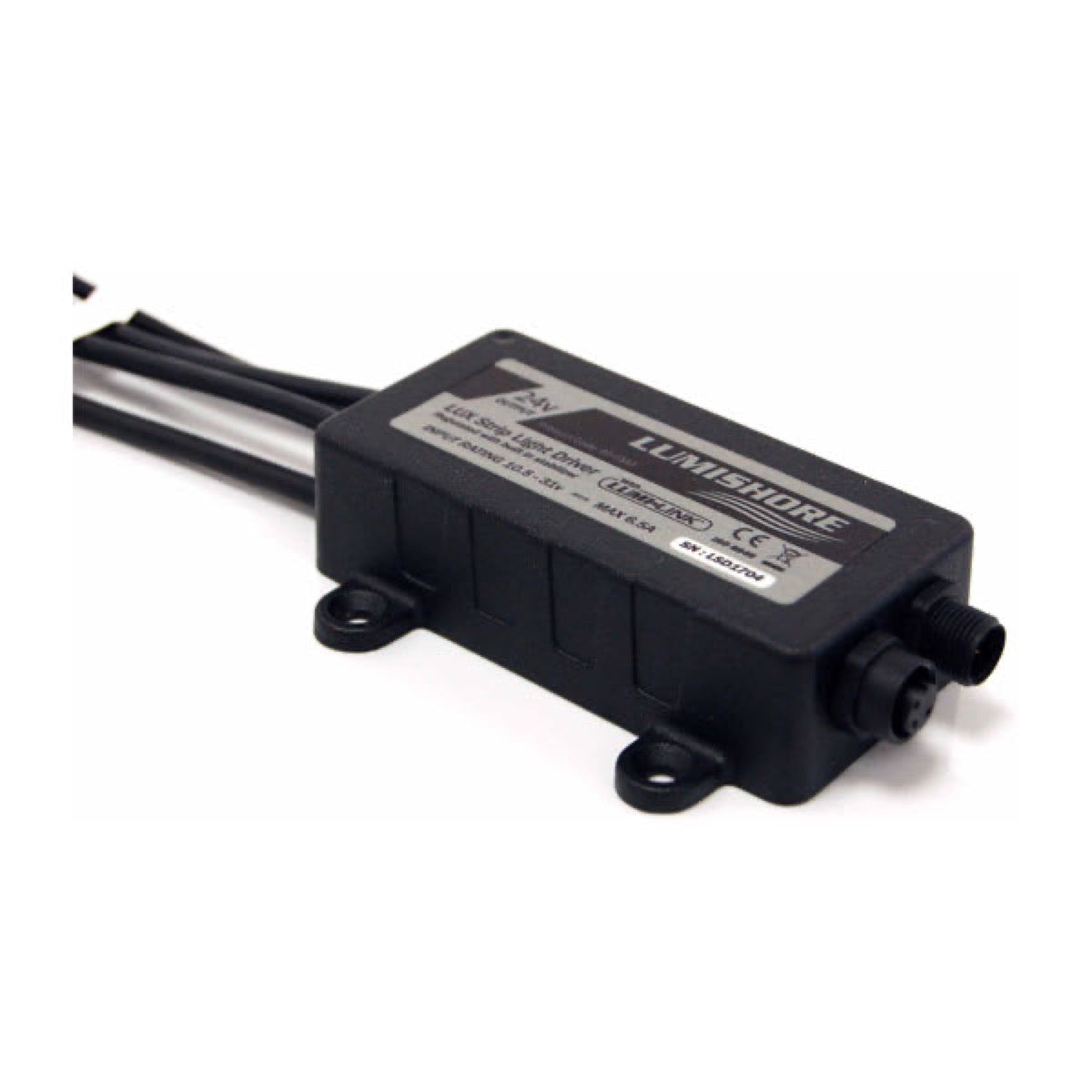

The LUX SL180 requires an exclusive connection to Lumishore LUX Strip Light Driver control modules. It is mandatory to use only these drivers.

No, the LUX SL180 LED strip is designed to work ONLY with Lumishore LUX Strip Light Driver control modules. Using it with third-party drivers is strictly not recommended and will void the product warranty.

The required input voltage range is 23 to 25V. This voltage must be supplied ONLY by Lumishore LUX Strip Light Driver control modules.

Lumishore Ltd guarantees its lighting systems and associated accessories against manufacturing defects for a period of three years from the original purchase date.

The warranty will be void in case of misuse, abuse, incorrect installation, negligence, damage caused by disasters (e.g., fire, flood, storm, and lightning), installation by unqualified personnel, unauthorized repair or modification, or use of unapproved installations. Failure to comply with installation, maintenance, and usage guidelines outlined in the document, including use with third-party drivers, also constitutes non-compliance with warranty terms.
