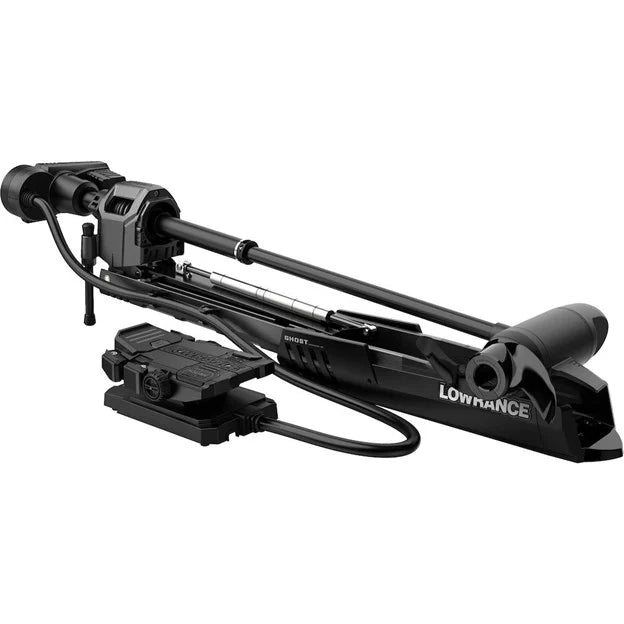

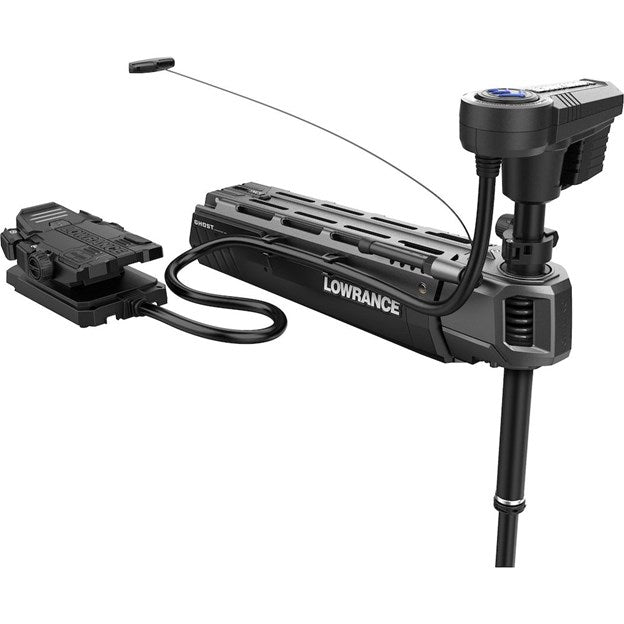

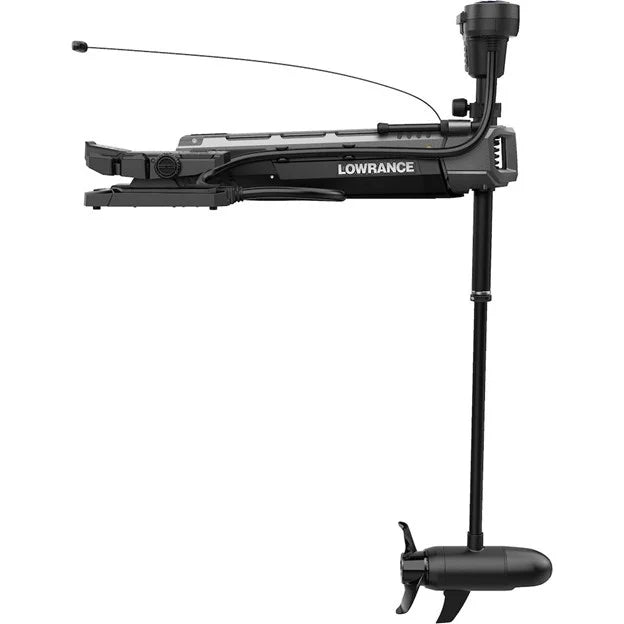

Zastaralý - Elektrický motor Ghost 47 palců

The Lowrance Ghost motor uses a brushless motor technology (without brushes). This design eliminates the noise generated by the brushes of traditional motors, making it virtually inaudible underwater and emitting no electromagnetic interference, which ensures clearer sonar views.

Yes, the Ghost motor is designed for maximum flexibility. It can operate interchangeably with either 24 V DC or 36 V DC power without any modifications, adapting to your existing or future battery setup.

The Ghost engine integrates perfectly with the following Lowrance multifunction displays, provided they have the latest software version:

HDS ProHDS LiveHDS CarbonElite FS

This Ghost engine model comes with an HDI transducer pre-installed in the front cone. It provides clear views beneath the boat. To display the fishfinder data, a compatible multifunction display is required.

It is recommended to install a 50 A circuit breaker to protect the electrical system, whether you are using a 24 V DC or 36 V DC configuration.

Connection between the Ghost engine and a compatible Lowrance screen is via the NMEA 2000® network, using the integrated Micro-C connector. This allows full control of navigation functions from your screen.

Yes, the Ghost engine pedal has three configurable buttons. You can assign specific functions to them, such as creating waypoints, controlling the virtual anchor, or other shortcuts for quick access.

This is an integrated safety system in the mounting bracket. In the event of a collision with an obstacle, the bracket is designed to absorb the impact and realign itself, thereby protecting the shaft and engine from potential damage.

No, the engine’s basic functions, such as steering and propulsion, can be fully controlled via the supplied pedal. However, a multifunction display is required to show fishfinder data and use advanced navigation modes (anchor, route tracking, etc.).

This specific Lowrance Ghost motor model (SKU 000-14937-001) is equipped with a 47-inch (approx. 119 cm) shaft.

Yes, the Ghost motor includes a virtual anchor mode. Once activated, it uses GPS to automatically maintain your boat’s position, even in wind or current conditions.

Yes, for optimal operation and to avoid cavitation, a minimum immersion depth of 300 mm (12 inches) is required between the water surface and the top of the motor block.

Yes, the Ghost engine is compatible with the ActiveTarget real-time sounder system. A specific mounting kit, sold separately, is required to attach the ActiveTarget transducer to the engine shaft.

The battery charge level is indicated by LED indicators directly on the pedal. Separate LEDs light up to show a HIGH, MEDIUM, or LOW battery level, and the system automatically adjusts to display the correct status whether you are on 24V or 36V.

The box contains the following main components:

The complete motor with 47" shaft and HDI transducerThe mounting bracketThe control pedalA storage strapThe installation hardware kit

Yes, when connected via NMEA 2000 to a compatible Lowrance display, the Ghost motor can follow routes, navigate to a waypoint, or hold a heading. All autopilot functions are controlled directly from the display.

The Ghost engine is fitted with a double-acting gas spring that makes stowing and deploying easier. It makes the operation smoother and less physically demanding, and it automatically locks the engine in the stowed position for transport.

The Lowrance Ghost 47" bow thruster motor is designed to integrate seamlessly with the Lowrange ecosystem. It is compatible with the following multifunction displays: HDS Pro, HDS Live, HDS Carbon, and Elite FS. Ensure your device has the latest software update. Note that a multifunction display is required to view images from the motor’s built-in sonar.

The Ghost 47" motor offers excellent power supply flexibility as it can operate on either a 24 V DC or 36 V DC battery bank. Regardless of the voltage selected for your installation, the manufacturer strongly recommends using a 50 A circuit breaker to secure and protect your electrical system.

Yes, the Lowrance Ghost 47" comes with a pre-installed HDI transducer directly mounted in the front cone of the motor. This design allows you to enjoy clear and detailed underwater views without needing any additional installation on the shaft. The transducer connects to your display via a 9-pin mini male connector.
