SUPRA Bridge Module, Bridge Module

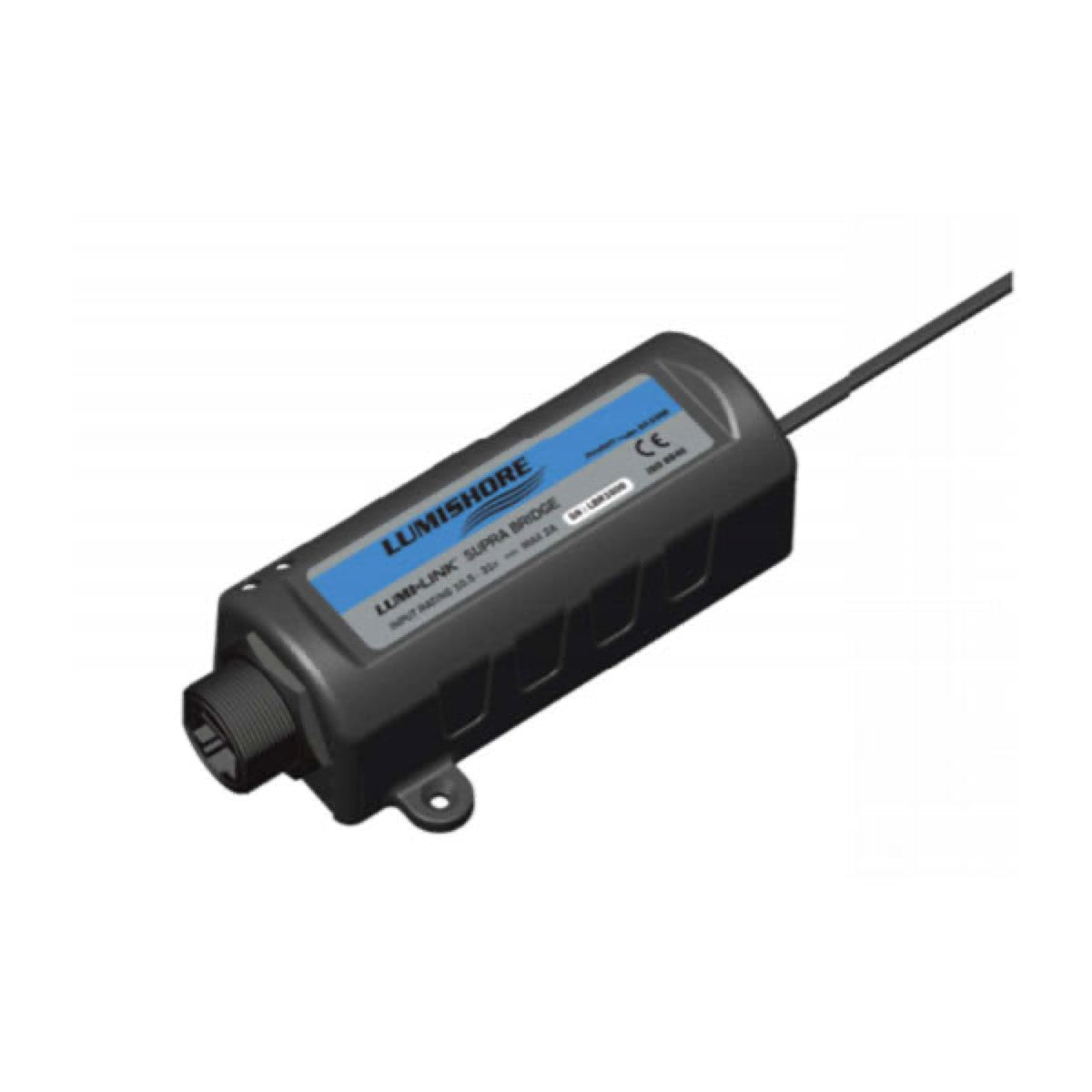

The Garmin SUPRA Bridge module is an ultra-compact device designed to seamlessly integrate Lumishore SUPRA bicolor underwater lighting systems into your boat's navigation network. It serves as a critical bridge for controlling all functions of these lights.

The Bridge SUPRA module connects to the Data IN port of a SUPRA Hub. It then integrates into the boat's Ethernet network or can be controlled via Wi-Fi, enabling communication with multifunction displays (MFD) or smart devices.

The SUPRA Bridge module is compatible with a wide range of MFDs, including:

Garmin: MFDs compatible with OneHelm
Raymarine: Axiom MFDs (via the Lighthouse Partner app)
Navico: Simrad (NSO EVO3/EVO2, NSS EVO3/Go), B&G (Zeus3 Glass Helm/Zeus3/Vulcan)
Furuno: Models to be confirmed (according to documentation)
It is recommended to verify your MFD compatibility and ensure it has the necessary software updates.

Yes, the system can be controlled from a smart device (smartphone/tablet) via an embedded Wi-Fi network. This can be done either via the MFD's Wi-Fi or via the Wi-Fi integrated into a Lumishore SUPRA Display screen.

The Bridge SUPRA module offers several control options:

A compatible multifunction display (MFD). A dedicated Lumishore SUPRA Display screen. A smart device (smartphone/tablet) via Wi-Fi.

Yes, multiple Bridge SUPRA modules can be used to create independent lighting zones, providing flexibility for complex underwater lighting setups.

The SUPRA Bridge module is supplied with an IP67 RJ45 cover kit (part number 39-0235) for field installation to ensure watertight connections.

The SUPRA Bridge module must be installed in a dry location on a flat (non-curved) surface, away from any heat or vibration sources. It is also important to consider future access to the SD card slot for software updates when installing.

The SUPRA Bridge module operates on a DC power supply of 12/24 volts (input range: 10 to 31 volts). It must never be connected directly to an AC voltage source.

No, the Bridge SUPRA module uses proprietary data messages for communication and can only be used to control Lumishore SUPRA underwater lighting products.

To connect the Bridge SUPRA module to a Garmin MFD, you must use a Garmin conversion cable (PN: 60-0372) and a Garmin network cable. It is mandatory to use these Garmin-specific cables.

The Bridge SUPRA module connects directly to the Data IN port of the SUPRA Hub using its 3-pin M12 connector. DMX extension cables are available in lengths of 1 meter (60-0403), 5 meters (60-0404), and 15 meters (60-0405) if a longer distance is required.

Yes, Lumishore provides an IP67 RJ45 cover to be installed on site to make the connections to the Bridge SUPRA module watertight. This cover must be used for all installations to ensure water protection.

Yes, the Bridge SUPRA module works with Lumishore SUPRA Display screens. These screens can be used if no MFD is present on the vessel or if additional access points are required.

Lumishore Ltd guarantees its lighting systems and associated accessories, including the Bridge SUPRA module, against manufacturing defects for a period of three years from the original purchase date.

The warranty may be voided in the following cases:

Misuse or abuse. Improper or negligent installation. Inappropriate shipping. Damage caused by disasters (fire, flood, storm, lightning). Installation by unqualified personnel. Unauthorized repair or modification. Unapproved installations. Failure to comply with installation, maintenance, and use guidelines in the documentation also voids the warranty.

Yes, it is strongly recommended that a qualified professional perform the electrical and mechanical installation of the Bridge SUPRA module to ensure proper operation and warranty validity.

Yes, the SUPRA lighting system must be fully installed before connecting the SUPRA Bridge module. It is also crucial to ensure that the vessel's power source and battery are disconnected or isolated before any installation attempt.

Yes, the Bridge SUPRA module is equipped with an accessible SD card slot for future software updates. It is important to consider this access during the installation of the module.

The Garmin SUPRA Bridge module is designed for extended compatibility, allowing control of your Lumishore SUPRA underwater lights across multiple platforms:

Compatible multifunction displays (MFD):
Garmin (with OneHelm function enabled)
Raymarine Axiom (via Lighthouse Partner app)
Navico (including Simrad NSO EVO3 and EVO2, NSS EVO3 and Go), as well as B&G (Zeus3 Glass Helm, Zeus3 and Vulcan)
Furuno (models to be confirmed, per documentation)
For connection to MFDs, manufacturer-specific conversion cables may be required (e.g., a Garmin conversion cable for Garmin MFDs, a Raynet to RJ45 cable for Raymarine, or a Navico conversion cable for Simrad and B&G).

Dedicated Lumishore SUPRA Display screen: You can also control the system via a Lumishore SUPRA Display screen if no MFD is present or if additional access points are needed.
Smart devices: The system can be controlled using a smartphone or tablet via Wi-Fi, either through the MFD's built-in Wi-Fi or the SUPRA Display screen's Wi-Fi.
It is recommended to verify your MFD's compatibility before installation, as a software update of your MFD may be required.
