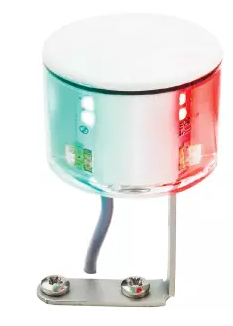

Tříbarevné světlo TYNI Tri 1MN pro stožár (loď do 12 m)

A masthead tricolour navigation light combines the port navigation light (red), starboard navigation light (green), and stern light (white) into a single unit. It is typically installed at the top of the mast and signals the presence and direction of the boat to other vessels in compliance with COLREGs (International Regulations for Preventing Collisions at Sea).

This Mantagua TYNI Tri tricolour navigation light has a luminous range exceeding 1 nautical mile (1 NM). It is specifically designed for vessels under 12 metres in length.

The TYNI Tri tricolour navigation light is suitable for boats under 12 metres in length. Its 1 nautical mile range complies with regulatory requirements for this category of vessels.

The electrical consumption of this tricolour navigation light is very low, at 1.7 W. This makes it an energy-efficient solution for your onboard electrical system.

This navigation light offers a luminous intensity greater than 1.1 candela, ensuring adequate visibility for its 1 nautical mile range.

Yes, this light is designed to be very robust. It is fully epoxy-resin encapsulated, making it waterproof with an IP67 rating and effectively protected against vibrations.

Yes, the Mantagua TYNI Tri tricolour light comes with a 15-metre power cable, ready to be connected to your onboard electrical system.

This navigation light uses low-power lighting technology. Its design is fully epoxy-resin encapsulated, ensuring high durability and vibration resistance.

This tricolour navigation light is designed to operate across a wide temperature range, from -20°C to +50°C, making it suitable for various marine weather conditions.

For mounting, you can use the provided bracket. At delivery, it is bent at 45°. You can bend it to 90° for mounting on top of the mast or flatten it for side mounting. The light is then attached to the mast using the two supplied stainless steel screws (ø 4 mm), orienting the boat symbol forward.

The light comes with the following accessories:

A stainless steel mounting bracketTwo stainless steel screws (ø 4 mm) for installationA 15-meter power cable

It is crucial to orient the light correctly. The boat symbol on the top of the light must be directed toward the bow of your vessel to ensure proper light signal diffusion and compliance with regulations.

For connecting the 12V DC power wires, it is recommended to use a cable with a minimum cross-section of 0.5 mm² to ensure optimal and safe operation.

Yes, if you wish, you can choose not to use the stainless steel bracket and glue the navigation light directly to the masthead. In this case, it is essential to ensure the light is oriented toward the bow of the boat.

The assembly of the light onto its bracket must be done manually, without using an electric drill. However, securing the bracket to the mast with the supplied screws may require pre-drilling the mast, depending on the material.

This tricolor light requires a 12V DC power supply to operate correctly. It is also polarity-sensitive.

No, this light is specifically designed for a 12V DC power supply. It is not compatible with 24V electrical systems.

This product is manufactured in France, ensuring French craftsmanship and European quality standards.
