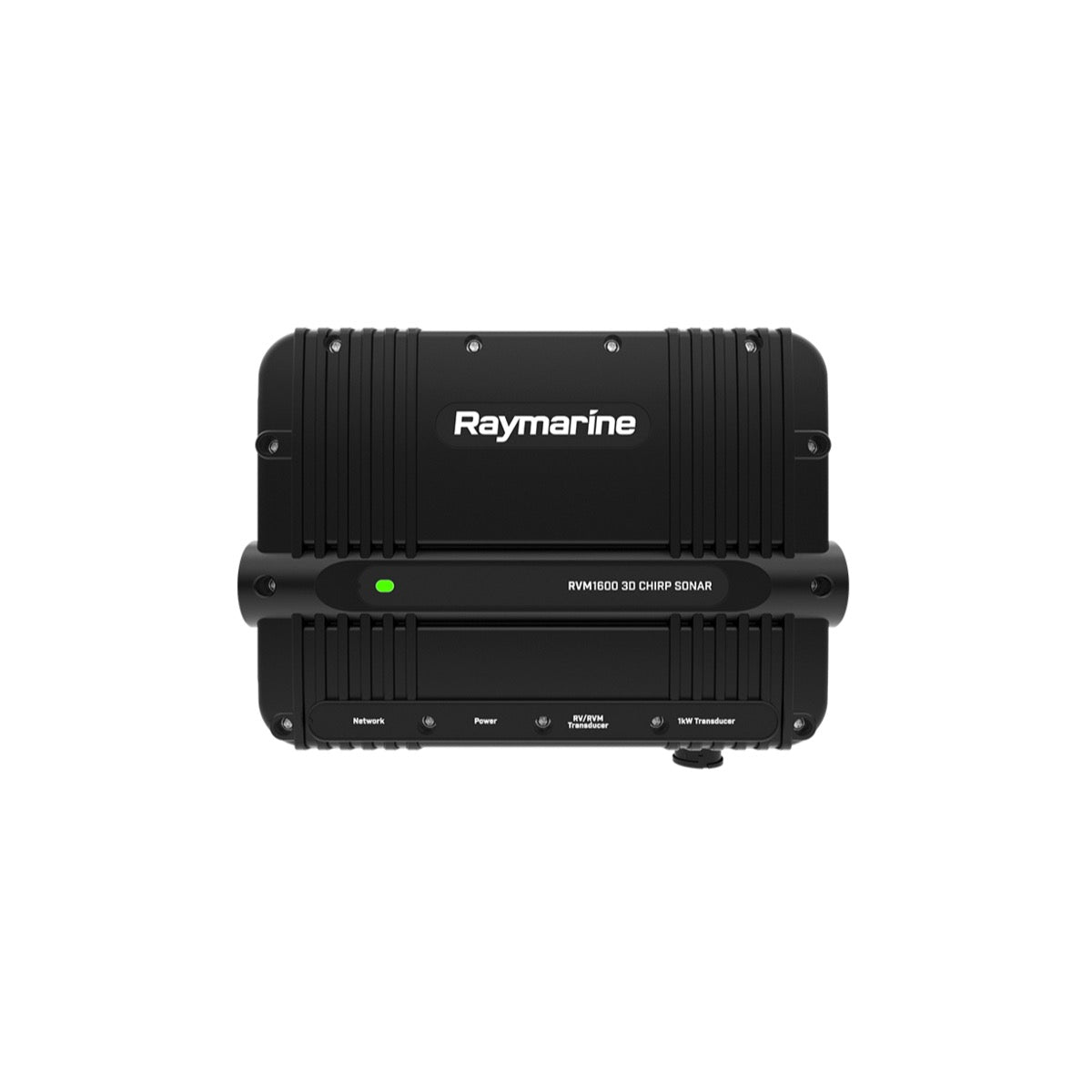

Module sondeur RVM1600 RealVision avec sondeur 1kW, DownVision, SideVision et RealVision 3D

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Ušetříte 9%

Raymarine

E70665

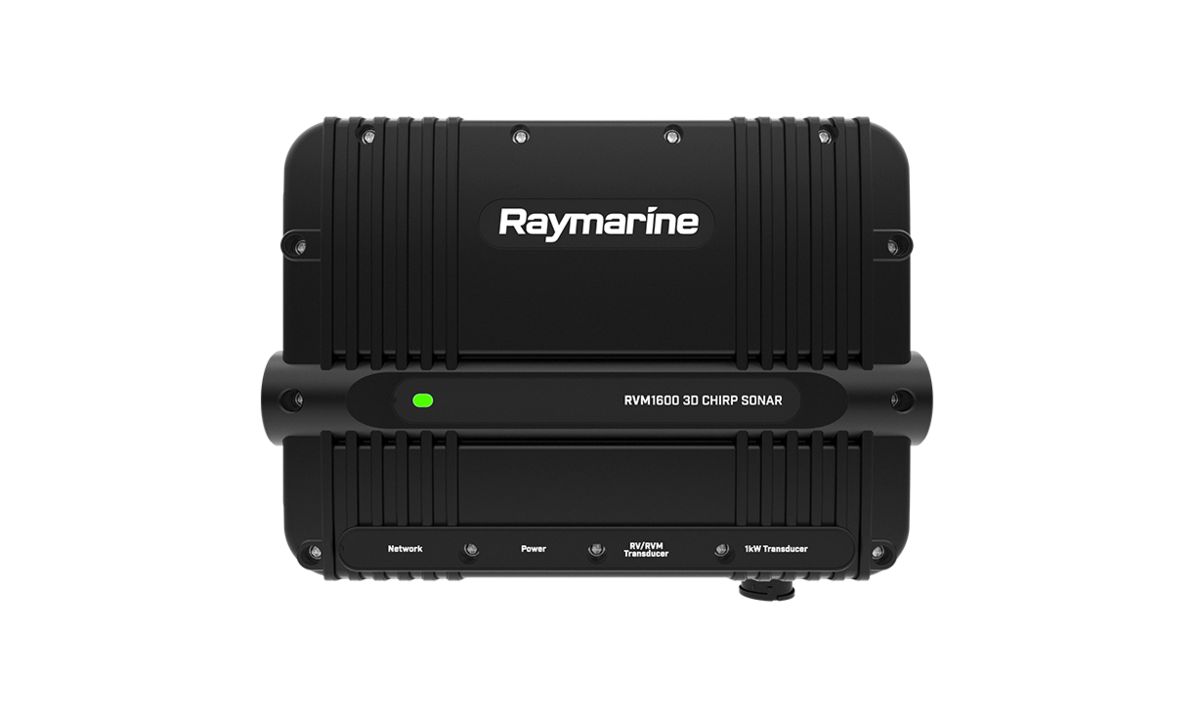

Modul sonaru RVM1600 RealVision s sonarem 1 kW, DownVision, SideVision a RealVision 3D

Le module sondeur Raymarine RVM1600 RealVision est une solution d'extension pour les écrans multifonctions compatibles, offrant un sondeur CHIRP de 1 kW, DownVision, SideVision et RealVision 3D. Conçu pour une détection sous-marine avancée, il nécessite une sonde RealVision 3D dédiée (séries RVM-100 ou RVM-400) et une installation respectant la longueur maximale de câble de 18 mètres. Ce produit est le module seul, sans sonde ni accessoires supplémentaires.

Prix publicBénéficier du tarif pro

1.517,76€

1.517,76€ ~~1.674,00€~~

s DPH Doprava se vypočítá při platbě.

Skladem

Point relais offert dès 150€ en France
Retrait chez Skysat possible

Installation sur mesure

Faites confiance à Skysat pour installer l'équipement à bord

Demander un devis

Installateurs autour de vous

grâce à notre réseau d'installateurs agréés

Trouvez un installateur

Service d'assistance

Optez pour une aide complémentaire à la pose

Caractéristiques techniques

Podporované technologie sonaru	RealVision MAX,DownVision,SideVision,RealVision 3D,CHIRP traditionnel
Provozní napětí	12V DC
Frekvence sonaru	CHIRP traditionnel (40-230 kHz), RealVision (350-420 kHz)
Provozní teplota	-10°C à +55°C
Špičkový výkon	8000.0
Maximální hloubka odečtu	900.0
Materiál sondy	Dépend de la sonde (plastique, bronze, inox)
Typ konektoru sonaru	Raymarine RealVision (propriétaire)
Integrovaný teplotní čidlo	Non (dépend de la sonde)
Kompatibilní zobrazovače	Raymarine Axiom, Axiom+, Axiom Pro, Axiom XL
Kompatibilita sběrnice	RayNet
Drátová síť	RayNet
Certifikace	CE
Úhlové pokrytí paprskem	Dépend de la sonde
Typ rybolovu	mer, lac, rivière, traîne, verticale
Integrovaný snímač rychlosti	Non

Accessoires

Kabel 10 m RayNet F na RayNet F

149,41€

149,41€ ~~156,00€~~

Koupit

T-konektor SeaTalk NG

27,61€

27,61€ ~~30,00€~~

Koupit

Zadní kabel SeaTalk NG 0.4 m

38,70€

38,70€ ~~42,00€~~

Koupit

Kabel páteřní SeaTalk NG 3 m

41,53€

41,53€ ~~48,00€~~

Koupit

Kabel SeaTalk NG 1 metr (odbočka)

41,58€

41,58€ ~~48,00€~~

Koupit

Kabel 1,5 m SeaTalk NG SPUR F / konektor Devicenet NMEA 2000 M

43,54€

43,54€ ~~48,00€~~

Koupit

Description détaillée

Modul sonaru RVM1600 RealVision od společnosti Raymarine je navržen k rozšíření možností detekce pod vodou u kompatibilních navigačních systémů. Obsahuje sonaru CHIRP o výkonu 1 kW spolu s technologiemi zobrazování DownVision, SideVision a RealVision 3D. Tyto funkce umožňují detailní a trojrozměrné zobrazení mořského dna, podvodních struktur a cílů.

Integrace a výkon systému RealVision

RVM1600 představuje klíčovou součást pro majitele jachet a rybáře, kteří požadují komplexní pohled na svůj podvodní prostor. Funguje ve spolupráci s multifunkčními displeji (MFD) a sondami RealVision 3D nebo RealVision Max 3D, například s řadami RVM-100 (zadní panel) a RVM-400 (procházející). Maximální délka kabelu mezi sondou a modulem sonaru nebo multifunkčním displejem nesmí překročit 18 metrů (59 stop) pro zajištění optimálního výkonu a zabránění poškození systému.

Pokročilé technologie sonaru: RealVision 3D, DownVision, SideVision

S modulem RVM1600 uživatelé využívají kombinované výhody několika technologií sonaru. DownVision poskytuje fotografický pohled na struktury a ryby přímo pod lodí, zatímco SideVision rozšiřuje tuto detekci do stran a pokrývá široké oblasti. RealVision 3D slučuje tato data a vytváří trojrozměrnou reprezentaci podmořského terénu, což usnadňuje identifikaci změn hloubky a rybných lokalit. Sonara CHIRP o výkonu 1 kW zajišťuje detekci cílů v podstatně větších hloubkách než sondy s nižším výkonem.

Documentations

Type	Nom
	EN - Technical datasheet - RVM1600 RealVision module with 1kW fishfinder, DownVision, SideVision and RealVision 3D
	EN - Technical Sheet - RVM1600 RealVision Sonar Module with 1kW Sonar, DownVision, SideVision and RealVision 3D
	EN - Technical Drawing - RVM1600 RealVision Module with 1kW Fishfinder, DownVision, SideVision and RealVision 3D
	EN - Technical datasheet - RVM1600 RealVision module with 1kW fishfinder, DownVision, SideVision and RealVision 3D
	EN - Technical drawing - RVM1600 RealVision module with 1kW fishfinder, DownVision, SideVision and RealVision 3D
	EN - Installation manual - RVM1600 RealVision sounder module with 1kW fishfinder, DownVision, SideVision and RealVision 3D
	EN - Installation manual - RVM1600 RealVision sounder module with 1kW sounder, DownVision, SideVision and RealVision 3D
	EN - Mounting template - RVM1600 RealVision module with 1kW fishfinder, DownVision, SideVision and RealVision 3D

Avis de l'expert

Pol CONIN

Digitální manažer

« Raymarine RVM1600 fishfinder module: RealVision 3D 1kW extension for MFD »

Raymarine's RVM1600 RealVision sounder module is designed for demanding recreational boaters and anglers who already own a compatible Raymarine multifunction display (MFD) and want to add a high-performance sounder system. Unlike MFDs with built-in sounders, this external module offers the flexibility of 1 kW CHIRP power, a significant advantage for detecting fish in deeper waters or challenging conditions. It is engineered to work with dedicated RealVision 3D transducers, such as the RVM-100 transom-mount or the through-hull RVM-400 models, providing a complete solution for DownVision, SideVision, and RealVision 3D imaging.

Installing the RVM1600 is relatively straightforward for the module itself, requiring a connection to the vessel's power supply and the Raymarine network (often Ethernet for sounder data) as well as the RealVision transducer. The main challenge lies in selecting and mounting the appropriate transducer for the hull and type of navigation. It is critical to respect the 18-meter maximum cable length between the transducer and the module to maintain signal integrity and system performance. This module is ideal for those looking to significantly enhance their detection capabilities without replacing their entire MFD, adding sounder power and 3D views that may not be available on entry-level models or older display generations.

Durabilité

Facilité d'installation

Rapport performance / prix

Paiement et sécurité

Vos informations de paiement et données sont traitées de manière sécurisée.

Modul sonaru RVM1600 RealVision s sonarem 1 kW, DownVision, SideVision a RealVision 3D

1.517,76€

1.517,76€ ~~1.674,00€~~

Questions fréquentes

Besoin d'aide ? Contactez-nous

What is the Raymarine RVM1600 depth sounder module and what are its main features?

The Raymarine RVM1600 RealVision fishfinder module is a device designed to expand the underwater detection capabilities of your navigation system. It integrates a 1 kW CHIRP fishfinder along with advanced DownVision, SideVision, and RealVision 3D imaging technologies. These features enable highly detailed three-dimensional visualization of the seabed, submerged structures, and underwater targets.

With which Raymarine multifunction displays is the RVM1600 module compatible?

The RVM1600 depth sounder module is compatible with Raymarine multifunction displays (MFD) from the Axiom, Axiom+, Axiom Pro, and Axiom XL series. It functions as an external component that connects to these displays to extend their depth sounder capabilities.

What type of depth sounder is required to use the RVM1600 module and its advanced functions?

To fully utilize the RVM1600 module's features, you must use a compatible RealVision 3D or RealVision Max 3D transducer. These transducers are available in various configurations, such as the RVM-100 series for transom mounting or the RVM-400 series for through-hull installation.

What is the maximum length of the depth sounder cable I can use with the RVM1600 module?

The maximum cable length between the RealVision 3D or RealVision Max 3D transducer and the RVM1600 sounder module or multifunction display must not exceed 18 meters (59 feet). This limit includes the transducer’s captive cable. Exceeding this maximum length may degrade sounder performance and potentially damage the transducer or module.

Can I test the connected transducer with the RVM1600 module out of the water?

No, it is essential to test and use the transducer only when it is submerged in water. Operating the transducer out of water can cause overheating and damage the device.

Is it possible to shorten or extend the depth sounder cable to facilitate installation?

It is strongly advised against cutting the transducer cable. Cutting the cable significantly reduces the performance of the depth sounder, and if the cable is cut, it must be replaced as it cannot be repaired. Furthermore, cutting the transducer cable voids the product warranty and invalidates the European CE certification.

How do RealVision 3D, DownVision, and SideVision technologies work together?

These technologies work together to provide a complete underwater view:

DownVision: Provides a clear photographic view of structures and fish directly beneath your boat. SideVision: Extends detection to the sides of your boat, allowing you to scan large areas and spot distant targets. RealVision 3D: Merges DownVision and SideVision data to create a three-dimensional representation of the underwater terrain. This makes it easier to identify depth changes, bottom contours, and potential fish habitats.

What is the power output of the traditional fishfinder integrated into the RVM1600 module?

The RVM1600 module integrates a CHIRP fishfinder with a power output of 1 kW. This high power enables reliable detection of targets at significant depths, providing better performance compared to lower-power fishfinders.
