BEP Marine

80-511-0006-00

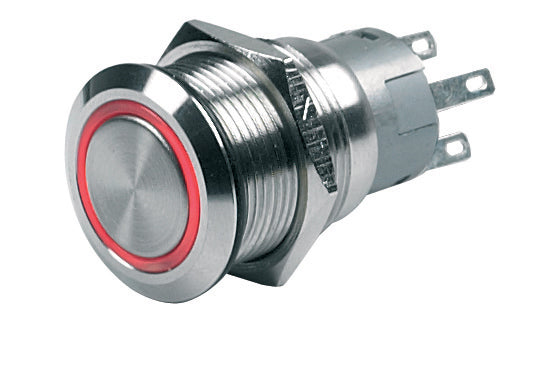

Momentary illuminated pushbutton 24 V red

The 24V red momentary illuminated pushbutton BEP is a rugged switch with IP67 protection, silver-alloy contacts, and an LED light ring. Ideal for marine dashboards, it supports a maximum current of 5A. The product is sold individually.

Retail priceBenefit from the professional rate

$45.52 USD

$45.52 USD ~~$45.97 USD~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Type de produit	Pushbutton switch
Fonction de l'interrupteur	Temporary
Style d'actionneur	Push button
Couleur de l'actionneur	Red
Nominal voltage	24 V
Nombre de prises	0.0
Installation type	Flush-mounted
Voyant lumineux	Yes
Type d'éclairage	Light ring
Couleur de la LED	Red
Mounting type	Flush-mounted
Style de bouton-poussoir	Temporary
Action du commutateur	(On)-Off

Detailed description

The 24V red illuminated momentary push button BEP (part number 80-511-0006-00) is a robust switch designed for demanding marine environments. It provides momentary action (On-Off) with a red LED ring, ideal for controlling functions such as lighting, alarms, or auxiliary systems on dashboards and control panels.

Robust construction and marine reliability

This push button stands out for its durable design using stainless steel components and silver alloy contacts, ensuring excellent corrosion resistance and long service life. With an IP67 protection rating, it is fully protected against dust and resists temporary immersion, making it suitable for installations exposed to spray and moisture. Its maximum switching capacity of 5 amperes at 24V positions it as a reliable solution for control circuits.

Installation and compatibility

The through-panel mounting facilitates integration into existing dashboards. The red LED ring can be wired to indicate system status (power) or serve as simple backlighting. This model is part of the BEP switch range, known for its reliability in the marine sector. It differs from non-illuminated models or 12V versions by its lighting function and voltage suited for 24V installations.

Documentation

Type	Nom
	EN - User & Installation Manual - PUSH BUT SW MOM RING ILLUM 24V RED/DSP
	EN - Mounting Template - PUSH BUT SW MOM RING ILLUM 24V RED/DSP

Expert opinion

Pol CONIN

Digital Manager

« A robust and reliable switch for 24V »

The BEP 80-511-0006-00 pushbutton is a simple yet essential component for any well-designed marine dashboard. Its stainless steel construction and silver-alloy contacts provide durability far superior to consumer-grade switches, which is critical in a corrosive environment. The IP67 rating ensures peace of mind for exposed installations. It is the ideal choice for replacing a faulty switch or adding a reliable control function on a 24V circuit. Its operation is straightforward and direct, with no complex configuration required.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Momentary illuminated pushbutton 24 V red

$45.52 USD

$45.52 USD ~~$45.97 USD~~

Frequently Asked Questions

Need help? Contact us

What type of switch is this?

This is a momentary push-button switch. It remains active as long as the button is held down and returns to its initial position once released.

What is the nominal voltage of this switch?

This switch is designed to operate on 24V electrical systems.

What color is the ring lighting of the switch?

The switch is equipped with a red ring light.

Is the switch illuminated?

Yes, this switch features a luminous ring.

Is this switch a standard 'on/off' type?

No, this is a momentary (On)-Off switch. It activates the function while pressed and deactivates it as soon as it is released.

Which brand is this switch?

This switch is manufactured by BEP, a recognized brand in marine electronics.

For which type of application is this switch designed?

It is designed as an essential component for controlling electrical functions on board ships and other nautical applications.

Is this a push-button switch?

Yes, this is a push-button switch.

Is this switch suitable for a marine environment?

Yes, as a BEP product intended for vessels, it is designed for use in marine environments.

Is it compatible with CZone systems?

No specific information is provided regarding the direct compatibility of this switch with CZone systems.

Are wiring instructions provided with the switch?

BEP switches are usually supplied with basic wiring instructions. However, the specific manual for this switch is not detailed in the provided documents.

What is the warranty duration for this switch?

No specific information on the warranty duration is provided for this switch in the available documentation.

Is the switch designed for professional or recreational use?

As a BEP component for vessels, it is designed for controlling electrical functions on board, making it suitable for a wide range of nautical applications, whether professional or recreational.

What is the main role of the ring light?

The red ring light typically serves as a visual indicator to signal the status of the switch or function it controls (for example, whether the device is powered on or in operation).
