BEP Marine

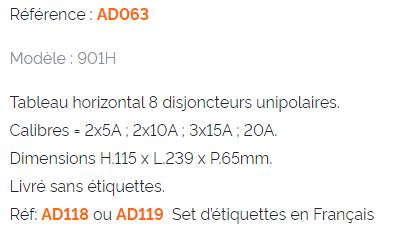

AD063

8-pole 12V horizontal circuit breaker panel

Designed for 12V marine electrical systems, the BEP 8-pole single-pole horizontal circuit breaker panel provides reliable protection for 8 circuits (5A, 10A, 15A, 20A combinations). Made from marine-grade aluminum, it features CARLINGSWITCH or Airpax circuit breakers and meets ABYC standards. The panel is supplied with a set of labels and a busbar set.

Retail priceBenefit from the professional rate

$374.00 USD

$374.00 USD ~~$431.00 USD~~

Shipping calculated at checkout.

Prices exclude import taxes (rate varies by item and state). DAP delivery: import taxes are paid on delivery.

Low stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Product use	Distribution and protection of marine electrical circuits
Display type	None
Connector type	Screw terminals and busbars
Operating voltage range	12V
Mounting type	Flush-mounted
Dimensions (W x H x D)	9.4 x 4.5 x 2.6 in
Accidental Contact Protection	Recesses for switches
Amperage	160.0
Backlight color	Green
Rétroéclairé	Oui
Breaker Brand	CARLINGSWITCH or Airpax
Breaker Configuration	2x5A, 2x10A, 3x15A, 1x20A
Breaker Type	Hydraulic magnetic circuit breaker
Type de disjoncteur	Unipolar
Cutout Dimensions Hxw Mm	95 x 219
Faceplate Mounting Method	Clippable
Included Breakers	8.0
Included Labels	Common function labels set
Couleur du voyant LED	Red
Material finish	Marine-grade powder coating
Max Amperage	160.0
Max Voltage	12V
Nominal voltage	12V
Orientation	Horizontal
Panel Material	Marine-grade powder-coated aluminum
Poles	1.0
Positions	8.0
Product type	Circuit breaker panel
Reset Type	Manual
Compatibilité type de bateau	Sailboats, motorboats

Detailed description

Designed for 12V marine electrical system management, the BEP 8-circuit horizontal single-pole circuit breaker panel provides reliable distribution and circuit protection aboard. Made from marine-grade powder-coated aluminum, it features 8 circuits with a typical combination of 2 × 5A breakers, 2 × 10A breakers, 3 × 15A breakers, and 1 × 20A breaker. This panel is a suitable solution for sailboats and powerboats requiring a compact and robust installation.

Technical specifications and features

This BEP panel is rated for 12V DC and can handle a maximum current of 160A. Panel dimensions are 115mm (height) × 239mm (width) × 65mm (depth), with a 10mm (3/8") cutout inside all outer edges for installation. It is equipped with CARLINGSWITCH or Airpax circuit breakers, known for their quality and reliability. Red LEDs indicate system "on" status, while green LED backlit labels ensure nighttime visibility.

Marine design and integration

The panel features a snap-on contoured front panel for a clean finish and added protection. Recessed breaker switches prevent accidental activation. The panel ships with a set of labels and a busbar kit, simplifying installation and circuit customization. It complies with ABYC standards, ensuring secure and high-performance integration into marine electrical systems. Compared to modular solutions like the same-brand CZone system, this panel offers a more traditional and self-contained approach to circuit protection.

Expert opinion

Pol CONIN

Digital Manager

« Technical analysis: 8-circuit 12V breaker panel for marine systems »

This 8-circuit BEP horizontal breaker panel is a cost-effective solution for managing auxiliary circuits on small to mid-sized pleasure craft where a digital control system like CZone would be overkill. Its horizontal layout allows easy integration into confined spaces typical of helm consoles or compact dashboards. Using CarlingSwitch or Airpax circuit breakers ensures reliable protection against overcurrent, critical for onboard safety. Compliance with ABYC standards reflects the product’s design quality and reliability for marine use. Status LEDs and backlit labels improve ergonomics, particularly useful during night sailing. It is ideal for powering equipment such as lighting, bilge pumps, VHF, or navigation instruments. While robust, note that for installations requiring advanced control, monitoring, or more than eight circuits, a more sophisticated or modular solution may be necessary.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

8-pole 12V horizontal circuit breaker panel

$374.00 USD

$374.00 USD ~~$431.00 USD~~

Frequently Asked Questions

Need help? Contact us

What is the primary function of the 8-circuit breaker panel BEP?

The primary function of this panel is to distribute power and protect circuits aboard your boat. It allows reliable and secure management of up to eight different circuits.

How many electrical circuits can this panel manage?

This panel is designed to manage a total of 8 separate electrical circuits, each protected by a single-pole circuit breaker.

What is the operating voltage of this circuit breaker panel?

This circuit breaker panel is specifically designed to work with 12V DC (direct current) electrical systems.

What are the amperages of the circuit breakers included in the panel?

The panel is supplied with a typical circuit breaker combination:

2 × 5A circuit breakers, 2 × 10A circuit breakers, 3 × 15A circuit breakers, 1 × 20A circuit breaker

What type of circuit breakers are used in this BEP panel?

The panel is equipped with circuit breakers from CARLINGSWITCH or Airpax, known for their quality and reliability in marine applications.

Is the display backlit for night-time use?

Yes, the panel has green LED backlighting for the labels, ensuring excellent visibility of the circuits and their functions even in the dark.

What material is this marine electrical panel made of?

This panel is made of marine-grade powder-coated aluminum, providing robustness and corrosion resistance suitable for marine environments.

Is this display suitable for sailboats and powerboats?

Yes, this panel is a suitable and robust solution for managing the electrical systems on board sailboats and motorboats.

What are the physical dimensions of this circuit breaker panel?

Panel dimensions are as follows:

Height: 115mmWidth: 239mmDepth: 65mm

Is the panel supplied with labels to identify the circuits?

Yes, the panel is supplied with a set of labels, which simplifies customization and clear identification of each circuit.

What is the maximum total amperage this panel can handle?

This circuit breaker panel can handle a total maximum amperage of 160A for all circuits.

How are circuit breakers protected against accidental activation?

The panel has specific recessed areas for circuit breaker switches, designed to prevent accidental activation or deactivation.

Is this panel compliant with specific safety standards?

Yes, this panel meets ABYC standards, ensuring safe and reliable electrical installation aboard your vessel.

Is the panel supplied with busbars?

Yes, the panel is supplied with a busbar set, which simplifies wiring and circuit installation.

What are the required cutout dimensions for installing the display?

For installation, a 10mm (3/8") cut-out inside all outer edges of the panel is required.

How to check if a circuit is activated on this panel?

Each circuit is fitted with a red LED that lights up to indicate the "on" status of the corresponding system, providing a clear visual indication of activation.

Can this panel be used with a 24V electrical system?

No, this panel is specifically designed for 12V DC electrical systems and must not be used with 24V.

Can I replace the circuit breakers with different amp ratings if needed?

The panel is supplied with a standard combination of circuit breakers. While the circuit breakers are from recognized brands such as CARLINGSWITCH or Airpax, any modification or replacement must be performed by a qualified professional to ensure system safety and compliance.
