PAN 20SP DC12V DCSM VER

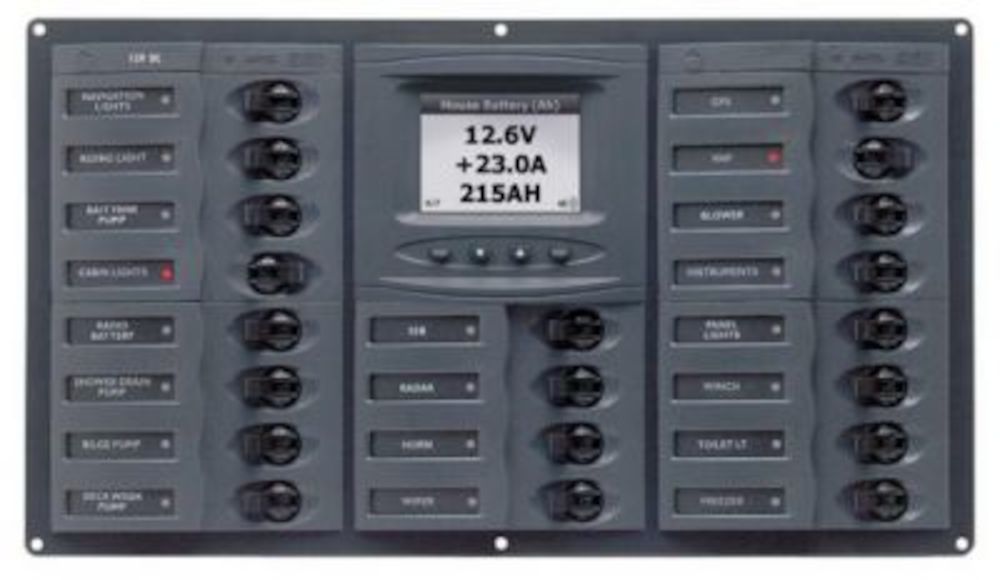

The BEP PAN 20SP DC12V DCSM VER circuit breaker panel is designed to provide reliable and secure electrical distribution for 20 DC loads in marine environments. It also includes digital monitoring capabilities for 12V DC systems, offering clear power management onboard.

This BEP circuit breaker panel is specifically designed to operate at a nominal voltage of 12V DC.

The BEP PAN 20SP DC12V DCSM VER circuit breaker panel can manage a total of 20 separate loads.

The panel is equipped with a series of Airpax magneto-hydraulic circuit breakers. It includes the following amperages:

5 × 5A circuit breakers
6 × 10A circuit breakers
7 × 15A circuit breakers
1 × 20A circuit breaker
1 × 30A circuit breaker

The BEP PAN 20SP DC12V DCSM VER circuit breaker panel is equipped with several buses with the following maximum capacities:

A 160A bus
An 80A bus
Another 160A bus

The panel integrates a 12-way negative bus for connecting the return currents of the various loads.

Yes, the panel construction is specifically designed for the marine environment. It features a powder-coated aluminum base plate, making it resistant to corrosion and saltwater.

The approximate weight of the BEP PAN 20SP DC12V DCSM VER circuit breaker panel is 3 kg (about 6.7 lb).

The circuit labels on this panel are backlit by green LEDs, ensuring excellent visibility even in low-light conditions.

The red LEDs integrated into the panel’s design indicate the "on" status of the corresponding systems or circuits, enabling rapid identification of active equipment.

Yes, the BEP PAN 20SP DC12V DCSM VER integrates digital monitoring capabilities for 12V DC systems, providing enhanced power management and control onboard.

The design of BEP products, including this circuit breaker panel, aims to simplify installation. The aluminum base plate and mounting options are engineered to ease the process in a marine environment.

The panel is equipped with a powder-coated aluminium base plate, designed for secure mounting. It is important to select a suitable location, protected from direct weather, and to ensure a flat and stable mounting surface for secure attachment.

No, this circuit breaker panel is specifically designed and rated for 12V DC systems. It is not compatible with 24V DC installations.

The panel is supplied with a specific configuration of Airpax magneto-hydraulic circuit breakers. While the circuit breakers are generally replaceable, it is critical to ensure that any replacement complies with the panel's technical specifications and your installation's safety requirements.

BEP products are often designed to integrate into a marine electrical ecosystem. This panel, being a central distribution element, can be connected to other compatible BEP components for comprehensive power management.

BEP products, including this circuit breaker panel, come with a 5-year warranty, reflecting the brand’s commitment to the quality and durability of its components.

The BEP PAN 20SP DC12V DCSM VER circuit breaker panel is manufactured in New Zealand.

The circuit breaker panel is supplied as a complete unit with its breakers and integrated busbars. The external wiring required to connect the panel to the battery and various loads is generally not included and must be provided separately by the installer.

This DC circuit breaker panel is designed for reliable electrical distribution in marine environments. It integrates digital monitoring capabilities for 12V DC systems, providing clear and secure power management aboard your boat.

The BEP PAN 20SP DC12V DCSM VER panel is designed to manage a total of 20 separate loads, providing individual protection for each circuit.

This panel is fitted with Airpax magneto-hydraulic circuit breakers. The configuration includes 5 × 5A breakers, 6 × 10A, 7 × 15A, 1 × 20A, and 1 × 30A, for a total of 20 breakers.

Yes, the panel’s construction is specifically designed for the marine environment. It features a powder-coated aluminum base plate, making it resistant to corrosion and saltwater.

The panel features LED-backlit green labels for clear circuit identification. Red LEDs indicate the operating status ("on") of each system.

This BEP panel is equipped with multiple buses with maximum capacities of 160A, 80A and 160A. It also features a 12-way negative bus for efficient distribution.

The BEP PAN 20SP DC12V DCSM VER panel is designed to operate with a nominal voltage of 12V DC.

Yes, the BEP PAN 20SP DC12V DCSM VER distribution panel is equipped with a 12-way negative bus, facilitating the connection and management of return currents for the 20 circuits.

The panel dimensions are 20.07 cm wide, 24.77 cm high, and 6.35 cm deep (7.9" x 9.75" x 2.5").

The panel weighs about 3 kg (6.7 lb), making it relatively easy to handle and install in various onboard locations.

Yes, the suffix "VER" in the product designation indicates that this panel is specifically designed for vertical installation, optimizing space and ergonomics on board.

The panel is designed for simplified installation, with optimized access for wiring. Its layout allows for clear and organized connection of the 20 loads and power buses.

LED-backlit green labels significantly improve circuit visibility, even in low-light conditions. This makes it easier to quickly identify functions during initial installation and subsequent maintenance.

No, the BEP PAN 20SP DC12V DCSM VER is specifically designed and calibrated to operate with 12V DC electrical systems, as indicated in its designation.

Yes, this panel includes digital monitoring capabilities for 12V DC systems, enabling clear power management.

The panel is supplied with a predefined configuration of Airpax magneto-hydraulic circuit breakers. It is essential to adhere to the panel’s bus specifications and ratings when replacing any breakers to maintain system safety and integrity.

BEP offers a 5-year warranty on all its parts, reflecting the brand’s confidence in the quality and durability of its products, including this distribution panel.

Yes, the panel is supplied fully pre-assembled with the 20 Airpax magneto-hydraulic circuit breakers already installed and wired to the busbars, ready for integration into your system.

This BEP product is manufactured in New Zealand, a country recognized for its expertise in designing and producing high-quality marine equipment.
