Raymarine

E70653-00-MED

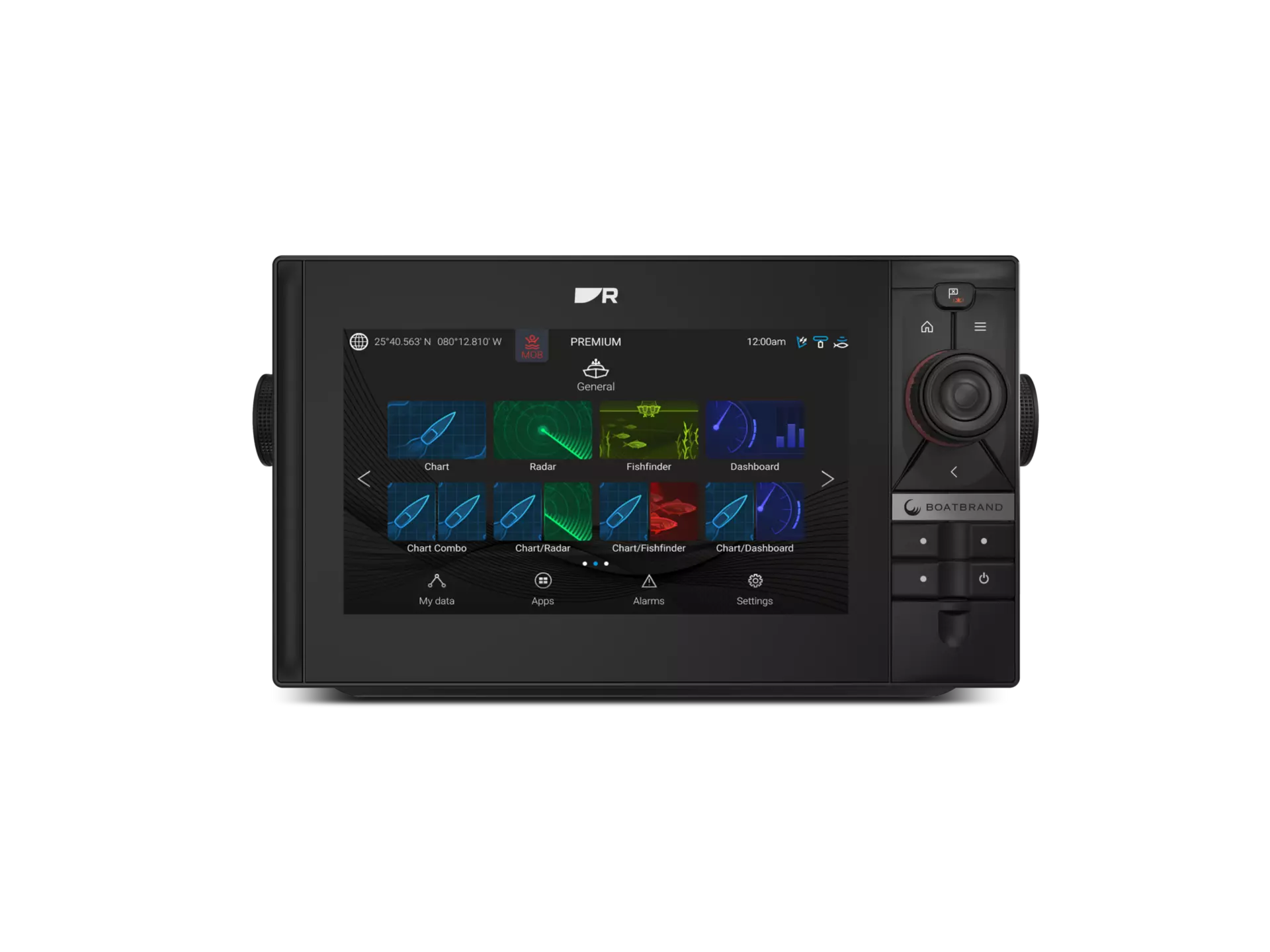

AXIOM2 9 Pro-S, Hybrid Multi-Function 9" Touchscreen, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, No Transducer Included

The Raymarine AXIOM2 9 Pro-S is a 9-inch hybrid multifunction display from the AXIOM2 Pro range, offering intuitive navigation via its touchscreen interface and physical keypad. It integrates a CHIRP fishfinder optimized for CPT-S transducers and includes Wi-Fi for easy connectivity. This model ships with Lighthouse Mediterranean cartography preloaded, without a transducer.

Size: 9 inches

9 inches 12 inches 16 inches

Chartplotter: Mediterranean

Mediterranean Northern Europe Western Europe

Retail priceBenefit from the professional rate

$2,863.90 USD

$2,863.90 USD ~~$3,146.08 USD~~

Shipping calculated at checkout.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

Operating voltage	8-32 V
Operating temperature	-25 to 55 °C
Supported sonar technologies	CHIRP conical
Sonar connector type	25-pin RealVision (requires A80490 adapter for CPT-S)
ActiveTarget compatible	No
Chart compatibility	LightHouse Charts, Navionics+, Navionics Platinum+, C-MAP 4D
IP rating	IPX6, IPX7
Sonar recording	Yes
Bus compatibility	NMEA 2000, NMEA 0183, SeaTalkng, RayNet Ethernet
Trolling motor integration	No
Wired network	RayNet Ethernet, NMEA 2000, NMEA 0183
Integrated GPS antenna	Yes
Wireless connectivity	Wi-Fi, Bluetooth
Mounting type	Flush-mounted, on bracket
Certifications	CE, EN ISO 8846:2017
Screen size	9.0"
Touchscreen	Yes
Software update method	Memory card, Internet
Fishing type	Sea, lake, river, trolling
Release year	2024.0
Available alarms	Depth, anchor, arrival, MOB, collision (AIS), tension, temperature
Man overboard (MOB) support	Yes

Detailed description

Designed for demanding coastal and offshore navigation, Raymarine’s AXIOM2 9 Pro-S hybrid multifunction display combines a chartplotter, CHIRP fishfinder, and extended networking capabilities. This 9-inch unit features a hybrid interface with a high-resolution touchscreen and a physical keypad with a rotary controller, delivering enhanced usability across all maritime conditions.

Integrated CHIRP Fishfinder Capabilities

The Raymarine AXIOM2 9 Pro-S includes a single-channel CHIRP fishfinder optimized for CPT-S transducers. This setup provides precise seabed and fish target detection, comparable to Raymarine’s Element series standalone fishfinders, while being integrated directly into the MFD. Unlike the Axiom2 Pro-RVX models that include RealVision 3D and SideVision technologies, the Pro-S focuses on a proven CHIRP fishfinder solution for applications requiring reliable depth readings and standard echo-sounder performance.

Advanced Connectivity and Charting

Running LightHouse 4 operating system, this multifunction display delivers an intuitive and responsive user experience. The AXIOM2 9 Pro-S features built-in Wi-Fi for software updates and mobile app connectivity. It includes preloaded Lighthouse Mediterranean charting, providing detailed navigation data for the region. Its ability to connect to the YachtSense Link network enables deep integration with compatible onboard systems, offering extended control and monitoring features similar to Garmin’s MFD GPSMAP ecosystem and the ActiveCaptain app for data management and updates.

Documentation

Type	Nom
	FR - Manuel d'utilisation - AXIOM2 9 Pro-S, Écran Hybride tactile multifonctions 9”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	EN - Declaration of Conformity - AXIOM² 9 Pro-S, 9" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, No Transducer
	EN - Declaration of Conformity - AXIOM2 9 Pro-S, 9" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, Without Transducer
	EN - Declaration of Conformity - AXIOM2 9 Pro-S, 9" Hybrid Touchscreen Multifunction Display, CHIRP fishfinder for CPT-S transducer, WiFi, Lighthouse Mediterranean mapping, no transducer
	EN - Notice d'installation - AXIOM2 9 Pro-S, Écran Hybride tactile multifonctions 9”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	FR - Notice d'installation - AXIOM2 9 Pro-S, Écran Hybride tactile multifonctions 9”, sondeur CHIRP pour sonde CPT-S, Wifi, cartographie Lighthouse Méditerranée, sans sonde
	EN - Installation Instructions - AXIOM2 9 Pro-S, 9" Hybrid Touch Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, No Transducer Included
	EN - Installation Manual - AXIOM2 9 Pro-S, 9" Hybrid Touch Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, Transducer Not Included
	EN - Installation Manual - AXIOM2 9 Pro-S, 9" Hybrid Touchscreen Multifunction Display, CHIRP Fishfinder for CPT-S Transducer, WiFi, Lighthouse Mediterranean Charts, Transducer Not Included
	EN - Installation manual - AXIOM2 9 Pro-S, 9" Hybrid touch multifunction display, CHIRP fishfinder for CPT-S transducer, WiFi, Lighthouse Mediterranean mapping, no transducer included
	EN - Mounting template - AXIOM2 9 Pro-S, 9" Hybrid Touch multifunction display, CHIRP fishfinder for CPT-S transducer, WiFi, Lighthouse Mediterranean cartography, no transducer

Expert opinion

Pol CONIN

Digital Manager

« Technical analysis: AXIOM2 9 Pro-S, versatility and reliability at sea »

The Raymarine AXIOM2 9 Pro-S is a strategic choice for owners of mid-sized sailboats or powerboats seeking a reliable navigation solution, combining the best of touchscreen and physical interfaces. The presence of a keypad and rotary controller is a major asset, particularly valued in heavy weather or when wearing gloves makes the use of a purely touchscreen interface difficult. This hybrid design ensures precise control of essential functions, even in challenging conditions.

Regarding fishfinder integration, the Pro-S includes an optimized CHIRP module for CPT-S transducers. This is traditional fishfinder technology, renowned for its clarity and reliability in bottom and fish echo detection. This choice is relevant for recreational boaters who prioritize the simplicity and efficiency of a single-channel fishfinder over the structural imaging capabilities (DownVision, SideVision, RealVision 3D) of Pro-RVX models. Installation requires fitting a compatible CPT-S transducer (not included), which can be through-hull (bronze or plastic, with various hull angles) or transom-mounted, depending on the boat type and intended use.

This model is particularly suited to vessels where space is optimized and a complete system without multiple screens is desired. The preloaded Lighthouse Mediterranean cartography provides an out-of-the-box solution for this geographic area. While powerful, it will not replace a RealVision 3D system for highly precise structure detection or a larger MFD for a primary navigation station on very large yachts. It is a balanced device, offering excellent value for a wide range of recreational applications.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

AXIOM2 9 Pro-S, Hybrid Multi-Function 9" Touchscreen, CHIRP Fishfinder for CPT-S Transducer, Wi-Fi, Lighthouse Mediterranean Chartplotter, No Transducer Included

$2,863.90 USD

$2,863.90 USD ~~$3,146.08 USD~~

Frequently Asked Questions

Need help? Contact us

What is the screen size and interface type on the AXIOM2 9 Pro-S?

The AXIOM2 9 Pro-S features a 9-inch multifunction display. It offers a hybrid interface combining a high-resolution touchscreen with a physical keypad and a rotary controller, enabling versatile use in all maritime conditions.

What type of depth sounder is integrated in the AXIOM2 9 Pro-S and which transducers is it compatible with?

The AXIOM2 9 Pro-S integrates a single-channel CHIRP fishfinder. It is specifically optimized to work with Raymarine CPT-S transducers, ensuring accurate seabed and fishing target detection.

Does the AXIOM2 9 Pro-S multifunction display pack include a transducer?

No, the AXIOM2 9 Pro-S multifunction display is sold without a transducer. You will need to purchase a compatible CPT-S transducer separately to use the depth sounder function.

What are the connectivity capabilities of the AXIOM2 9 Pro-S display?

The AXIOM2 9 Pro-S features built-in Wi-Fi for software updates and mobile app connectivity. It is also compatible with the YachtSense Link network, enabling deep integration with compatible onboard systems.

Which chartplotter mapping is preloaded on the Axiom 2 9 Pro-S?

The Axiom 2 9 Pro-S comes with Lighthouse Mediterranean chartplotter mapping preloaded, providing detailed navigation data for this region.

What is the difference between the AXIOM2 9 Pro-S and the Axiom2 Pro-RVX models?

The main difference lies in the sounder capabilities. The AXIOM2 9 Pro-S features a single-channel CHIRP sounder optimized for CPT-S transducers, focusing on a proven CHIRP sounder solution. The Axiom2 Pro-RVX models integrate, in addition to CHIRP, the RealVision 3D and SideVision technologies.

Which operating system does the AXIOM2 9 Pro-S multifunction display use?

The AXIOM2 9 Pro-S runs on Raymarine's LightHouse 4 operating system, providing an intuitive and responsive user experience.

How to insert a MicroSD memory card into the AXIOM2 9 Pro-S display?

To insert a MicroSD card into an Axiom Pro display, including the AXIOM2 9 Pro-S, locate the memory card slot. Insert the MicroSD card in the indicated direction until it clicks into place to ensure proper data reading.
