STNG inline termination

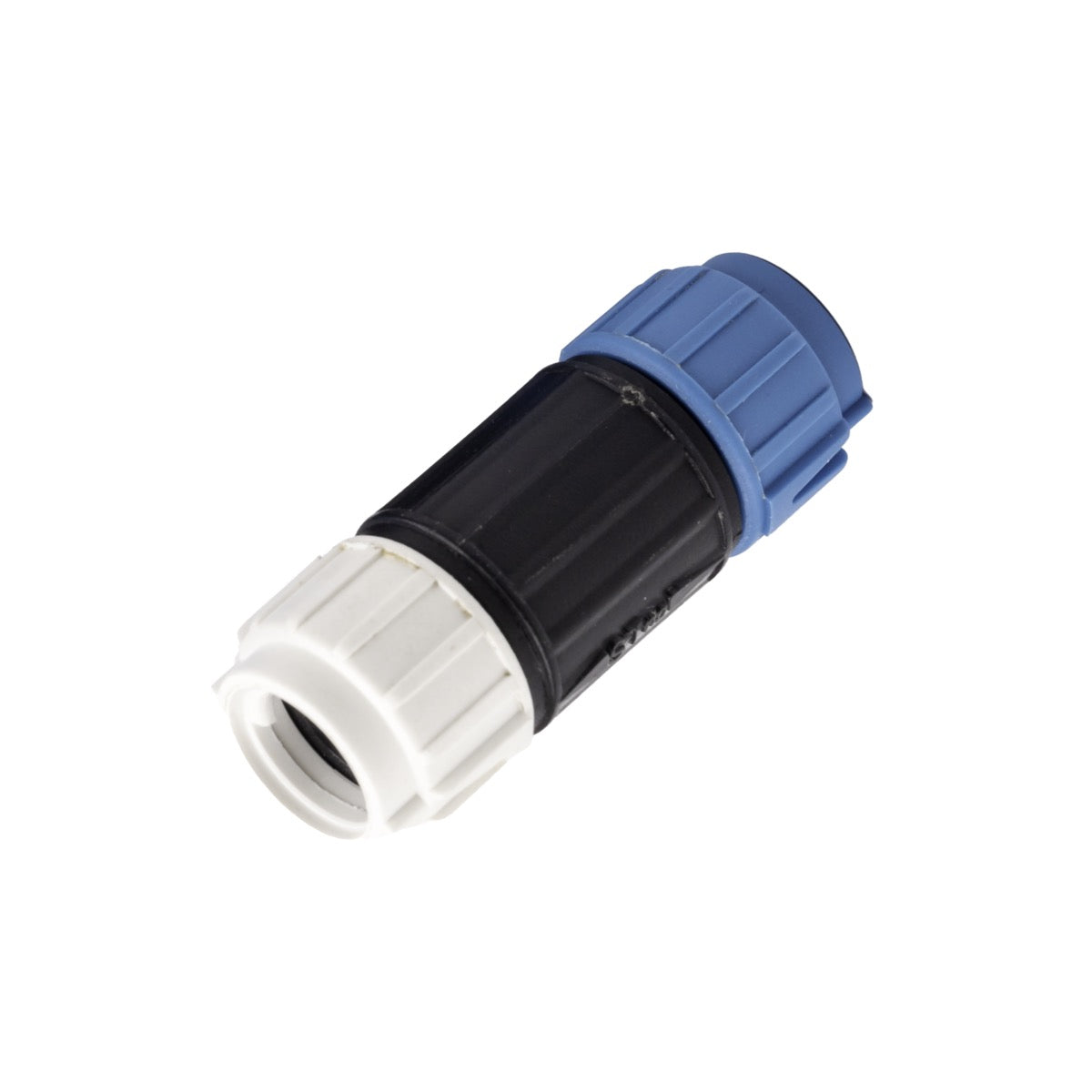

The Raymarine A06074 STNG inline termination is a critical component specifically designed for Raymarine's SeaTalkng network. Its primary function is to ensure data transmission integrity and reliability by eliminating signal reflections on the backbone cable.

Using terminations is crucial for the proper operation of a SeaTalkng network. Like NMEA 2000 architectures, each network requires two terminations, one at each end of the backbone cable. This principle ensures signal reflections are eliminated, enabling stable and error-free communication between connected Raymarine instruments. Without correct termination, the network cannot operate reliably, leading to data loss or equipment malfunctions.

The main function of component A06074 is to terminate the SeaTalkng backbone cable. By attaching to the backbone ends, it acts as a terminating resistor that absorbs electrical signals and prevents their reflection, ensuring clear and stable data transmission.

The A06074 termination is a passive component. It does not require electrical power to operate and functions by altering the electrical characteristics of the network to prevent signal reflections.

By ensuring the proper operation of the SeaTalkng backbone, the A06074 termination indirectly contributes to the overall performance of mixed network architectures, including those interfacing with SeaTalk(1) or NMEA 2000 systems via gateways and adapters. A stable SeaTalkng backbone is the foundation of reliable communication between all connected instruments.

For correct and reliable operation of a SeaTalkng network, two A06074 terminators must be installed. One terminator must be placed at each end of the network’s main backbone cable.

The A06074 terminations must be installed at both ends of the main backbone cable of the SeaTalkng network. This is a critical point for the proper operation of the system, as stated by Raymarine: "you must install terminators."

Installing the A06074 termination is designed to be straightforward. It attaches directly to the ends of the SeaTalkng backbone cable. The system uses small-diameter connectors and color coding to simplify connections and reduce the risk of errors.

No, it is not recommended to operate a SeaTalkng network without properly installed A06074 terminators. Raymarine’s SeaTalkng reference manual clearly states: "Do NOT attempt to operate a system that is not properly terminated," as this would cause data loss or equipment malfunctions.

Yes, for electrical safety reasons, it is strongly recommended to cut the system's power supply before starting installation of any component, including the A06074 termination. The SeaTalkng reference manual includes a general electrical safety warning: "Ensure you have cut the power supply before starting installation of this product."

The A06074 termination is specifically designed for Raymarine's SeaTalkng network. While SeaTalkng is based on NMEA 2000, the A06074 termination is not mechanically compatible with standard NMEA 2000 connectors. Adapter cables are available to connect NMEA 2000 products to the SeaTalkng network, but the termination itself is dedicated to SeaTalkng.

The A06074 termination is designed for the SeaTalkng network. SeaTalk(1) products can be connected to the SeaTalkng network via specific Raymarine products, such as ST70 instruments, which act as a bridge with adapter cables. However, the A06074 termination itself does not connect directly to SeaTalk(1) products; it terminates the SeaTalkng backbone.

The A06074 is compatible with all Raymarine equipment designed to connect to a SeaTalkng network. It is a fundamental component of this type of network and ensures proper communication between all SeaTalkng instruments from the brand.

Termination A06074 is designed with small-diameter connectors specific to the SeaTalkng system. It is not mechanically compatible with standard NMEA 2000 terminations, even though both protocols share similar technological foundations. The color coding of cables and connectors (blue for the backbone, white for the spurs) ensures correct connection within the SeaTalkng system.

Yes, the SeaTalkng protocol is designed to interface with other systems. Raymarine-specific products, such as ST70 instruments, can act as a bridge to connect SeaTalk(1) products via adapter cables. Similarly, adapter cables are available for integration with NMEA 2000 products. The A06074 termination ensures the stability of the SeaTalkng backbone, which is the foundation for these interconnections.

Yes, the cables and connectors of the SeaTalkng system, including the A06074 termination, are color-coded to ensure correct connection. The backbone cable is typically blue, while spur cables are white. This visual distinction aids installation and reduces the risk of errors.

The "backbone" is the main cable of the SeaTalkng system, to which Raymarine products are connected via spur cables. The A06074 termination is directly mounted at the backbone’s ends. It is essential for proper backbone operation by eliminating signal reflections, ensuring reliable communication across the entire network.

The A06074 termination is a key component for the proper operation of the SeaTalkng network. The limitations of the SeaTalkng system are generally related to the total length of the backbone, the number of spurs, and the electrical load of the connected devices, rather than the termination itself, which is a passive element essential for network compliance.

The main difference lies in the mechanical compatibility of the connectors. Although the SeaTalkng protocol is based on NMEA 2000, Raymarine uses specific connectors for its system. The A06074 termination is designed with these proprietary SeaTalkng connectors and is therefore not mechanically compatible with a standard NMEA 2000 termination.

The A06074 termination is a durable, reusable component. It can be disconnected and reconnected if changes are made to the SeaTalkng network configuration, provided it is not damaged.
