GX Touch 70

The Victron Energy GX Touch 70 is a 7-inch color touchscreen specifically designed as a local interface for the Victron Cerbo GX communication hub. It provides instant control and overview of your Victron energy system, displaying key information and allowing on-site parameter adjustments.

The GX Touch 70 features a 7-inch display. Its screen resolution is 1024 x 600 pixels, providing good readability of your system information.

Yes, the GX Touch 70 features a slim, modern, and waterproof design. It has an IP65 protection rating for flush-mount versions, making it perfectly suited for marine environments or other demanding settings where water exposure is possible.

The GX Touch 70 dimensions are 113 mm in height, 176 mm in width, and 13.5 mm in depth. These compact dimensions allow for discreet integration into various dashboards or panels.

The GX Touch 70 user interface is intuitive and uses natural gestures. It allows customization of the main dashboard to display the most relevant information from your system, providing easier control and visualization.

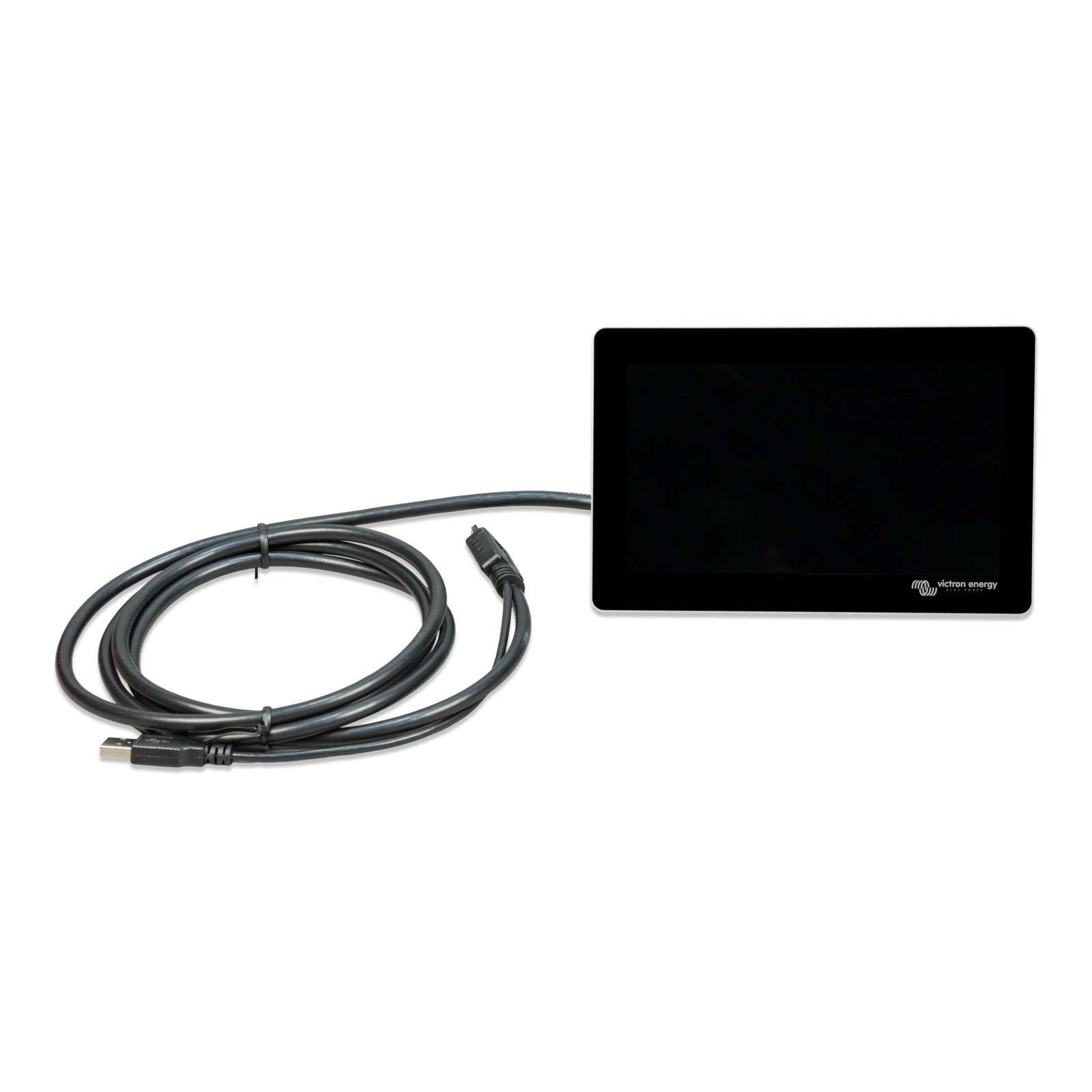

The GX Touch 70 connects to the Cerbo GX via a single 2-meter combined HDMI and USB cable. This cable greatly simplifies wiring and integration by combining video and data/power signals into one.

The GX Touch 70 comes with a combined HDMI and USB cable that is 2 meters long. This cable is designed to connect the display directly to the Cerbo GX.

The GX Touch 70 offers several mounting options:

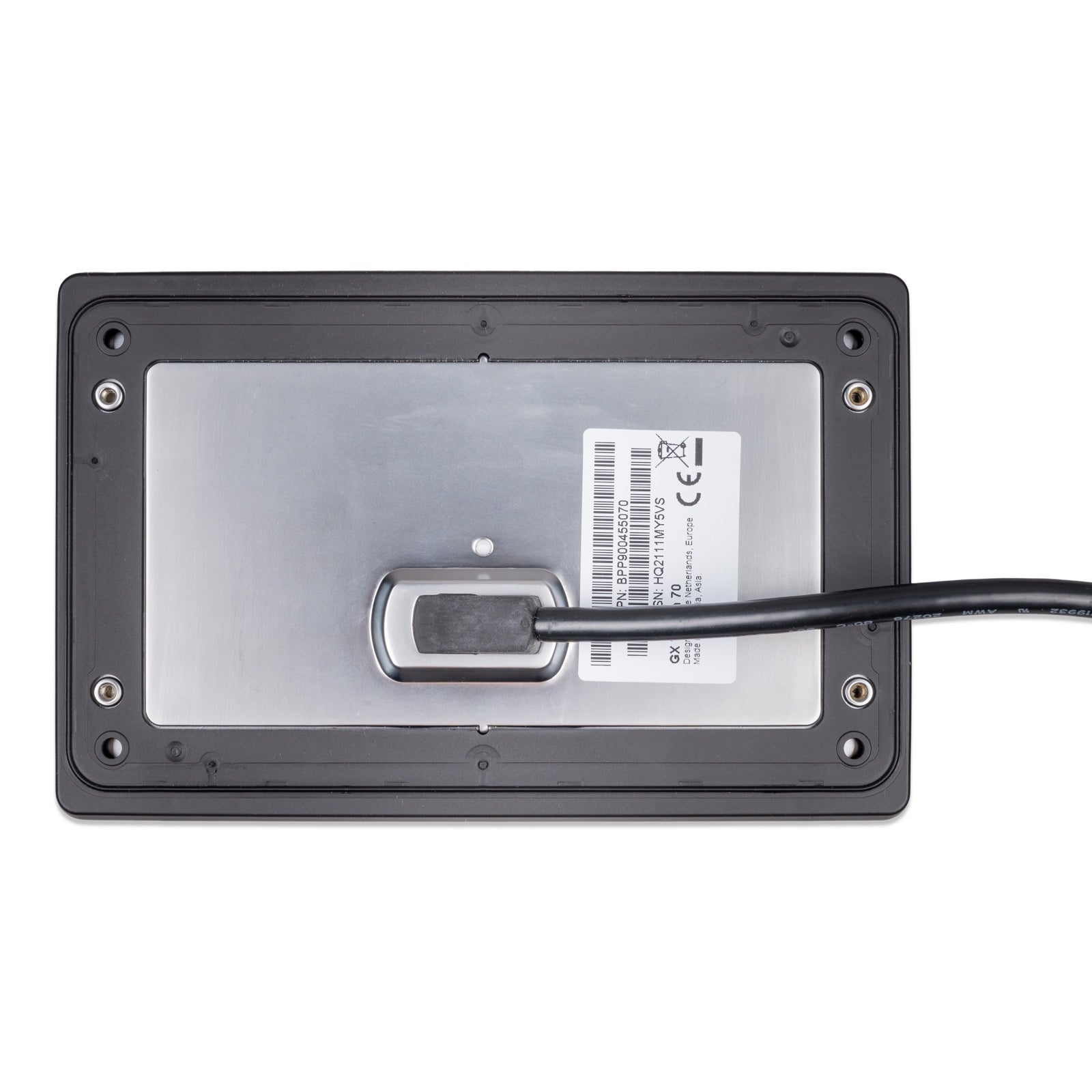

Surface mounting: No precise cutouts required.Flush mounting: Can be done with a rubber gasket or double-sided adhesive for a flush finish.Optional wall adapter: Allows installation without visible cable routing.

No, for a surface-mounted installation, the GX Touch 70 is designed to be installed without requiring precise cutouts, which simplifies installation.

The GX Touch 70 is powered by the Cerbo GX via the USB cable integrated into the combined HDMI and USB cable. No separate power supply is required for the display.

The GX Touch 70 is not a standalone device. It is designed to function as a dedicated display and local interface for the Victron Cerbo GX communication hub. It requires a Cerbo GX to operate and display system data.

Yes, as a complement to the Cerbo GX, the GX Touch 70 can display information from various Victron Energy devices connected to the Cerbo GX. It is particularly useful for viewing data from complex systems integrating MultiPlus inverters, Lynx Smart BMS units, MPPT charge controllers and other VE.Direct devices.

The GX Touch 70 itself is a local interface. However, when connected to the Cerbo GX, it enables access to remote monitoring capabilities via the Victron Remote Management (VRM) portal or the VictronConnect app, using the Wi-Fi access point and Bluetooth integrated into the Cerbo GX.

The GX Touch 70 offers a larger display area compared to the GX Touch 50. This results in improved readability and easier interaction, particularly beneficial in complex systems where many pieces of information must be displayed simultaneously.

Yes, the Cerbo GX manual states that it is possible to disable the GX Touch 70’s touch input. This feature may be useful in certain configurations or environments where touch control is not desired.

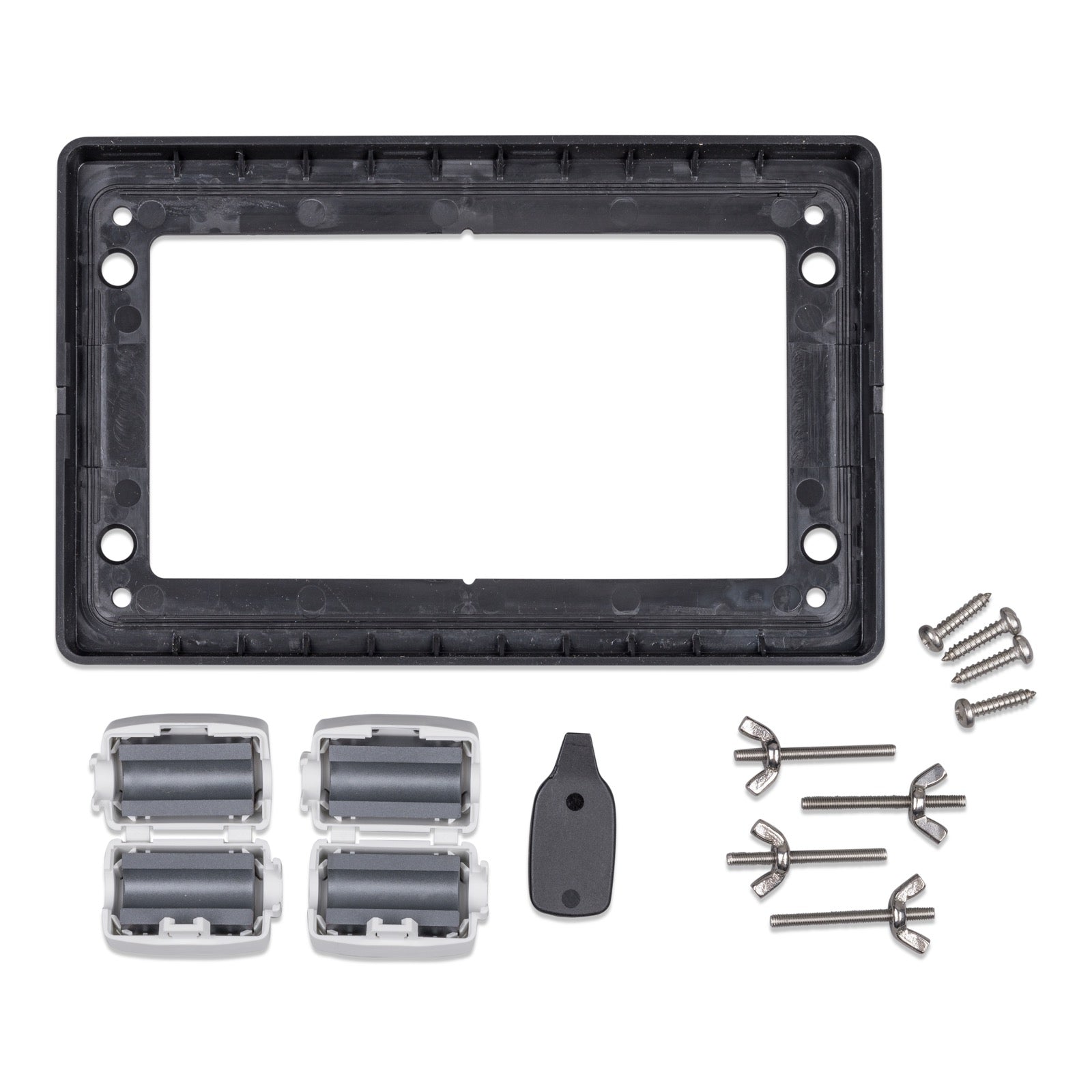

Yes, the GX Touch 70 is usually supplied with basic mounting components, including parts for flush mounting such as a rubber gasket or fasteners. Specific accessories like a wall adapter may be optional and sold separately.

Yes, the GX Touch 70, via its connection to the Cerbo GX, is compatible with Victron Energy battery management systems (BMS), such as the Lynx Smart BMS, as well as other devices connected to the Cerbo GX. It allows you to view and manage BMS data.

Yes, the GX Touch 70, as a local interface for the Cerbo GX, allows not only monitoring system parameters but also accessing configuration menus to adjust settings for Victron-connected devices such as inverters, chargers, and charge controllers.

Yes, the GX Touch 70 comes with the 2-metre combined HDMI and USB cable required for connection and operation with a Cerbo GX. The basic mounting option components are also included.

The Victron Energy GX Touch 70 is covered by Victron Energy’s standard manufacturer warranty. This warranty ensures the product’s quality and compliance with manufacturing and material defects under normal operating conditions.
