Victron Energy

PIN122161000

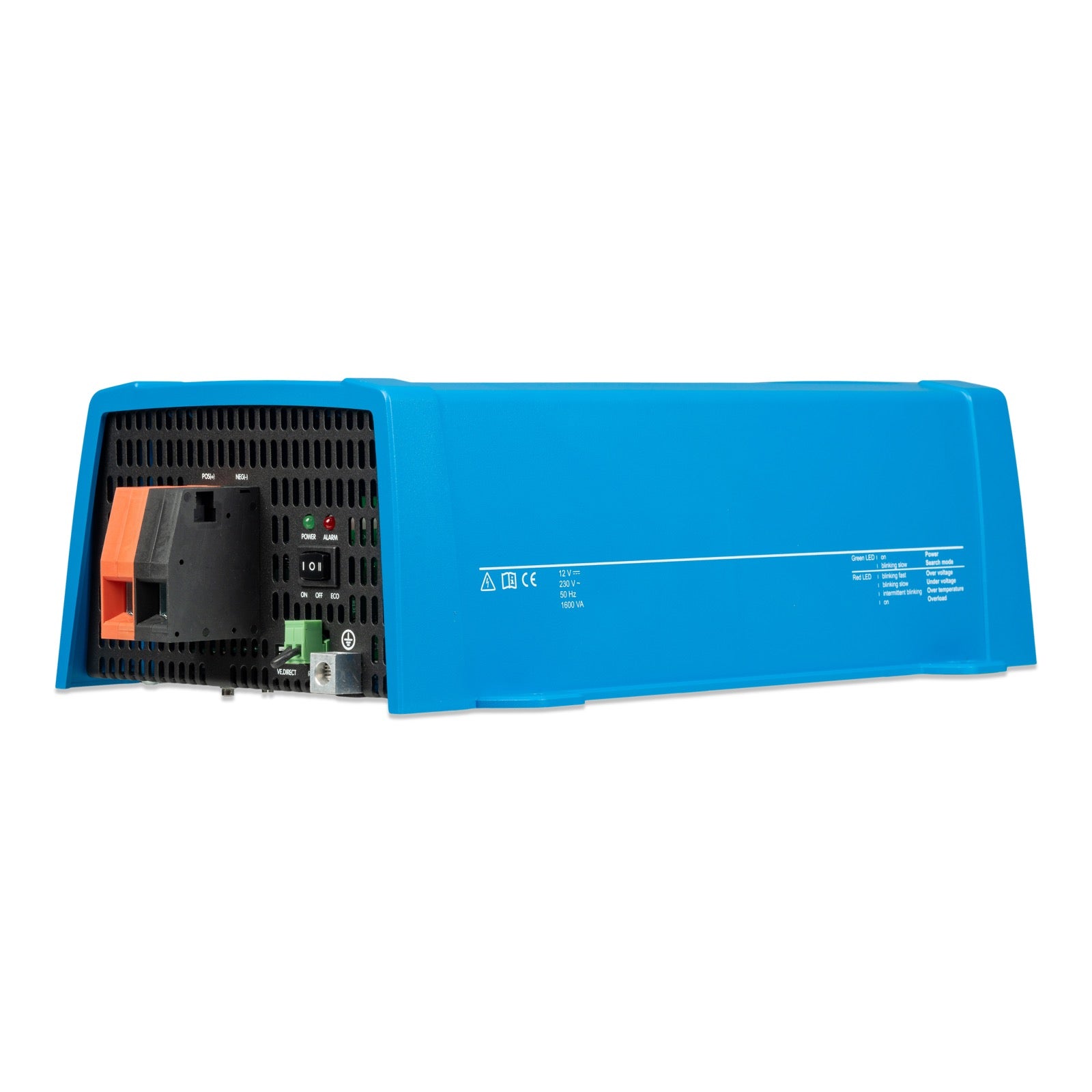

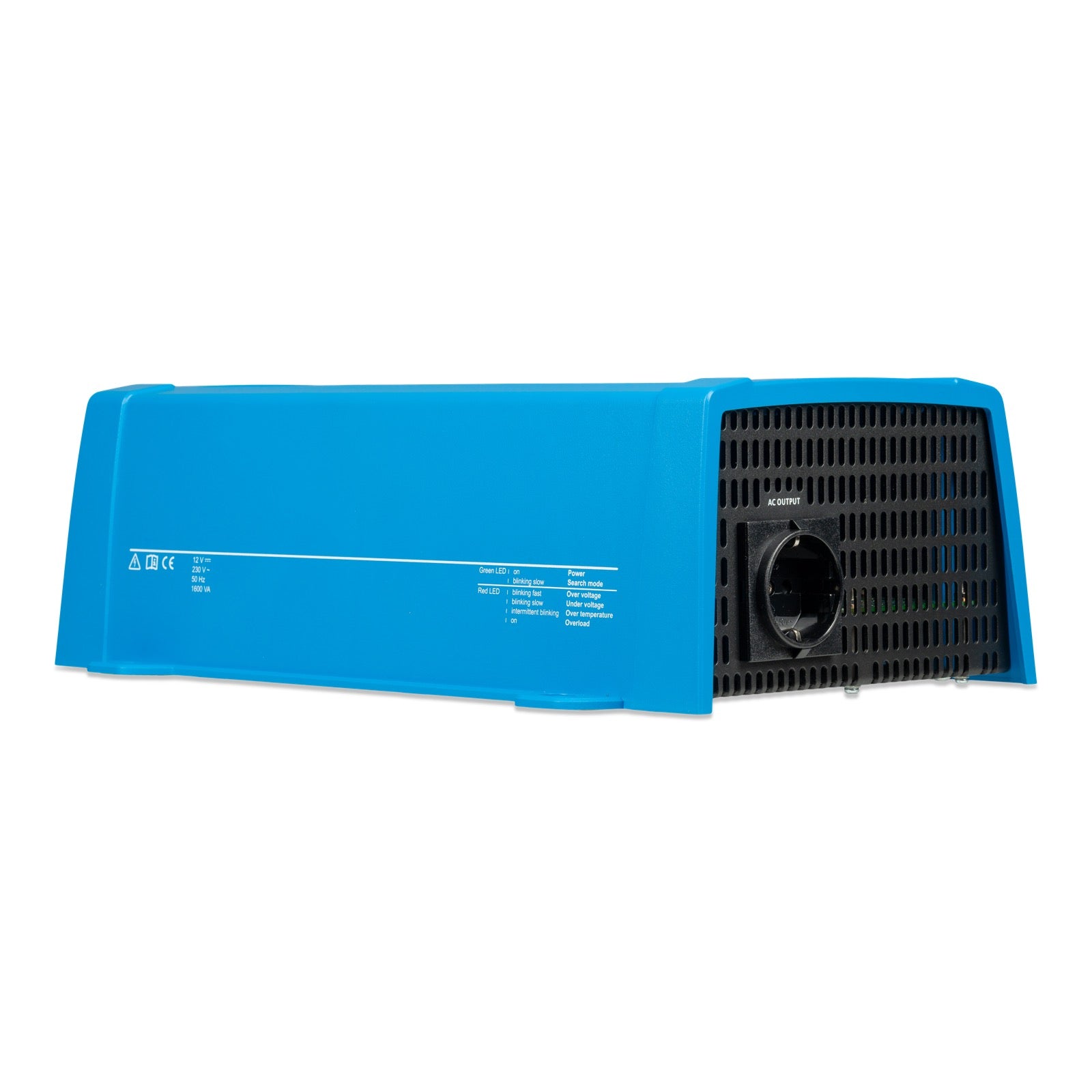

Inverter 12/1600 Smart

The Victron Energy Inverter 12/1600 Smart (PIN122161000) is a pure sine wave inverter 12V/1300W (1450W at 25°C), offering a peak power of 2100W. Part of the VE.Direct "new models" range, it stands out for its proven reliability and "Smart" connectivity via VE.Direct, enabling flexible parameter configuration and remote monitoring (Bluetooth dongle or VE.Direct USB cable not included). This model is supplied with the inverter.

Retail priceBenefit from the professional rate

$564.00 USD

$564.00 USD ~~$670.00 USD~~

Shipping calculated at checkout.

Prices exclude import taxes (rate varies by item and state). DAP delivery: import taxes are paid on delivery.

In stock

Free pickup point from €150 in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

thanks to our network of approved installers

Find an installer

Support service

Opt for additional installation assistance

Technical specifications

IP rating	IP 21
Marine-ready	Oui
Operating temperature range	-40 to +65°C
Cooling method	Fan cooling
Dimensions (W x H x D)	231 x 117 x 395 mm
Mounting type	Mounting on base, vertical wall or horizontal wall
Weight	8.9
Wired network	VE.Direct
Wired input	DC binding post terminals
Wired output	Schuko plug (CEE 7/4), IEC-320, UK (BS 1363), AU/NZ (AS/NZS 3112)
Nominal input voltage	12.0
Input voltage range	9.2 - 17 V
Nominal output voltage	230.0
Inverter waveform	Pure sine wave
Continuous power at 25°C	1450.0
Continuous output power (40°C)	1300.0
Peak power	2100.0
Max efficiency	91.0
Galvanic isolation	Oui
Remote on/off support	Oui
Short-circuit protection	Oui
Overload protection	Oui
Automatic Transfer Switch Recommended	Filax
Dynamic Cut Off Support	Yes
Eco Mode Min Load W	15
Eco Mode Retry Interval S	2.5
Eco Mode Sense Level Adjustable	Yes
Rendement énergétique	91.0
Grounding Wire Cross Section Min Mm2	Half the cross-section of the battery cable (min. 17.5 mm²)
Internal Dc Fuse Rating A	200
Inverter Peak Power Duration S	15
Inverter Topology	Full bridge with toroidal transformer
Low Battery Voltage Cut Off Level V	9.3
Low Battery Voltage Restart Level V	10.9
Output Ac Socket Type	Schuko, IEC-320, UK, AU/NZS
Output Ac Voltage Adjustable Range	210 - 230
Output Frequency Adjustable Range	50 or 60
Max output power	1450.0
Tension de sortie	230.0
Protection contre la surchauffe	Oui
Recommended Dc Cable Cross Section 0 1 5m Mm2	25
Recommended Dc Cable Cross Section 1 5 3m Mm2	35
Recommended Transfer Switch Switchover Time	20
Remote On Off Input Type	Bipolar connector or between battery positive and left contact of the bipolar connector
Time Limited Power Cold Start	1600W/1h
Type de signal	Pure sine wave
Wireless connectivity	Bluetooth

Detailed description

The Victron Energy Inverter 12/1600 Smart (PIN122161000) is a pure sine wave power conversion solution designed for various applications requiring stable AC power from a 12V DC source. This model is part of Victron Energy’s VE.Direct inverter range, known for its reliability and advanced communication features.

Performance and Proven Reliability

With a continuous power output of 1450W at 25°C and 1300W at 40°C, the 12/1600 Smart inverter delivers significant output capacity. Its 2100W peak power for 15 seconds allows it to handle inductive loads or high-starting-current devices such as LED or halogen lamp converters, or electric tools. The full-bridge topology with toroidal transformer ensures long-term reliability, protecting the device against short circuits and overheating caused by overload or high ambient temperature. Compared to lower models in the VE.Direct range like the 12/800 (800W continuous) or 12/1200 (1150W continuous), the 12/1600 is suited for installations requiring higher AC power without the integrated charging functions of a MultiPlus 12/1600/70-16, which combines inverter and charger.

Connectivity and Smart Configuration

The Inverter 12/1600 Smart includes a VE.Direct communication port for flexible configuration and control. It can be connected to a computer via a VE.Direct to USB interface cable, or to Apple and Android smartphones and tablets using a VE.Direct Smart Bluetooth dongle (sold separately). This "Smart" connectivity enables configuration of key parameters such as low-battery alarm and cutoff voltage levels, dynamic cutoff levels (load-dependent), AC output voltage (210–245V or 230VAC ±3%), frequency (50 or 60Hz), and ECO mode. The ECO mode, with a default no-load consumption of 1–3W (adjustable), allows the inverter to enter standby when load drops below a predefined value (minimum 15W), optimizing energy consumption. The device also features remote on/off functionality and LED diagnostics for simplified monitoring.

Installation and Protection

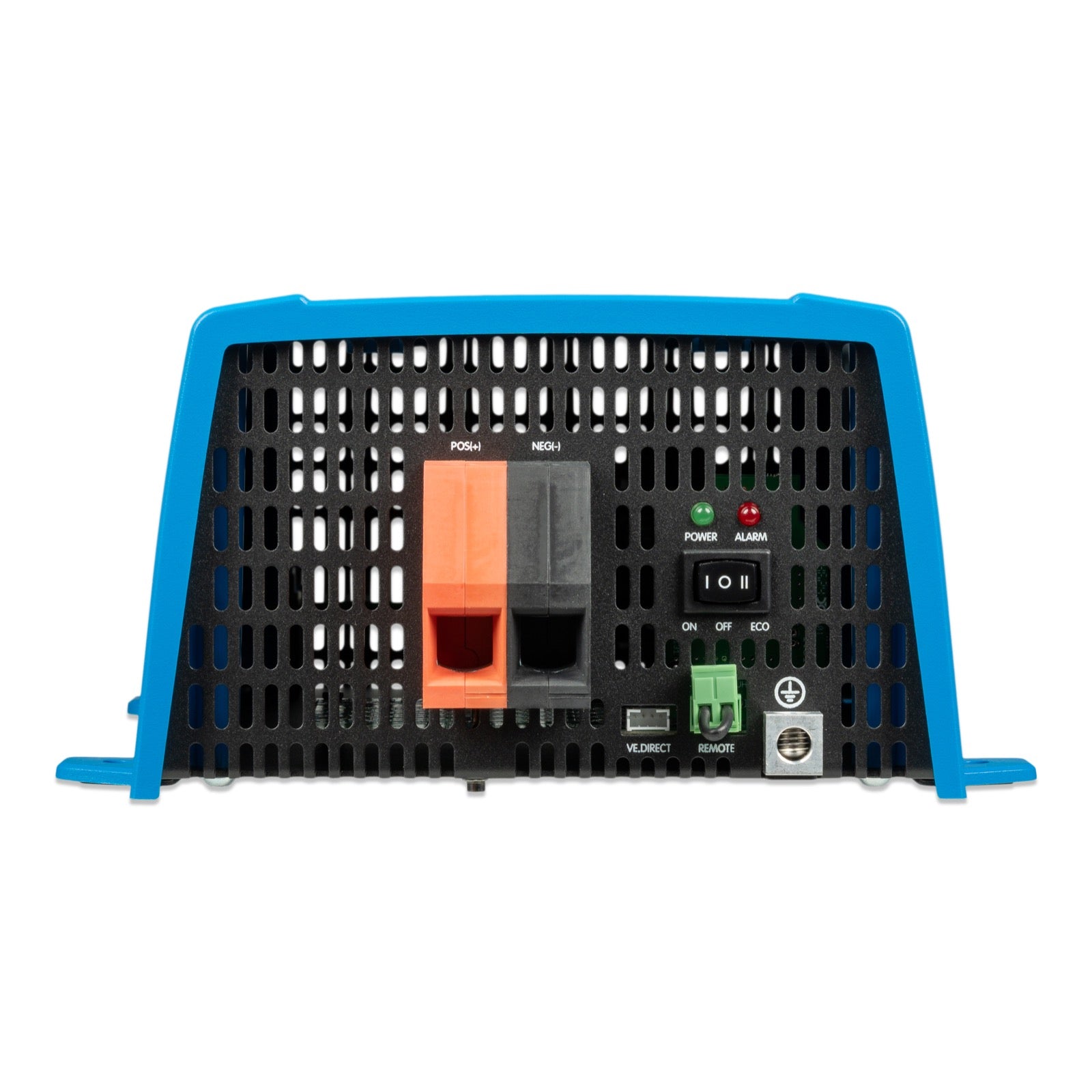

Installation of the Victron Energy Inverter 12/1600 Smart is straightforward with screw terminals for DC connections, requiring no special tools. Its 9.2–17V input voltage range makes it compatible with 12V systems. It features IP21 protection, indicating resistance to solid objects larger than 12.5mm and vertical water droplet ingress. The inverter is protected against output short circuits, overloads, excessively high or low battery voltages, excessive temperatures, and excessive DC ripple. An automatic transfer switch like the Filax is recommended for seamless AC source transfers (under 20 milliseconds), ensuring continuous operation of sensitive electronic equipment.

Documentation

Type	Nom
	EN - Technical Datasheet
	FR - Manuel utilisateur
	EN - Installation Manual

Expert opinion

Pol CONIN

Digital Manager

« Technical analysis of the Victron Energy 12/1600 Smart inverter for embedded systems »

The Victron Energy 12/1600 Smart inverter is a suitable choice for medium-sized marine or mobile installations requiring reliable and configurable AC power. With a continuous output of 1300W (at 40°C) and a peak capacity of 2100W, it can power a wide range of devices, from galley equipment to light power tools, without compromising system stability.

The added value of this model lies in its "Smart" features via the VE.Direct port. The ability to connect it to a smartphone via Bluetooth (optional dongle) greatly simplifies monitoring and configuration of battery voltage thresholds, ECO mode, or output frequency. For an installer, this means faster on-site diagnostics and adjustments without complex equipment. This is a notable advantage over classic inverters that require proprietary interfaces or more cumbersome manual settings.

In terms of installation, the screw terminals for DC connections are practical and do not require specific tools. However, it is crucial to follow the recommended cable cross-sections (up to 50 mm² for battery cables) to ensure optimal performance and avoid losses. While its IP21 rating makes it suitable for protected indoor environments, it should not be exposed directly to weather or intense spray without additional protection. It is ideal for technical compartments, dry holds, or recreational vehicle interiors.

This model positions itself as a high-performance standalone inverter. If your installation also requires battery charging or integrated AC transfer functionality, the Victron MultiPlus range offers more comprehensive all-in-one solutions. The 12/1600 Smart inverter is therefore ideal for complementing an existing charging system or for applications where budget and simplicity of a standalone inverter solution are priorities, while still benefiting from Victron reliability and "Smart" setting flexibility.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Inverter 12/1600 Smart

$564.00 USD

$564.00 USD ~~$670.00 USD~~

Frequently Asked Questions

Need help? Contact us

What is the Victron Energy Inverter 12/1600 Smart inverter?

The Victron Energy Inverter 12/1600 Smart is a power converter that transforms a 12V direct current (DC) voltage, typically from a battery, into a 230V alternating current (AC) voltage with a pure sine wave. It is designed to provide stable and reliable power for various electrical devices, particularly in marine and mobile applications.

What is ECO mode and how does it work on this inverter?

ECO mode allows the inverter to enter standby when the connected load drops below a predefined value (the default minimum load is 15W). Once in standby, the inverter briefly activates (by default every 2.5 seconds, adjustable) to check if the load has increased. If the load exceeds a predefined level, the inverter remains on, which helps save battery energy.

What are the built-in protections in the Victron Energy 12/1600 Smart inverter?

The inverter includes multiple protections to ensure reliability and the safety of the installation:

Short-circuit protection on the outputOverload protectionProtection against excessively high battery voltageProtection against excessively low battery voltageProtection against excessively high internal temperatureProtection against excessive DC ripple

What type of AC output signal does this inverter produce?

The Victron Energy Inverter 12/1600 Smart outputs a pure sine wave AC signal. This signal type is ideal for powering all sensitive electronic devices, ensuring stable operation without interference.

What is the operating temperature range of the 12/1600 Smart inverter?

This inverter can operate in a temperature range from -40°C to +65°C. It is equipped with a fan-assisted cooling system. Note that above 40°C, continuous output power is reduced by 1.25% per degree Celsius.

What are the advantages of the full-bridge topology with toroidal transformer used in this inverter?

The full-bridge topology with toroidal transformer is recognized for its proven reliability over many years. It ensures robust inverter performance, effectively protecting against short circuits and overheating, whether caused by overload or high ambient temperature.

Is the inverter resistant to moisture or water spray?

The inverter has an IP21 protection rating. This means it is protected against solid objects larger than 12.5 mm and against vertically falling water droplets. The maximum allowed ambient humidity is 95% without condensation. Direct contact with water must be avoided, and exposure to rain or direct moisture is not permitted.

Where is the best place to install the Victron Energy 12/1600 Smart inverter?

For optimal operation, the inverter must be installed on a flat surface. It is recommended to mount it at the base or vertically on a wall with the fan at the bottom. It is crucial to leave at least 10 centimeters of free space around the inverter to ensure adequate ventilation and prevent airflow obstruction. Avoid direct sunlight exposure and humid or dusty environments.

Should the inverter chassis be grounded?

Yes, the Victron Energy Inverter 12/1600 Smart is a Class I safety product and its chassis must be grounded. A grounding point is located outside the product. The grounding conductor, connecting the chassis ground terminal to ground, must have at least half the cross-section of the conductors used for the battery connection.

How can I turn the inverter on or off remotely?

A remote on/off switch can be connected to the inverter’s bipolar connector. Alternatively, the left contact of this connector can be wired to the battery’s positive terminal, which is useful for automotive applications by connecting it to the ignition switch. The inverter’s front switch must also be set to "On" or "ECO" for the inverter to start.

Does the inverter have different AC output socket options?

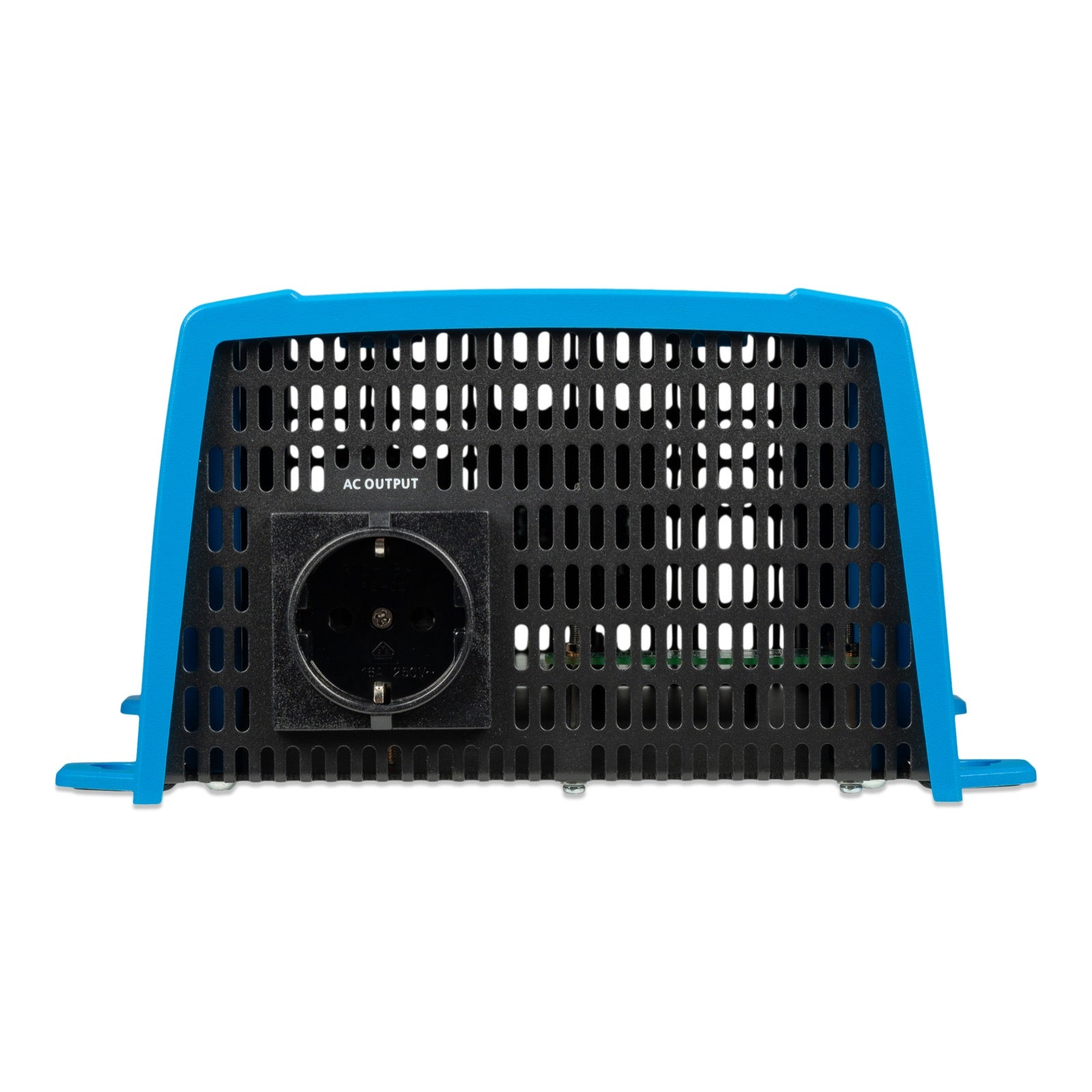

Yes, the Victron Energy Inverter 12/1600 Smart is available with different AC output socket options to match various regional standards. Options include Schuko (CEE 7/4), UK (BS 1363), AU/NZ (AS/NZS 3112), or IEC-320 (a male plug is included for the latter).

Which battery types are compatible with this inverter?

This inverter is designed to operate with DC battery systems providing a 12V continuous voltage (DC). It is compatible with most 12V battery types, including lead-acid batteries (gel, AGM, flooded) and lithium batteries, provided they can supply the required current.

Can I monitor and configure the inverter with my smartphone or computer?

Yes, the inverter includes a VE.Direct communication port. You can connect it to a computer using a VE.Direct to USB interface cable (sold separately). For smartphones and tablets (Apple and Android), as well as MacBooks, a VE.Direct Bluetooth Smart dongle (sold separately) is required for wireless connectivity.

Is it possible to connect the inverter to another AC source, such as a generator or a wall outlet?

No, it is imperative never to connect the AC output of the inverter to another AC source, whether a domestic wall outlet or a generator. This could severely damage the inverter. To transfer the load to another AC source, it is recommended to use an automatic transfer switch such as the Victron Energy Filax, which ensures fast and secure switching.

Which inverter parameters can be configured by the user?

The inverter offers configuration flexibility via its VE.Direct port. You can adjust several parameters, including:

Battery low alarm and reset levelsBattery low cut-off and restart levels, including dynamic cut-off (load-dependent)AC output voltage (between 210 and 245V)Output frequency (50 Hz or 60 Hz)ECO mode activation/deactivation and its detection level
