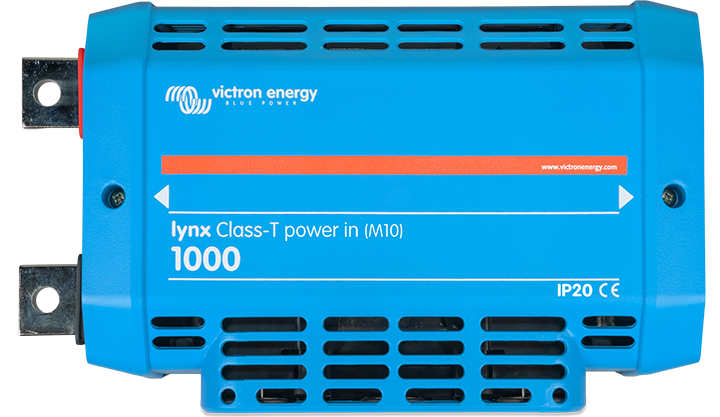

Lynx Class-T Power In (M10)

The Victron Energy Lynx Class-T Power In (M10) is a distribution module designed to integrate into a Victron Lynx modular busbar system. Its primary role is to provide a robust location for a Class-T fuse, thereby protecting high-power battery systems and connected equipment.

The primary role of the Lynx Class-T Power In (M10) is to provide essential protection against overcurrents and short circuits in high-power battery systems. It serves as a fuse holder for Class-T fuses, which are known for their ability to interrupt very high short-circuit currents, thereby protecting inverters, chargers, and other critical equipment.

No, the Class-T fuse is not included with the Victron Energy Lynx Class-T Power In (M10) module. It must be purchased separately and selected based on your system's specific current requirements.

The Lynx Class-T Power In (M10) module is suitable for use in battery systems with nominal voltages of 12V, 24V or 48V. It is designed to manage high-power applications.

No, the Lynx Class-T Power In (M10) is not a Battery Management System (BMS). It is a passive fuse-holder module that provides overcurrent protection. It does not include "smart" features such as a contactor, battery monitor, pre-charge, or communication, which are present in a Lynx Smart BMS.

This module is specifically designed for use with Class-T fuses. These fuses are selected for their ability to handle very high currents and provide fast, effective protection against short circuits.

No, the Lynx Class-T Power In (M10) module is a passive component and does not include built-in monitoring features or communication capabilities (Bluetooth, VE.Can, etc.). Its function is solely to protect the circuit via a Class-T fuse.

The busbar of the Lynx Class-T Power In (M10) module is made of tinned copper. This material provides excellent electrical conductivity and good corrosion resistance, which is essential in marine or humid environments.

The Lynx Class-T Power In (M10) module is designed to operate across a wide temperature range, typically from -40 °C to +60 °C. This robustness allows its use in various environments, including marine and mobile applications.

The Lynx Class-T Power In (M10) integrates modularly into the Victron Energy Lynx distribution system. It connects to other Lynx modules (such as the Lynx Distributor or Lynx Smart BMS) via robust busbars with M10 connections, enabling clean and secure installation.

The power cable connections on the Lynx Class-T Power In (M10) module are M10 type. These robust terminals are designed for large cross-section cables, ensuring a reliable connection and high current capacity.

The recommended torque for M10 connections on the Lynx Class-T Power In (M10) module is 33 Nm. It is critical to adhere to this specification to ensure a safe electrical connection and avoid issues such as resistance or overheating.

For correct and secure installation of the Lynx Class-T Power In (M10) module, it is recommended to use a torque wrench. This ensures that the M10 connections are tightened to the specified torque of 33 Nm, providing a reliable and durable connection.

The Lynx Class-T Power In (M10) module should preferably be installed as close as possible to the battery, on the positive terminal, before any other major equipment (such as an inverter/charger or a battery distributor). This ensures maximum overcurrent protection right at the energy source.

Yes, for safety reasons, it is imperative to completely disconnect the battery from your system before installing or maintaining the Lynx Class-T Power In (M10) module or any other high-power electrical component. This prevents the risk of short circuits and electric shock.

The Lynx Class-T Power In (M10) is designed to be compatible with all modules in the Victron Lynx modular distribution system, including the Lynx Distributor, Lynx Power In, Lynx Shunt VE.Can, and Lynx Smart BMS. It integrates seamlessly via busbars.

Yes, although it integrates perfectly into the Victron ecosystem, the Lynx Class-T Power In (M10) is a generic fuse block. It is compatible with any high-power battery system (lead-acid, lithium from other brands, etc.) requiring Class-T fuse protection, provided voltage and current ratings are respected.

Yes, the Lynx Class-T Power In (M10) is versatile and can be used in 12V, 24V or 48V battery systems. Its robust design and M10 connections make it suitable for a wide range of power applications in these voltage configurations.

Yes, it is possible to connect multiple Lynx Class-T Power In (M10) modules in parallel within the Lynx distribution system. This allows increasing the total protection capacity or creating separate circuit branches, each protected by its own Class-T fuse.

The Victron Energy Lynx Class-T Power In (M10) module is specifically designed to integrate a Class-T fuse.

It is important to note that the Class-T fuse is not included with the module and must be purchased separately. This module serves as a robust fuse holder for high-power battery system protection, suitable for 12V, 24V, or 48V applications, and integrates into the Victron Energy Lynx modular distribution system via its M10 busbar connections.
