ZC2 landscape remote control
ZC2 landscape remote control
In stock
Technical specifications
Technical specifications
|
Couleur du rétroéclairage Couleur du rétroéclairage de l'écran.
|
Blanc |
|
Longueur de câble Longueur du câble fourni.
|
1,8 m |
|
Profil montage tableau de bord Épaisseur du profil lors du montage sur tableau de bord
|
8 mm |
|
Dimensions Dimensions du produit
|
60 mm (L) x 150 mm (H) x 44,5 mm (P) |
|
Orientation de montage Orientation de montage possible pour le produit
|
Paysage |
|
Type de montage Méthode d'installation ou de fixation du produit.
|
Tableau de bord ou encastré |
|
Réseau load Charge réseau NMEA 2000
|
2 LEN |
|
Plage de température de fonctionnement Plage de température ambiante dans laquelle l'appareil fonctionne de manière fiable.
|
-15°C to +55°C |
|
Tonalité clavier Niveau sonore du clavier
|
80 dBA |
|
Indice d'étanchéité Niveau de protection du produit contre l'intrusion d'eau.
|
IPX6 |
|
Poids Poids du vérin hydraulique.
|
0,36 kg |
|
Réseau filaire Protocoles et bus de communication filaires supportés.
|
NMEA 2000 |
Detailed description
Detailed description

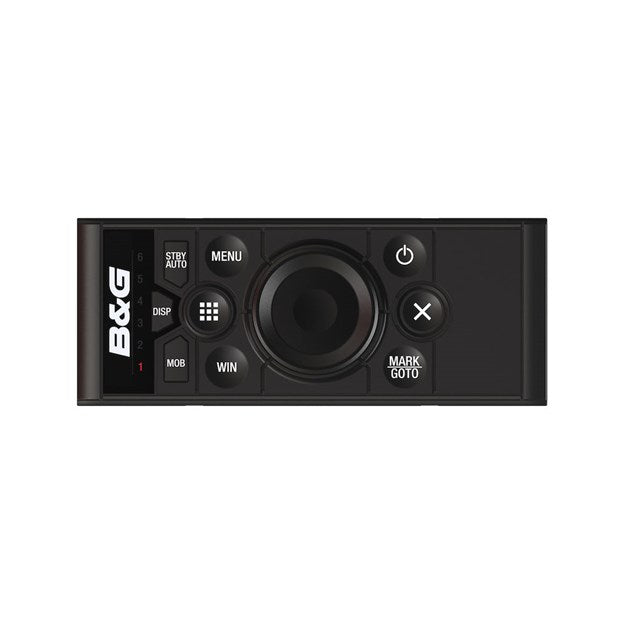

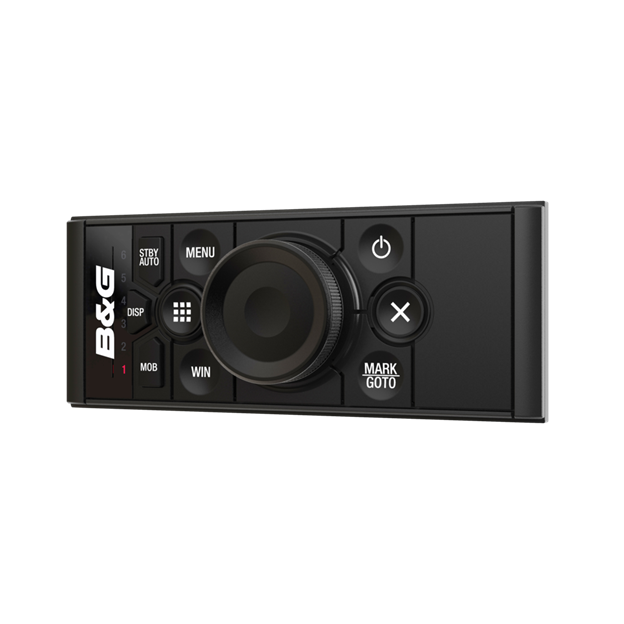

B&G ZC2 Landscape Remote Control : Total control of your navigation system
Take control of your B&G navigation system with unparalleled precision and ease using the ZC2 landscape remote control . Designed to integrate seamlessly with your helm station or chart table, this wired control unit gives you complete access to your multifunction displays, allowing you to manage up to multiple screens from a single, intuitive control point.
Intuitive control and marine ergonomics
The ZC2 remote control features a high-quality keypad and rotary control wheel, providing essential tactile feedback in rough seas where touchscreens can be difficult to use. Dedicated keys allow instant access to key functions: activate or deactivate the autopilot with the STBY/AUTO key, set a waypoint to the boat's position with MARK/GOTO , or trigger a Man Overboard (MOB) alarm with a single press. Indicator lights clearly show which screen is currently being controlled, ensuring smooth and error-free multi-screen management.
Simplified integration and installation
Integrating seamlessly into your NMEA 2000 network, the ZC2 remote control is incredibly easy to install. Powered directly from the network via its Micro-C connector, it requires no complex power wiring. Its low power consumption (< 90 mA) preserves your battery life, a major advantage for long voyages. With its IPX6 waterproof rating, it is designed to withstand the most demanding marine environments when properly integrated into your dashboard.
