TR-120 M+F NMEA 2000 terminálkészlet

The TR-120 M+F NMEA 2000 terminator kit is an essential component for ensuring the integrity and stability of your NMEA 2000 network. It allows proper termination of the data bus, which is crucial to prevent signal reflections. These reflections can cause communication errors or complete failures of your boat's navigation and communication network.

Using terminators is mandatory to maintain optimal performance of an NMEA 2000 system. Without terminators, or with incorrect termination, electrical signals can reflect at the cable ends (reflections), disrupting communication between devices. This can cause malfunctions, incorrect readings, or data loss on your network.

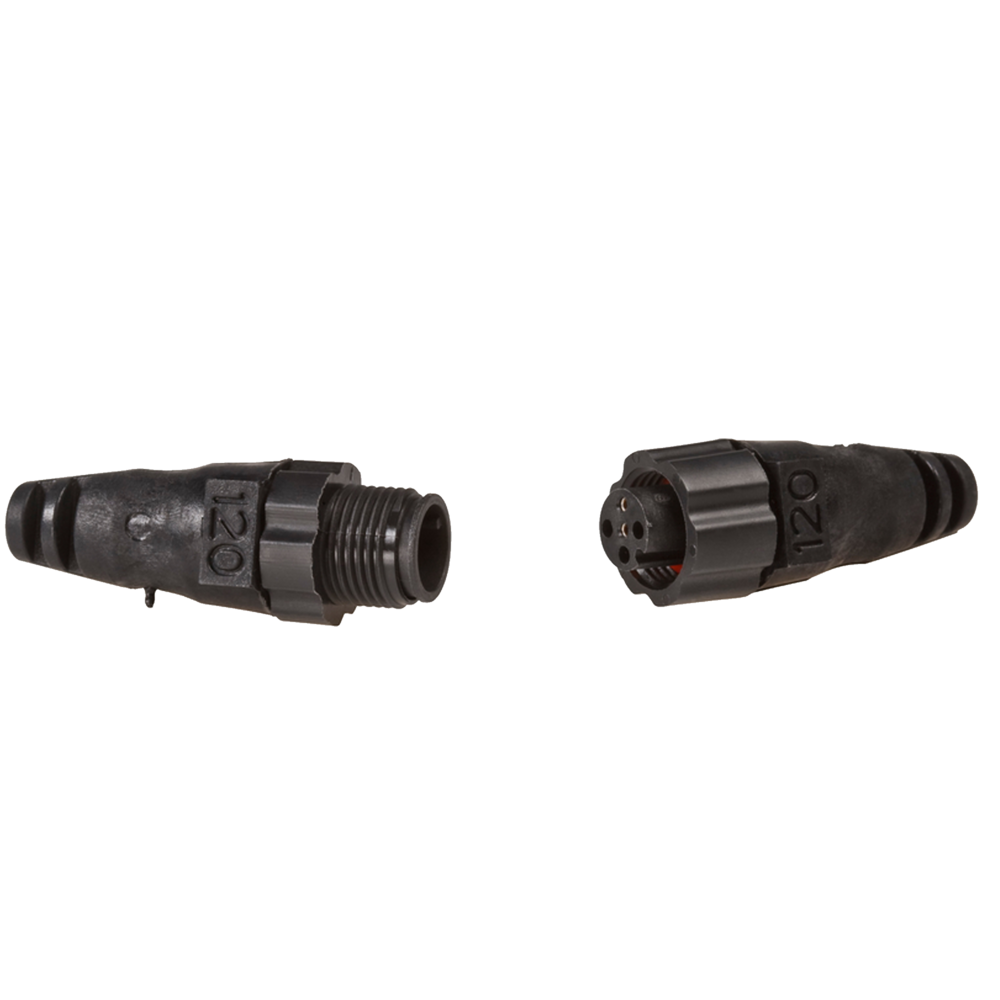

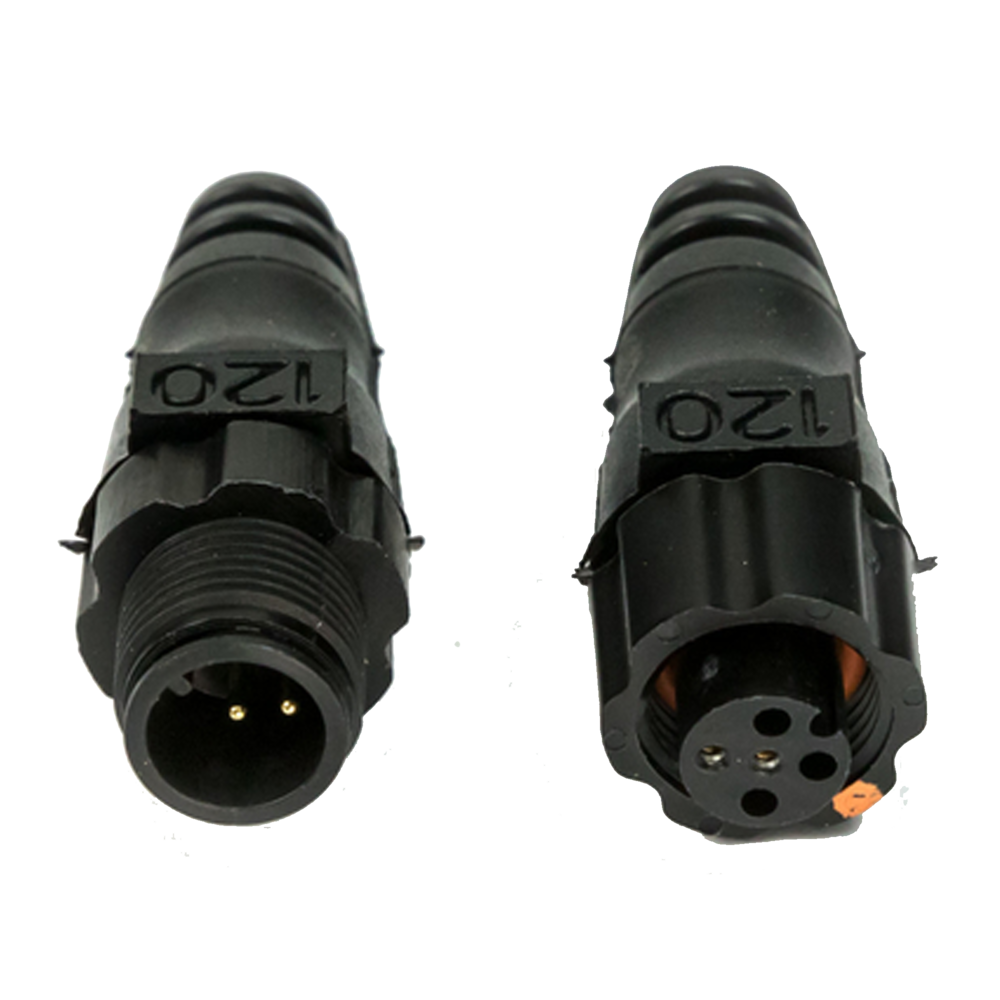

The TR-120 M+F NMEA 2000 kit includes two 120-ohm terminators: one male and one female. This combination provides the flexibility needed to adapt to different end configurations of your NMEA 2000 network.

Each terminator included in the TR-120 M+F NMEA 2000 kit has a resistance of 120 ohms. This is the standard value required for correct termination of NMEA 2000 networks.

This terminator kit is compatible with all NMEA 2000-certified devices and networks. This includes equipment from Navico group brands (such as B&G, Lowrance, Simrad) as well as major manufacturers like Garmin or Raymarine, ensuring seamless interoperability.

Yes, absolutely. Although manufactured by Navico, this kit is designed to be universally compatible with the NMEA 2000 standard. It therefore works perfectly with NMEA 2000 equipment from any other certified brand, ensuring stable communication on your network.

No, this terminator kit is specifically designed for NMEA 2000 networks. NMEA 0183 uses a different communication technology and does not require this type of termination. This product is not compatible with NMEA 0183 systems.

Installing terminators is simple and quick. They connect directly to the T-connectors or extension cables located at the physical ends of your NMEA 2000 backbone. Simply screw them into the appropriate ports.

Both terminators must be placed at the two physical ends of your NMEA 2000 backbone. It is critical to have one at each end to ensure proper termination and prevent signal reflections.

Every NMEA 2000 network absolutely requires two 120-ohm terminators. One terminator must be placed at each end of the main network bus to ensure proper operation.

No, even for a small NMEA 2000 network, it is absolutely necessary to install two terminators, one at each end of the main bus. A single terminator would not be sufficient to eliminate signal reflections and could lead to communication issues.

No, the TR-120 kit is designed for straightforward and quick installation. The terminators screw directly onto standard NMEA 2000 connectors (Micro-C type) and typically require no specialized tools or in-depth technical expertise.

Yes, the robust design of this terminator kit ensures reliable connections and excellent resistance to harsh marine environments. It is built to withstand typical conditions encountered on board a boat, such as humidity and vibrations.

Yes, the Navico TR-120 terminators are fully compatible with Micro-C type NMEA 2000 connectors, which is the most common standard for NMEA 2000 networks.

An incorrect termination can lead to various issues, including communication errors, intermittent or missing data, unrecognized or malfunctioning devices, and general instability of the NMEA 2000 network.

No, this kit consists of terminators whose function is to mark the ends of a NMEA 2000 network. It does not extend the length or capacity of the network. For extension, you would need additional T-connectors and cables.

Yes, it is always recommended to power off your NMEA 2000 network before making any modifications or installing components, including terminators. This ensures safety and prevents potential damage to equipment.
