RayNet kábel 5 m RayNet csatlakozóval

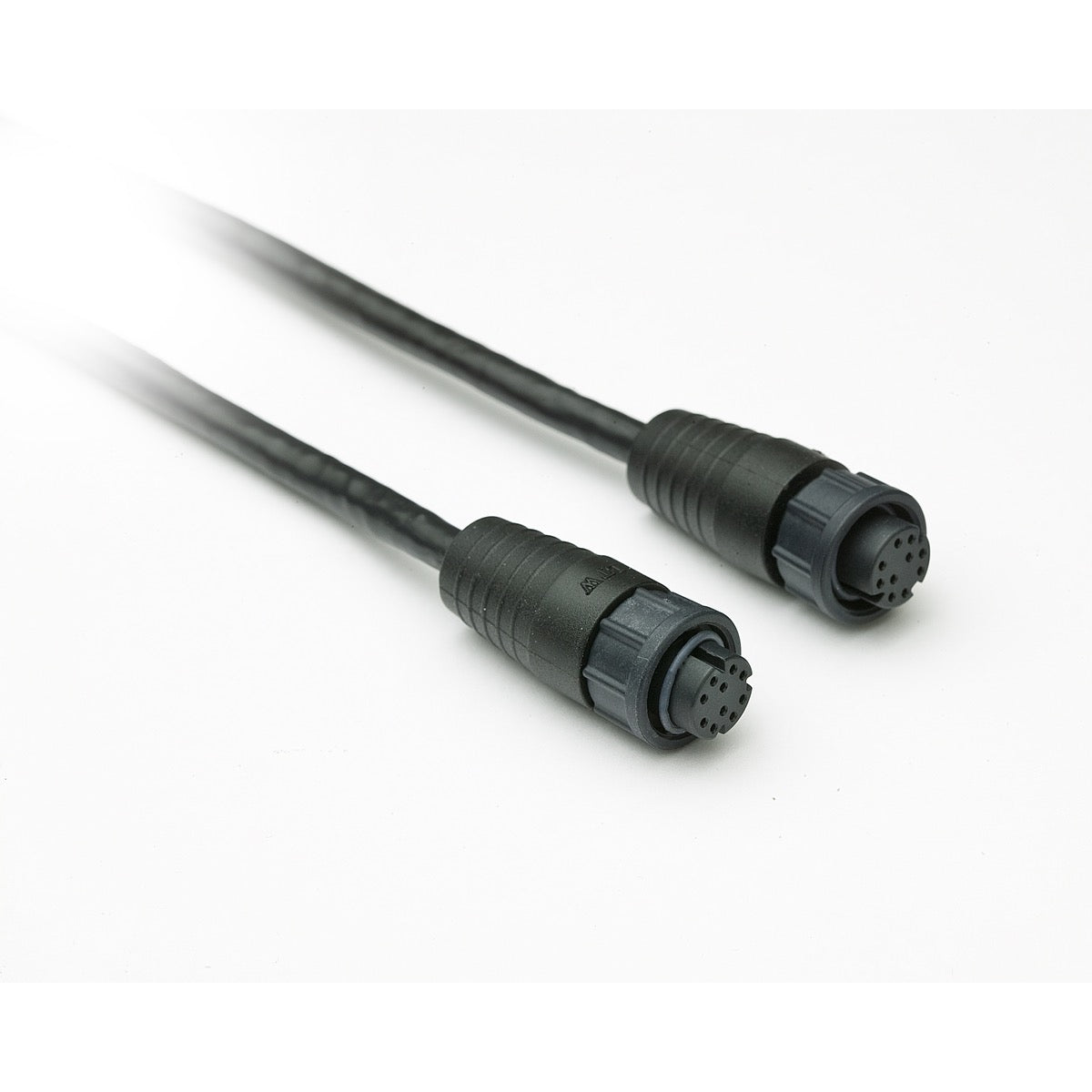

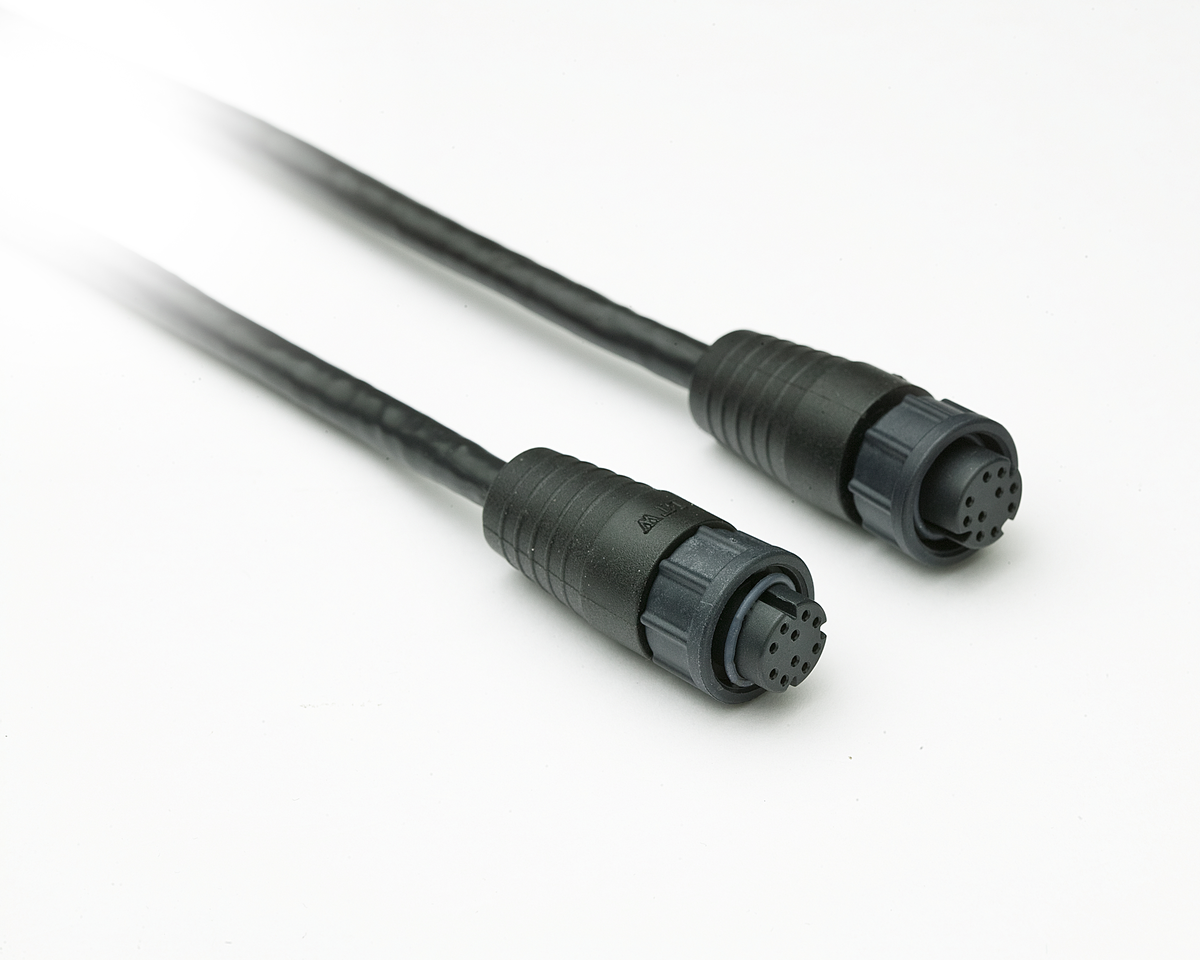

The RayNet to RayNet Raymarine A80005 cable is a 5-meter-long Ethernet network cable designed specifically to connect Raymarine devices compatible with RayNet. It enables high-speed data exchange between devices.

This cable has a length of 5 meters (reference A80005), making it suitable for medium-distance connections within a marine network.

This cable is used to create or extend an Ethernet RayNet network aboard a vessel. It enables the interconnection of multifunction displays (MFD) and other Raymarine network devices for data transmission.

Unlike standard Ethernet RJ45 cables, RayNet connectors are specifically designed for marine environments. They provide a watertight and robust connection, ensuring increased reliability against moisture and vibrations.

Yes, the RayNet connectors on this cable are designed to be watertight, which is essential for reliable use in a marine environment.

This cable enables the transmission of various critical data, including chartplotter data, radar images, depth sounder data, and video streams between the different devices in the Raymarine network.

This cable is compatible with most modern Raymarine network devices, including Axiom series multifunction displays and other Raymarine MFDs with RayNet ports.

Yes, cable A80005 is perfectly suited to connect a Raymarine Quantum radar module to a multifunction display or a RayNet network switch.

Yes, this RayNet cable can be used to connect Raymarine RVX or CP sounder modules to your Raymarine network, enabling sounder data sharing.

Yes, if the FLIR thermal camera is compatible with the Raymarine network and has a RayNet interface, this cable can be used to integrate it into your system.

This cable is designed for modern Raymarine network equipment using RayNet connectors. For older equipment, it is important to check for RayNet ports or use adapters if necessary.

Yes, this cable integrates perfectly into Raymarine LightHouse network architectures, enabling seamless communication between MFDs and critical sensors.

For installation, simply connect one end of the cable to a RayNet port on a Raymarine device (such as an MFD) and the other end to another Raymarine device or a RayNet switch. Ensure the connectors are properly seated and secured.

No, RayNet-to-RayNet cables do not have a specific installation direction. Both ends are identical and can be connected to any compatible RayNet port regardless of orientation.

When running the cable, avoid excessive bending or pinching. Ensure there is no excessive tension on the connectors and protect it from friction and heat sources.

Yes, it is possible to extend your RayNet network by using a RayNet switch or a RayNet coupler to connect multiple cables of different lengths, including the A80005.

No, RayNet connectors are designed to be plugged and unplugged manually. They feature a locking mechanism for secure connections without requiring specific tools.

For a secure connection, ensure RayNet connectors are firmly engaged until you hear a click or feel they are properly seated. The locking ring (if present on the device) must be tightened to guarantee watertightness and the robustness of the connection.

Yes, Raymarine's A80005 cable and RayNet system are comparable to other proprietary marine network solutions such as Garmin Marine Network or Simrad Ethernet, providing dedicated and optimized connectivity within their respective ecosystems.

Yes, this cable is an essential component for establishing or extending an Ethernet network compatible with RayNet, serving as the physical backbone for communication between devices.
