Skaidriklis Lowrance Eagle 5" 83/200 HDI

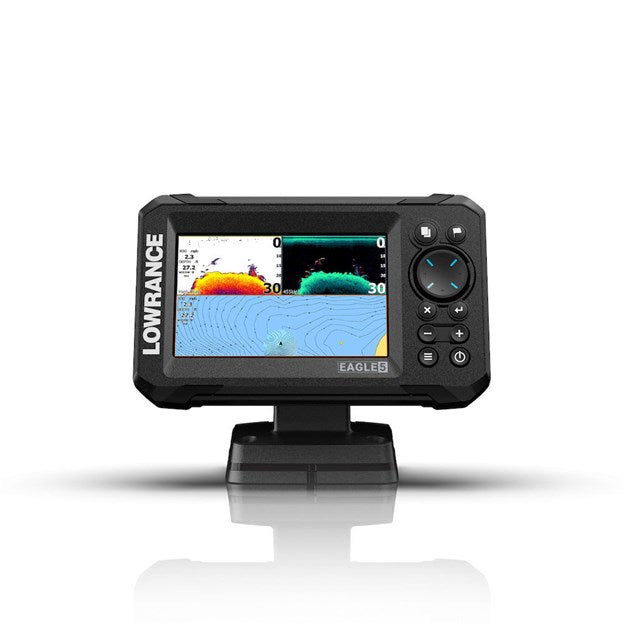

The Lowrance Eagle 5" fishfinder has a 5-inch diagonal screen. Its resolution is 800 x 480 pixels, with viewing angles of 80° (up/down/left/right).

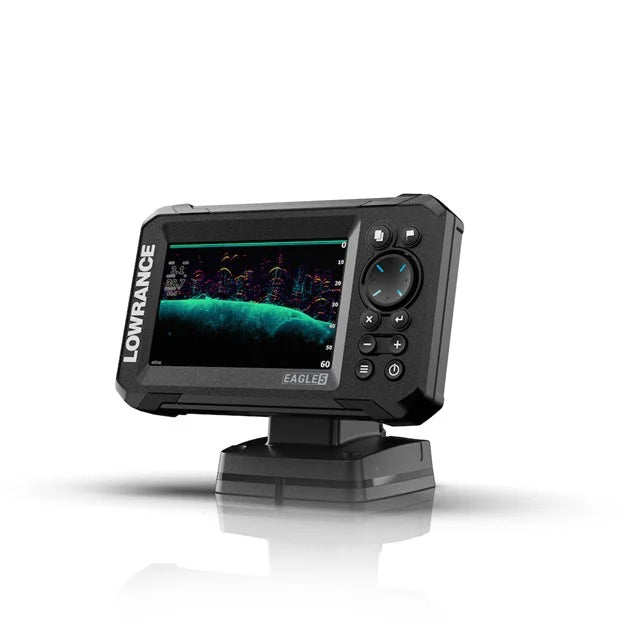

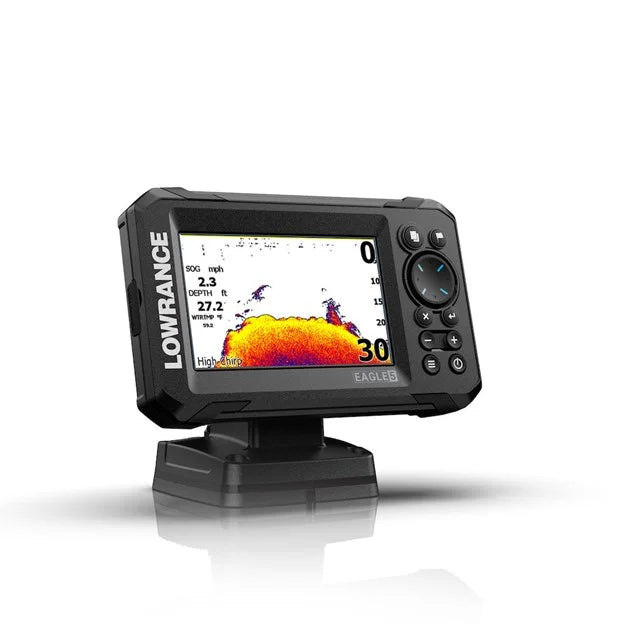

The Lowrance Eagle 5" 83/200 HDI fishfinder integrates CHIRP broadband sonar and DownScan Imaging (HDI) technologies for clear detection of structures and fish beneath the vessel.

Yes, the Lowrance Eagle 5" 83/200 HDI fishfinder has an IPX7 waterproof rating. This means it is protected against temporary immersion in water.

The Lowrance Eagle 5" fishfinder can operate within a temperature range of -15°C to 55°C (5°F to 131°F).

The fishfinder has a microSD card reader that supports cards with a maximum capacity of 32 GB.

Yes, the Lowrance Eagle 5" fishfinder allows you to record waypoints, create routes, and track trails. It is also possible to export this data.

To take a screenshot, press and hold the 'Pages' button and the 'Power' button simultaneously.

To clean the housing, use warm water with a drop of dish soap or detergent. It is important not to use a jet or high-pressure washer.

The fishfinder uses 83 kHz and 200 kHz frequencies for CHIRP broadband sonar, and 455 kHz and 800 kHz for DownScan imaging.

Yes, the Lowrance Eagle 5" fishfinder is equipped with a simulator mode for training and familiarization with its features.

The maximum power consumption of the depth sounder is 3.48 W (i.e., 290 mA at 12 V DC).

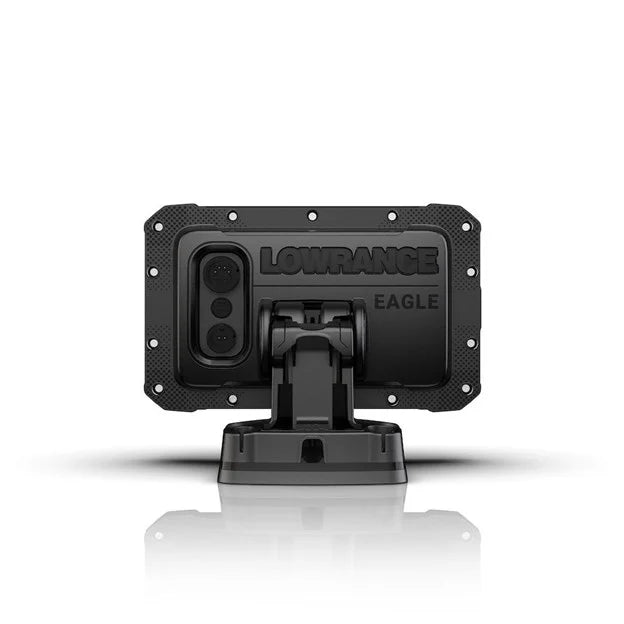

The fishfinder can be mounted on a dashboard or using a bracket (gimbal mount).

A 3 A fuse rating is recommended to protect the Lowrance Eagle 5" 83/200 HDI fishfinder.

The fishfinder has a single sonar port compatible with SplitShot and TripleShot transducer technologies. The 83/200 HDI model is designed to use CHIRP broadband sonar and DownScan imaging.

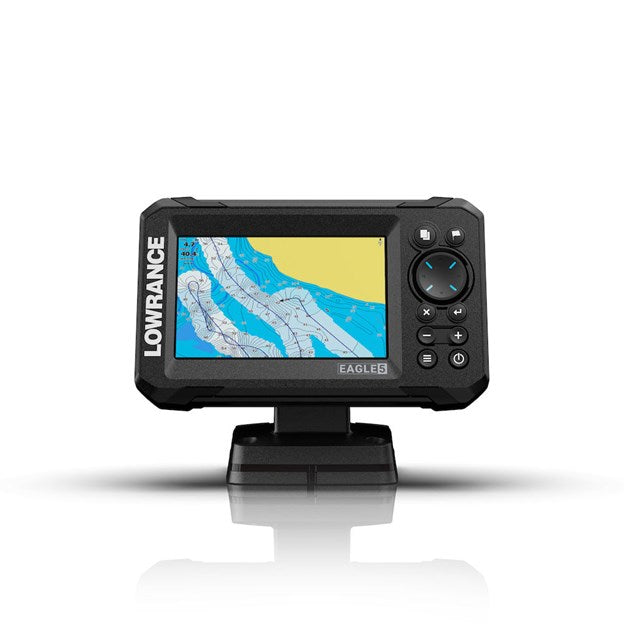

Yes, the fishfinder is equipped with a microSD card reader that allows access to charts if they are supported by the device's software.

To quickly create a man-overboard (MOB) waypoint, simultaneously press the 'Zoom In (+)' and 'Zoom Out (-)' buttons.

Yes, pressing the Power button briefly and repeatedly cycles through the different backlight brightness levels.

The Lowrance Eagle 5" 83/200 HDI is equipped with a sonar port compatible with SplitShot and TripleShot transducers. It supports traditional CHIRP sonar (83/200 kHz frequencies) for excellent fish detection, as well as high-resolution DownScan imaging technology (455/800 kHz) to clearly visualize the seabed structure beneath your boat.

The depth sounder can be installed in two ways: flush-mounted directly on the dashboard or mounted on a bracket. For power, it must be connected to a 12 V DC network (accepted range: 10.8 to 18 V DC). It is strongly recommended to use a 3 A fuse to protect the device. Its maximum power consumption is very low, at just 3.48 W.

The Lowrance Eagle 5" has a microSD card slot. It is compatible with memory cards up to 32 GB. This slot allows you to save navigation data (waypoints, routes, tracks), back up your sonar logs, and use compatible marine charts.
