Navico

000-14027-001

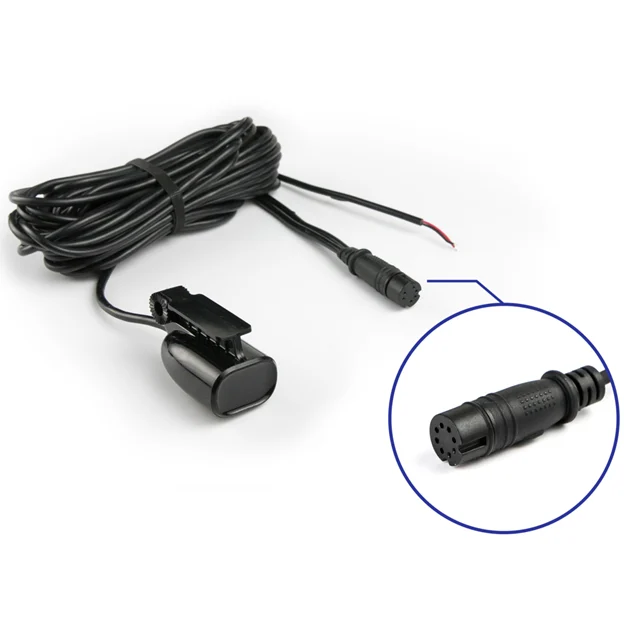

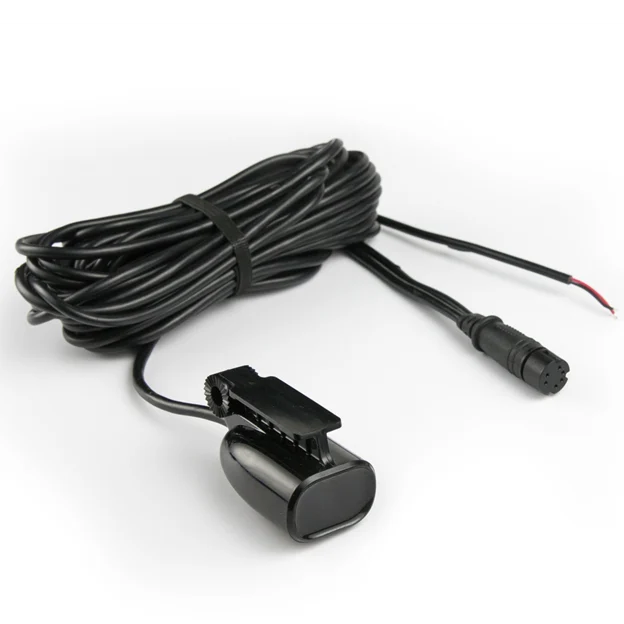

Skimmer NAVICO Bullet – skeneris

La sonde NAVICO Bullet Skimmer (000-14027-001) est un transducteur tableau arrière essentiel pour les sondeurs Lowrance Hook² 4 et 4X, offrant un sonar broadband 200 kHz avec capteur de température. Conçue pour une installation simple et une couverture large, elle s'intègre parfaitement aux systèmes Autotuning des séries HOOK, Elite et Reveal. La sonde est livrée avec son câble intégré de 6 mètres.

Public priceGet pro pricing

71,70€

71,70€ ~~82,80€~~

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Sandėlyje

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

Echoloto technologijos	CHIRP, Sonar 2D
Sonaro dažniai	83/200 kHz
Veikimo temperatūra	0°C à +50°C
Didžiausias nuskaitomo gylio riba	304.0
Sondos medžiaga	Plastique
Sonaro jungties tipas	Propriétaire Navico
Kabelio ilgis	6.0
Įmontuotas temperatūros jutiklis	Oui
Su derinami displėjai	Afficheurs Lowrance et Simrad compatibles CHIRP 83/200 kHz
IP klasifikacija	IPX7
Belaidis ryšys	Non
Montavimo tipas	Tableau arrière, moteur électrique avant, balayage au travers de la coque
Sertifikatai	CE
Vandens temperatūros matavimo diapazonas	0°C à +50°C
Apšvietimo kampas	38° à 83 kHz, 17° à 200 kHz
CHIRP aukštoji dažniuotė	200 kHz
Žvejybos tipas	Mer, lac, rivière, traîne
Įmontuotas greičio jutiklis	Non
Naudotojo lygis	Débutant
Garantija	2.0

Detailed description

Skeneris NAVICO Bullet Skimmer (000-14027-001) yra korpuso skeneris, skirtas optimizuoti žuvų detekciją ir dugno kartografavimą Lowrance HOOK² kompiuteriuose. Idealiai tinka HOOK² 4 ir HOOK² 4X modeliams, šis skeneris siūlo patikimą ir našų sprendimą pajūrio ir gėlojo vandens žvejybai, būdamas ekonomiškas ir efektyvus alternatyvas sudėtingesniems skeneriams, tokiems kaip TripleShot ar SplitShot, kurie integruoja DownScan ir SideScan technologijas. Skirtingai nuo jų, Bullet Skimmer fokusuojasi į standartinį broadband sonaro režimą be CHIRP palaikymo, užtikrinant paprastesnį naudojimą.

Sonaro našumas ir techniniai duomenys

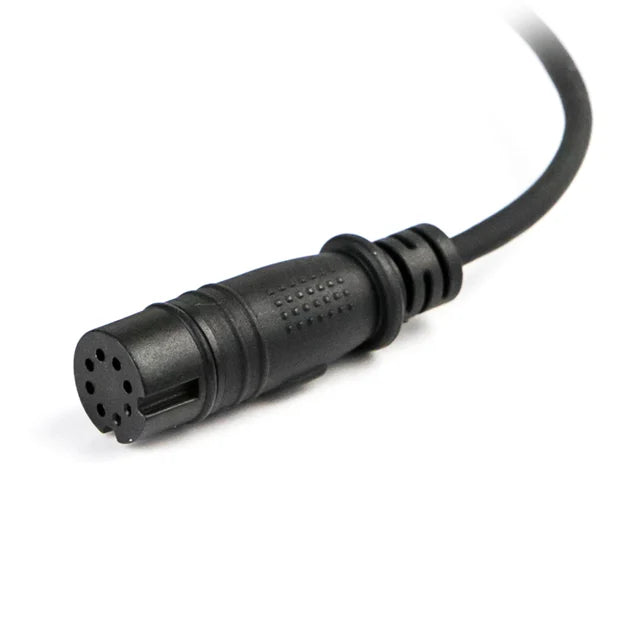

Skeneris Bullet Skimmer veikia 200 kHz dažniu, kai kurios versijos palaiko ir 83/200 kHz dažnius standartiniam sonaro režimui. Jis teikia 40 laipsnių spindulio plotį 200 kHz dažnyje, užtikrinant dvigubai platesnį sonaro apimtį nei tradiciniai skeneriai. Ši savybė palengvina žuvų ir povandeninių struktūrų lokalizavimą. Didžiausias pasiekiamas gylis yra 152 metrai (500 pėdų) 200 kHz dažnyje, todėl jis puikiai tinka tipinėms žvejybos aplikacijoms. Įmontuotas temperatūros jutiklis teikia esminius duomenis žvejybos sąlygoms analizuoti. Skeneris sveria 0,11 kg (0,24 svaro) be kabelio ir yra aprūpintas 6 metrų (19,5 pėdos) kabeliu su specifiniu Hook² 4x jungtuku, užtikrinančiu sklandų suderinamų įrenginių integravimą.

Konstrukcija ir montavimas

Pagamintas iš tvirto ir sandaraus jūrinio plastiko, skeneris NAVICO Bullet Skimmer skirtas atlaikyti gėlojo ir sūraus vandens aplinkas. Jo darbinė temperatūra yra nuo 0°C iki +50°C, o sandėliavimo temperatūra – nuo -30°C iki +70°C. Montavimo galimybės yra universalios: korpuso galas, priekinis elektrinis variklis arba montavimas per korpusą. Optimaliai montuoti rekomenduojama srovės netrikdomoje zonoje, vengiant sraigto nuleidimo briaunų. Rekomenduojami varžtų skylės skersmenys: Ø 3,7–4,0 mm (5/32") minkštiems medžiagoms, tokioms kaip fanera, ir Ø 4,1–4,7 mm (3/16") kietoms medžiagoms, tokioms kaip stiklo pluoštas ar kietmedis. Sujungimas su HOOK² kompiuterių Autotuning funkcija supaprastina naudotojo patirtį automatiškai reguliuodamas nustatymus optimaliai veiklai.

Documentation

Type	Nom
	EN - Guide d'installation - Bullet Skimmer Sonde
	FR - Guide d'installation - Bullet Skimmer Sonde

Expert review

Pol CONIN

Digital Manager

« Bullet Skimmer Fishfinder: Essentials for Lowrance Hook² »

The NAVICO Bullet Skimmer transducer (part number 000-14027-001) is an efficient and affordable transducer solution for Lowrance HOOK² series users, particularly models 4 and 4X. Its key feature is its standard broadband sonar at 200 kHz (or 83/200 kHz), which does not support CHIRP technology but offers a 40-degree beam width. This wide beam is a significant advantage for rapid echo detection, doubling the scanning area compared to traditional transducers and making it easier to identify fish schools and submerged structures down to 152 meters. The integrated temperature sensor enhances water layer analysis. Its transom-mount installation is simplified thanks to its robust marine-grade plastic design, capable of withstanding freshwater and saltwater environments, with a 6-meter cable. For optimal deployment, it is critical to position it in a laminar water flow, away from turbulence generated by the hull. This is a strategic choice for those seeking reliability and ease of use for basic fishing needs, without the complexity of advanced imaging technologies.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Skimmer NAVICO Bullet – skeneris

71,70€

71,70€ ~~82,80€~~

Frequently asked questions

Need help? Contact us

What are the main features of the NAVICO Bullet Skimmer fishfinder?

The NAVICO Bullet Skimmer (000-14027-001) is a transom-mount transducer designed specifically for fish detection and bottom mapping. It uses standard broadband sonar and operates at a frequency of 200 kHz. It also includes a temperature sensor for essential data.

What is the operating frequency of this transducer?

The Bullet Skimmer transducer operates at a single frequency of 200 kHz for its standard broadband sonar. This model does not support 83/200 kHz or CHIRP frequencies.

Does the Bullet Skimmer transducer support CHIRP technology?

No, the NAVICO Bullet Skimmer transducer (000-14027-001) uses standard broadband sonar and does not support CHIRP technology.

What is the maximum depth this depth sounder can reach?

The Bullet Skimmer depth sounder can reach a maximum depth of 152 meters (500 feet) when operating at 200 kHz.

What is the beam angle of the Bullet Skimmer transducer?

The Bullet Skimmer transducer has a 40-degree beam angle at 200 kHz, providing sonar coverage approximately twice as wide as traditional transducers.

Does the NAVICO Bullet Skimmer transducer include a temperature sensor?

Yes, the Bullet Skimmer transducer is equipped with an integrated temperature sensor, providing essential data for analyzing fishing conditions.

What are the operating and storage temperatures of the depth sounder?

The depth sounder can operate within a temperature range of 0°C to +50°C (32°F to +122°F) and be stored between -30°C and +70°C (-22°F to +158°F).

What is the maximum speed at which the boat can travel for optimal performance of the depth sounder?

The Bullet Skimmer depth sounder is designed to operate optimally up to a maximum speed of 60 knots (approximately 70 mph).

Which displays is the NAVICO Bullet Skimmer sonar compatible with?

The NAVICO Bullet Skimmer sonar is specifically designed and optimized for Lowrance HOOK² displays. It is ideal for HOOK² 4 and HOOK² 4X models.

What type of connector does this transducer have?

The Bullet Skimmer transducer is fitted with a specific Hook² 4x connector, ensuring seamless integration with compatible Lowrance HOOK² displays.

Is this depth sounder suitable for freshwater and coastal fishing?

Yes, this depth sounder is ideal for coastal and freshwater fishing, providing a reliable and high-performance solution for these environments.

What are the mounting options available for the Bullet Skimmer transducer?

The Bullet Skimmer transducer offers several mounting options:

On the boat’s transom.On an electric bow thruster.Through-hull sweep (shoot-thru-hull).

What is the ideal mounting location for the depth sounder on the boat?

The ideal mounting location for the depth sounder is in an area where the water flow is undisturbed, to ensure optimal performance and accurate sonar readings.

Are there any areas to avoid when installing the depth sounder?

Yes, it is not recommended to install the transducer beyond the chine, as this could disrupt water flow and affect sonar performance.

What are the recommended pilot hole diameters for installation?

Recommended pilot hole diameters for 10 mm screws depend on the hull material:

For soft materials (e.g., plywood): Ø 3.7–4.0 mm (5/32"). For rigid materials (e.g., fiberglass, acrylic, hardwood): Ø 4.1–4.7 mm (3/16").

Can the transducer be installed in "shoot-thru-hull" mode (through the hull) on all hull types?

No, shoot-thru-hull transducers cannot operate effectively through wooden hulls.

Should a sealing product be used during installation?

Yes, it is recommended to apply a high-quality marine-grade sealing/adhesive compound, suitable for use above or below the waterline, on the mounting holes to ensure watertightness and long-term durability of the installation.

Is this sounder an alternative to DownScan or SideScan transducers?

Yes, the Bullet Skimmer sounder is an economical and efficient alternative to more complex transducers such as TripleShot or SplitShot, which integrate DownScan and SideScan technologies. It focuses on standard broadband sonar for simplified use.
