Raymarine

E70650

Ekranas Alpha 9" Performance Instrumentas

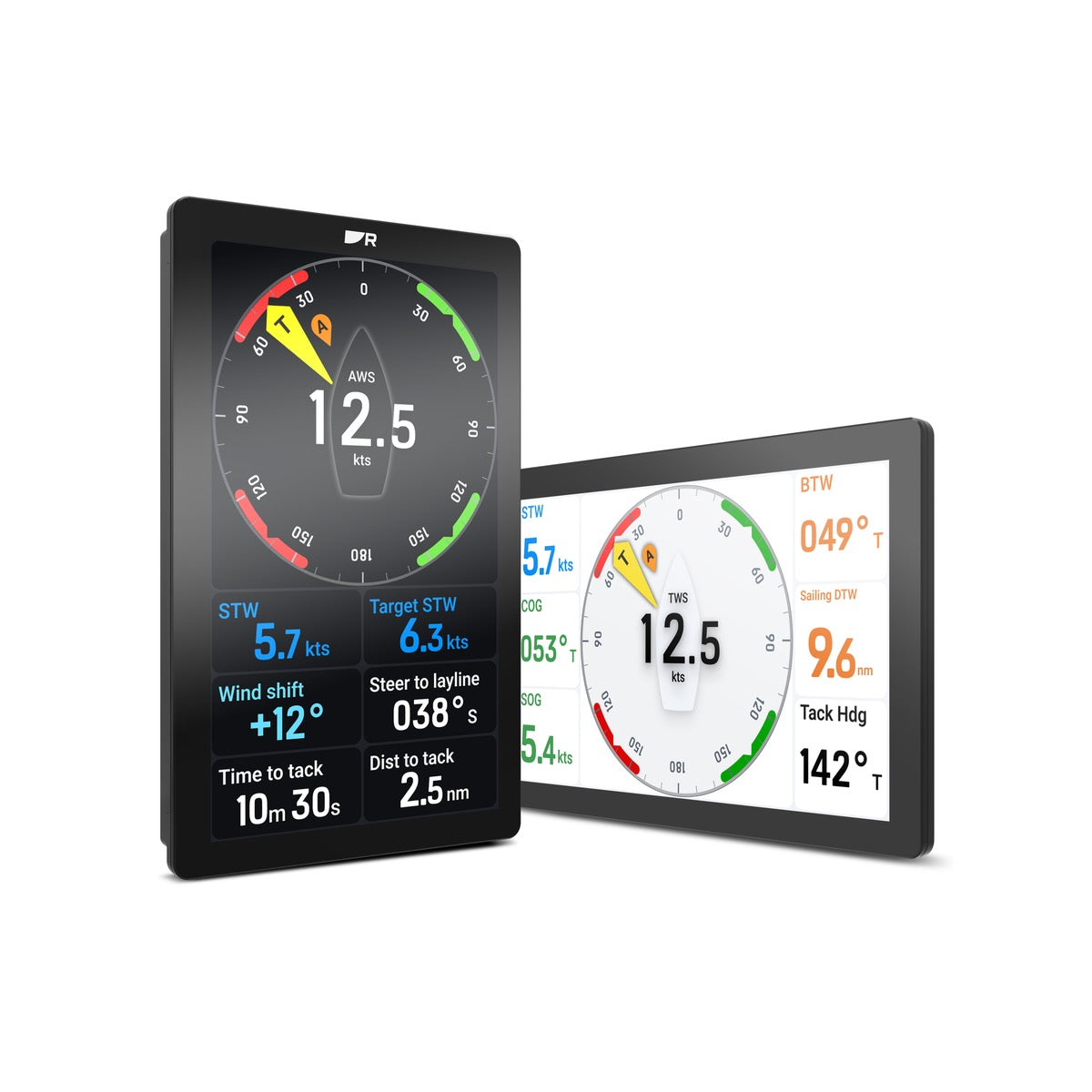

L'écran Raymarine Alpha 9" (E70650) est un instrument de performance de la gamme Alpha, conçu pour une visualisation dédiée des données de navigation et moteur. Il nécessite un écran multifonction (MFD) Raymarine pour une intégration complète au système. Le produit est livré seul, sans support de montage.

Public priceGet pro pricing

2.119,69€

2.119,69€ ~~2.394,00€~~

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Sandėlyje

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

IP klasifikacija	IPX6 / IPX7
Veikimo įtampa	12 / 24
Produkto aukštis	149
Produkto plotis	228
Laidinis tinklas	NMEA 2000,SeaTalk NG,Ethernet (RayNet)
Foninės apšvietos spalva	Blanc
Korpusas: spalva	Noir
Didžiausias elektros energijos suvartojimas	15
Produkto gylis	40
Tipinis elektros energijos suvartojimas	12
NMEA 2000 apkrovos ekvivalentas (LEN)	1
Montavimo tipas	Encastré, Surface, Rétrofit
Veikimo temperatūra	-25 à +55
Rekomenduojamas saugiklio vardinė vertė	3
Magistralės suderinamumas	NMEA 2000,SeaTalk NG,Ethernet
Belaidis ryšys	Aucune
Sertifikatai	CE,FCC,RCM,UKCA,IEC 60945
Ekrano raiška	800 x 480
Ekrano tipas	LCD TFT
Ekrano šviesumas	1200
Ekrano dydis	9
Jutiklinis ekranas	Non
Žiūros kampas	160/160
Laidinis įėjimas	NMEA 2000 (SeaTalk NG),Ethernet (RayNet),Alimentation
Laikymo temperatūra	-30 à +70
Santykinis drėgnumas	95 (sans condensation)
LCD priklijuotas	Oui
Paketo turinys	Écran Alpha 9", Câble d'alimentation, Kit de montage, Documentation
Regatos chronometro funkcija	Oui
Galimos signalizacijos	Profondeur, Ancre, Vitesse, Vent, Tension batterie, Température

Detailed description

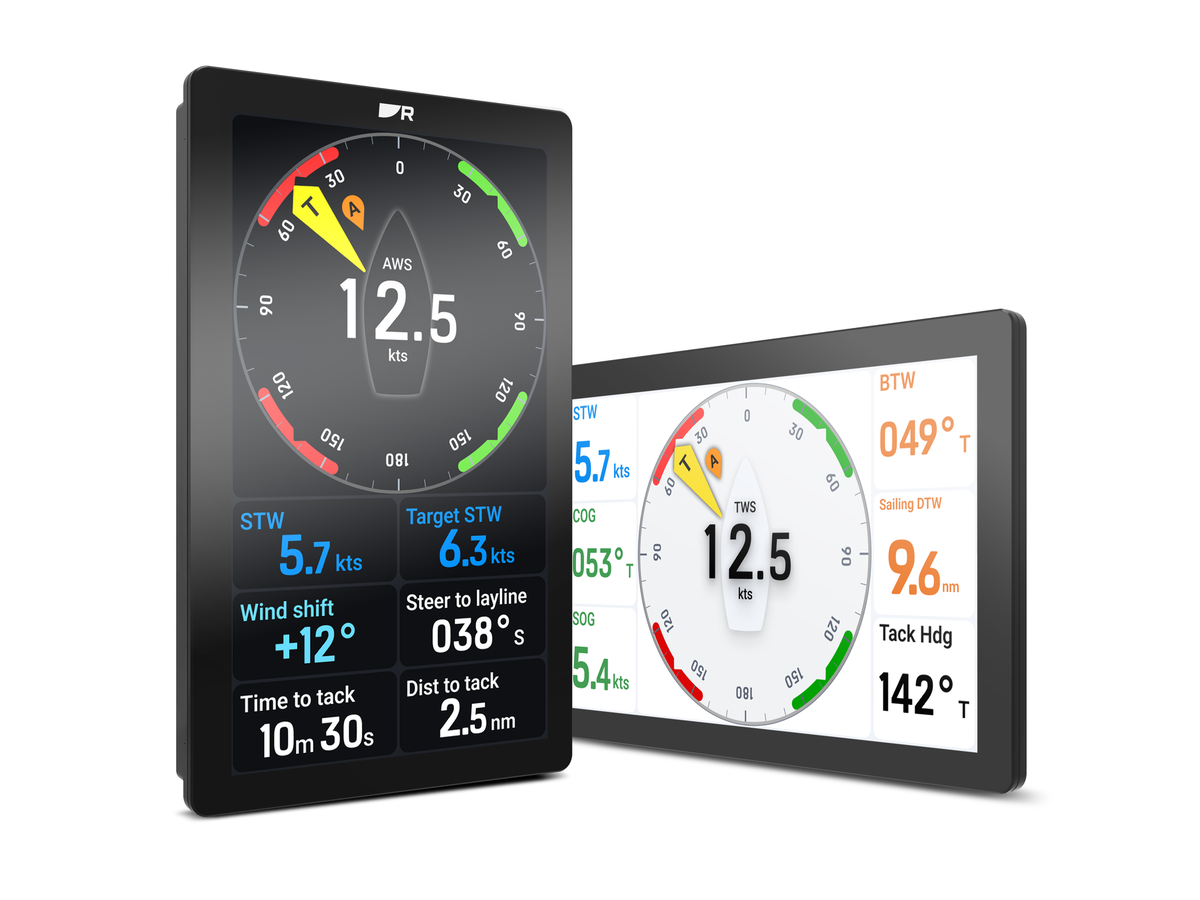

Sukurtas reikliesiems jūreiviams, 9" ekranas Raymarine Alpha (referencija E70650) integruojamas į esamą Raymarine navigacijos sistemą, kad suteiktų specializuotą ir individualizuojamą esminių duomenų rodymą. Priklausantis Alpha serijai, šis instrumentas papildo įvairių funkcijų ekranus (MFD), tokius kaip Axiom serijos, siūlydamas aiškų ir tiesioginį navigacijos bei veiklos duomenų rodymą.

Duomenų integravimas ir rodymas

9" ekranas Alpha skirtas veikti kartu su Raymarine MFD. Ši architektūra leidžia skirti Alpha duomenų rodymui, tokiems kaip vėjas, greitis, gylis ar variklio informacija, tuo tarpu pagrindinis MFD lieka laisvas navigacijos, radarų ar zondų žemėlapiams. Naudotojai gali kurti ir individualizuoti duomenų puslapius, rinktis iš įvairių valdiklių tipų (skaitmeniniai, matuokliai, grafikai, lygiai, kameros, stulpeliai, kompasai ir kt.) bei naudoti pažangias funkcijas, pvz., autopiloto valdymą per SeaTalk NG/NMEA 2000 integraciją.

Montavimo galimybės ir specifikacijos

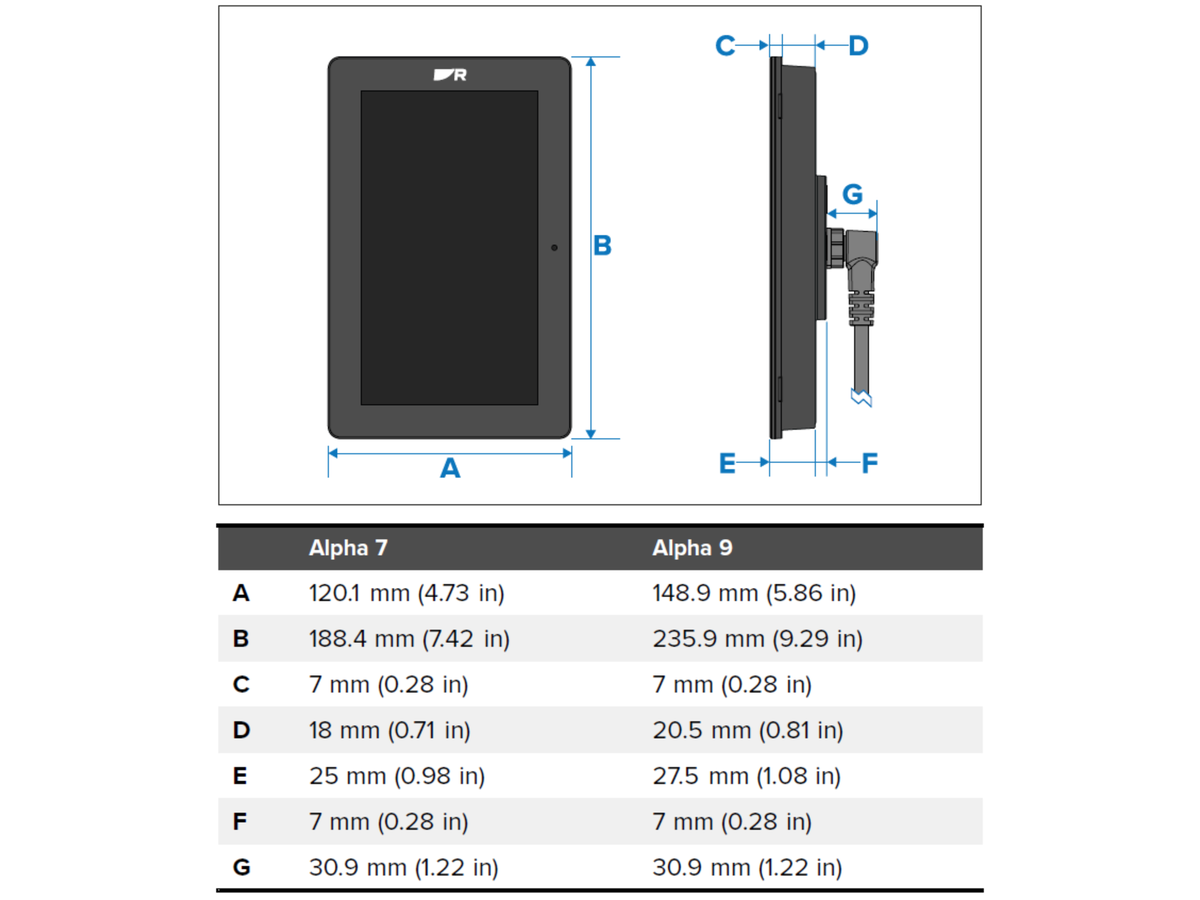

9" Alpha ekrano montavimas yra lankstus, su paviršinio, įdėtinio ar retrofit montavimo galimybėmis. Įdėtiniam montavimui reikalinga 236 x 141 mm išpjova. Bendra produkto matmenys – apie 228 mm pločio ir 149 mm aukščio. Užpakalinėje dalyje reikalingas 40 mm gylis kabeliams ir jungtims, o kabelių lenkimo spindulys turi būti ne mažesnis nei 50 mm.

Documentation

Type	Nom
	EN - Plan technique - Ecran Alpha 9" Performance Instrument
	EN - Notice d'installation - Ecran Alpha 9" Performance Instrument
	EN - Manuel d'utilisation - Ecran Alpha 9" Performance Instrument
	EN - Notice d'installation - Ecran Alpha 9" Performance Instrument
	FR - Manuel d'utilisation - Ecran Alpha 9" Performance Instrument
	FR - Notice d'installation - Ecran Alpha 9" Performance Instrument
	EN - Gabarit de montage - Ecran Alpha 9" Performance Instrument
	EN - Declaration de conformite - Ecran Alpha 9" Performance Instrument
	EN - Declaration de conformite - Ecran Alpha 9" Performance Instrument

Expert review

Pol CONIN

Digital Manager

« Raymarine Alpha 9": dedicated instrumentation for performance and system integration »

The Raymarine Alpha 9" display is positioned as a performance instrument dedicated to providing clear and instant visualization of critical data. Unlike a traditional multifunction display (MFD) such as the Axiom, the Alpha is not standalone for chartplotting or radar; it is designed to complement the MFD by displaying the boat's performance data (wind, speed, depth, engine, etc.) in an optimized format. This specialization makes it particularly relevant for racing sailboats, performance yachts, or any vessel where quick and legible access to data is essential for optimizing settings and real-time decision-making.

Its integration into Raymarine's SeaTalk NG (NMEA 2000) network is standard, facilitating connection to all sensors and a compatible MFD. Installation is flexible, with flush-mount or surface-mount options to suit various cockpit or mast configurations. However, it is critical to note that a Raymarine MFD is required for certain configurations and to unlock the system's full potential. For mast installations, specific Alpha series mounts are necessary and must be purchased separately. This product is therefore aimed at users who already have or plan to integrate a Raymarine ecosystem, seeking to expand their performance data display capabilities without cluttering their primary screen.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Ekranas Alpha 9" Performance Instrumentas

2.119,69€

2.119,69€ ~~2.394,00€~~

Frequently asked questions

Need help? Contact us

What is the primary purpose of the Raymarine Alpha 9" Performance Instrument display?

The Raymarine Alpha 9" Performance Instrument display is designed to provide dedicated and customizable visualization of essential navigation and performance data. It integrates into an existing Raymarine navigation system to display information such as wind, speed, depth, or engine data, complementing a primary multifunction display (MFD).

Can the Raymarine Alpha 9" display work as a standalone chartplotter?

No, the Raymarine Alpha 9" display is not a standalone chartplotter nor a primary multifunction display (MFD). It is designed to operate in conjunction with an existing Raymarine MFD, such as an Axiom series display, to form a complete navigation system.

What are the available mounting options for the Alpha 9" display?

The Alpha 9" display offers multiple mounting options to fit different dashboard or mast configurations. Options include surface mounting, flush mounting, or retrofit installation. Accessory mast mounts are also available, such as single mounts (portrait or landscape) or dual mounts (landscape).

What are the required cutout dimensions for a flush-mount installation of the Alpha 9" display?

For a flush-mount installation of the Alpha 9 display, a cutout of 236 mm width by 141 mm height is required in the panel. A depth of 40 mm must also be provided behind the unit for cable and connector clearance.

What types of performance data can the Alpha 9" display?

The Alpha 9" screen can display a wide range of performance data using customizable widgets. This includes:

Wind data (speed, angle)Boat and surface speedDepthSounder engine dataGPS data (position, COG, SOG)HeadingBattery dataFuel dataEnvironmental dataUsers can select from digital widgets, gauges, graphs, levels, bars, and compasses to organize their data pages.

Does the Alpha 9" display allow control of the autopilot?

Yes, the Alpha 9" display provides access to advanced autopilot control functions. Through its integration via the SeaTalk NG/NMEA 2000 network, users can engage the autopilot to maintain a heading, follow a navigation route, or sail to wind.

How does the Alpha 9" display connect to the boat's navigation system?

The Alpha 9 9" display connects to the boat's navigation system primarily via a SeaTalk NG/NMEA 2000 network connection for data exchange. It also requires a direct power connection to operate.

What are the overall dimensions of the Raymarine Alpha 9" display?

The overall dimensions of the Raymarine Alpha 9" display are approximately 228 mm in width by 149 mm in height. A depth of 40 mm is required at the rear of the unit for cable and connector clearance, with a minimum bending radius of 50 mm for cables.
