Raymarine

T70152

Evolution Wheel Pilot su p70s valdymo bloku, ACU-100 ir Wheel Drive

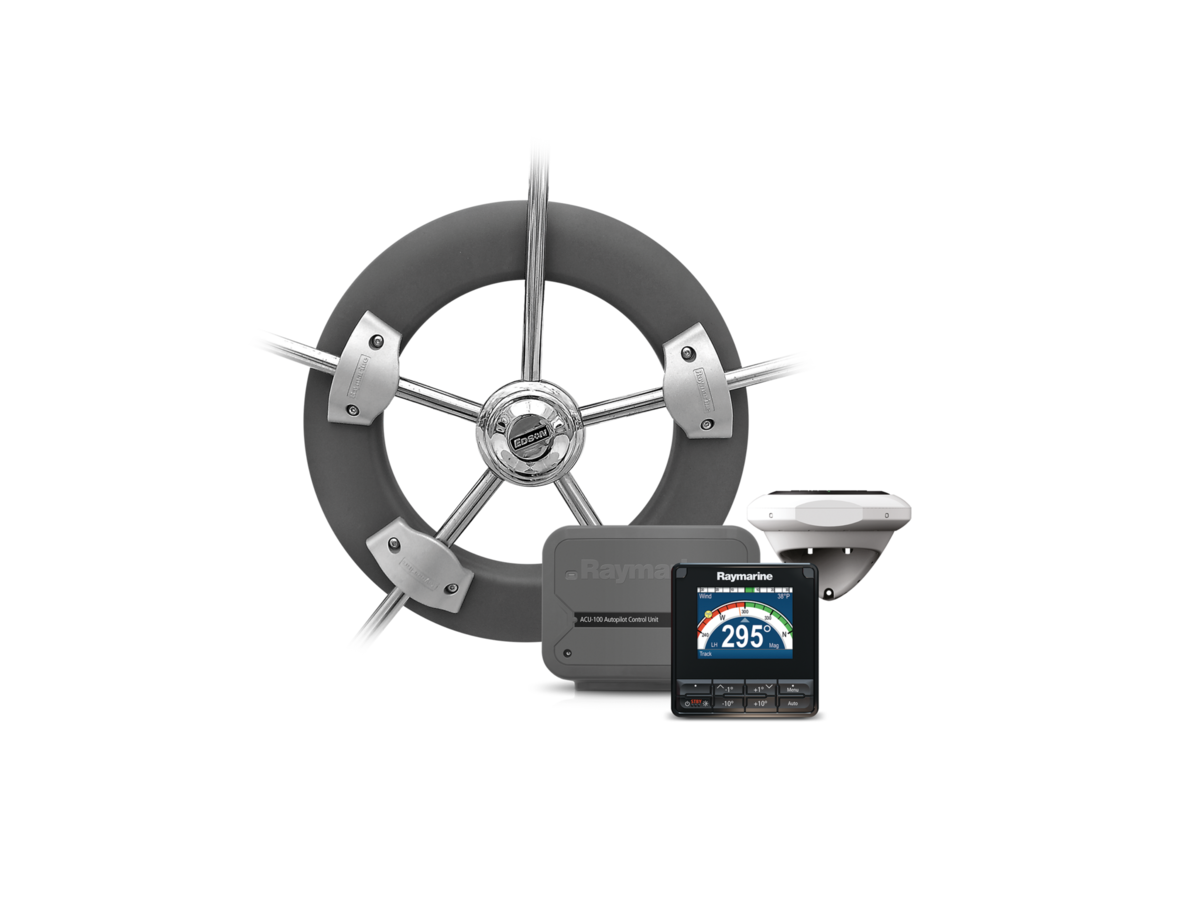

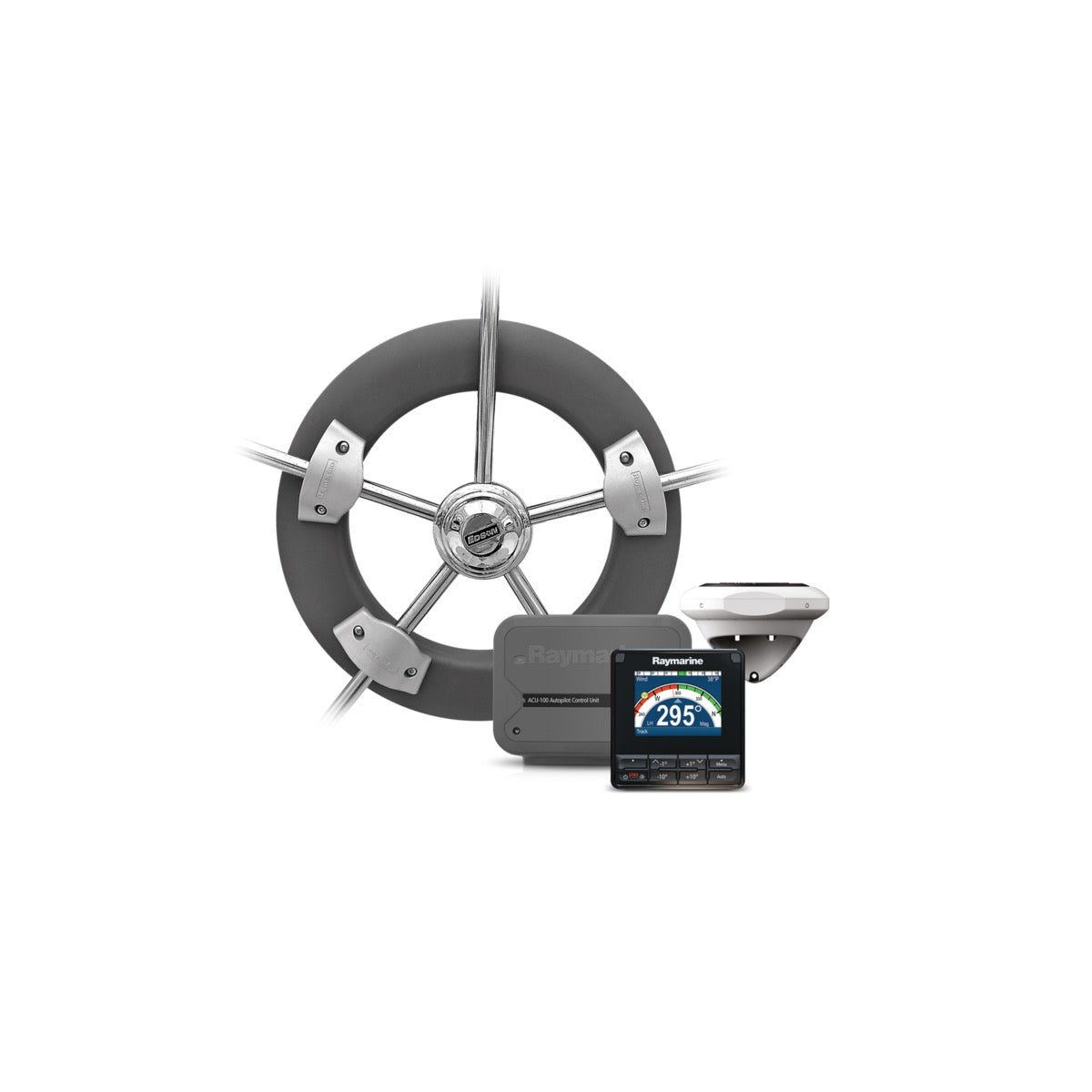

Le Raymarine Evolution Wheel Pilot T70152 est une solution de pilote automatique complète pour voiliers à barre à roue, offrant une navigation précise grâce à son capteur EV-1 à 9 axes et son unité de contrôle ACU-100 optimisée pour les entraînements de type 0.5. Ce système s'intègre via SeaTalk NG, fournissant une interface utilisateur intuitive avec le boîtier de commande p70s. Il est livré avec le boîtier de commande p70s, l'unité de contrôle ACU-100 et le Wheel Drive.

Public priceGet pro pricing

1.952,44€

1.952,44€ ~~2.274,00€~~

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Sandėlyje

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

Didžiausias elektros energijos suvartojimas	84 W
Tipinis elektros energijos suvartojimas	18 W
Veikimo įtampa	12 V DC

Detailed description

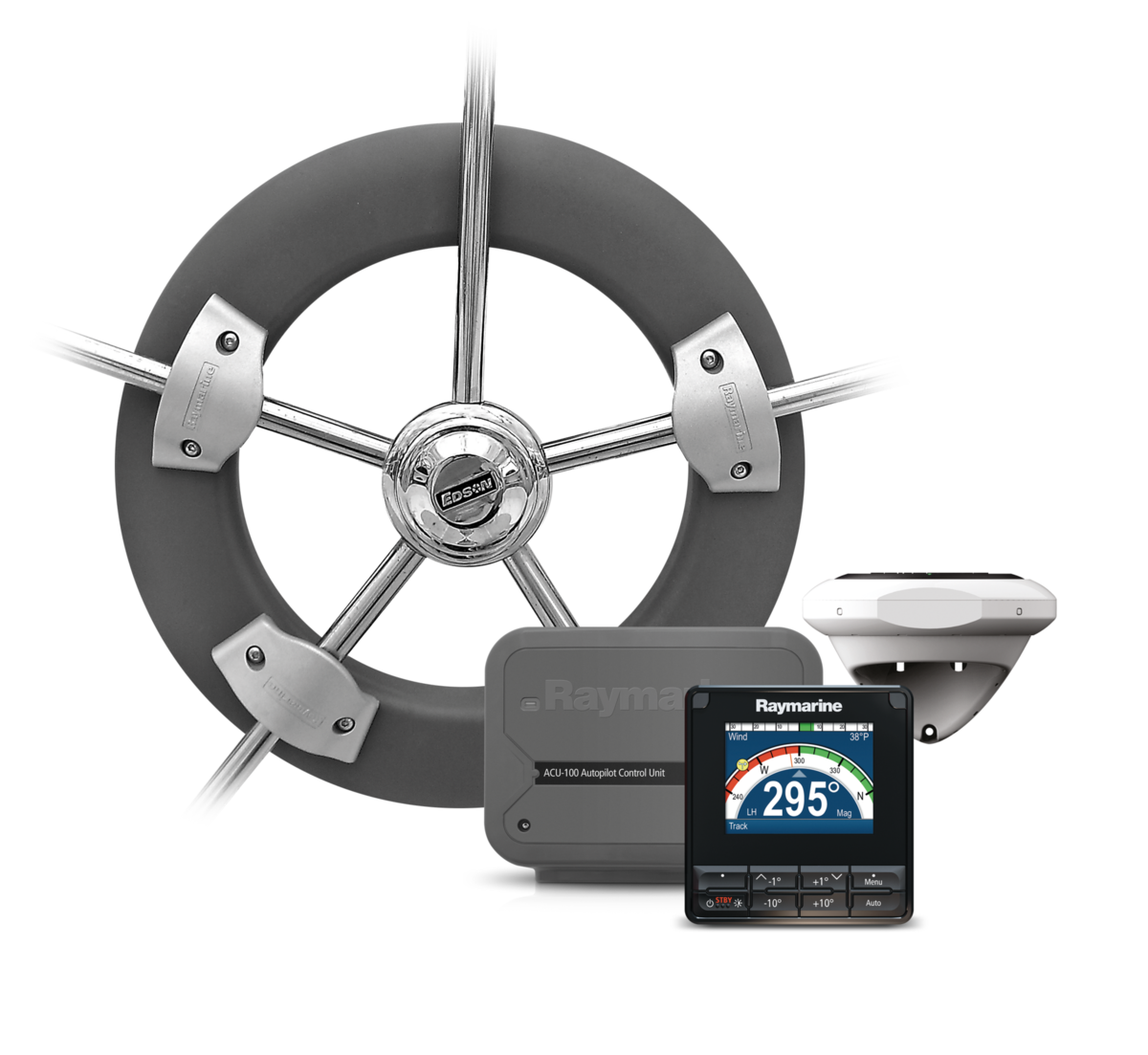

Skirtas burlaiviams su vairo ratu, Raymarine Evolution Wheel Pilot T70152 yra pilnavertis autopiloto sistema, integruojanti pačias naujausias prekės ženklo technologijas. Ją sudaro intelektualus EV-1 jutiklis, ACU-100 pavaros valdymo blokas, p70s valdymo blokas ir skirtas vairo ratui variklis, siūlantis pilotavimo sprendimą vidutinio dydžio kruizininkams.

EV-1 jutiklio tikslumas

Sistemos šerdis – EV-1 Evolution jutiklis, 9 ašių jutiklio blokas, nuolat stebintis kursą, įsisupimą, svyravimą ir sukimąsi. Ši technologija leidžia tiksliai aptikti laivo judesius, garantuojant patikimą kurso išlaikymą ir greitą reakciją į besikeičiančias sąlygas. Skirtingai nuo ankstesnės kartos pilotų, naudojusių mažiau išsivysčiusius fluxgate jutiklius, EV-1 panaikina būtinybę atlikti sudėtingą kalibravimą ir užtikrina stabilius duomenis skaičiuokliui net audringoje jūroje.

SeaTalk NG valdymas ir ryšys

ACU-100 pavaros valdymo blokas specialiai suprojektuotas 0.5 tipo pavaroms, tokioms kaip šiame rinkinyje įtrauktas vairo rato pavara. Jis teikia energijos ir valdymo sąsają tarp SeaTalk NG tinklo ir autopiloto pavaros bloko. Maitinamas 12 V DC, ACU-100 skirtas taikymams, kuriuose elektros energijos suvartojimas yra svarbus veiksnys. p70s valdymo blokas, su spalvotu ekranu ir specialiais mygtukais, siūlo intuityvią naudotojo sąsają visoms autopiloto funkcijoms valdyti. Visa sistema bendrauja naudodama Raymarine SeaTalk NG protokolą – plug-and-play tinklą, supaprastinantį įrengimą ir integraciją su kitais Raymarine prietaisais.

Padėtis Raymarine Evolution serijoje

Evolution Wheel Pilot sistema su ACU-100 pozicionuojama kaip integruotas sprendimas mažų ir vidutinio dydžio burlaiviams su vairo ratu. Ji skiriasi nuo Evolution rinkinių, apimančių ACU-200, ACU-300 ar ACU-400, skirta didesniems laivams, reikalaujantiems galingesnių hidraulinio ar tiesiaeigio pavarų. Kol tokių sistemų kaip Raymarine ST1000/2000 su vairo svirtimi pakanka mažiesiems laiveliams ar lengviesiems kruizininkams, T70152 siūlo aukštesnį našumo, integracijos ir funkcionalumo lygį, panašų į Garmin Reactor 40 sistemoms su vairo ratu, tačiau su Raymarine SeaTalk NG ekosistema. Šis rinkinys idealus navigatoriams, ieškantiems patikimos pilotavimo pagalbos be didelio dydžio ar sudėtingumo, būdingo didesnėms sistemoms.

Documentation

Type	Nom
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Gabarit de montage - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Document technique - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	FR - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Gabarit de montage - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Gabarit de montage - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Manuel d'utilisation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Document technique - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	FR - Manuel d'utilisation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	FR - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Declaration de conformite - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Gabarit de montage - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Notice d'installation - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive
	EN - Document technique - Evolution Wheel Pilot avec boîtier de commande p70s, ACU-100 & Wheel Drive

Expert review

Pol CONIN

Digital Manager

« Technical analysis: Raymarine Evolution Wheel Pilot autopilot for wheel-steered sailboats »

The Raymarine Evolution Wheel Pilot T70152 is a relevant autopilot solution for wheel-steered sailboats between 8 and 12 meters, typically coastal cruisers or light offshore units. This complete system eliminates guesswork in component selection by providing a consistent, integrated platform from the start. Its main advantage lies in the ease of installation and the performance of the EV-1 sensor, which, thanks to its nine axes, delivers drift-free heading data acquisition without requiring complex calibration—a significant time-saver during commissioning.

The ACU-100 is specifically designed for low-power drives such as the included Wheel Drive. Its compact footprint makes it easier to integrate into lockers or confined technical spaces, a common challenge on sailboats of this size. It is critical to mount the EV-1 sensor away from any magnetic interference (speakers, electric motors, ferrous masses) to ensure accuracy. Installing the Wheel Drive requires precise alignment with the wheel to ensure smooth, unconstrained mechanical operation. SeaTalk NG connectivity greatly simplifies wiring and interconnection with other Raymarine instruments, but it is essential to plan a robust, properly powered SeaTalk NG backbone.

This kit differs from Evolution systems with ACU-200 or ACU-400, which are sized for higher-capacity hydraulic or linear drives and larger vessels. The T70152 is optimized for the needs of wheel-steered sailboats, offering a more integrated and performant alternative to traditional tiller pilots without the complexity or cost of an oversized system. It is not suitable for large sailboats or those requiring higher steering power or redundant sensors. For optimal installation, pay close attention to balancing the wheel and reducing friction in the steering system to maximize Wheel Drive efficiency.

Durabilité

Facilité d'installation

Rapport performance / prix

Payment and security

Your payment information and data are processed securely.

Evolution Wheel Pilot su p70s valdymo bloku, ACU-100 ir Wheel Drive

1.952,44€

1.952,44€ ~~2.274,00€~~

Frequently asked questions

Need help? Contact us

What are the main components included in the Raymarine Evolution Wheel Pilot T70152 system?

The Raymarine Evolution Wheel Pilot T70152 system is a complete kit that includes several essential components for your autopilot. It consists of the following elements:

The Evolution EV-1 intelligent sensorThe ACU-100 actuator control unitThe p70s control head with its color displayA dedicated wheel drive

For which type of sailboat is the Raymarine Evolution Wheel Pilot autopilot designed?

The Raymarine Evolution Wheel Pilot T70152 autopilot is specifically designed for sailboats equipped with a wheel. It provides a steering solution suitable for mid-sized cruising sailboats.

What are the location requirements for installing the EV-1 sensor?

When installing the EV-1 sensor, it is important to meet certain location requirements to ensure proper operation. The sensor must be mounted at a safe distance from any magnetic compass and must also comply with EMC (Electromagnetic Compatibility) installation guidelines to avoid interference. A stable position, protected from excessive vibration, is also recommended.

What is the required supply voltage for the ACU-100 actuator control unit?

The ACU-100 actuator control unit is designed to operate with a 12 Volt DC power supply. It is critical to ensure the supplied power matches this specification to prevent system damage.

Which communication protocol does the Raymarine Evolution Wheel Pilot system use?

The entire Raymarine Evolution Wheel Pilot T70152 system communicates via Raymarine's SeaTalk NG protocol. This plug-and-play network greatly simplifies installation and integration with other compatible Raymarine instruments.

Does the Evolution EV-1 sensor require complex calibration after installation?

No, one of the major improvements of the Evolution EV-1 sensor is that it eliminates the need for complex calibration. Thanks to its 9-axis sensor technology, it provides stable data for the autopilot without the complicated calibration procedures required by fluxgate sensors from previous generations.

Is the ACU-100 actuator control unit compatible with other types of autopilot drives?

The ACU-100 actuator control unit is specifically sized for type 0.5 drives. This includes the wheel drive provided in this kit. For other types of drives, it is recommended to check their compatibility with the ACU-100 specifications.
