Daugkabelių horizontalus praėjimo lizdas Ø15mm – juodas

Name: Daugkabelių horizontalus praėjimo lizdas Ø15mm – juodas
Brand: Scanstrut
SKU: DS-H-MULTI-BLK
Price: 60.40 EUR
Availability: InStock

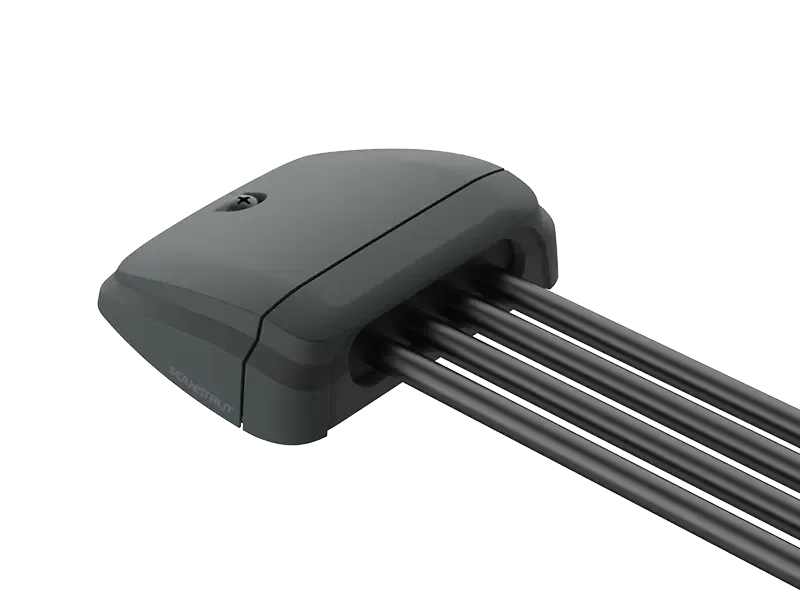

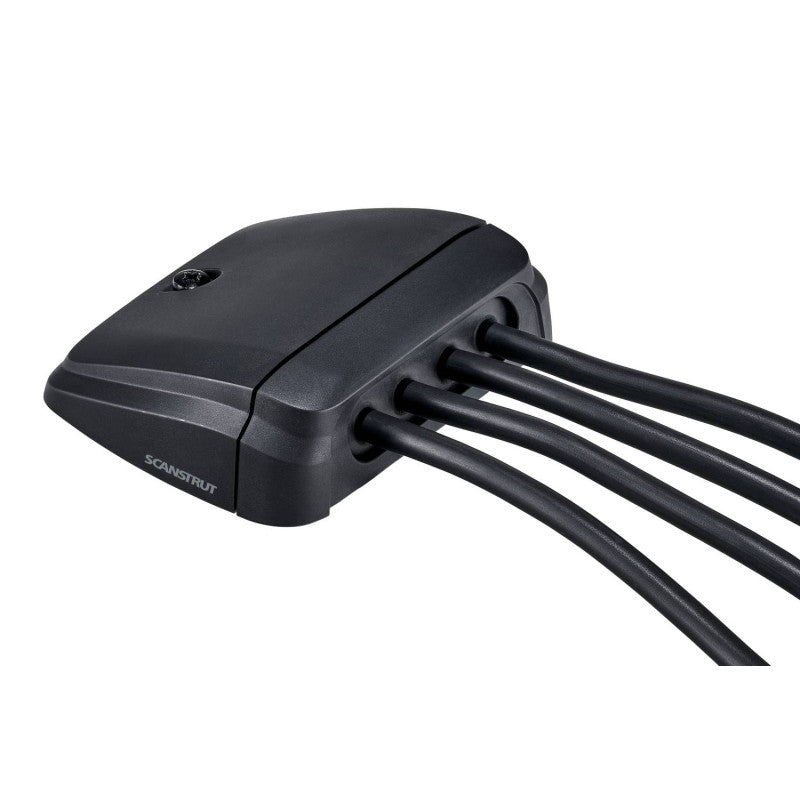

The Scanstrut DS-H-MULTI-BLK multi-cable gland allows watertight passage of multiple cables up to Ø15mm through a deck or bulkhead. IP68 certified, it is made of high-strength UV and impact-resistant plastic. The kit includes the base, cover, gasket, rubber blanking plug to drill, mounting screws, and cutting template.

Public priceGet pro pricing

60,40€

Su PVM Siuntos skaičiuojamos apmokėjimo metu.

Sandėlyje

Free pickup point from 150€ in France
Pickup at Skysat possible

Custom installation

Trust Skysat to install the equipment on board

Request a quote

Installers near you

through our network of certified installers

Find an installer

Support service

Choose additional assistance for installation

Technical specifications

Minimalus kabelio skersmuo (mm)	5.0
Maksimalus kabelio skersmuo (mm)	15.0
Maksimalus jungties skersmuo (mm)	44.0
Gręžimo dregžlės skersmuo	44.0
Montavimo tipas	Horizontal
Medžiaga	Composite
IP klasifikacija	IP68
Dalijamas	No
Sandiklių medžiaga	Rubber
Minimalus sandiklio storis	1.5
Sertifikatai	IP68
Įtraukto tvirtinimo tipo	Self-tapping screws #6 x 19mm, M5 x 12mm countersunk Pozidriv head screws
Sandarinimo tarpelio medžiaga	Rubber
Įtrauktas įrengimo šablonas	Yes
Didžiausias kabelio skersmuo	15
Minimalus kabelio skersmuo	5
Fiksuojančiųjų skylių skersmuo	2.5 (soft materials), 3 (hard materials), 4 (metal)
Montavimo paviršiaus medžiagos suderinamumas	Plywood, Fiberglass, Hardwood, Acrylics, Steel, Aluminum
Paketo turinys	1x Base, 1x Cover, 1x Gasket, 1x Plug, 4x #6 Self-tapping screws, 3x M5 screws
Minimalus panelio storis	4
Produkto aukštis	70
Produkto ilgis	114.8
Produkto tipas	Multiple horizontal cable gland
Produkto plotis	97.6
Atspalvumo druskingam rūkui atsparumas	Yes
Reikalinga silikono pasta	Yes
UV atsparumas	Yes

Detailed description

Scanstrut DS-H-MULTI-BLK daugkabelių horizontalus praėjimo lizdas – profesionalios sandarumo sprendimas, skirtas kelių kabelių (iki Ø15mm) pravedimui per denį ar pertvarą. Patikimas IP68 sertifikatas užtikrina visišką apsaugą nuo vandens įsiskverbimo, net esant panardintomis sąlygomis. Pagamintas iš UV ir smūgių atsparios plastiko, tinkamas atšiaurioms jūrinėms sąlygoms.

Įrengimas ir suderinamumas

Sistema sudaryta iš pagrindo, dangčio, sandarumo tarpiklio ir gumos kamščio, kurį galima pradurti. Įrengimui reikalingas Ø44mm praėjimo anga ir 6 montavimo skylės. Gumos kamštį lengva pradurti naudojant grąžtą, parinktą pagal kabelių diametrą. Produktas komplektuojamas su savisrieginėmis varžtais nr. 6 minkštiems medžiams (fanera) ir M5 varžtais kietiems medžiams (stiklo pluoštas, metalas). Įrengimo instrukcijoje pateiktas šablonas padės tiksliai pozicionuoti įrenginį.

Scanstrut asortimento pozicija

Šis DS-H-MULTI-BLK modelis skiriasi nuo Scanstrut vienkabelių praėjimo lizdų (pvz., DS-H-SGL-BLK) tuo, kad priima kelių kabelių grupę viename korpuse. Idealiai tinka instrumentų, jutiklių ar antenų kabelių pluoštams. Palyginti su konkurentais (Blue Sea Systems, Marinco), Scanstrut DS-H-MULTI-BLK siūlo optimalų sandarumo/įrengimo paprastumo santykį dėl praduriamojo kamščio sistemos ir priešmontuoto tarpiklio.

Payment and security

Your payment information and data are processed securely.

Daugkabelių horizontalus praėjimo lizdas Ø15mm – juodas

60,40€

Frequently asked questions

Need help? Contact us

What is the maximum cable diameter that the Scanstrut DS-H-MULTI-BLK cable gland can accommodate?

This cable gland is designed to accommodate multiple cables, each with a diameter up to Ø15mm (0.59”).

Is this cable gland designed for one or multiple cables?

The Scanstrut DS-H-MULTI-BLK cable gland is specifically designed for passing multiple cables simultaneously, thanks to its rubber plug that can be drilled out.

What is the waterproof certification of this Scanstrut cable gland?

This cable gland has an IP68 waterproof certification, ensuring full protection against dust and prolonged immersion in water.

What material is the Scanstrut DS-H-MULTI-BLK cable gland made of?

The cable gland is made from high-impact, UV-stable plastic, ensuring durability and suitability for demanding marine environments.

What is the color of this multiple horizontal cable gland?

The Scanstrut DS-H-MULTI-BLK cable gland is black in color.

What mounting hole diameter is required to install this cable gland?

Installing this cable gland requires a through-hole with a diameter of Ø44mm (1¾”).

How to prepare the rubber bung before drilling holes for cables?

It is recommended to freeze the rubber bung at -18°C before drilling. It is also advisable to drill the bung on scrap material for better stability.

What drill bit size is recommended for drilling the rubber plug?

To drill the rubber plug, the drill bit diameter must be equal to the cable diameter plus 1.5 mm. The maximum cable diameter is Ø15 mm.

Which mounting screws are included in the cable gland kit?

The kit includes:

4 self-tapping screws #6 x 19, suitable for soft materials such as plywood. 3 M5 x 12 screws with Pozi heads, suitable for hard materials such as fiberglass or hardwoods.

Which screws are recommended for installation on a metal bracket?

For installation on a metal bracket (steel, aluminum), use M4 countersunk bolts longer than 12mm with a washer and Nyloc nut. These bolts are not included in the kit.

What is the minimum material thickness for installing this cable gland?

The minimum thickness of the material on which the cable gland will be mounted must be 4mm (0.15”).

Is the Scanstrut DS-H-MULTI-BLK cable gland UV-resistant?

Yes, this cable gland is made from a UV-stabilized plastic, ensuring durability and resistance to external elements, including prolonged sun exposure.

Is the cutting template provided with the cable gland?

Yes, a cutting template is provided in the installation manual to simplify positioning and precise hole drilling.

Is this cable gland suitable for use on a boat deck?

Yes, the Scanstrut DS-H-MULTI-BLK cable gland is designed as a professional sealing solution for running cables through a deck or bulkhead on marine vessels.

How is the watertight integrity of the cable gland ensured around the cables?

Watertight integrity is ensured by a rubber gland with a hole that can be drilled to match the exact diameter of your cables, along with a sealing gasket that is placed under the base of the cable gland during installation.

Can the cable gland be used for cables of different sizes simultaneously?

Yes, provided each cable has a maximum diameter of Ø15mm, the rubber plug can be drilled with bits of different sizes to accommodate various cable diameters passing simultaneously through the same cable gland.

Are there specific tips for drilling mounting holes based on the material?

Yes, pilot hole diameters for mounting fasteners vary by material:

For soft materials (e.g., plywood): Ø2.5mm (3/32”). For hard materials (e.g., fiberglass, hardwoods, acrylics): Ø3mm (1/8”). For metal (e.g., steel, aluminum): Ø4mm (5/32”).
