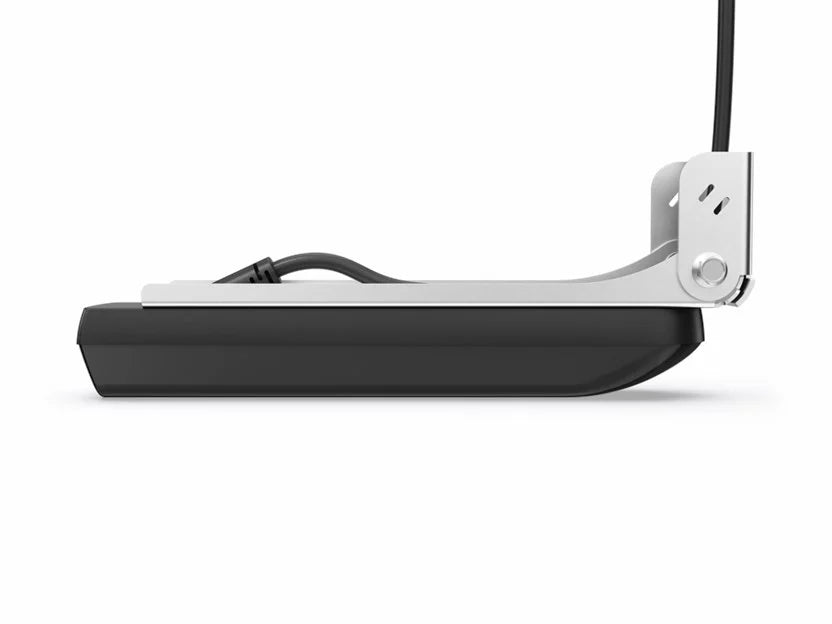

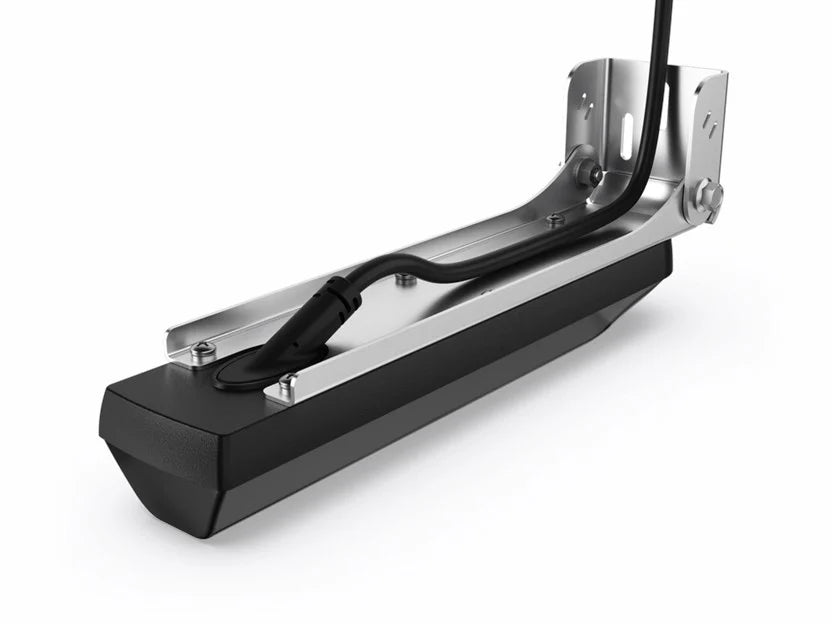

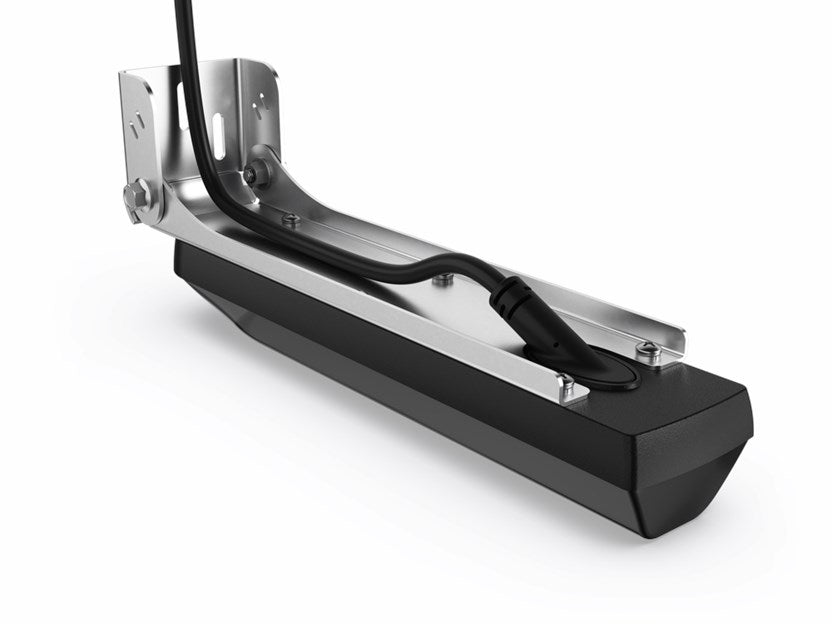

ActiveImaging™ HD 3-in-1 (M/H) - SideScan Fish Reveal

The Lowrance ActiveImaging™ HD 3-in-1 depth sounder integrates several advanced imaging technologies for detecting fish and underwater structures:

CHIRP sonar with medium and high frequencies.SideScan HD imaging for detailed lateral views.DownScan HD imaging for exceptionally clear views beneath the boat.The FishReveal™ feature, available for DownScan and SideScan, which overlays CHIRP fish arches on DownScan or SideScan images.

This transducer's CHIRP fishfinder operates on two frequency ranges:

83 kHz for CHIRP medium. 200 kHz for CHIRP high.

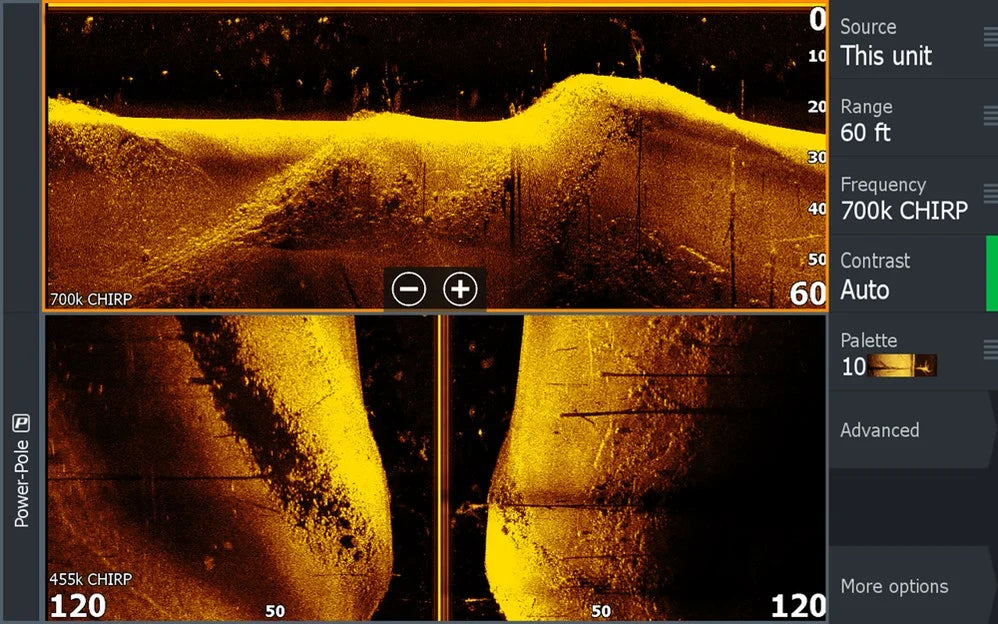

The ActiveImaging™ HD DownScan technology uses the following CHIRP frequencies for high-definition imaging beneath the boat:

700 kHz CHIRP, 1200 kHz CHIRP.

For SideScan HD side imaging, this transducer uses the following CHIRP frequencies:

455 kHz CHIRP. 1075 kHz CHIRP.

In CHIRP Sonar mode (83 kHz/200 kHz), the ActiveImaging™ HD 3-in-1 depth sounder can reach a maximum depth of 305 meters.

Depth and range capabilities for DownScan and SideScan imaging are as follows:

DownScan: Up to 46 meters at 700 kHz. Up to 27 meters at 1200 kHz. SideScan: Lateral range up to 91 meters at 455 kHz. Lateral range up to 46 meters at 1075 kHz.

The FishReveal™ function combines traditional CHIRP depth sounder data with high-resolution DownScan or SideScan images. It overlays clear fish arches from CHIRP onto the detailed DownScan or SideScan views, making it much easier to identify fish relative to underwater structures.

FishReveal DownScan is available directly on HDS PRO displays. FishReveal SideScan requires the addition of the S3100 module (sold separately).

The ActiveImaging™ HD 3-in-1 transducer comes with a 7.6-metre (25-foot) cable.

The weight of the ActiveImaging™ HD 3-in-1 transducer (SKU: 000-16060-001) is 1.2 kg (2.64 lbs).

The ActiveImaging™ HD depth sounder is designed to operate within an extended temperature range:

Operating temperature: From -15 °C to +55 °C (from +5 °F to +131 °F).
Storage temperature: From -30 °C to +70 °C (from -22 °F to +158 °F).

To achieve the best performance from the sounder, the recommended maximum operating speeds are:

For CHIRP fishfinder (high-speed bottom tracking): up to 48 knots (55 mph). For DownScan and SideScan technologies (detailed imaging): up to 9 knots (10 mph).

The ActiveImaging™ HD 3-in-1 transducer provides several essential data types for navigation and fishing:

CHIRP sonar data.Detailed SideScan imaging.High-resolution DownScan imaging.Water temperature.

This transducer is designed to be installed in different ways to fit your boat's configuration. Possible mounting options include transom mounting and transom-skirt mounting.

The mounting kit included with the depth sounder contains the following items:

3 mounting screws for the transom (#10 x 1-1/4").3 flat washers #10 for the transom mounting screws.2 mounting bracket assembly bolts, M6 flange head.2 M6 flange nuts for bracket assembly.6 depth sounder mounting screws M4.6 depth sounder mounting washers M4.2 cable ties, to secure the cable if necessary.

The following tools and supplies (not included) are required for installing the depth sounder:

A drill.A 3 mm (1/8") drill bit.A Phillips screwdriver.High-quality marine adhesive/sealant for below-waterline applications.Two 10 mm wrenches.

For passing the depth sounder cable through the hull or transom, a 26 mm drilling diameter is recommended.

The FishReveal DownScan feature of this transducer is directly compatible and available on Lowrance HDS PRO displays, allowing CHIRP fish arches to be overlaid on DownScan imagery.

Yes, to use the FishReveal SideScan function with this transducer, the S3100 module is required. This module is sold separately.

The ActiveImaging™ HD 3-in-1 transducer is equipped with a 9-pin connector, ensuring a reliable connection to your compatible device.

Yes, this transducer can be installed on an aluminum hull. However, to prevent corrosion between the mounting bracket and the aluminum hull, it is imperative to use a plastic insulating material, such as King StarBoard®, between the two surfaces. M5 metal screws are also recommended for this type of installation.
