Lowrance Ghost 52-inch Electric Motor
Lowrance Ghost 52-inch Electric Motor
In stock
Caractéristiques techniques
Caractéristiques techniques
| Shaft Length | 52 |
| Thrust | 100.0 |
| Motor Voltage | 24V ou 36V |
| Control type | Pédale, Bluetooth, NMEA 2000 |
| Spot Lock | Oui |
| Gps Anchor | Oui |
| Route Following | Oui |
| Integrated Sonar | Oui |
| Wireless Foot Pedal | Oui |
| Saltwater compatible | Oui (avec anode sacrificielle) |
| Max Boat Length | 30.0 |
| Max Gps Speed | 5.0 |
| Noise Level | Silencieux |
| Propeller Type | Weedless |
| Wireless connectivity | Bluetooth, NMEA 2000 |
| Operating voltage | 24V ou 36V |
| IP rating | IPX7 |
| Fishing type | Bass, lac, rivière |
| Warranty years | 2.0 |
| Package contents | Moteur, support de montage, pédale sans fil, câbles d'alimentation, sangle de rangement, visserie, outillage, manuel |
| Product barcode | 9420024178461 |
| Manual document version | 008 |
| Is Brushless Motor | Oui |
| Motor efficiency | Jusqu'à 60% d'autonomie supplémentaire et 25% de poussée en plus |
| Release year | 2023.0 |
| Fishfinder frequencies | 455/800 kHz |
| Steering System Type | Fly-By-Wire |
| Transducer Upgradeable | Oui |
| Weight | 25 |
Description détaillée
Description détaillée

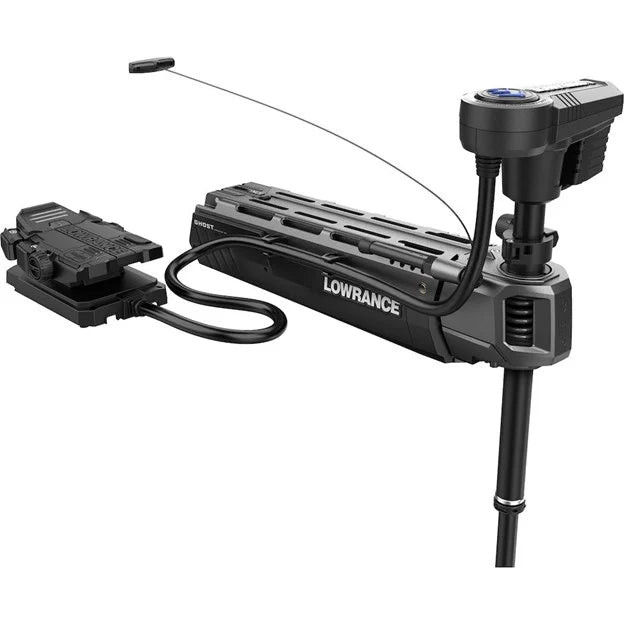

The Lowrance Ghost 52" electric motor (part number 000-14938-001) is specifically designed for freshwater fishing applications, targeting bass boats or walleye boats requiring a high bow. It stands out with its ultra-quiet operation and brushless motor, eliminating electromagnetic interference for optimal sonar image clarity. This model, with a 52-inch shaft length, is a key element of Lowrance’s fishing electric motor range, offering a high-performance alternative to traditional brushed models.
Performance and Efficiency
The Ghost 52" delivers a maximum thrust of 120 lbs at 36V or 97 lbs at 24V, ensuring precise navigation and stable positioning even in windy conditions. Its brushless motor contributes to increased energy efficiency, offering up to 60% more battery life compared to competing brushed motors, and a 25% thrust gain. This technology ensures extended fishing sessions and a discreet approach to fish.
Integration and Advanced Features
Integration is a strong point of the Lowrance Ghost 52". It connects via NMEA 2000 to Lowrance HDS Pro, HDS Live, HDS Carbon, and Elite FS multifunction displays (with the latest software), enabling touch control of steering, speed, route navigation, and anchor function. The HDI sonar integrated into the nose cone provides CHIRP and DownScan Imaging views (455/800 kHz frequencies) and is scalable to an optional Active Imaging 3-in-1 transducer for SideScan. The Fly-By-Wire steering ensures instant and smooth control without physical cables. The configurable foot pedal includes programmable buttons, a reversible switch, a battery level indicator, and quick-access buttons for Anchor and Heading modes. An internal GPS and an external TMC-1 compass are included for precise positioning and heading.
Design and Durability
The motor features a "scissor-style" mounting bracket with a 360-degree breakaway function designed to absorb impacts and automatically reposition the shaft after a collision. Its composite shaft is covered by a lifetime warranty, underscoring the robustness of its design. The stow/deploy mechanism is assisted by a dual-action gas spring, making these operations easier and quieter. While designed for freshwater use, operation in brackish water is possible with the addition of a sacrificial anode to preserve the warranty.
