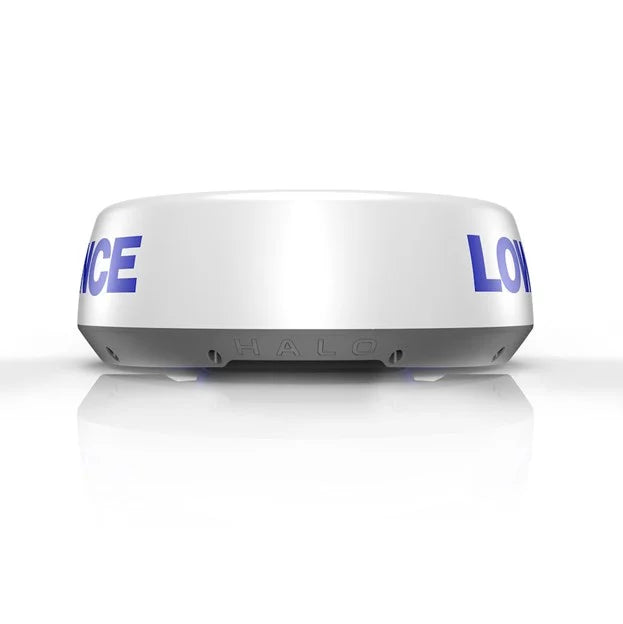

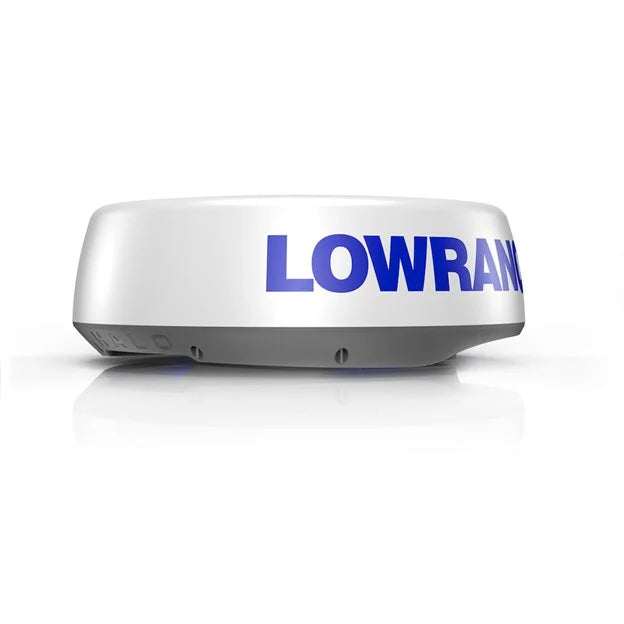

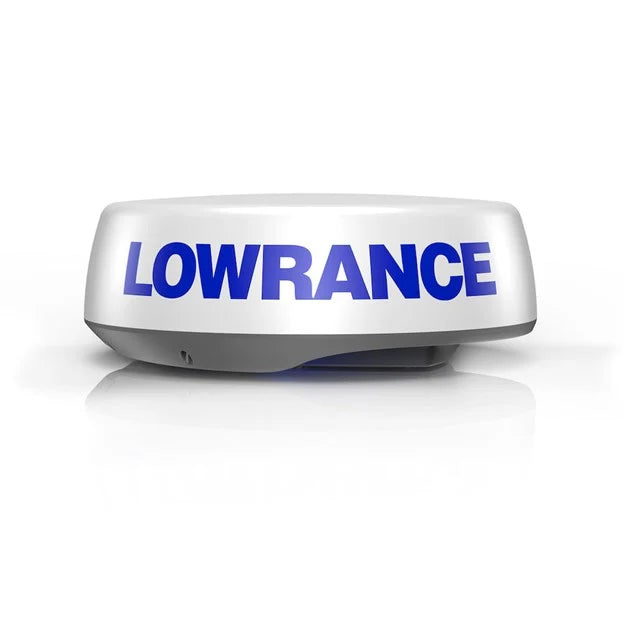

HALO24 Radar
HALO24 Radar
In stock
Caractéristiques techniques
Caractéristiques techniques
| Product diameter | 610 mm |
| Product height | 225 mm |
| Operating voltage | 10.5-31.2 V |
| Maximum power consumption | 29 W |
| Radar technology | Compression d'impulsion, semi-conducteur |
| Max radar range | 48 milles nautiques |
| Recommended fuse rating | 5 A |
| Radar rotation speed | 20-60 tr/min |
| Horizontal beam width | 3.9° (nominal) |
| Waterproof | IPX6 |
| Typical power consumption | 23 |
| Sweep bandwidth | 48 MHz max |
| Pulse length | 0.04-64 µs |
| Compass safe distance | 70 cm |
| Noise figure | Moins de 5 dB |
| Min radar range | 6 m |
| Wired network | Ethernet 100Base-T |
| Operating temperature | -25°C à 55°C |
| MARPA tracking | Oui |
| Radar transmit power | 25 W |
| Radar band | Bande X |
| Antenna type/radome | Radôme |
| Product width | 610 mm |
| Doppler radar technology | Oui |
| Dual-range radar | Oui |
| VelocityTrack radar | Oui |
| Vertical beam width | 22° |
| Peak radar power | 25 W |
| Package contents | Radôme HALO24, câble d'interconnexion, câble adaptateur Ethernet (RJ45 vers 5 broches), fils d'alimentation et de commande, kit de fixation (boulons M8x30, rondelles), kit de retenue de câble, gabarit de montage, manuel d'installation |
| Available alarms | Alarme de collision |
| Antenna Polarization Type | Horizontale |
| Approaching Target Color Code | Codé par couleur |
| Product barcode | 9420024173831 |
| Cable Retainer Included | Oui |
| Horizontal Beam Width Adjustable | Oui |
| Mounting bolt count | 4 |
| Mounting bolt size (metric) | M8x30 |
| Included mounting fasteners type | Boulons hexagonaux |
| Packaged weight kg | 13 |
| Standby power consumption | 3.9 |
| Antenna gain | 23.5 |
| Radar Instanton Feature | Oui |
| Radar Mounting Overall Depth Mm | 233 |
| Radar Range Settings Count | 18 |
| Radar Sweep Rate Description | 360 degrés chaque seconde (jusqu'à 2 nm) |
| Relative humidity | 95 |
Description détaillée
Description détaillée
Designed to provide advanced target detection and collision avoidance, the Lowrance HALO24 radar is a 24-inch pulse-compression radome. It stands out for its solid-state technology, which eliminates the warm-up time of traditional magnetrons, allowing instant start from standby mode. This model operates on the X-band (9.4 to 9.5 GHz) with a peak power of 25 W, offering a detection range from 6 meters to 48 nautical miles (89 km) with 18 range settings.
Advanced Technology for Safety and Performance
The Lowrance HALO24 integrates VelocityTrack™ Doppler technology, which provides instant visual feedback on the movement of radar targets. Approaching vessels are color-coded for better visibility, while those moving away are deprioritized, greatly simplifying collision avoidance without requiring manual target selection. This capability is complemented by the dual-range function, allowing simultaneous monitoring of distant weather conditions and immediate collision risks.
Integration and Technical Specifications
Compared to the Halo20 and Halo20+ models, the HALO24 features a 610 mm diameter and a weight of 6.9 kg (without cable), slightly larger than the 510 mm and 5.9 kg of the smaller versions, offering an antenna with a maximum allowable gain of 23.5 dBi. Its ultra-fast rotation speed of 60 rpm at ranges up to 2 nautical miles ensures a complete 360-degree sweep every second. The radar has a nominal horizontal beam width of 3.9°, sharpenable to 2° with the target separation function in high mode, and a vertical beam width of 22°. It is powered by 10.5–31.2 V DC, with a consumption of 17–29 W in operation and 3.9 W in standby. IPX6 certified, it is designed to withstand harsh marine environments, with an operating temperature range of -25°C to +55°C. Connectivity is via 100Base-T Ethernet, and it is compatible with Lowrance HDS LIVE multifunction displays.
