Příslušenství odolné vodě – jistič 15 A, zásuvka 12 V, dvojité nabíječky USB 2,1 A

The Blue Sea 4363-BSS watertight accessory panel provides a complete 12V DC power and charging solution for marine environments. It includes a circuit breaker, a 12V socket, and a dual USB charger to power and charge your devices.

Yes, the panel is designed to be water-resistant with IP66 protection when properly installed with its EPDM gasket. This means it is protected against powerful water jets. The circuit breaker is also equipped with a silicone cap for additional protection.

The 4363-BSS panel includes the following components:

A Carling Technologies 15A circuit breaker with illuminated On/Off switch and silicone cover. A standard 12V socket. A dual USB charger delivering a total of 2.1A.

This accessory panel is designed to operate only with 12V DC electrical systems.

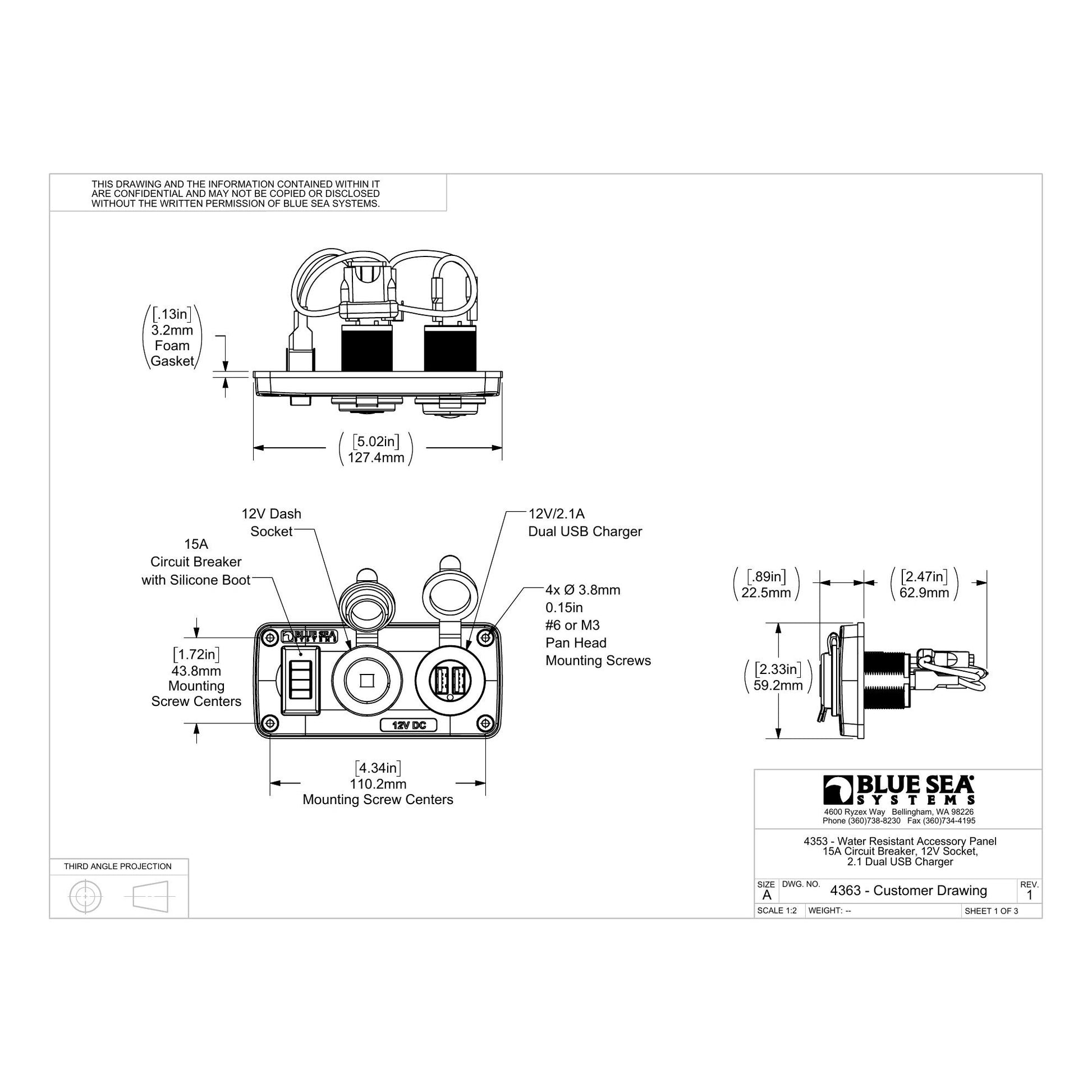

Dimensions of panel 4363-BSS are as follows:

Width: 125.4 mm (4.94 in)Height: 57.2 mm (2.25 in)Depth: 64.3 mm (2.53 in)

The panel face is made of UV-stabilized polycarbonate/ABS. This material is flame-retardant and non-corrosive, ensuring durability in harsh marine conditions.

The panel is equipped with a Carling Technologies 15A circuit breaker. This breaker cuts power in case of overload, protecting your devices and the electrical system.

Yes, the USB charger is a dual charger, meaning it can recharge two mobile devices simultaneously. It delivers a total current of 2.1A.

The panel is supplied with a pre-wired harness to simplify installation. It must be mounted using four #6 or M3 pan-head screws. An EPDM sealing gasket is included to ensure water resistance once installed.

Yes, a 3.2 mm (0.13 in) EPDM foam gasket is included to ensure IP66 waterproofing when the panel is properly installed.

Yes, the Carling Technologies circuit breaker is an illuminated switch that indicates when it is in the "ON" position.

Yes, the integrated 15A circuit breaker with On/Off switch allows you to cut power to the panel, helping to prevent parasitic current draw and battery discharge when not in use.

The built-in circuit breaker is a model from Carling Technologies.

The 4363-BSS model is a pre-configured solution with a circuit breaker, a 12V socket, and a dual USB charger. Unlike other models in the Blue Sea series (such as the 4364, 4367, or 4369) which feature blank openings, the 4363 is not designed for customization with additional modules.

The distances between the centers of the mounting holes are 110.2 mm (4.34 inches) horizontally and 43.8 mm (1.72 inches) vertically.

Yes, the panel face is made of UV-stabilized polycarbonate/ABS, ensuring durability and resistance to degradation from sun exposure.

Yes, the panel is supplied with a pre-wired harness, which simplifies its installation and reduces assembly time.

It is recommended to use #6 or M3 pan-head screws for mounting the panel.

The 4363-BSS panel is CE certified. It is also IP66 rated when properly installed with its sealing gasket.
